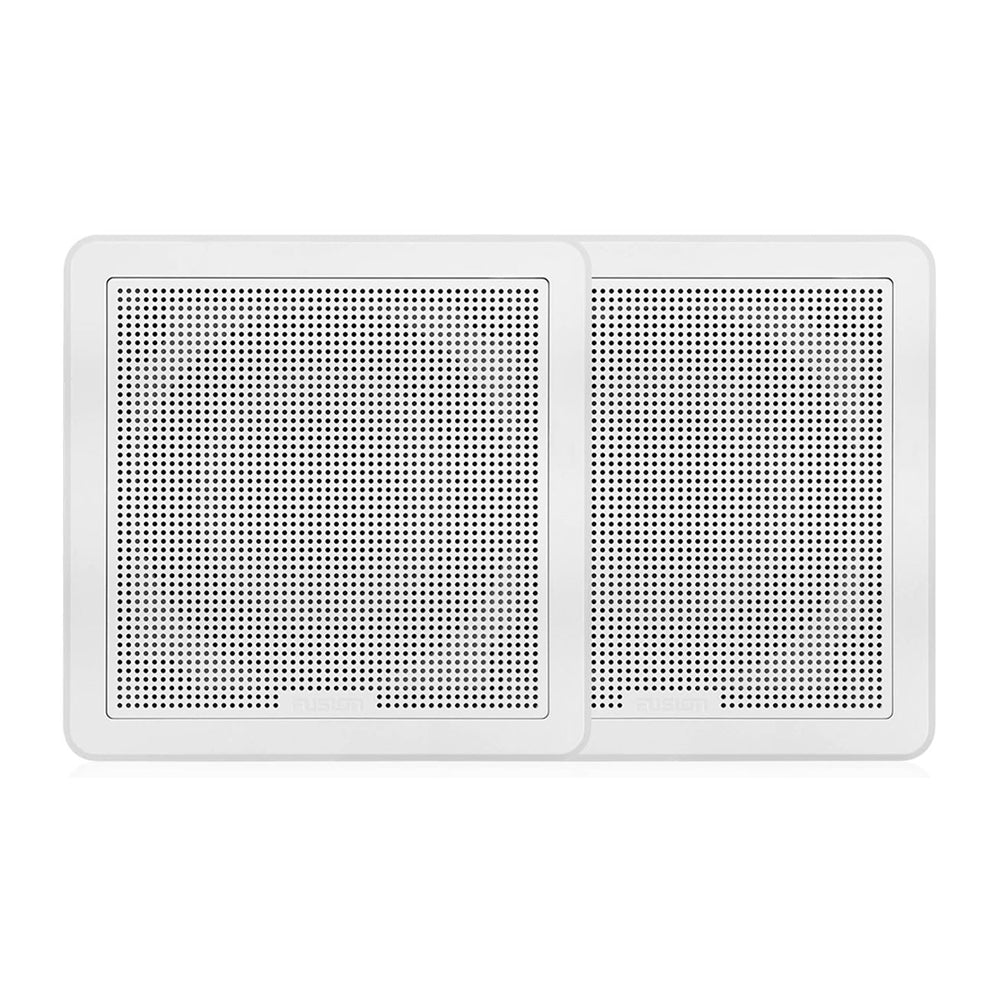

Fusion - FM Series Speakers Square - Flush Mount, 4 Ohms, IP65, 100Hz/18kHz

Innovative Design Meets Superior Sound Quality

Upgrade your vessel's audio experience with the Fusion FM Series 6.5” Square Flush Mount Marine Speakers. Engineered to deliver premium sound while seamlessly blending with modern boat design trends, these speakers offer both performance and style. The square design provides a unique aesthetic that complements any marine environment, ensuring your sound system not only sounds great but looks great too.

Built for the Marine Environment

The FM Series speakers are specifically designed for the rigors of marine life. Featuring Fusion’s True-Marine™ accreditation, these speakers have undergone extensive testing to ensure they withstand the challenges of life at sea, including UV exposure, salt fog, and water ingress. With an IP65 weatherproof rating, these speakers are perfect for both indoor and outdoor installations, providing peace of mind that your audio system will perform reliably season after season.

Sleek Flush Mount Installation

The FM Series speakers feature an innovative flush mount design, offering an ultra-low profile installation with a mounting profile no greater than 2.5mm (3/32”). This near-flat finish enhances the aesthetic appeal of your boat, ensuring a clean, seamless look. The intelligent mounting system also simplifies installation, allowing the speakers to be securely fastened without creating unsightly screw holes in your vessel.

Key Features of the Fusion FM Series 6.5" Square Speakers

• Optimized Marine Audio Performance: Full-range speakers with aluminum dome tweeters deliver clear, dynamic sound across all volumes, optimized for the marine environment.
• Sleek, Minimalist Design: The square flush mount design offers a near-flat installation that complements modern boat aesthetics.
• True-Marine™ Accreditation: Engineered to endure harsh marine conditions, including UV, salt, and moisture, ensuring long-lasting performance.
• IP65 Weatherproof Rating: Suitable for both indoor and outdoor use, with protection against water and dust ingress.
• ISO12216 Compliance: Meets international standards for pressure and water tightness, ensuring safety and durability on board.
• Non-Intrusive Mounting System: Secure installation without the need for additional screw holes, preserving the integrity of your boat’s surfaces.

Technical Specifications

• Speaker Size: 6.5"
• Peak Power: 120W
• RMS Power Rating: 30W
• Efficiency (1W/1M): 87 dB
• Frequency Response: 100 Hz - 18 kHz
• Nominal Impedance: 4 Ohms
• Recommended Amplifier Power (RMS): 15-80W/Ch
• Tweeter Type: Aluminum Dome
• Cone/Surround Material: Polypropylene with rubber surround
• Mounting Diameter Clearance: 138mm x 138mm (5-7/16" x 5-7/16")
• Mounting Depth Clearance: 70mm (2-3/4")
• Optimum Enclosure Volume: 4L (Sealed enclosure, fully filled with absorption material)
• Operating Temperature Range: 0-50°C (32-122°F)
• Storage Temperature Range: -20-70°C (-4-158°F)
• Water and Dust Resistance (IPX rating): IP65
• Warranty: 3 Years

Available Variants for Personalized Marine Audio

To suit various preferences and boat styles, the Fusion FM Series offers several speaker variants. Each variant is crafted with the same dedication to performance and durability, allowing you to tailor your audio system to your specific needs.

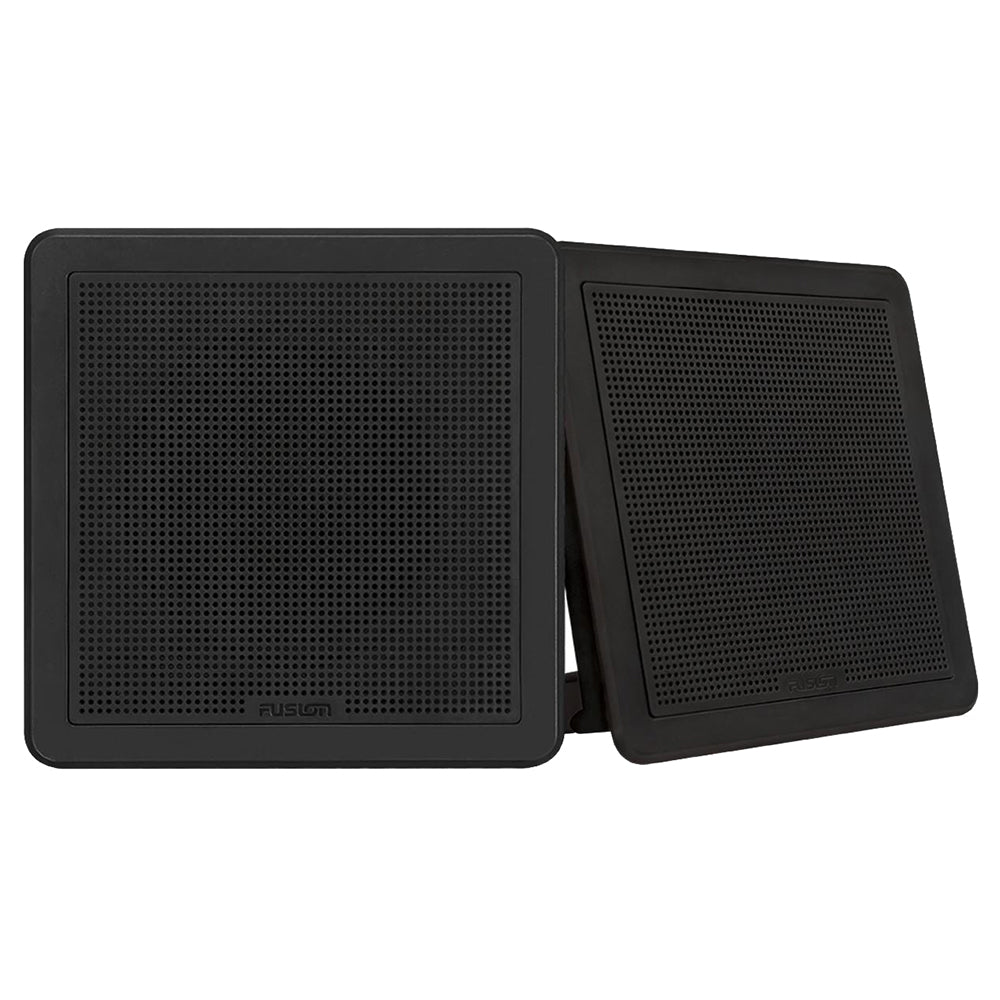

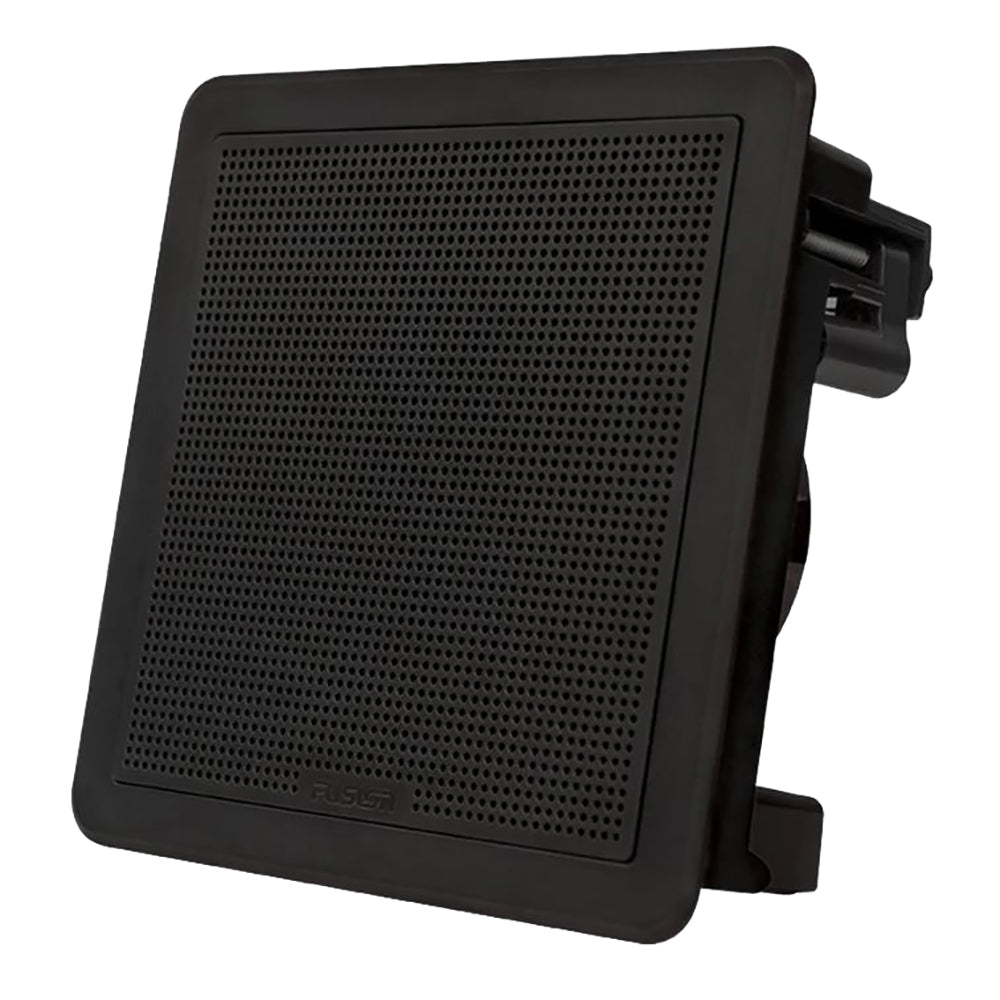

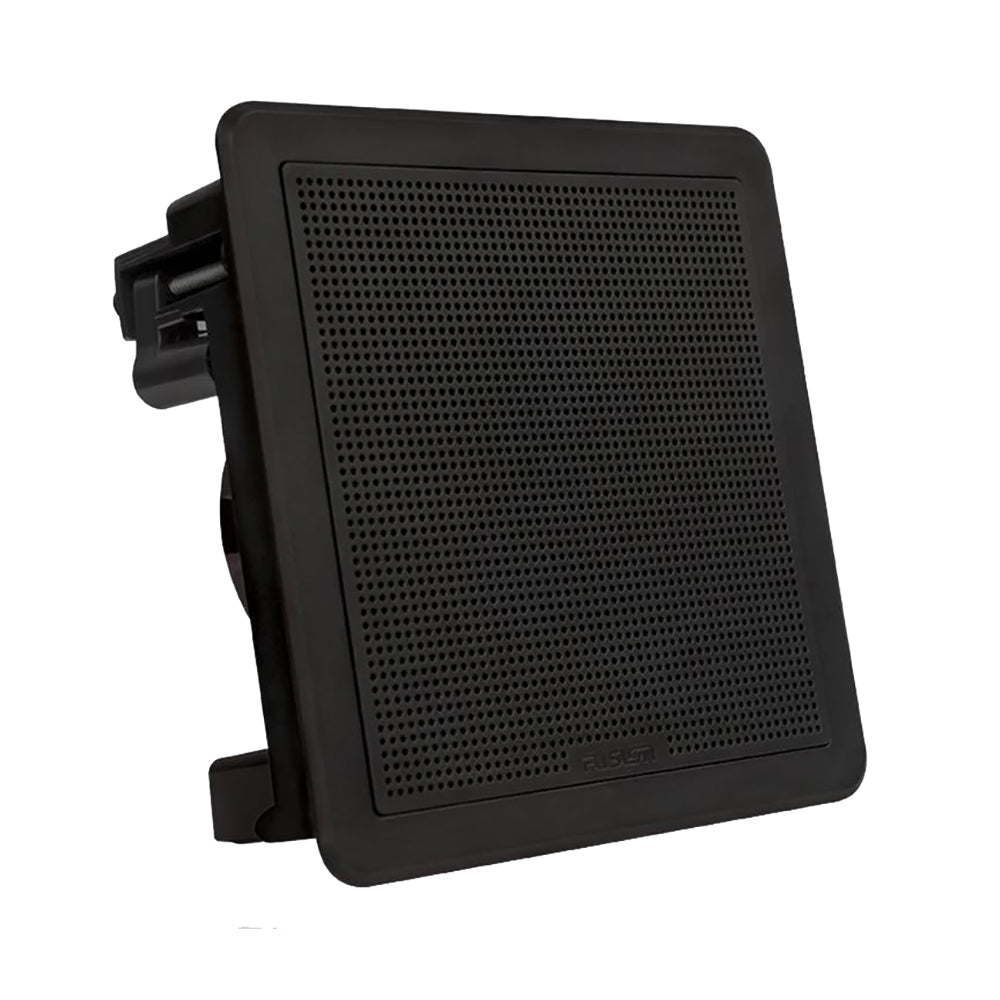

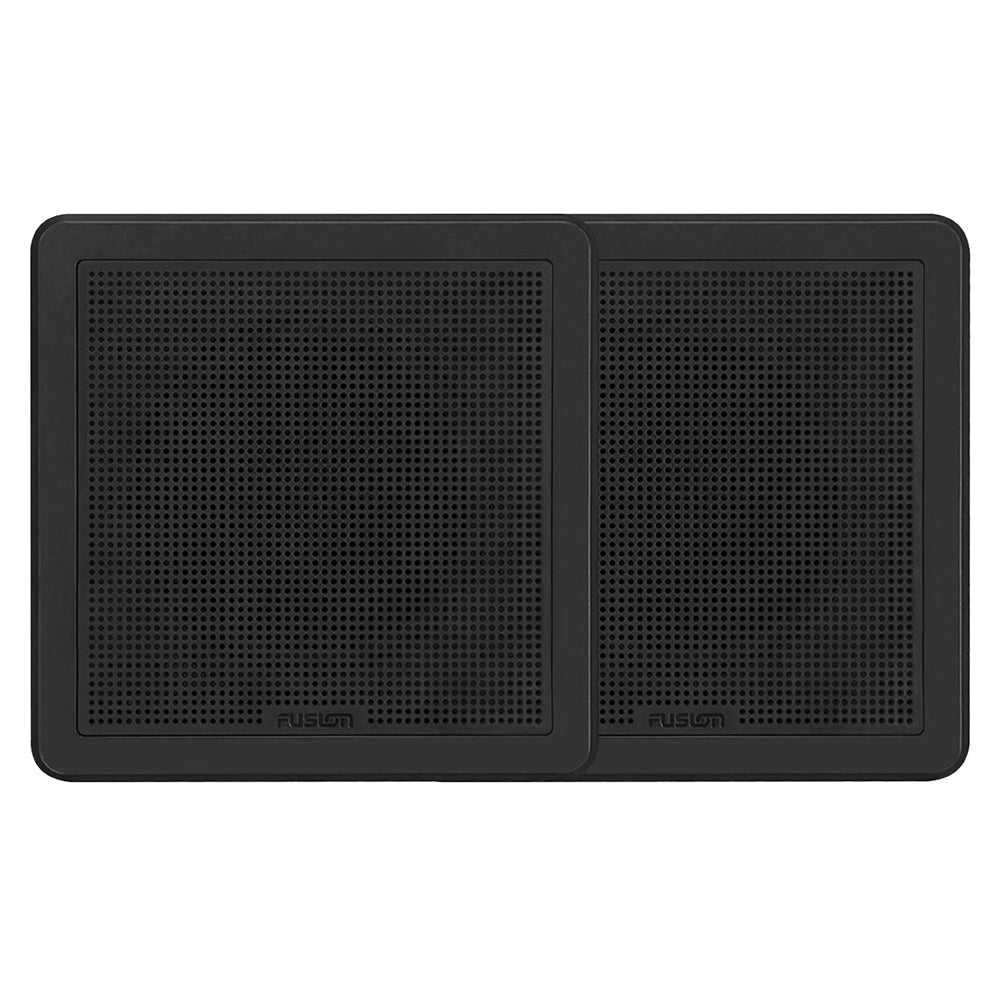

1. 120W / Black / 6.5 Inch - Combines power and sleek design for a modern, sophisticated look.

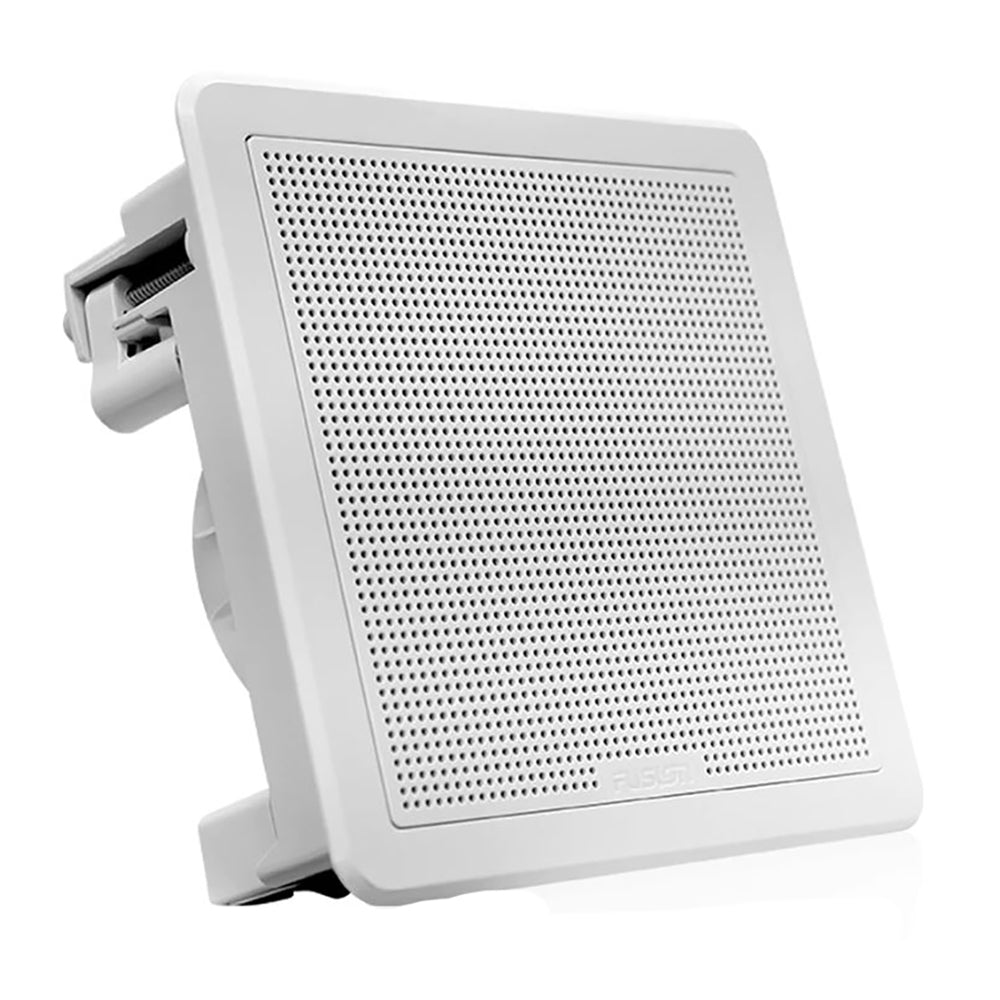

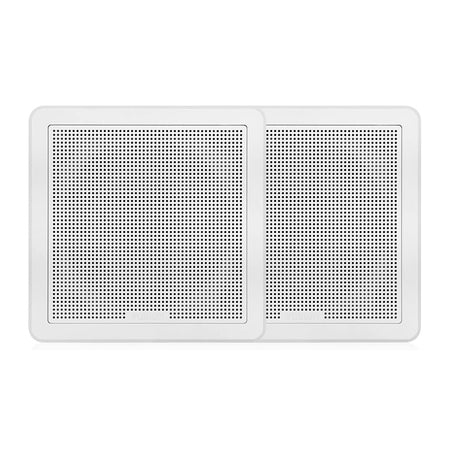

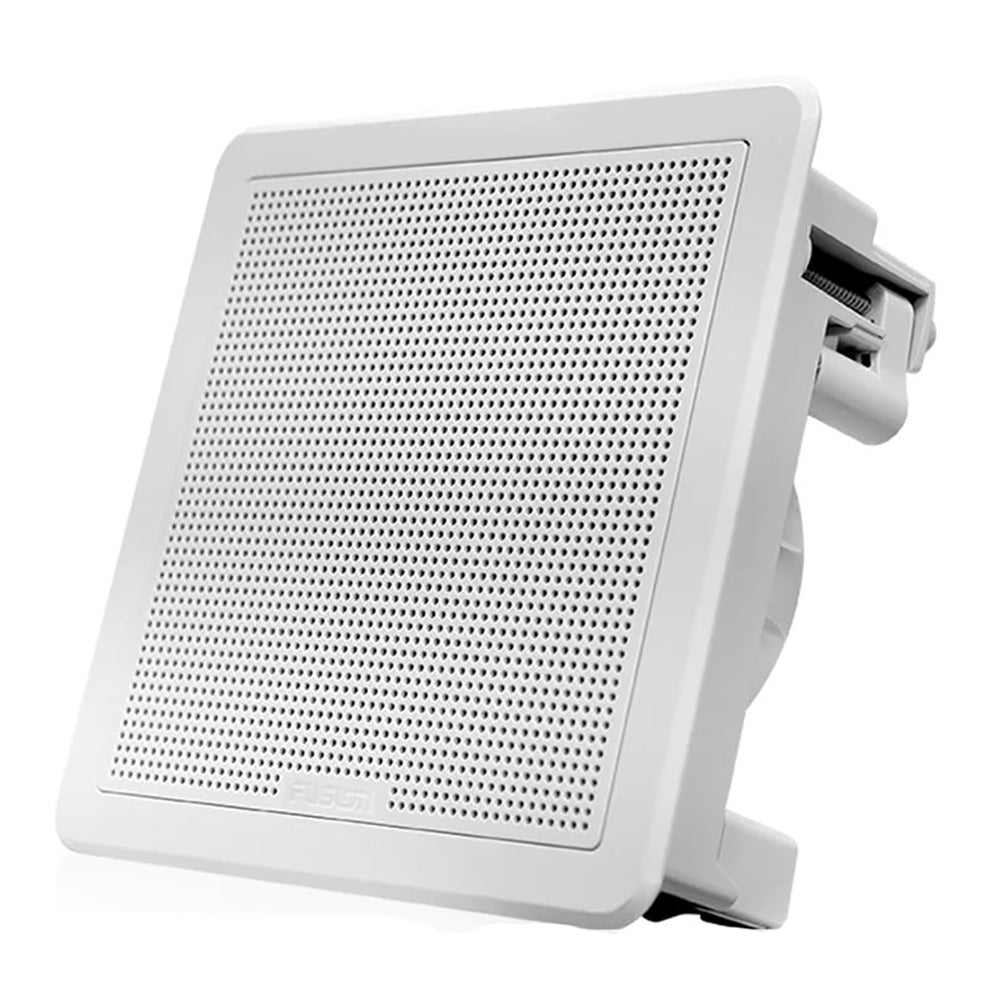

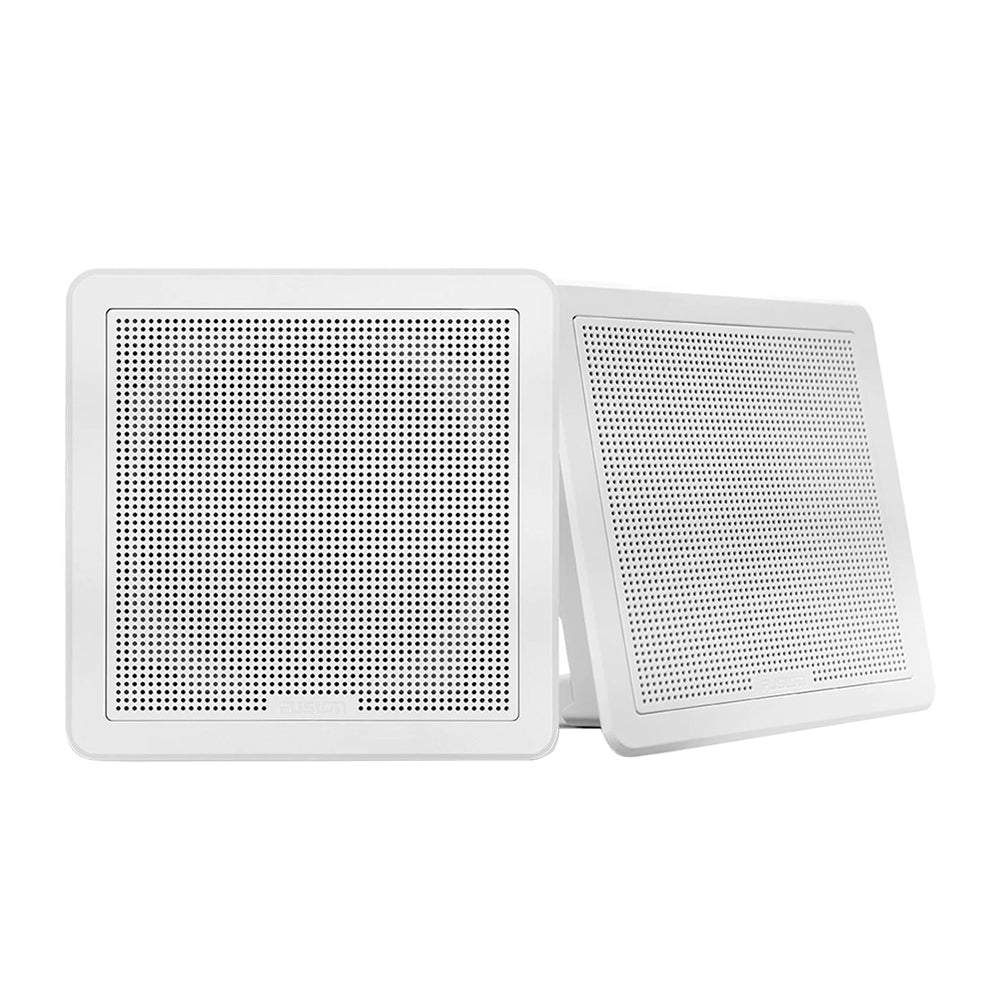

2. 120W / White / 6.5 Inch - Delivers the same performance with a clean, classic white finish.
3. 200W / Black / 7.7 Inch - For those requiring more power and a larger presence, with a stylish black finish.
4. 200W / White / 7.7 Inch - Offers powerful sound with a bright, elegant aesthetic.

Each of these variants is designed to integrate seamlessly with your boat’s existing audio system, ensuring consistent performance and visual harmony.

With the Fusion FM Series 6.5” Square Flush Mount Marine Speakers, you’re investing in more than just sound quality—you’re enhancing the overall ambiance and experience of your time on the water. These speakers combine cutting-edge technology with innovative design, ensuring your marine audio system is as stylish as it is functional.
