Raymarine Bulkhead Fitting Kit, For 4000 Mk2 Wheel Drive

Overview

The Raymarine E15017 is a bulkhead fitting kit for attaching a Raymarine 4000 Mk2 Wheel Drive to a helm installation. It is used when the wheel drive needs to be mounted through a bulkhead or box pedestal rather than in a more open pedestal arrangement.

This kit is a practical installation accessory for sailboats using the Raymarine 4000 Mk2 wheel pilot system. It helps create the correct mounting interface at the helm, keeping the wheel drive positioned where it can engage properly while keeping the installation tidy around the pedestal or cockpit bulkhead.

Key features

• Made for Raymarine 4000 Mk2 Wheel Drive installations.
• Supports bulkhead or box pedestal mounting at the helm.
• Useful for cockpit layouts where the wheel drive must pass through or mount against a fixed surface.
• Helps keep the autopilot drive installation properly supported and visually cleaner around the steering pedestal.
• Includes the hardware needed for the fitting installation, including a bracket, metal ring, rubber seal, and six self-tapping screws.

Installation and fit

This fitting kit is intended for the mechanical mounting side of a Raymarine 4000 Mk2 Wheel Drive installation. Before ordering, confirm that the vessel is using the 4000 Mk2 wheel drive and that the helm layout calls for a bulkhead or box pedestal fitting rather than a standard open pedestal setup.

Because cockpit installations are exposed to movement, vibration, spray, and regular use at the wheel, the mounting surface should be sound and properly prepared before the fitting is installed. Careful alignment matters, since the wheel drive needs to sit squarely and operate without binding.

Use cases on board

This kit is a good match for sailboat owners refitting or repairing a Raymarine 4000 Mk2 wheel pilot installation where the drive is mounted at a pedestal, cockpit box, or bulkhead-style helm. It is also useful when replacing missing or worn mounting hardware during an autopilot service or cockpit refit.

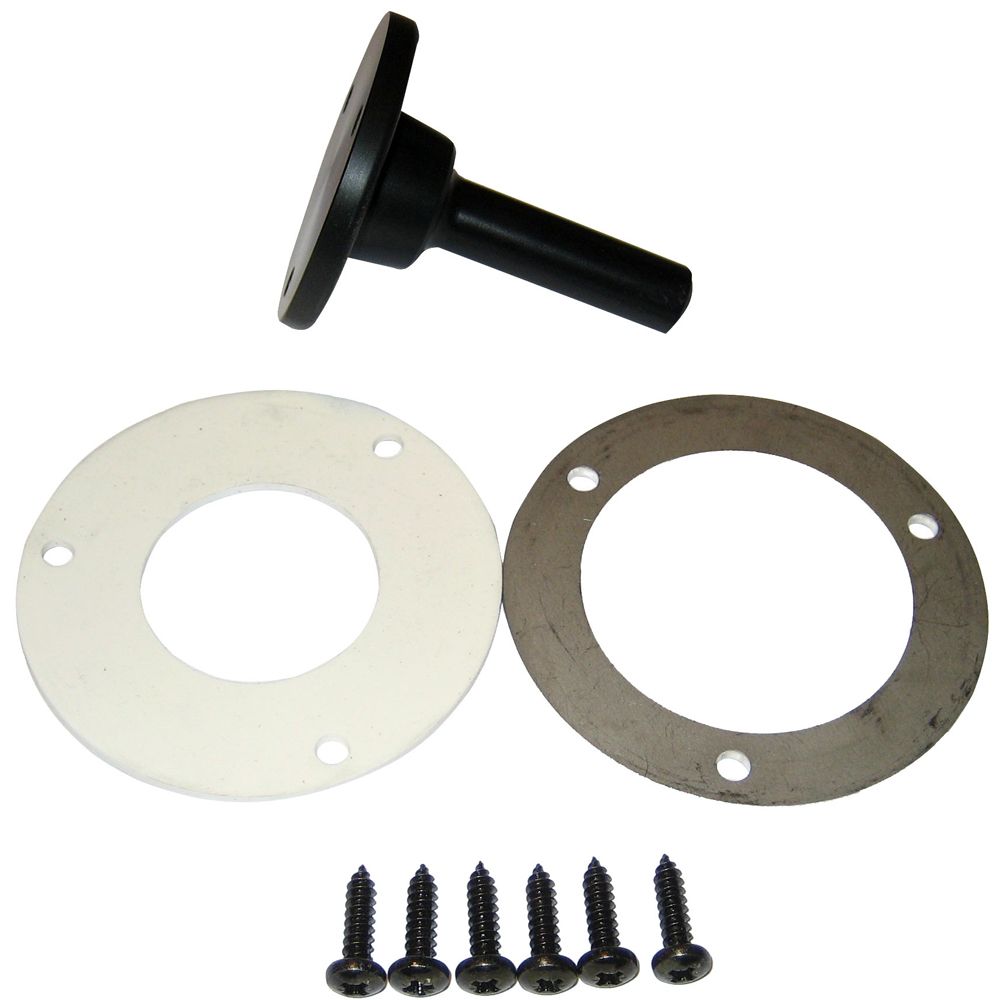

What’s included

• Bracket
• Metal ring
• Rubber seal
• Six self-tapping screws
