Garmin ECHOMAP UHD2 75sv Ice Fishing Bundle, Panoptix PS22-IF LiveVü Forward/Down, Canada Inland & Coastal Charts
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Garmin 010-02686-30 is a portable ECHOMAP UHD2 75sv chartplotter and live sonar bundle built around the Panoptix PS22-IF ice fishing transducer, a carry case, and a rechargeable 7Ah SLA battery.
The 7 in touchscreen with keyed assist stays usable with cold hands, and the kit is rated IPX7 for wet conditions around slush, spray, and quick washdowns. It comes preloaded with Canada inland and coastal charts, and the portable setup is listed at 10.5 x 9.5 x 10.5 in with a weight of 12.2 lb.
On the sonar side, the PS22-IF provides LiveVü Forward and LiveVü Down views so you can watch fish movement and your presentation in real time. The display also supports traditional CHIRP, ClearVü, and SideVü sonar when paired with compatible transducers.
Key features
- 7 in touchscreen with keyed assist for fast page changes and on-the-water control
- Panoptix PS22-IF live sonar with LiveVü Forward and LiveVü Down modes
- Pole-free transducer rotation system for aiming direction and adjusting depth without a pole mount
- Removable transducer lens to switch between wide and narrow beam angles
- Preloaded Canada inland and coastal charts, plus Quickdraw Contours for creating your own 1 ft contour maps
- Built-in GPS with support for GLONASS, Galileo, and BeiDou, plus a 10 Hz receiver update rate
- NMEA 2000 compatible, with built-in Wi-Fi, Bluetooth, and ANT+ for wireless connectivity
- Runs on 9 to 18 Vdc, with a 7Ah SLA battery included for portable power
- Accepts one microSD card up to 32 GB for charts, updates, and data management
Installation and setup
For ice use, set the bag base where it stays stable, lower the transducer below the ice, then use the rotator to aim Forward or Down without adding a pole. The removable lens is handy when you want a wider scan versus a tighter view for tracking a single jig line.
When moving hole to hole, keep the cable routed so it does not twist at the rotator, and rinse off slush and grit before packing the kit back into the bag.
Electrical and system integration
The unit runs from 9 to 18 Vdc, so it can stay portable on the included battery or be powered from a typical 12 V boat system when you move it onboard. NMEA 2000 compatibility supports integration with marine networks, and Wi-Fi, Bluetooth, and ANT+ make it easier to pair with compatible devices and workflows.
Compatibility and fit
The chartplotter supports up to 5,000 waypoints and can save up to 50 tracks with up to 50,000 track points. If you plan to use it beyond ice fishing, confirm your mounting location, cable routing, and transducer choice match the hull style and the sonar views you want to run.
Use cases on board
This bundle fits anglers who fish through the ice and want live sonar they can aim quickly without extra rigging. It also works well for small-boat owners who prefer a portable chartplotter they can move between vessels, as long as the mounting and transducer setup match the boat.
What's included

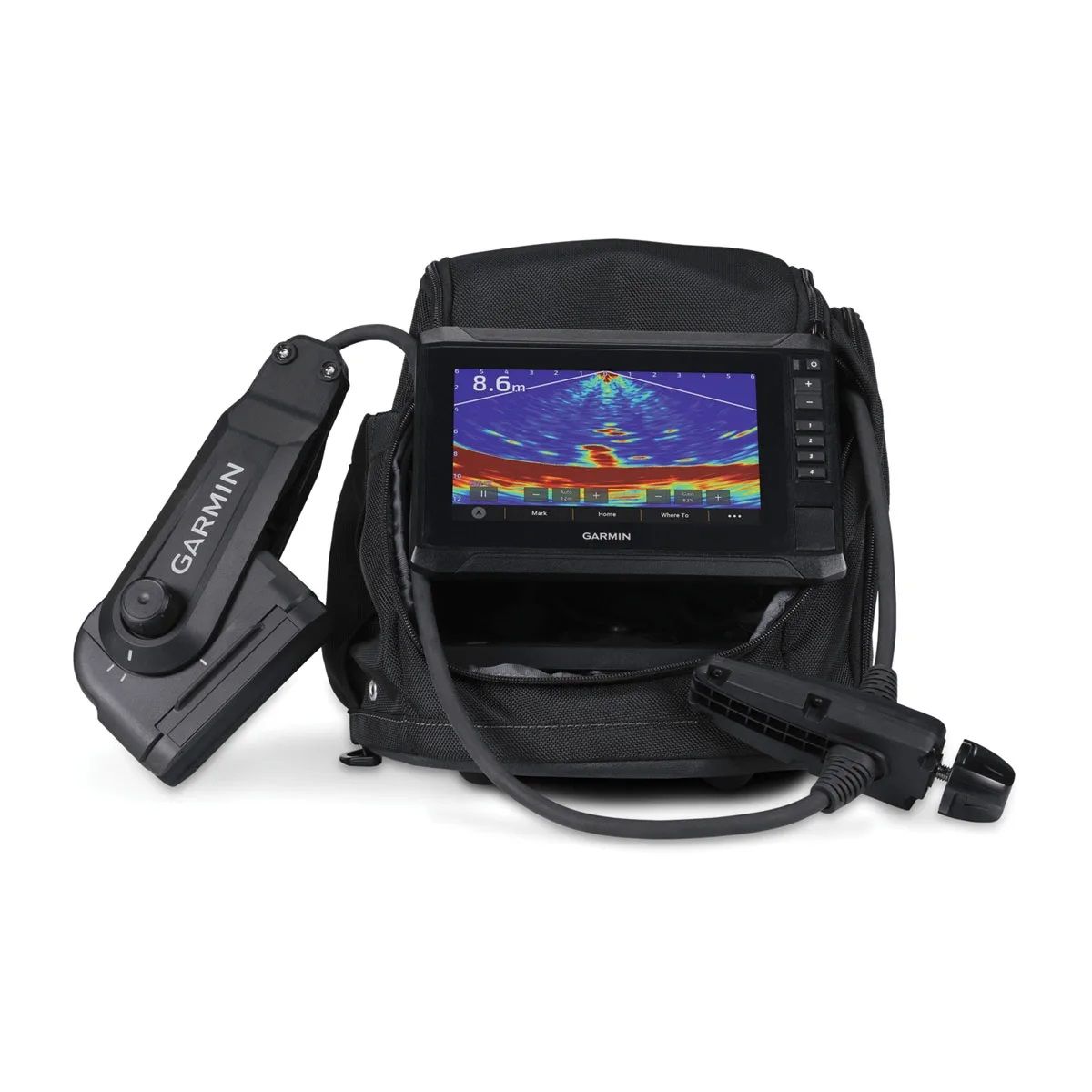

- ECHOMAP UHD2 75sv touchscreen chartplotter with keyed assist
- Canada inland and coastal charts
- Panoptix PS22-IF transducer
- Transducer rotator
- Transducer bracket
- PS22-IF removable lens
- Rechargeable battery
- Charger
- Small bag, base and handle
- Power cable
- Foam float
- Hardware
- Documentation
