Garmin ECHOMAP UHD 9Xsv Boat Kit, GT56UHD-TM Transducer, CHIRP/ClearVü/SideVü Sonar, Tilt/Swivel Mount with Quick-Release Cradle, Power/Data Cable
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Garmin 020-00200-23 is a boat-install kit for an ECHOMAP UHD 9Xsv combo, built around a 9 inch display format and a GT56UHD-TM transom-mount transducer.
It is meant for the common setup where you already own a compatible ECHOMAP UHD unit and want the right transducer, power/data wiring, and mounting hardware to run it on a boat. Sonar coverage is set up for traditional CHIRP plus ClearVü and SideVü scanning.
Key features
- Boat conversion kit for 9 inch ECHOMAP UHD 9Xsv combos, useful when moving a unit from an ice setup to a helm install.
- GT56UHD-TM transom-mount transducer supports traditional CHIRP, ClearVü, and SideVü scanning sonar.
- Tilt/swivel bail mount with a quick-release cradle keeps the display easy to adjust and remove at the dock.
- Includes ECHOMAP power/data cable for a clean, hardwired install.
- Listed compatibility with ECHOMAP UHD 92sv, 93sv, 94sv, and 95sv units.
Compatibility and fit
This kit is for the 9 inch ECHOMAP UHD sv family. Confirm your display model matches the compatible devices list (ECHOMAP UHD 92sv, 93sv, 94sv, 95sv) before ordering, especially if you are converting an ice bundle for open-water use.
The included transducer is a transom-mount style, so it fits boats where the stern has clean water flow at speed. If your hull shape, brackets, or inboard running gear make transom mounting difficult, plan the transducer location carefully before you drill.
Installation and setup
Pick a display location where the mount can swing freely and the screen stays readable from the helm. When you set the quick-release cradle, leave enough service loop in the cable so you can remove the unit without tugging on the connector.
For the transducer, a level install and careful cable routing make the biggest difference. Keep the run tidy, protect it anywhere it passes through a bulkhead, and check the bracket fasteners after the first few trips to account for vibration.
What’s included

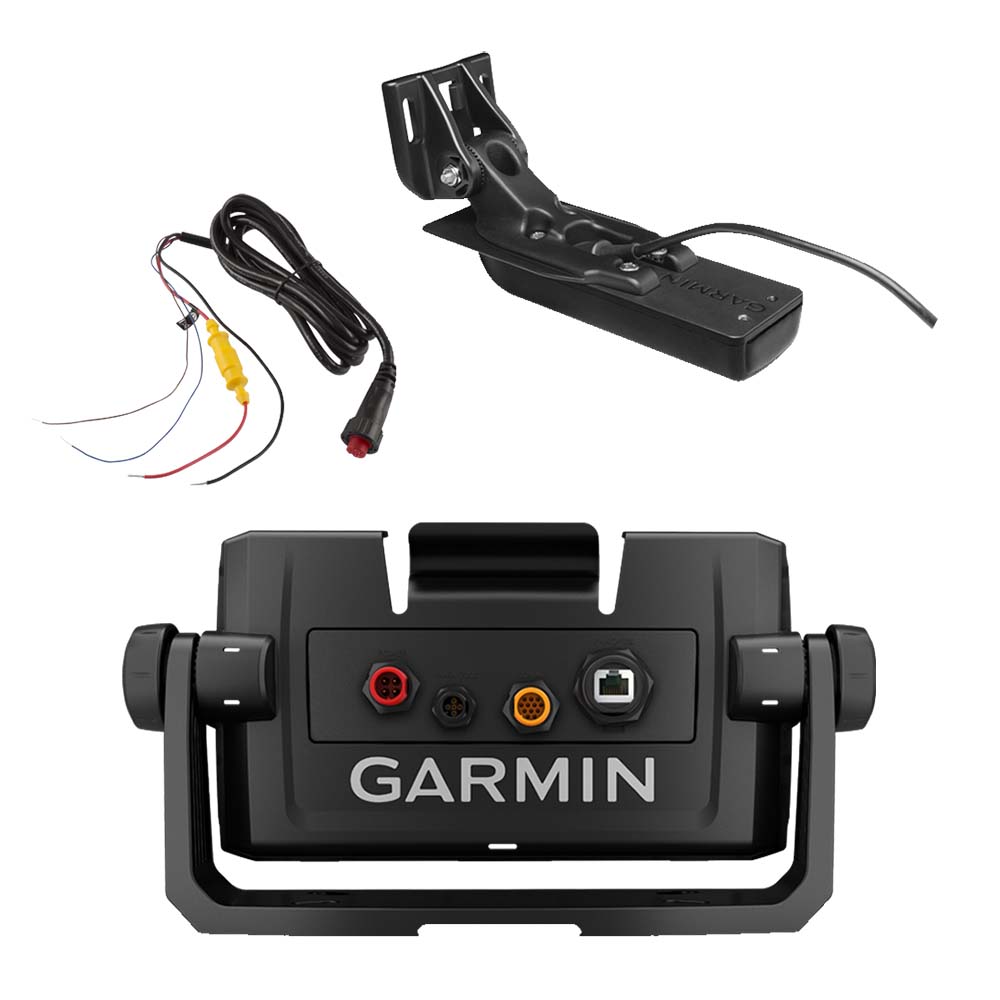

- GT56UHD-TM transducer
- ECHOMAP power/data cable
- Bail mount with tilt/swivel action and quick-release cradle
