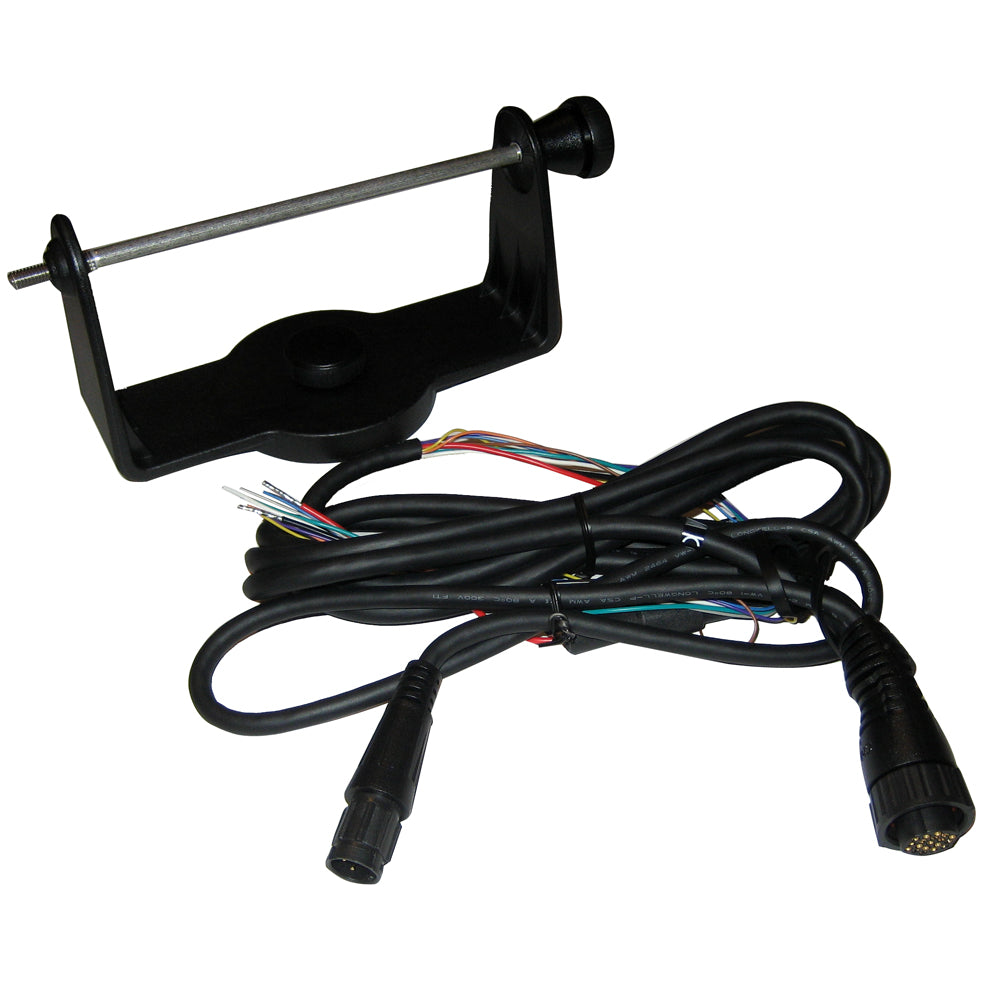

Garmin GPSMAP 500 Series Second Mounting Station, Wiring Harness, NMEA 0183, CANet, Transducer Connection

Overview

The Garmin 010-10930-00 is a second mounting station for GPSMAP 500 Series chartplotters, adding another fixed location on board for a compatible display. It is commonly used when you want the same model installed at a second station, such as a flybridge and lower helm, or a helm and nav table.

A wiring harness is included to power the unit and to support connections to an optional NMEA 0183 network, a CANet device, and a transducer. This helps keep the second station setup consistent with the way the chartplotter is typically integrated on a boat.

Key features

• Adds an additional mounting station for Garmin GPSMAP 500 Series chartplotters
• Includes a wiring harness for power and system connections at the second location
• Supports connection to an optional NMEA 0183 network
• Supports connection to CANet devices
• Supports connection to a transducer

Compatibility and fit

This mounting station is intended for the Garmin GPSMAP 500 Series. Confirm your chartplotter family before ordering, since mounts and harnesses are model-specific across generations.

When planning the location, allow space for cable routing and for the harness to be supported behind the mounting surface so the connections are not carrying strain from vibration or repeated access.

Installation and wiring

Install the station where the display is easy to view and operate underway, and where it can be accessed from behind for wiring. On open boats, routing the harness through a protected chase and forming a drip loop before the connection point helps keep water from tracking down the cable.

Power should be tied into your DC system based on the chartplotter’s requirements, with clean wiring runs and secure strain relief so the harness stays stable in chop and engine vibration.

Network connections

If you are tying the second station into existing electronics, the harness supports optional NMEA 0183 connections for compatible instrument and data sharing setups. It also supports CANet connections for compatible devices, and a transducer connection when the installation calls for it.

This setup is a good match for boats that already rely on a GPSMAP 500 Series display and need that same interface available at another operating position without changing the way the system is wired.

What’s included

• Second mounting station
• Wiring harness
