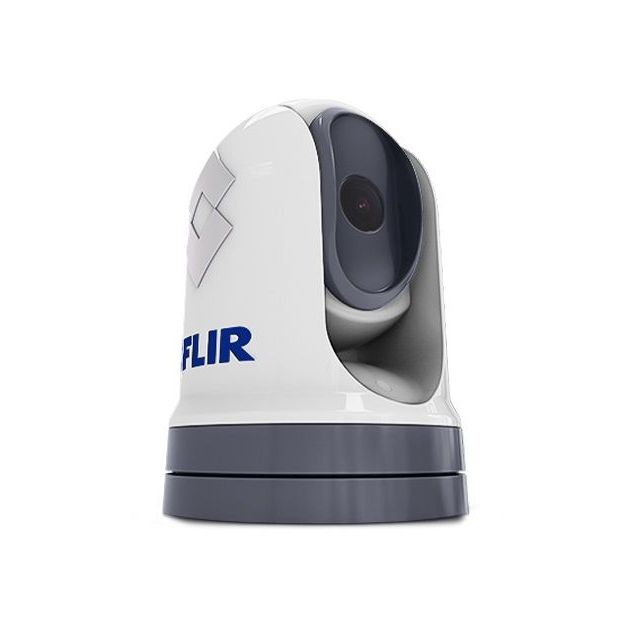

FLIR Systems - M364 SinglePayload Thermal Camera No JCU 640 x 512 24D HFoV

Advanced Thermal Vision for Marine Navigation

The FLIR Systems M364 SinglePayload Thermal Camera is designed for high-performance marine navigation, offering exceptional situational awareness in complete darkness and harsh weather conditions. Engineered with FLIR's advanced thermal imaging core and a rugged, all-weather design, this camera enhances safety for law enforcement, commercial vessels, and recreational boaters. With its superior thermal detection, it identifies obstacles and targets even in fog, glare, or rough seas.

Precision Thermal Imaging Technology

Equipped with a 640 x 512 VOx microbolometer sensor, the M364 delivers crisp thermal imaging for clear identification of objects, vessels, and hazards at sea. The FLIR Proprietary Digital Detail Enhancement technology further refines the image, optimizing visibility in low-light environments.

Stabilized for Unmatched Clarity

The two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw, ensuring a consistently steady image. This advanced stabilization capability is essential for maintaining a clear view in turbulent conditions, enhancing navigation and situational awareness.

Seamless Connectivity for Navigation and Security

The M364 supports HD-SDI lossless video output and a single H.264 network video stream, providing exceptional compatibility with modern navigation and security systems. The integration of analog video output with NTSC and BNC connectors ensures versatility across various marine electronics.

Built to Withstand Harsh Marine Environments

Designed to endure the rigors of the open sea, the M364 is rated IPX6 for water ingress, offering protection against heavy seas and power jets of water. It meets IEC60945 standards for salt mist, EMI, vibration, and shock resistance, making it a durable choice for demanding marine applications. Automatic window defrosting at power-up ensures optimal performance in cold conditions, while lightning protection and wind resistance up to 100 knots further enhance reliability.

Technical Specifications

• Detector Type: 640 x 512 VOx Microbolometer
• Field of View: 24° x 18°
• Image Processing: FLIR Proprietary Digital Detail Enhancement
• Pan & Tilt: 360° continuous pan, +/- 90° tilt
• Focus: Fixed 12 ft (3 m) to infinity
• Continuous E-Zoom: 8x
• Focal Length (Thermal): 18mm
• Video Refresh Rate (Thermal): 30 Hz

Environmental Durability

• Operating Temperature Range: -13°F to +131°F (-25°C to +55°C)
• Storage Temperature Range: -30°F to +158°F (-30°C to +70°C)
• Water Ingress Protection: IPX6 (heavy seas, power jets of water)
• Shock Resistance: 15g vertical, 9g horizontal
• Vibration: IEC60945 compliant
• Wind Resistance: Up to 100 knots (115.2 MPH)

What’s in the Box

• M364 Thermal Camera
• Camera base-seal and gasket
• RayNet-to-RJ45 adapter cable (120 mm)
• Right-angled RayNet-to-RayNet cable (3 m)
• Right-angled BNC-to-BNC cable (3 m)
• Right-angled 3-pin power cable (3 m)
• Mounting riser
• Camera fixings (nuts, dome nuts, washers, threaded studs)

The FLIR Systems M364 SinglePayload Thermal Camera is an indispensable tool for professionals and mariners seeking the highest level of visibility, stabilization, and reliability at sea.
