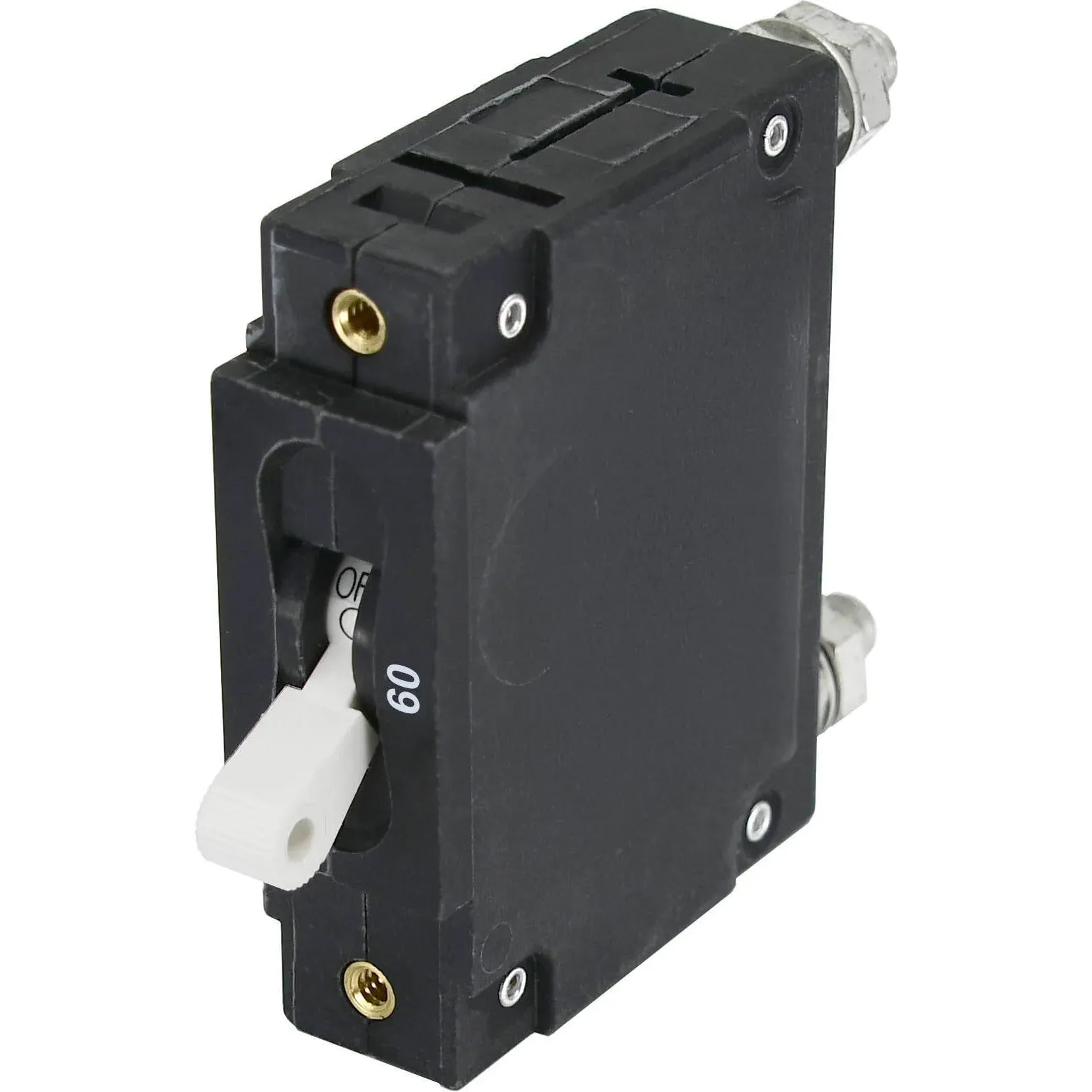

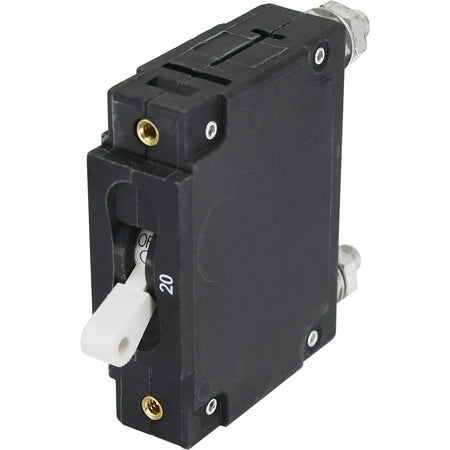

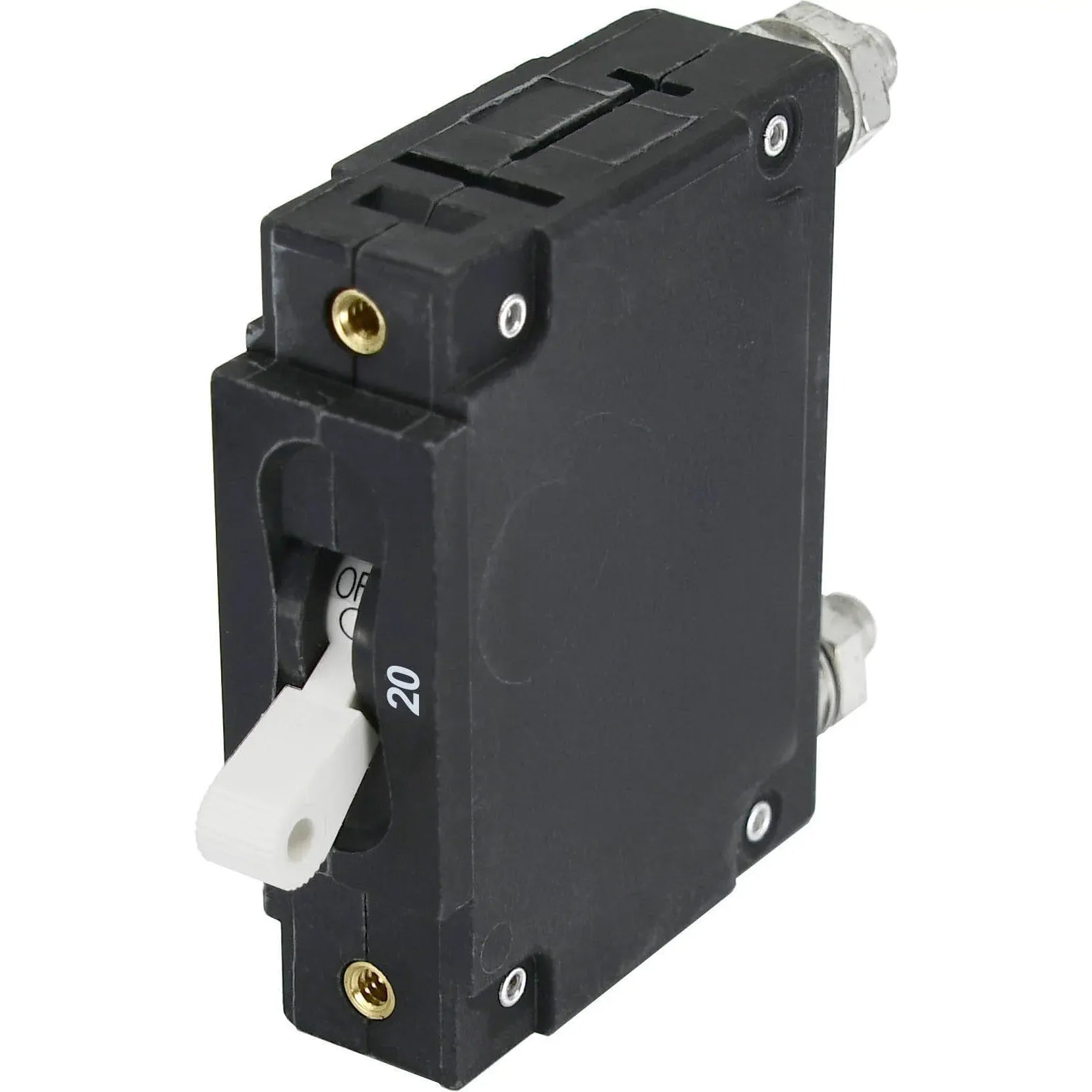

Blue Sea Systems C-Series Toggle Circuit Breaker, Single Pole, AC/DC, Magnetic Hydraulic, Trip Free

Overview

The Blue Sea Systems C-Series Toggle Circuit Breaker is a single-pole magnetic hydraulic breaker for marine AC and DC circuit protection where a toggle switch and resettable breaker need to share the same panel position. It is used on higher-load boat circuits such as inverters, bow thrusters, windlasses, and other equipment that can see start-up surge.

The range covers 5A through 100A ratings, with white toggle versions for standard installations and a red 100A ignition-protected version for locations where ignition protection is required. Most models are rated up to 240V AC and 80V DC, while the higher-amperage versions use lower DC voltage limits, so the selected amperage and voltage rating should be matched to the circuit design before installation.

The trip-free mechanism means the toggle cannot be held closed after the breaker trips. That matters on board because a faulted circuit should stay open until the cause is found, rather than being forced back on at the panel.

Key features

• Single-pole C-Series toggle breaker for panel-mounted switching and circuit protection in one device.
• Magnetic hydraulic, trip-free operation helps keep a faulted circuit open after a trip.
• Amperage options from 5A to 100A support a range of boat loads, from smaller branch circuits to heavier equipment circuits.
• Rated for AC and DC use, with model-specific voltage limits that must be checked against the vessel system.
• 1/4-20 tin-plated brass terminal studs provide a secure connection point for properly sized marine cable terminals.
• #6-32 stainless steel mounting screws support installation in compatible C-Series breaker panels.
• Operating temperature range of -40 degrees C to 85 degrees C suits exposed electrical spaces, machinery areas, and cabins subject to wide temperature changes.
• Rated for 10,000 switching cycles, allowing the breaker to serve as a control switch where regular manual operation is part of the installation.

Variants

This C-Series single-pole toggle breaker range varies by amperage, actuator color, and ignition-protection status. The available amperages run from 5A, 10A, 15A, 20A, 25A, and 30A up through 50A, 60A, 80A, and 100A, so the correct version should be selected based on the protected cable size, expected load, and the circuit protection plan for the boat.

White versions are listed as not ignition protected. The red 100A version is the ignition-protected option in this range and is the one intended for installations where that rating is required. The single-pole toggle layout, magnetic hydraulic trip-free breaker type, tin-plated brass terminal studs, and stainless mounting screws are consistent across the range.

Installation and setup

Install the breaker in a compatible panel cutout or Blue Sea Systems C-Series breaker panel, with enough clearance behind the panel for the terminal studs, cable bends, boots, and service access. Use properly crimped terminals, support the cable so vibration is not carried by the studs, and torque the terminal connections to 35 in-lb where that specification applies.

The breaker rating should protect the wire, not just match the device on the circuit. On motor loads such as windlasses and thrusters, start-up current can be much higher than running current, so breaker sizing should be checked against the equipment manual, cable ampacity, voltage drop, and the applicable marine electrical standard for the vessel.

Compatibility and fit

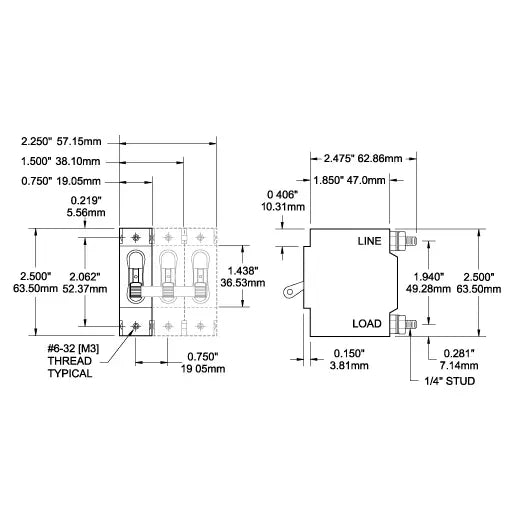

This is a C-Series, single-pole toggle breaker, so it is a good match for panels built around that breaker format. It is not a drop-in substitute for every marine breaker style, and it should be compared against the existing panel opening, rear clearance, terminal layout, amperage rating, and voltage rating before replacing an older breaker.

The 5A to 60A white models are commonly listed with an 80V DC maximum, while the 80A and 100A white models use a 65V DC maximum. The red 100A ignition-protected version is listed with a 48V DC maximum and a different interrupt rating, so it should be treated as its own configuration rather than a color change only.

Use cases on board

These breakers are suited to boats where the helm, battery panel, DC distribution panel, or machinery-space panel needs resettable circuit protection that can also be used as a manual switch. They are especially relevant for circuits feeding equipment with meaningful current draw, including inverters, bow thrusters, and windlasses.

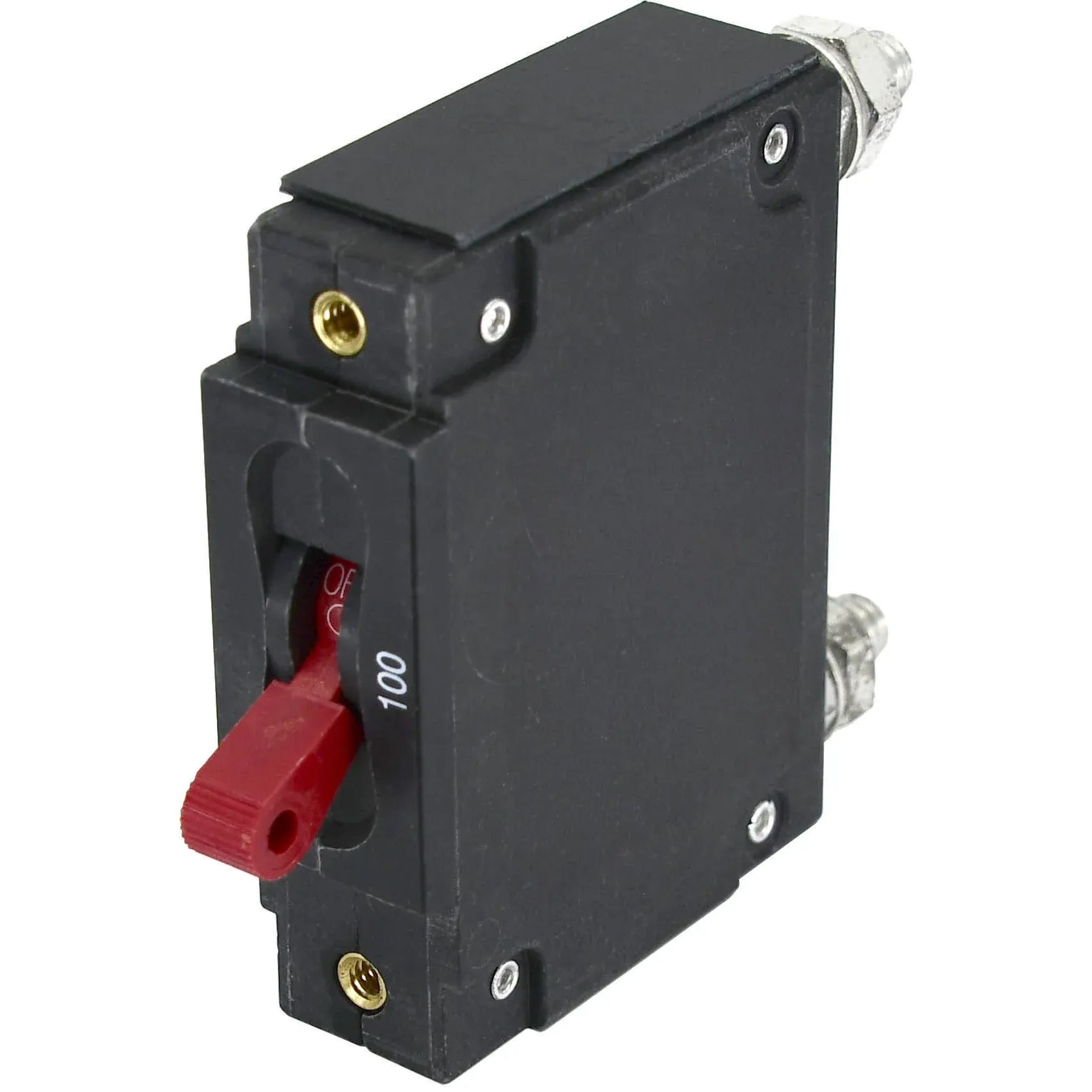

The ignition-protected 100A red version is the practical match for installations that require that protection level, such as certain gasoline-engine spaces or compartments where ignition-protected equipment is specified. For general DC distribution panels outside those areas, the white non-ignition-protected versions cover the wider amperage range.

• 1337138_qbp310776.pdf
