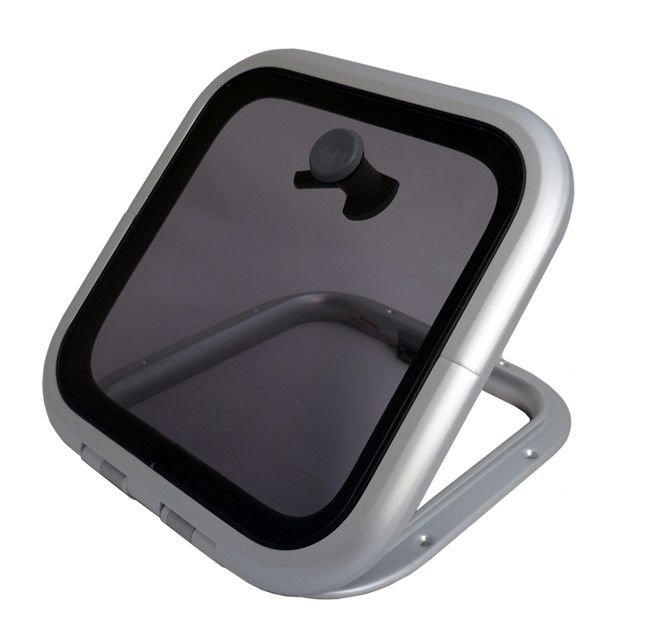

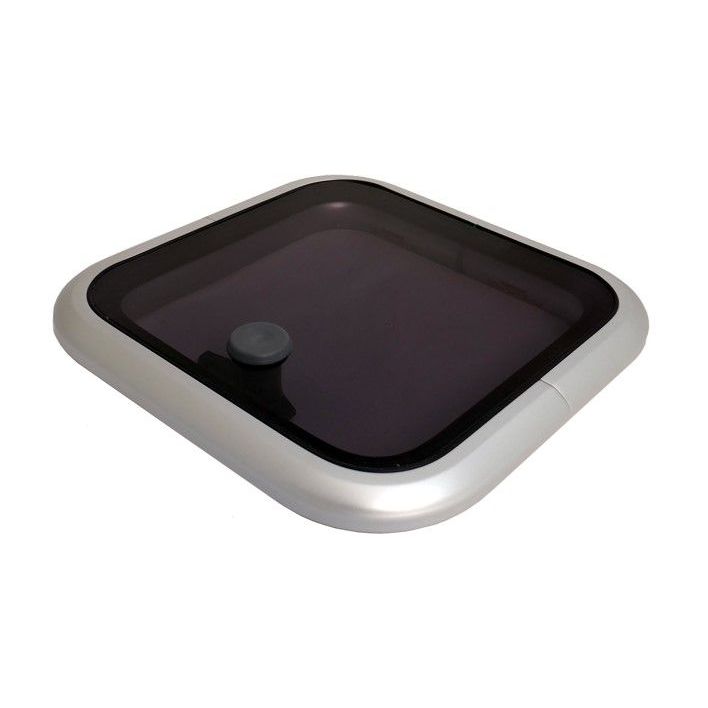

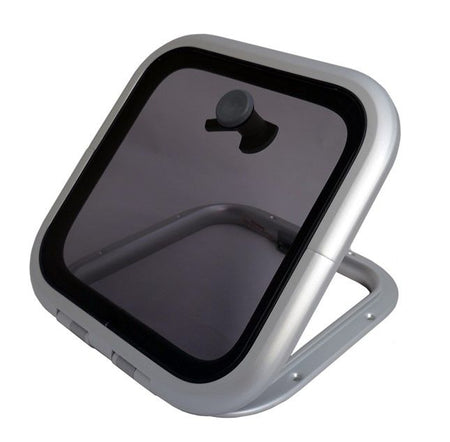

Sleek and Durable Low-Profile Hatch for Marine Applications
Designed for both functionality and aesthetics, the Lewmar Size 10 Low Profile Hatch Flange Base is a premium choice for marine vessels seeking reliable ventilation and natural light. This self-supporting hatch is engineered with a robust lower frame and a smoke grey acrylic window, offering durability and style while ensuring a secure fit on deck. The low-profile design enhances aerodynamics and minimizes obstructions, making it an ideal addition to any boat or yacht.
Built for Marine Environments
Crafted with marine-grade materials, this hatch withstands the harshest sea conditions. The sturdy acrylic window ensures long-lasting clarity and impact resistance, while the self-supporting structure provides hassle-free operation. Whether for leisure or professional marine use, this hatch delivers reliability and efficiency.
Technical Specifications
- Support System: Self-supporting
- Lower Frame Thickness: 9/16 inches
- Acrylic Window Thickness: 5/16 inches
- Acrylic Window Color: Smoke Grey
- Hatch Weight: 4.9 lbs
Product Dimensions
- Overall Length: 13 inches
- Overall Width: 13 inches
- Height: 1 inch
- Radii: 2 7/8 inches
- Cut-Out Length: 10 1/4 inches
- Cut-Out Width: 10 1/4 inches
- Cut-Out Radii: 1 11/16 inches
Secure and Easy Installation
This hatch is designed for effortless installation on a flat surface with a tolerance of +/- 1mm. Secure mounting is ensured with appropriate fasteners:
- Hinge Section Fastening Size: M6 (1/4")
- Lower Frame Fastening Size: 5mm CSK screw No.10 UNC 2 BA
Highlights
- Low-profile design enhances deck aesthetics and safety
- Smoke grey acrylic window provides UV resistance and privacy
- Self-supporting structure for ease of use and stability
- Engineered for marine-grade durability and impact resistance
- Precise cut-out dimensions for seamless integration
With its combination of sleek design, sturdy construction, and ease of installation, the Lewmar Size 10 Low Profile Hatch Flange Base is an essential addition to any vessel.
