Airmar - B75C-12-HW 12d Tilt High Wide CHIRP With Mix-n-Match Plug
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
High-Performance Marine Sonar for Superior Depth and Clarity

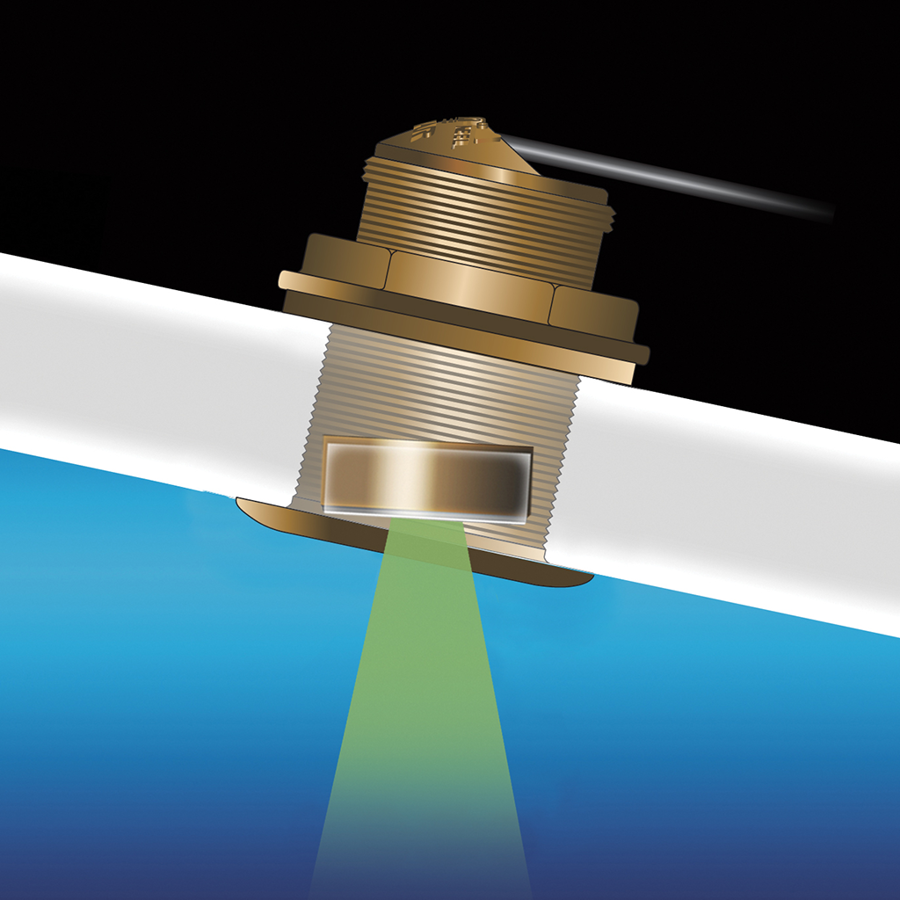

The Airmar B75C-12-HW 12° Tilt High Wide CHIRP Transducer is a top-tier choice for boaters seeking exceptional underwater clarity and performance. Designed for smaller vessels like center consoles, this low-profile, thru-hull transducer delivers outstanding target separation, wide coverage, and precise depth readings. With a fixed 12° tilt optimized for hulls with an 8° to 15° deadrise, it ensures optimal sonar returns by orienting the beam directly downward. The B75C-12-HW operates within a high-frequency range of 150-250 kHz, offering superior shallow-water performance, crisp bottom detail, and clear fish-target returns.
Advanced CHIRP Technology for Maximum Coverage
Equipped with CHIRP-ready capabilities, the B75C-12-HW transducer provides up to 100 kHz of total bandwidth in a single installation. Its high-frequency operation enhances fish detection in shallow waters, while the wide 30° beam ensures extensive coverage beneath the vessel. The exclusive Xducer ID® technology further enhances compatibility and performance by enabling seamless communication with the connected display system.
Durable and Low-Profile Thru-Hull Design

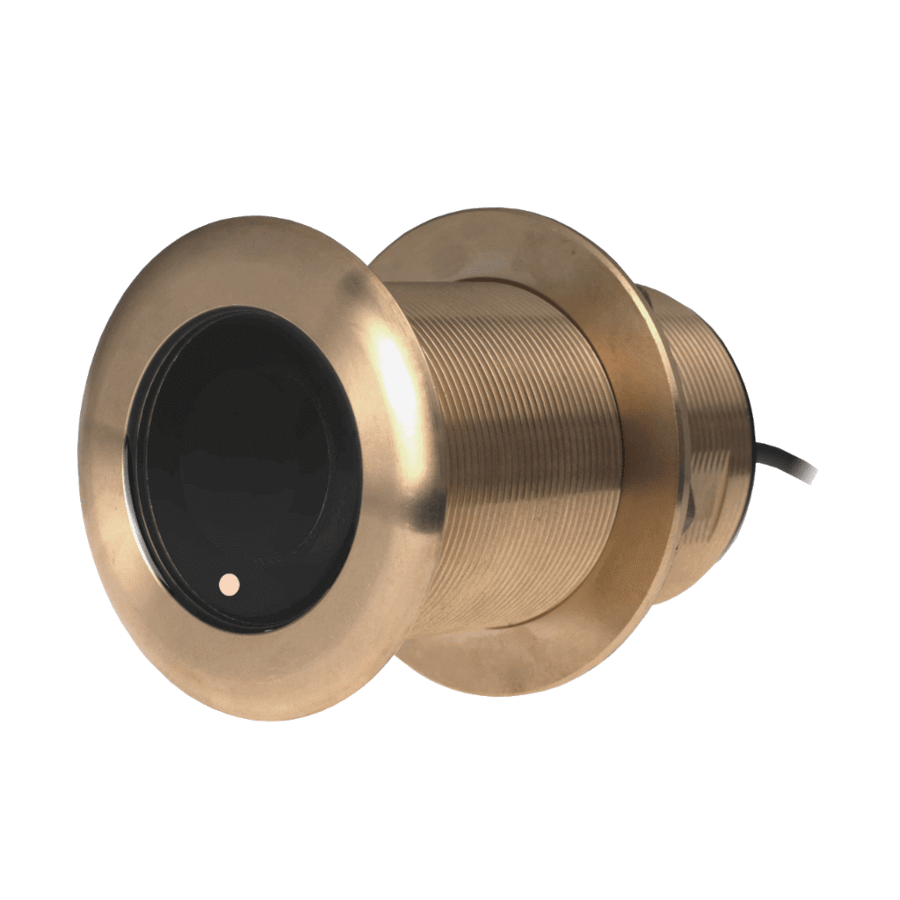

Built with a robust bronze housing, the B75C-12-HW is engineered for use on stepped, planing, or displacement hulls. The low-profile design minimizes drag while maintaining excellent resolution at higher speeds when installed correctly. The unit features an integrated fast-response water-temperature sensor, ensuring real-time temperature readings for a comprehensive marine experience.
Technical Specifications
- Power Output: 600W
- Maximum Depth Performance: 106 m (350')
- Frequency Range: 150-250 kHz (High Wide)
- Beamwidth: 30°
- Deadrise Compatibility: 8° to 15°
- Housing Material: Bronze
- Acoustic Window: Urethane
- Cable Length: 9 m (30')
- Connector Type: Airmar 12-Pin (MMC)
- Hole Size: 70 mm (2-13/16")
- Functions: Depth and temperature sensing
Key Features
- Fixed 12° tilt for optimal sonar returns on hulls with an 8° to 15° deadrise
- High-frequency CHIRP operation enhances fish detection and bottom detail
- Wide 30° beamwidth for extensive coverage under the vessel
- Durable bronze thru-hull housing for superior performance at speed
- Low-profile design reduces drag and improves hydrodynamics
- Exclusive Xducer ID® technology ensures seamless integration with compatible systems
- Integrated fast-response water-temperature sensor
The Airmar B75C-12-HW is a powerful and reliable transducer, delivering exceptional sonar performance for marine enthusiasts who demand precision and clarity on the water.
