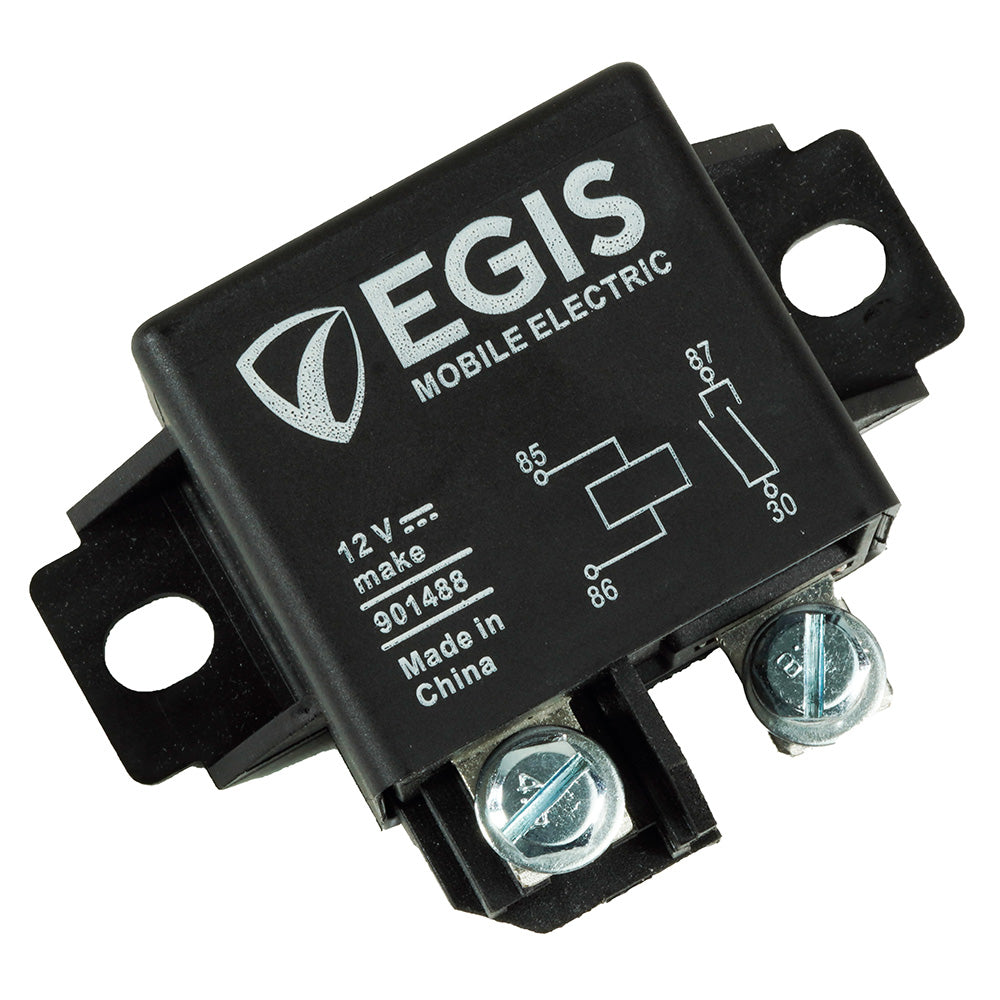

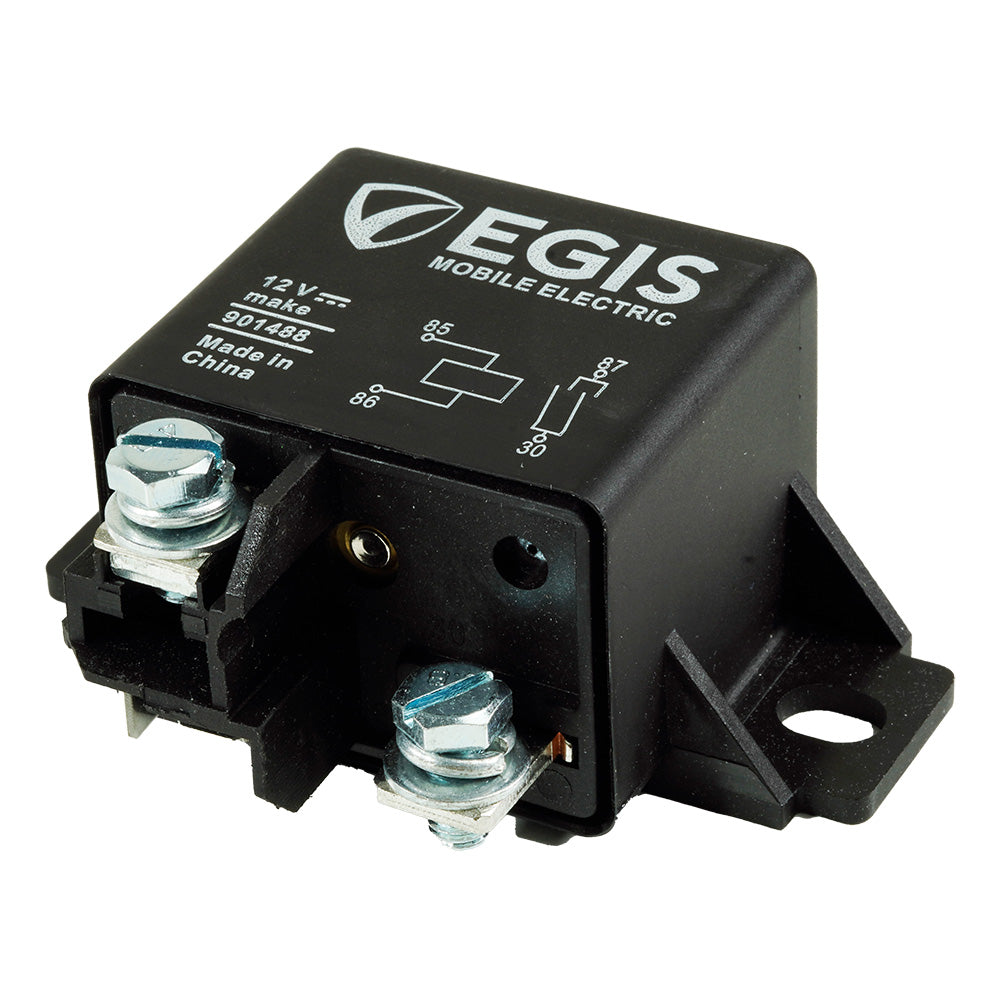

Egis Mobile Electric - Relay - 12V, 75A

Superior Performance for Demanding Environments

The Egis Relay 12V, 75A is a high-performance, automotive-grade relay designed for demanding marine and automotive applications. Its robust construction and advanced features ensure reliable performance in high-temperature environments and under heavy electrical loads.

General Description

This 12V, 75-amp relay is engineered to provide exceptional reliability and efficiency. With bi-furcated contacts to reduce contact bounce and increase operating efficiency, it minimizes heat buildup and contact wear, making it ideal for continuous use. The relay's high intermittent amperage rating of 150 amps for up to 3 seconds makes it suitable for temporary high-equipment start-up amp draw applications. The high-temperature rating of up to 125 degrees C/257 degrees F allows it to perform well in engine bays and other low-ventilation spaces.

Features and Advantages

• Bi-furcated Contacts: Reduces contact bounce, increases reliability, and enhances switching efficiency.
• High Intermittent Amperage Rating: Handles 150 amps for up to 3 seconds, ideal for high-equipment start-up applications.
• Offset Input/Output Terminals: Prevents accidental contact shorts.
• High-Temperature Rating: Operates effectively in temperatures up to 125 degrees C/257 degrees F.

Key Benefits

• Bullet-Proof Construction: Automotive-grade relay with IP54 ingress protection and reinforced mounting tabs.
• Dual Mounting Holes: Easy installation with 1/4-20”/M6 1.25 bolts or screws up to #14 size.
• Superior Materials: High-quality components ensure long service life and reliable performance.
• Enhanced Vibration and Shock Protection: Meets or exceeds IEC 60068-2-27 and IEC 60068-2-6 standards.
• Compact Size: Small footprint is ideal for confined spaces.

Specifications

• Intermittent Current @ 3 SEC: 150 Amps
• Ambient Temp. Rating (Low/High): -50/125°C
• Max Continuous Current: 75 Amps @ 23°C
• Electrical Endurance Rating: 100,000 cycles
• Initial Contact Resistance (6VDC): 50 mOhm
• Operating Voltage Range: 8.8-16VDC

Focal Features

• Long-Term Reliability: Built with high-quality materials for superior electrical switching performance.
• Locking Hardware: Zinc-plated M5-size input/output terminal screws with held-in-place nuts for secure connections.
• Automotive Grade: Wide operational temperature ratings and shock/vibration resistance.
• Varied Fastener Sizes: Accommodates various bolt and screw sizes for flexible installation.
• Reinforced Mounting: Strengthened gussets ensure secure mounting under vibration, heat, and wire tension.
• Compact Size: Ideal for installations where space is limited.
• Flat Blade Connectors: Shielded dual flat male terminal connectors for quick, secure control wire connections.
• Offset Terminals: Integrated divider tab design to protect against accidental contact shorts.

The Egis Relay 12V, 75A is the perfect solution for reliable power management in marine and automotive applications, ensuring robust performance and long-term durability even in the most demanding environments.
