Perko 1045 Plug-In Pole Light Base, Stainless Steel, Black
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

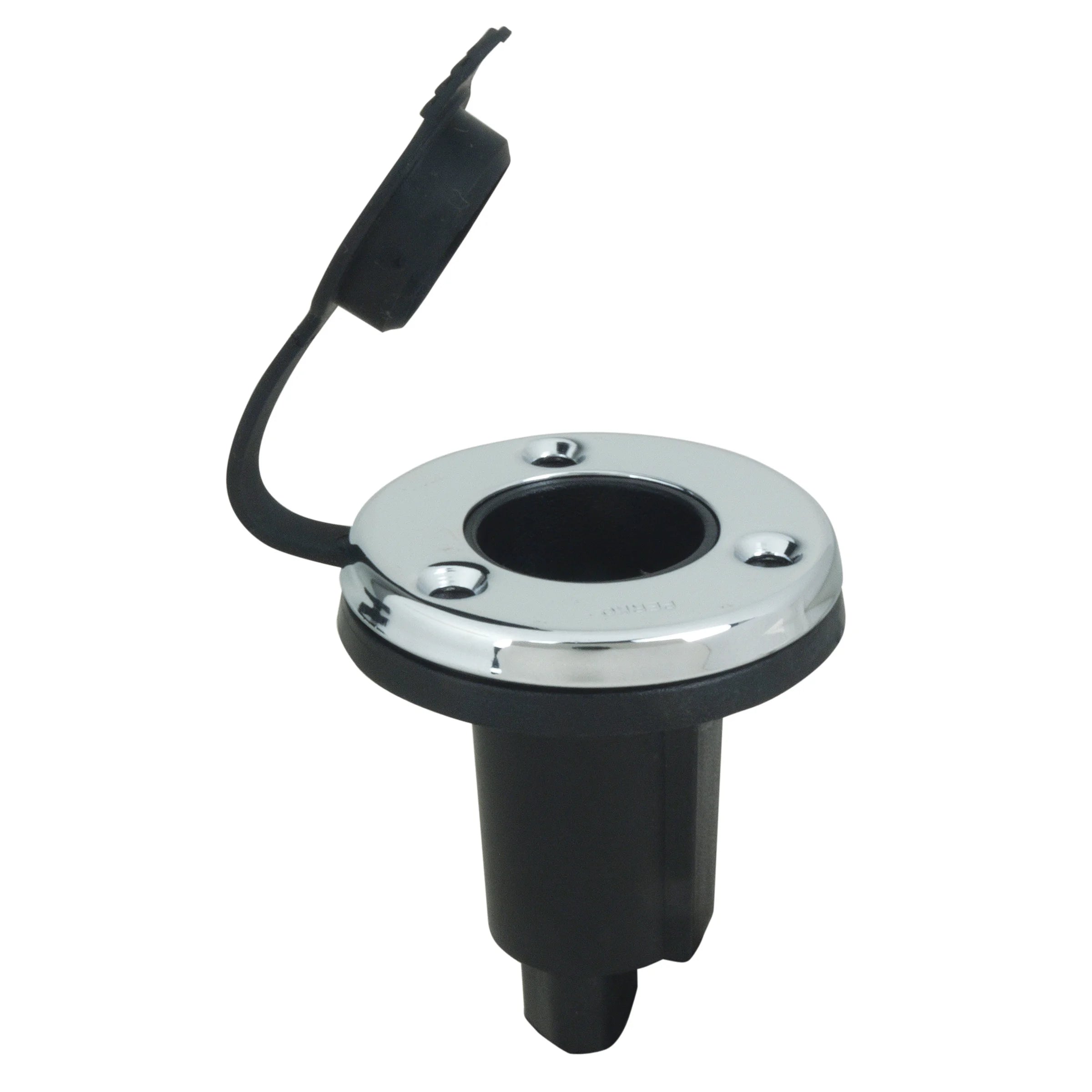

The Perko 1045 Plug-In Type Base is a stainless steel and black polymer mounting base for removable Perko pole navigation lights. It is made for 3/4 inch poles with a locking collar and is offered in 2-pin and 3-pin versions so the base can be matched to the correct light circuit and pole style.
This round base has a 2-1/4 inch outside diameter, a 0° pole rake, pigtail leads for wiring, and uses #8 mounting screws. A waterproof snap-on cover protects the socket area when the pole light is removed, which is useful on open decks, transoms, fishing boats, and small cruisers where spray and washdowns are part of normal use.
Key features
- Plug-in base for removable Perko pole lights, with 2-pin and 3-pin configurations available.
- Polished stainless steel and black polymer construction for exposed deck or cockpit mounting locations.

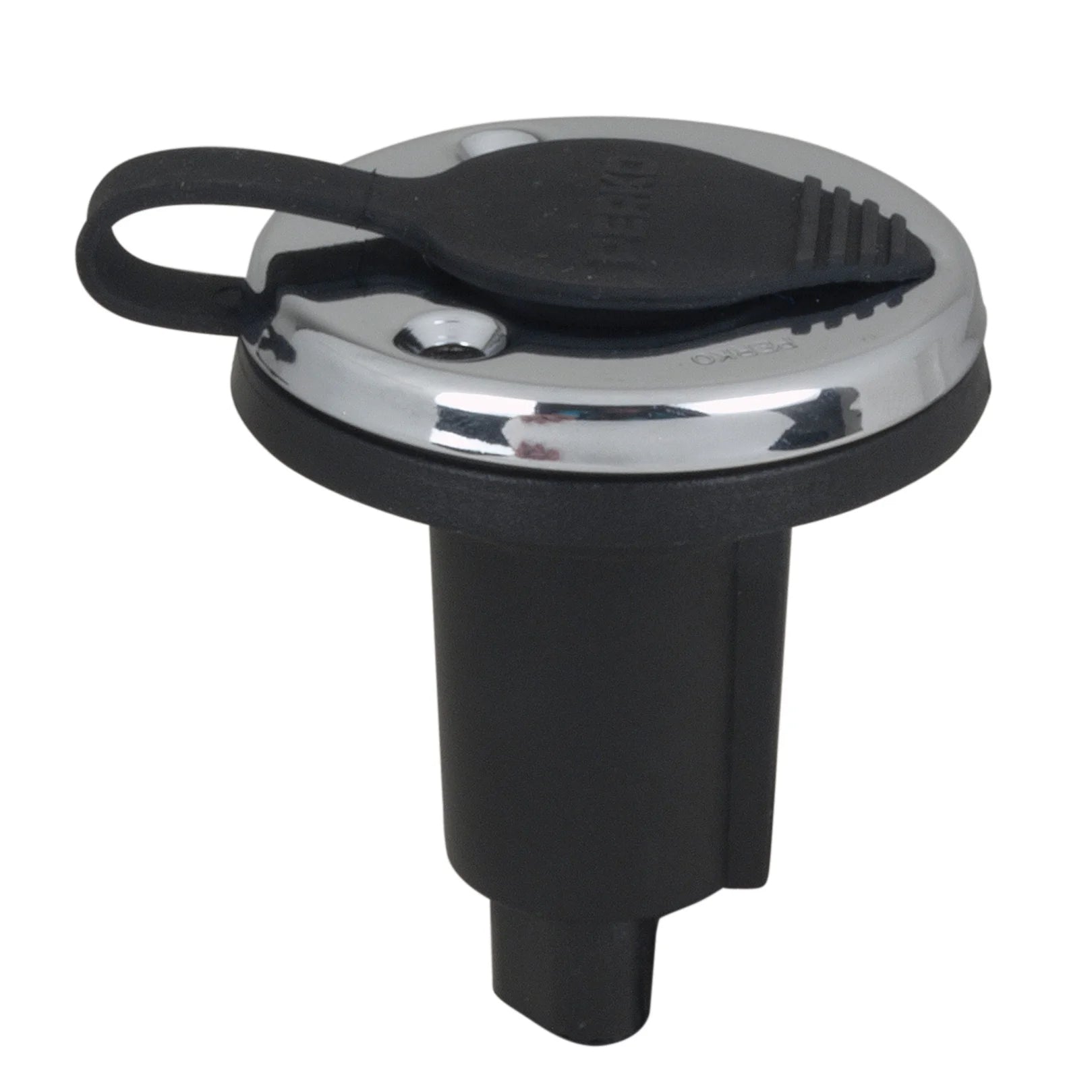

- Waterproof snap-on cover helps protect the socket when the pole light is not installed.
- Fits 3/4 inch poles with a locking collar for a secure connection at the base.
- 2-1/4 inch outside diameter, 0° pole rake, and #8 screw mounting help confirm deck fit before installation.
- Pigtail leads make wiring straightforward during replacement or new light base installation.
Variants
This Perko 1045 Plug-In Type Base is offered in two pin configurations. The main difference is the number of electrical contacts, so matching the base to the pole light series and wiring layout is the key fit check.
Both versions share the stainless steel and black finish, 2-1/4 inch outside diameter, 0° pole rake, #8 screw mounting, waterproof snap-on cover, pigtail leads, and 3/4 inch pole fit with locking collar.
- 1045P0SDP: 2-pin version. This version matches Perko Fig. 1343, 1347, 1348, 1349, 1400, 1440, 1442, 1444, 1450, 1451, 1452, 1460, 1454, and 1470 Series all-round pole lights, as well as 1612 and 1616 Series bi-color pole lights.
- 104530SDP: 3-pin version. This version matches Perko 1211 and 1421 Series bi-color pole lights where the extra contact is required for the light circuit.
Compatibility and fit
This base is a fit-driven replacement part, so the number of pins and the pole light series should be checked before ordering. The 2-pin and 3-pin bases are not interchangeable simply by appearance, even though they share the same round stainless steel and black housing style.
The 0° rake keeps the pole upright relative to the mounting surface, making it appropriate for flat mounting areas where the pole light needs to sit straight. On curved or angled surfaces, the final pole angle depends on the deck surface where the base is installed.
Installation notes
Mount the base where the pole light has clear visibility and where the underside can be accessed for the pigtail leads. The #8 mounting screws should be selected for the deck material and bedding method used on the boat, and the wiring should be protected from moisture, vibration, and chafe below the mounting surface.
This part is a practical match for boat owners replacing a worn pole light socket, updating an existing Perko base, or keeping a removable navigation light setup clean when the pole is stored away between nighttime runs.
