Vimar Arké Two Interlocked Push Buttons, 10A 250V, IP40, Directional Arrows
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

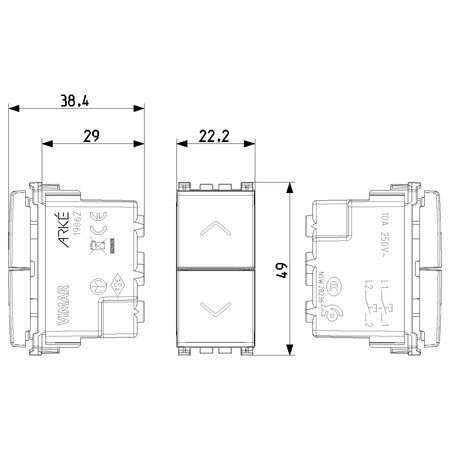

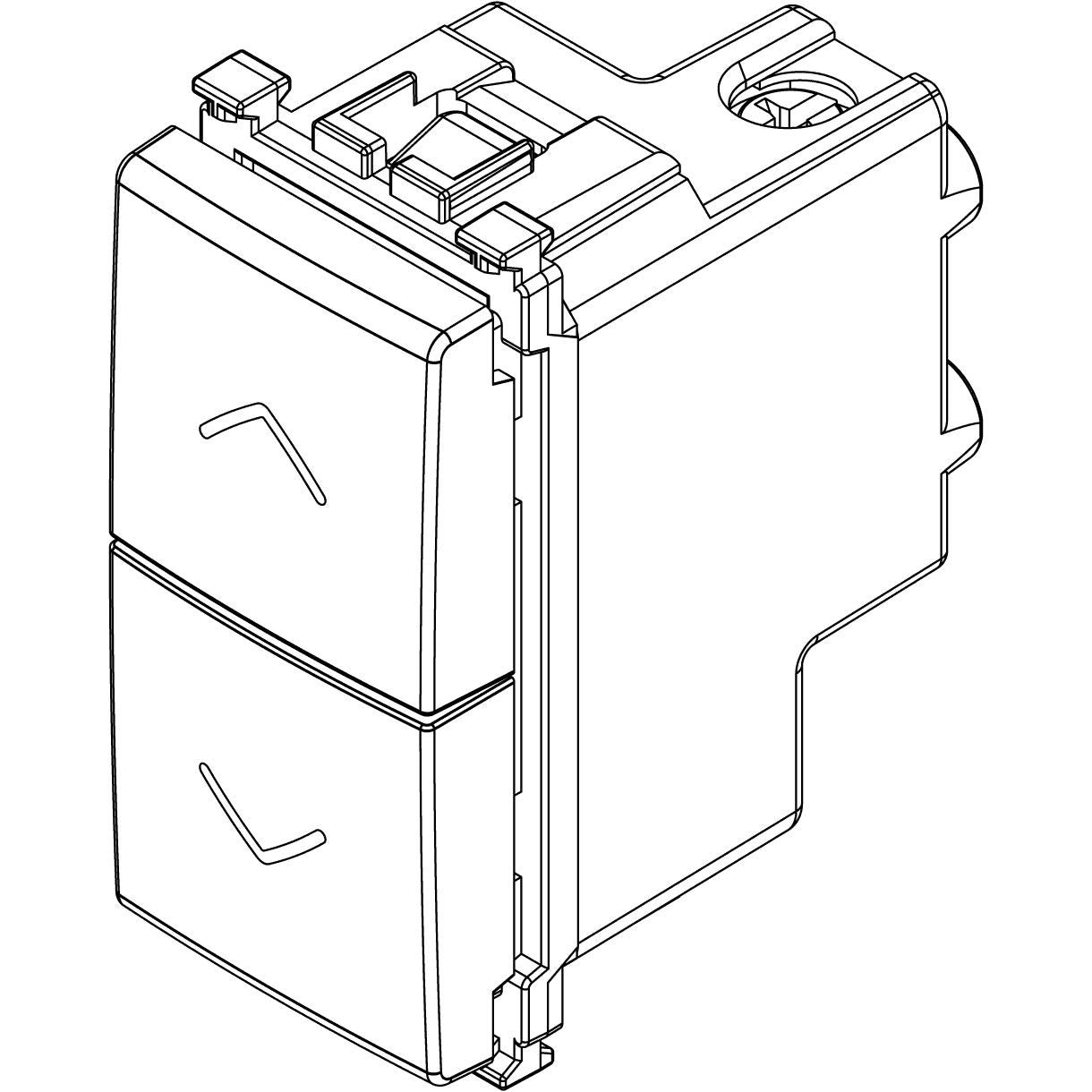

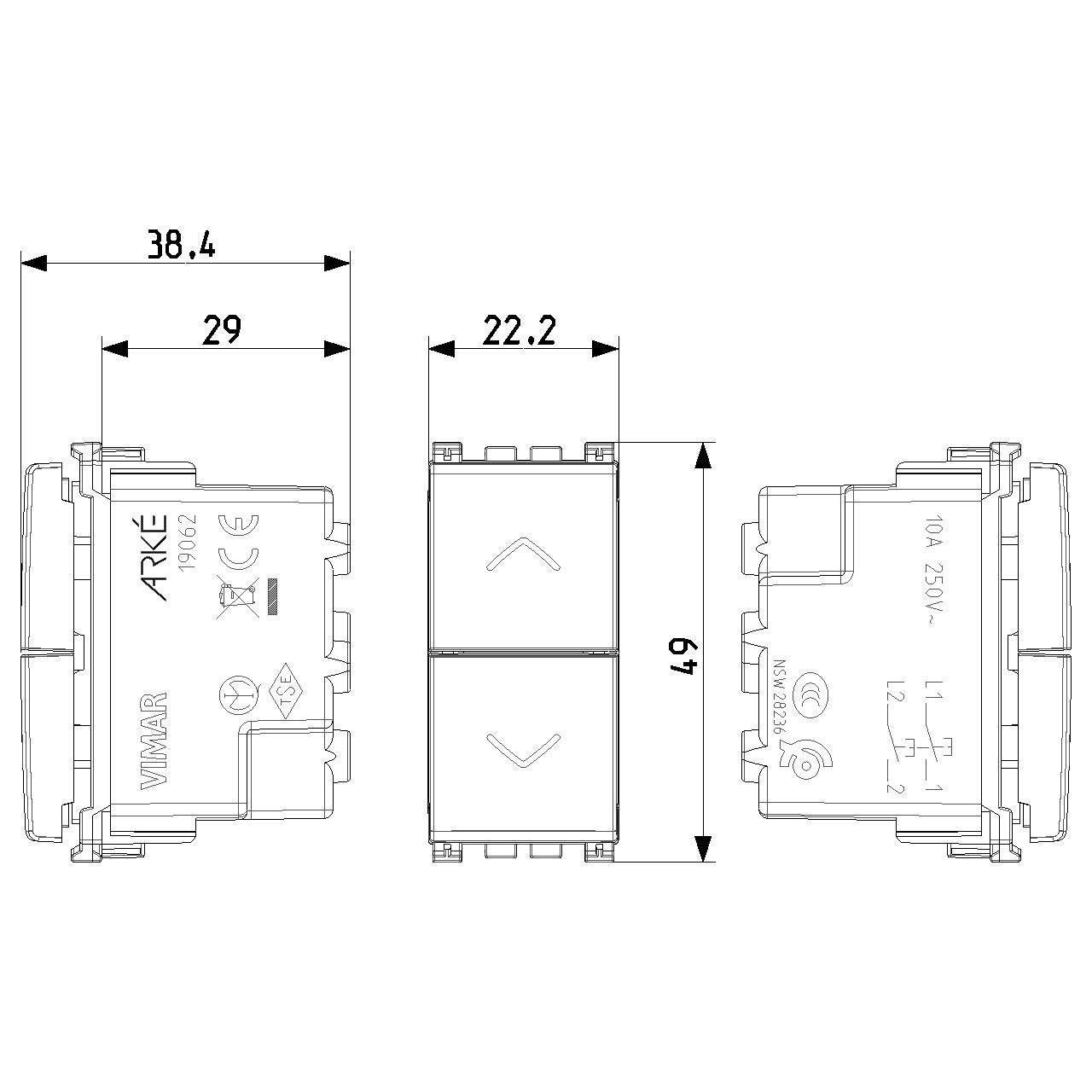

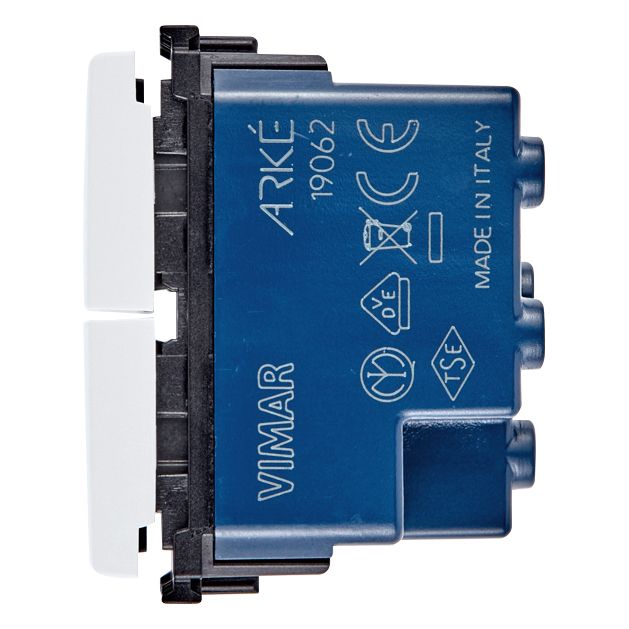

The Vimar Arké 19062 is a two interlocked push-button device with 1P NO + 1P NO contacts, directional arrows, and a 10 A 250 V~ rating. It is a built-in snap-mount unit made from thermoplastic, with a matt finish, halogen-free construction, and IP40 protection. The body measures 22.3 mm wide, 49 mm high, and 38.4 mm deep.
For boat refits and custom panels, this type of control makes sense in protected interior locations such as an enclosed helm console, cabin switch area, or utility panel. The interlocked layout keeps opposite commands separated, and the directional arrows make the function easier to read when the panel is in regular use.
Key features

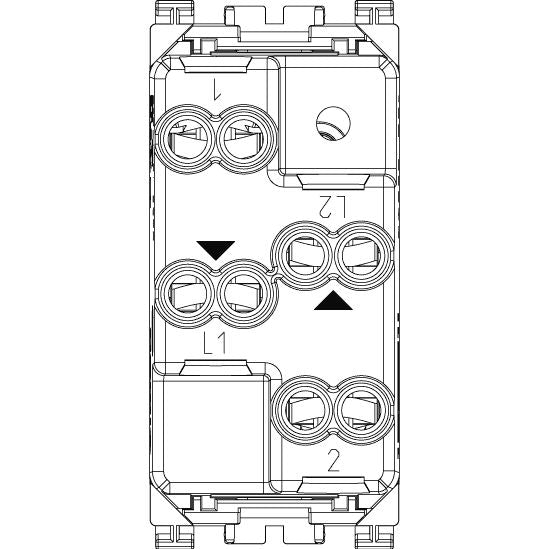

- Two interlocked push buttons with 1P NO + 1P NO contacts
- 10 A, 250 V~ electrical rating

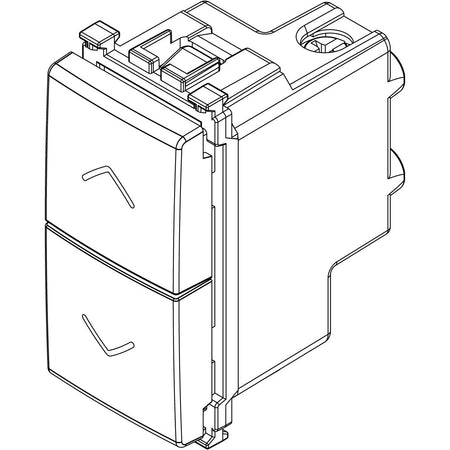

- Directional arrows on the actuator for paired directional control
- Built-in mounting with snap fastening
- Thermoplastic body with halogen-free construction and matt finish
- IP40 protection for protected interior installations

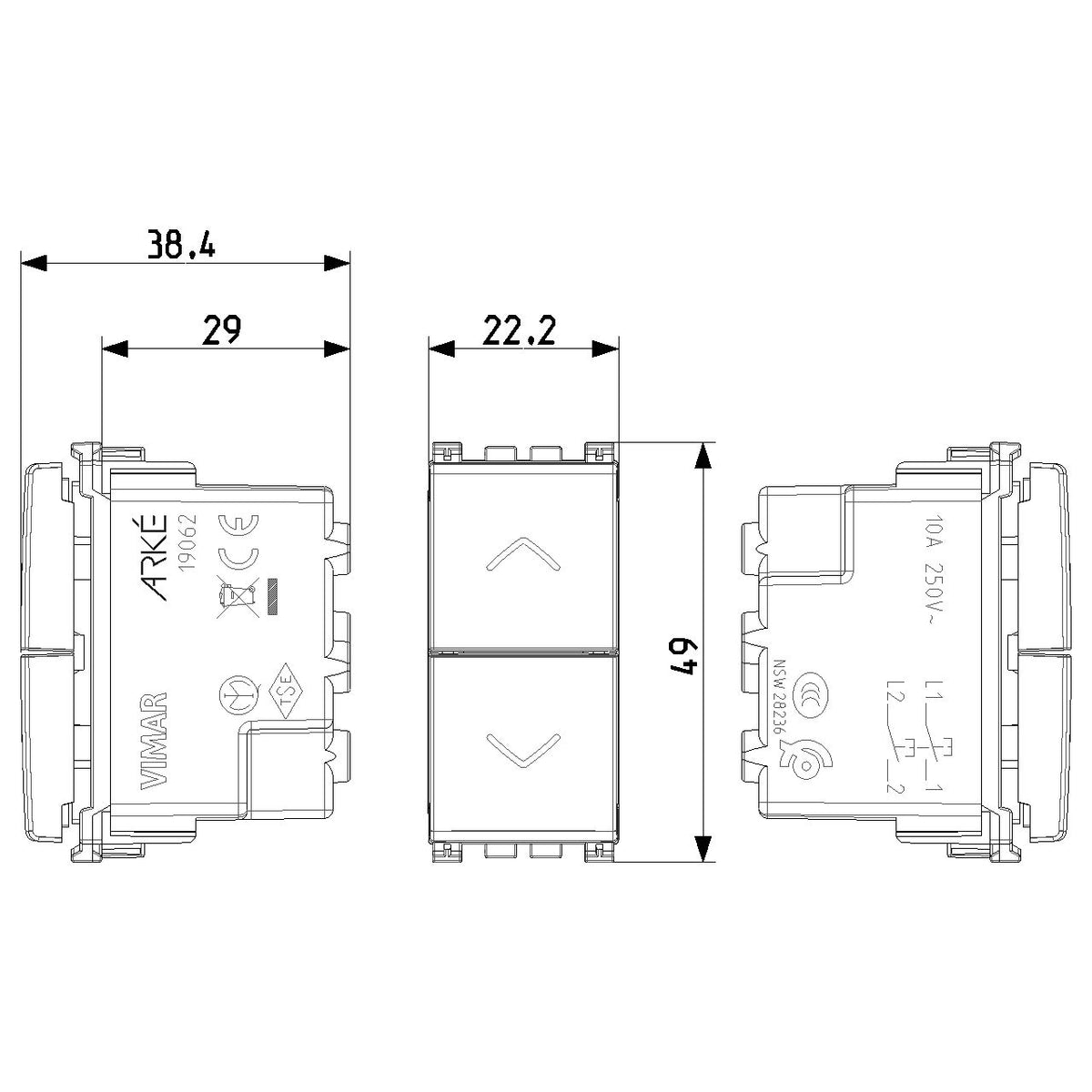

- Compact dimensions of 22.3 x 49 x 38.4 mm
Variants
This product is offered in multiple configurations that keep the same basic switching format while changing the finish and, on some versions, the surface treatment.
Across the listed variants, the electrical rating remains 10 A at 250 V~, the contact arrangement remains 1P NO + 1P NO, and the actuator keeps the directional-arrow marking. The differences are the visible color and whether the plastic includes antibacterial treatment.

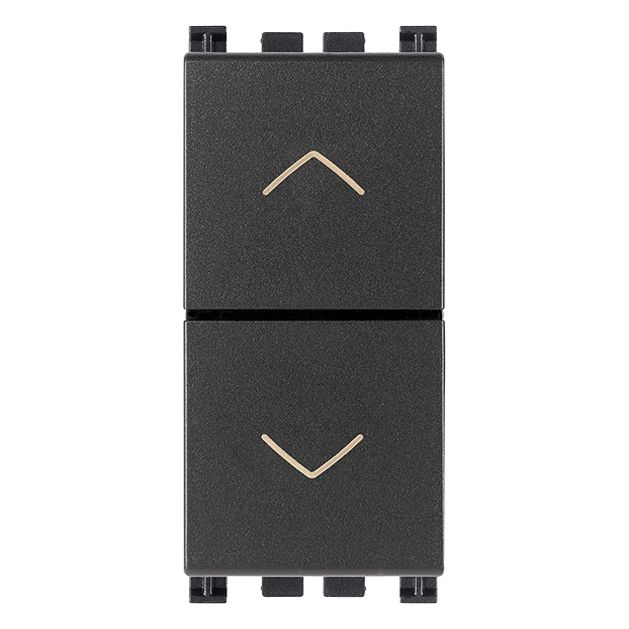

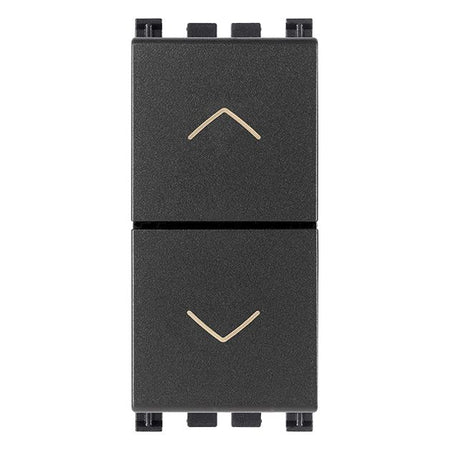

- 19062: gray finish, no antibacterial treatment. This is the standard gray version for panels that use a darker neutral tone.

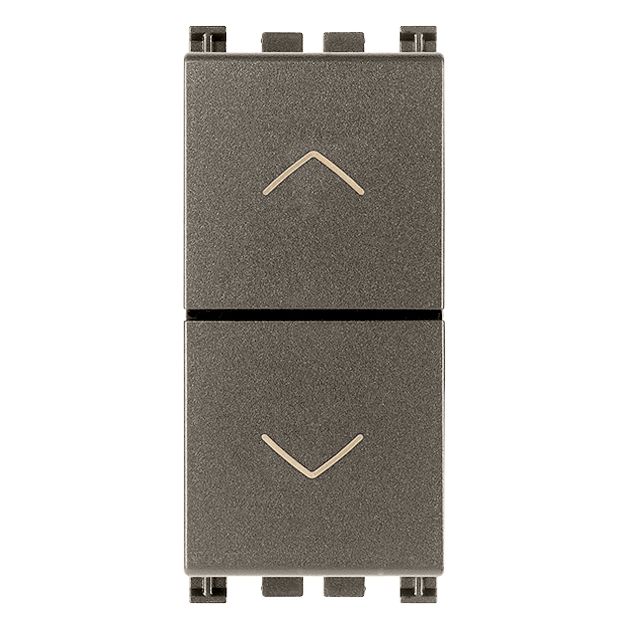

- 19062.M: metal finish, no antibacterial treatment. This version changes the visible finish while keeping the same switching function.

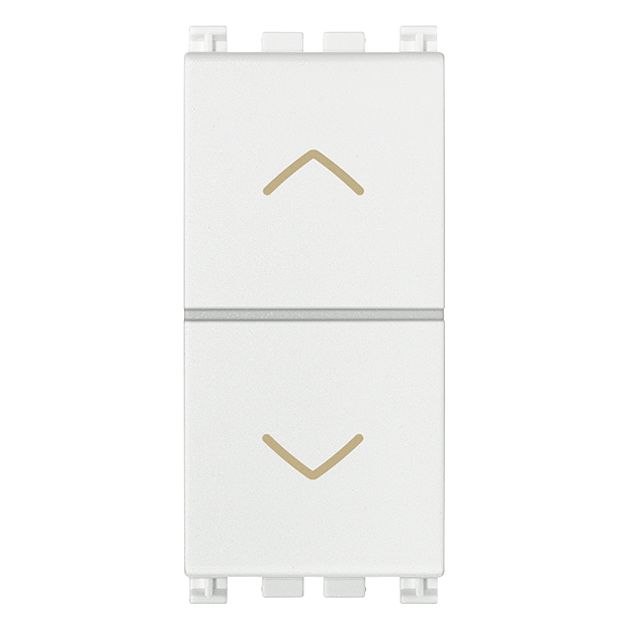

- 19062.B: white finish, no antibacterial treatment. It keeps a lighter look that works well on white switch panels.
- 19062.AB: gray finish with antibacterial treatment. This adds a treated surface for frequently touched interior control points.
- 19062.AB.B: white finish with antibacterial treatment. It combines the white finish with the same treated surface and switching layout.
Installation and panel use
This is a built-in device with snap fastening, so panel planning should confirm the available mounting depth and the correct surrounding hardware before installation. Because the protection rating is IP40, it is better suited to enclosed or otherwise protected locations than to exposed washdown areas or open deck mounting points.
Electrical and system fit
The device is a push button, not a latching switch, and it does not include lighting or a monitoring contact. That makes it a straightforward option for paired momentary commands where the circuit design already matches the 10 A, 250 V~ rating and the 1P NO + 1P NO contact format. It is a good match for installers building neat interior control panels and wanting a clear way to separate opposite commands in daily use.
