Jabsco Motor and Waste Pump Assembly, For Quiet Flush Electric Toilets

Overview

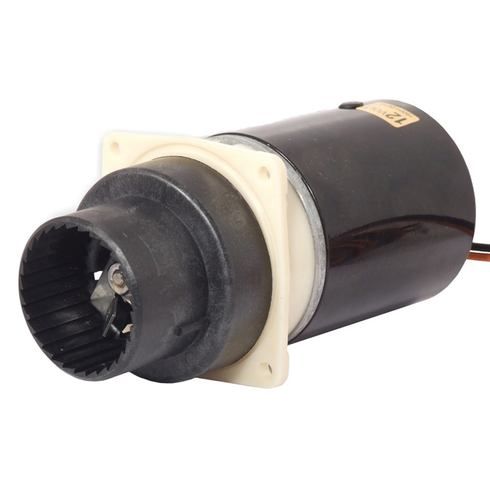

The Jabsco Quiet Flush is a replacement electric toilet motor and waste pump assembly for compatible Jabsco marine electric toilets, offered in 12V DC and 24V DC versions. It replaces the motor and waste pump section of the toilet, which is the part that moves waste out of the bowl and into the vessel’s sanitation plumbing.

This assembly is used with Jabsco toilet series 37045, 37245, 37055, 37255, 37075, and 37275 when the voltage matches the onboard toilet system. It includes an attached cable of approximately 1.8 m, or 6 ft, which helps during service work where access behind the bowl or inside cabinetry is limited.

For boats with Quiet Flush or Designer Series heads, this is the service part to consider when the existing pump motor has failed, become weak, or is no longer moving waste as it should. Matching the voltage is essential before installation, especially on vessels with separate 12V and 24V DC circuits.

Key features

• Replacement motor and waste pump assembly for compatible Jabsco Quiet Flush and Designer Series electric marine toilets.
• Available in 12V DC and 24V DC configurations to match the vessel’s existing toilet electrical system.
• Compatible with Jabsco toilet series 37045, 37245, 37055, 37255, 37075, and 37275 when the correct voltage version is selected.
• Approximate 1.8 m, or 6 ft, cable length supports practical routing during toilet service and reassembly.
• Includes the service hardware needed for installation, helping reduce the need to reuse worn sealing parts.
• Useful for restoring waste discharge function without replacing the complete toilet assembly.

Variants

This product is offered in two voltage configurations for different DC electrical systems on board.

The main difference between the variants is voltage. The application, assembly type, and compatible toilet series remain the same when the voltage matches the toilet model being serviced.

• 37072-0092: Voltage 12V. This version matches 12V DC Jabsco electric toilet installations and should not be used in place of a 24V motor.
• 37072-0094: Voltage 24V. This version matches 24V DC Jabsco electric toilet installations and should not be used in place of a 12V motor.

Compatibility and fit

Before ordering, confirm the toilet model and the DC voltage printed on the existing installation or wiring documentation. The assembly is intended for specific Jabsco electric toilet series, so matching both the toilet family and voltage is more important than relying on appearance alone.

On many boats, the head is installed in a tight compartment with limited access to the discharge side of the bowl. Checking access to the pump body, wiring, hose connections, and fasteners before starting the job can make the replacement cleaner and reduce time spent working around sanitation plumbing.

Installation and service notes

Power to the toilet circuit should be isolated before service, and the sanitation plumbing should be handled as a waste system. Inspect nearby hoses, clamps, and seals while the pump area is open, since worn discharge hose or loose clamps can cause odor and leakage after the new assembly is fitted.

This assembly is a practical match for owners maintaining a Jabsco electric head on cruising boats, fishing boats, and sailboats where keeping the original toilet system in service is preferred over replacing the entire head.

What’s included

• Motor and waste pump assembly
• O-ring
• Mounting screws
