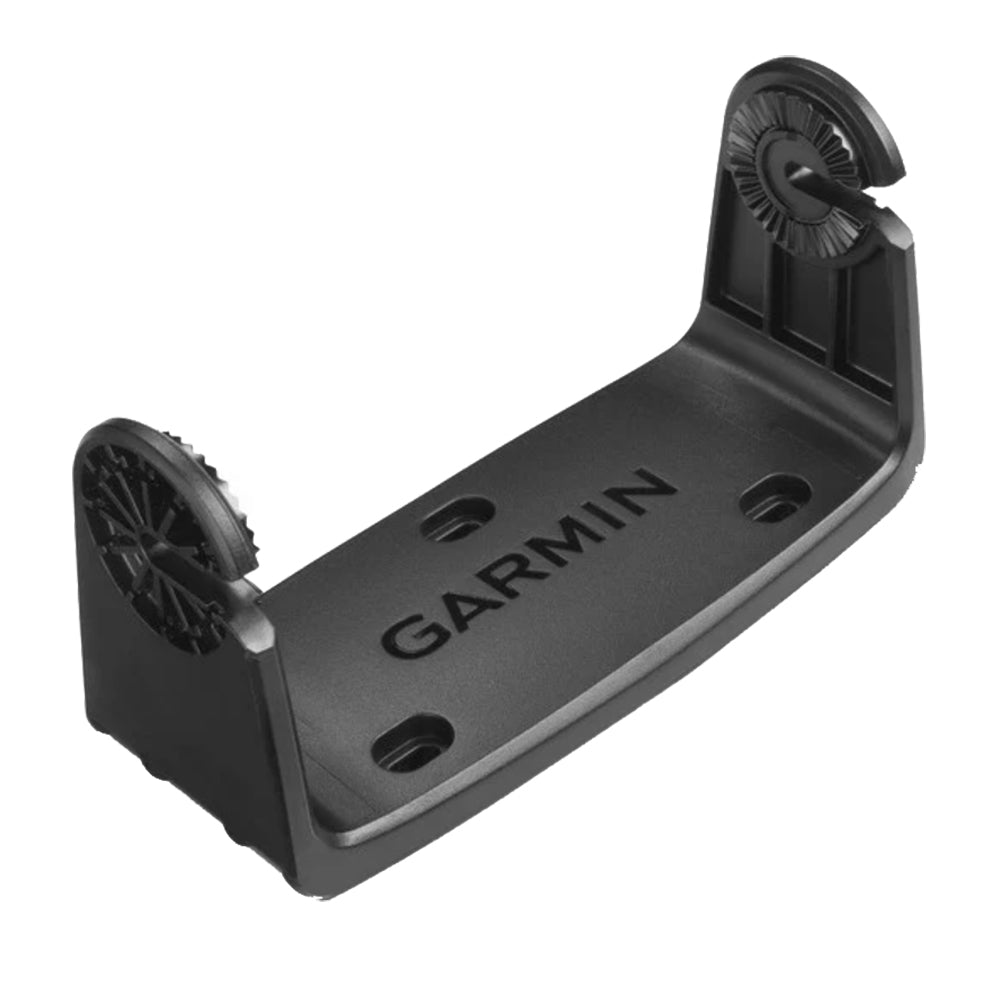

Garmin VHF Bail Mount Bracket, For VHF 110/115, Knobs Sold Separately

Overview

The Garmin 010-12504-01 is a bail-mount bracket for mounting a compatible fixed-mount VHF radio on a flat surface instead of flush-mounting it in a panel. It is used to secure the radio at the helm, on a bulkhead, or under a dash where you want the front controls and mic connection easy to reach.

This is a mounting accessory only and it does not change any wiring or electrical integration. Mounting knobs are sold separately, so plan on reusing existing knobs or adding the correct knob set if yours are missing.

Key features

• Compatible with Garmin VHF 110 and VHF 115 fixed-mount marine radios
• Bail-style bracket for surface mounting on a console top, vertical face, or under-helm location
• Allows the radio to be angled for viewing and button access after installation
• Keeps the radio supported against vibration when running in chop
• Mounting knobs are sold separately

Compatibility and fit

Confirm the exact radio model before ordering. This bracket fits the VHF 110 and VHF 115 chassis, and other Garmin VHF families use different bail mounts and hardware.

For a clean install, leave room on the sides for the mounting knobs and enough clearance behind the radio for the power, antenna, and accessory cabling so connectors are not forced into a tight bend.

Installation and setup

Position the bracket where the radio can be operated one-handed and the microphone cord can hang without snagging the wheel or throttle. Mark the mounting holes, drill for your fasteners, and use a backing plate or large washers when mounting into thin fiberglass, aluminum, or plastic panels.

Any time you drill into a cored or exposed deck surface, seal the fastener holes to keep moisture out. After installation, set the viewing angle and tighten the knobs so the radio stays put while still allowing adjustment when you need it.

Use cases on board

This mount is a good match for open center consoles, small pilothouses, and refits where there is not enough panel depth for a flush-mount cutout. It also works well when the radio needs to sit below the dash or overhead to free up prime real estate for displays and switches.

Maintenance and care

Rinse salt spray off the bracket during routine washdowns and check the fasteners and knobs periodically, especially after long runs in rough water. If the radio starts to creep from vibration, re-tighten the knobs and confirm the mounting surface is still solid.
