SI-TEX - T2010A 10.4" Color Radar - With 12Kw 4.5' Open Array
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced Marine Radar System for Superior Navigation
The Si-Tex T2010A-4 10.4" Display 12kW Open Array Radar is a powerful and reliable marine radar system designed for high-performance navigation in a variety of maritime conditions. This system features an advanced 4.5' open array antenna and a high-resolution 10.4" color display, ensuring precise target detection and clear visualization. Ideal for commercial and recreational marine applications, the T2010A-4 provides enhanced situational awareness and safety on the water.
High-Performance Radar Capabilities
Equipped with a dual-speed antenna capable of 48 RPM operation, this radar is optimized for high-speed and riverine navigation. The split-screen display allows users to monitor both long-range and short-range targets simultaneously, improving efficiency in complex environments.
The True-Trail function helps distinguish moving targets from stationary objects, while additional features such as Interference Rejection, Target Expansion, and Parallel Indexing provide superior target clarity. The unit also offers True/Relative Bearing capabilities for enhanced positional awareness.
Technical Specifications

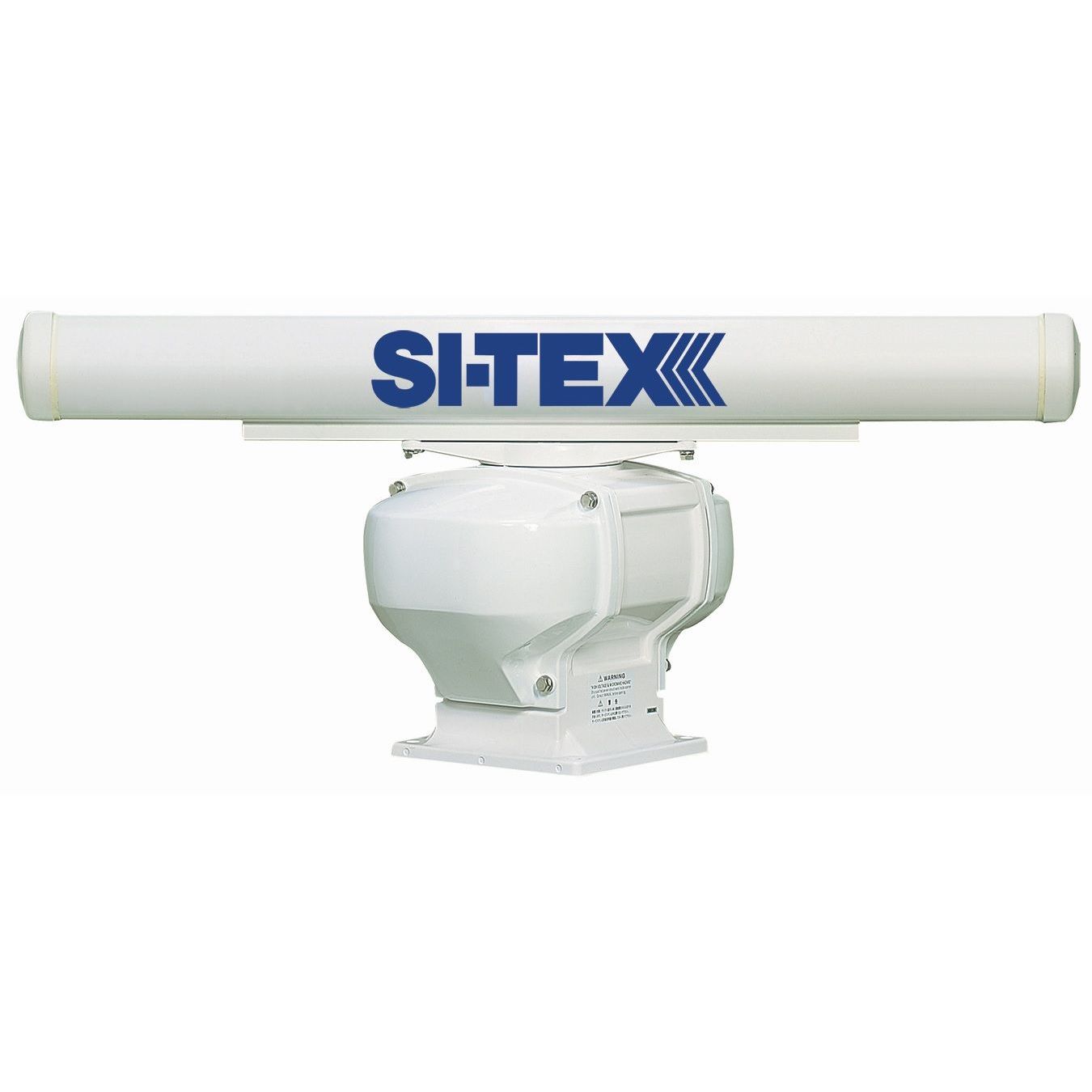

- Antenna Type: 4.5' Open Array
- Peak Power Output: 12kW
- Operating Frequency: 9410 MHz ± 30MHz
- Beam Width: 1.8° Horizontal, 22° Vertical
- Rotation Speed: 24 or 48 RPM
- Pulse Width Options: 0.08, 0.15, 0.3, 0.5, 1 µs
- Intermediate Frequency: 60MHz
- Range Accuracy: Better than 8m or 1% of the selected range scale
- Minimum Detecting Distance: 25m

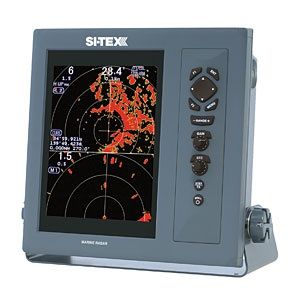

High-Resolution Display for Enhanced Clarity
The 10.4" TFT Color LCD ensures crisp and clear radar imaging, with a resolution of 480 x 640 pixels for precise target representation. The unit supports multiple display modes, including:
- Heads-Up
- North-Up (Requires heading input)
- Course-Up (Requires heading input)
- Waypoint-Up (Requires waypoint data input)
Compact and Durable Design
- Display Dimensions: 12 19/32" x 12 19/32" x 5 39/64"
- Power Requirements: 10.8 - 31.2V DC
- Power Consumption: 130 watts or less
Advanced Target Tracking
The Si-Tex T2010A-4 features a standard AIS interface module capable of tracking up to 200 targets, ensuring heightened awareness of surrounding vessels. Additionally, an optional 50-target Automatic Tracking Aid (ATA) is available for those requiring advanced monitoring capabilities.
Highlights
- High-powered 12kW radar system for precise target detection
- 4.5' open array antenna with dual-speed rotation (24/48 RPM)
- Split-screen display for simultaneous monitoring of long and short-range targets
- True-Trail function for easy identification of moving targets
- Interference rejection and target expansion for optimal clarity
- Standard AIS interface for tracking up to 200 targets
- Optional 50-target ATA for enhanced tracking capabilities
- Multiple display modes for customizable navigation
- Compact and durable design with power-efficient operation
Included Components
- MRD-104 Display
- RB718A - 12kW Pedestal
- RW701A-04 - 4.5' Antenna
- 15M Cable (242J159098A)
- DC Power Cable
- Quick Reference Guide
- Operation Manual
The Si-Tex T2010A-4 is engineered for demanding marine environments, offering advanced radar capabilities that enhance safety and navigation. Whether used for commercial operations or recreational boating, this radar system delivers exceptional performance and reliability.
