Airmar - B60 50/200 Khz 20DEG Tilted Transducer
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Precision Depth and Temperature Sensing for Marine Navigation

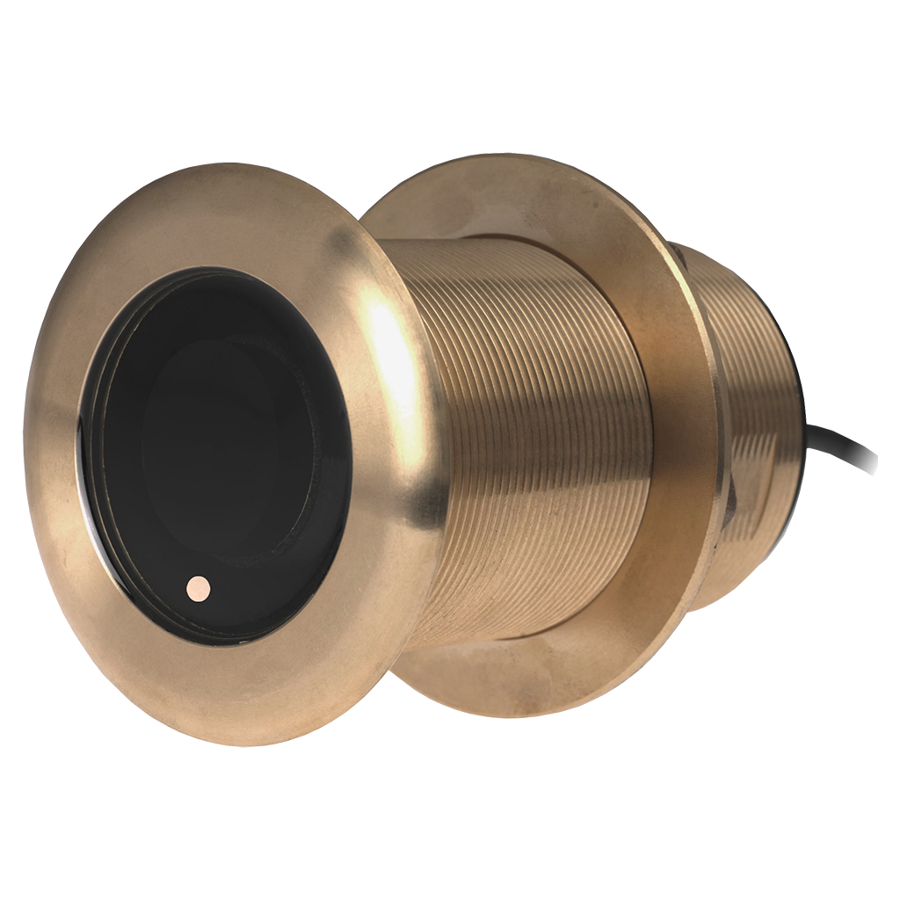

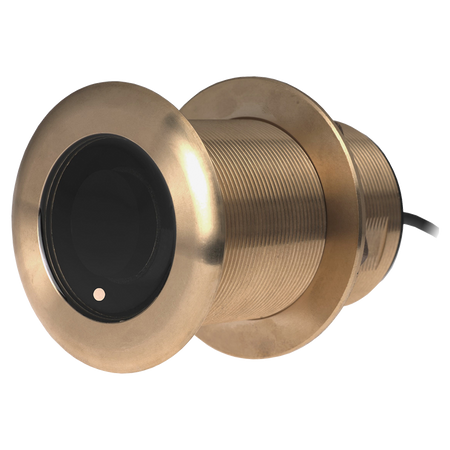

The Airmar B60 50/200 kHz 20° Tilted Transducer is a high-performance solution designed for accurate depth and temperature readings in marine applications. Engineered with a durable bronze housing, this transducer ensures reliable performance while minimizing drag. The built-in tilt of 20° compensates for hull deadrise, delivering a vertical beam for improved echo returns and precise depth measurement. Its nearly flush-mounted design reduces turbulence, making it an ideal choice for boaters seeking enhanced sonar performance without the need for an external fairing.
Advanced Sonar Capabilities
- Dual-frequency operation: 50/200 kHz for optimized depth and detail scanning
- 600 W RMS power for mid-performance applications
- Integrated temperature sensor for real-time water temperature readings

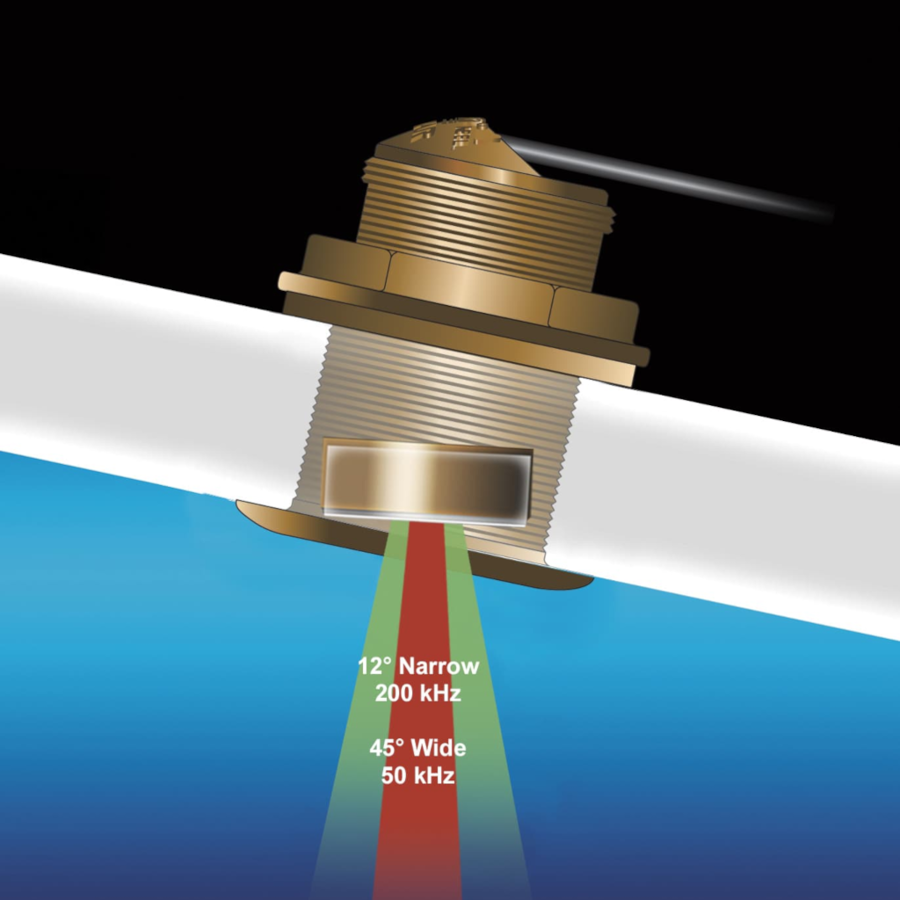

- Tilted element technology for improved bottom tracking on angled hulls
- Low-profile design with minimal hull protrusion (only 5 mm extension)
Rugged and Reliable Construction
Built from robust bronze, the B60 transducer is designed to withstand harsh marine environments, ensuring long-term durability and resistance to corrosion. Its compact form factor allows for seamless installation, making it a dependable choice for various hull types.
Variations List
- B60-20-8G – Equipped with a Garmin 8-pin connector
- B60-20-BL – Designed with a Lowrance 7-pin connector
This transducer is an excellent choice for boaters looking to enhance their sonar system with reliable depth and temperature readings while benefiting from a streamlined, low-drag installation.
