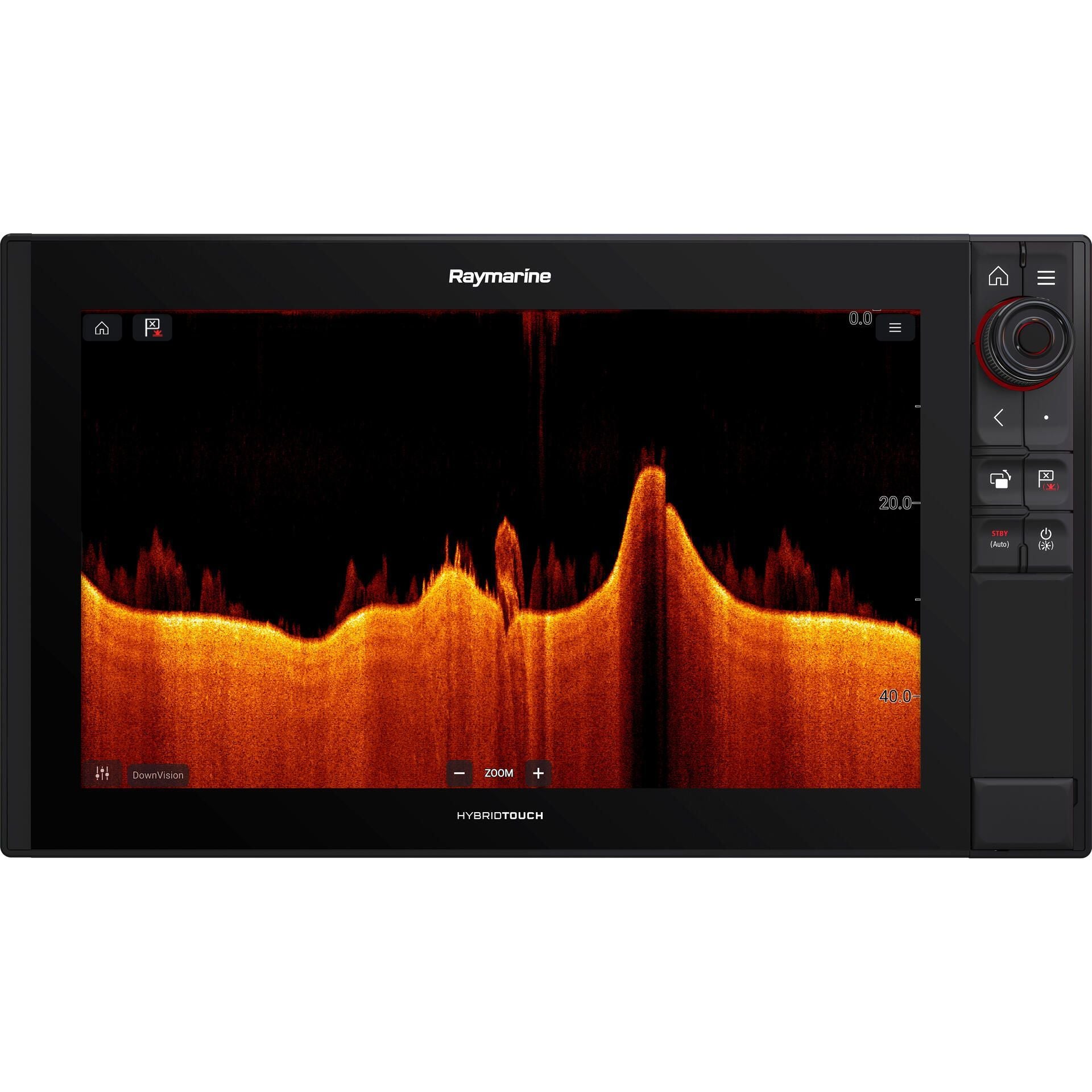

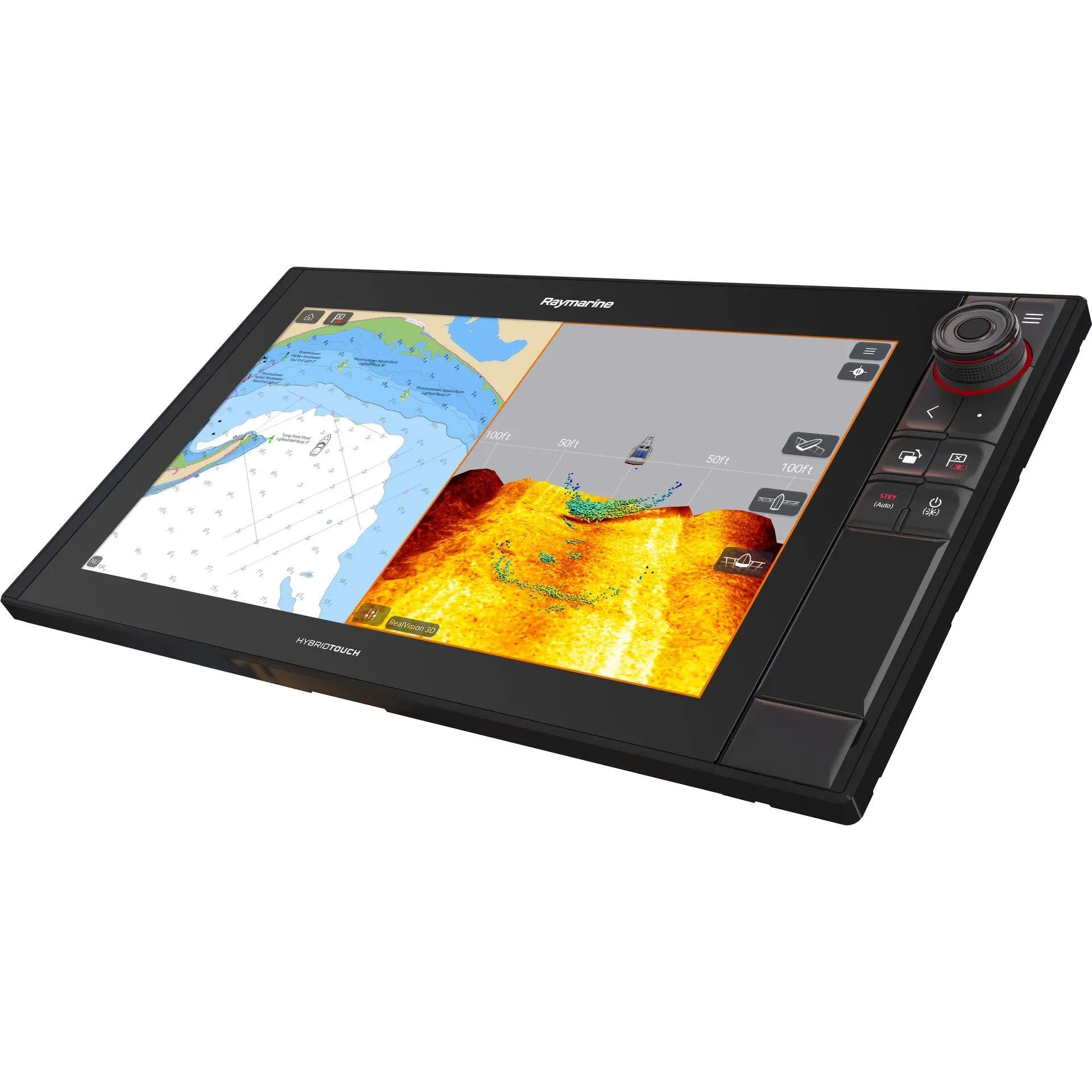

Raymarine - Axiom Pro 16RVX MFD - No Transducer, Lighthouse NC3 North America
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced Marine Navigation and Sonar System

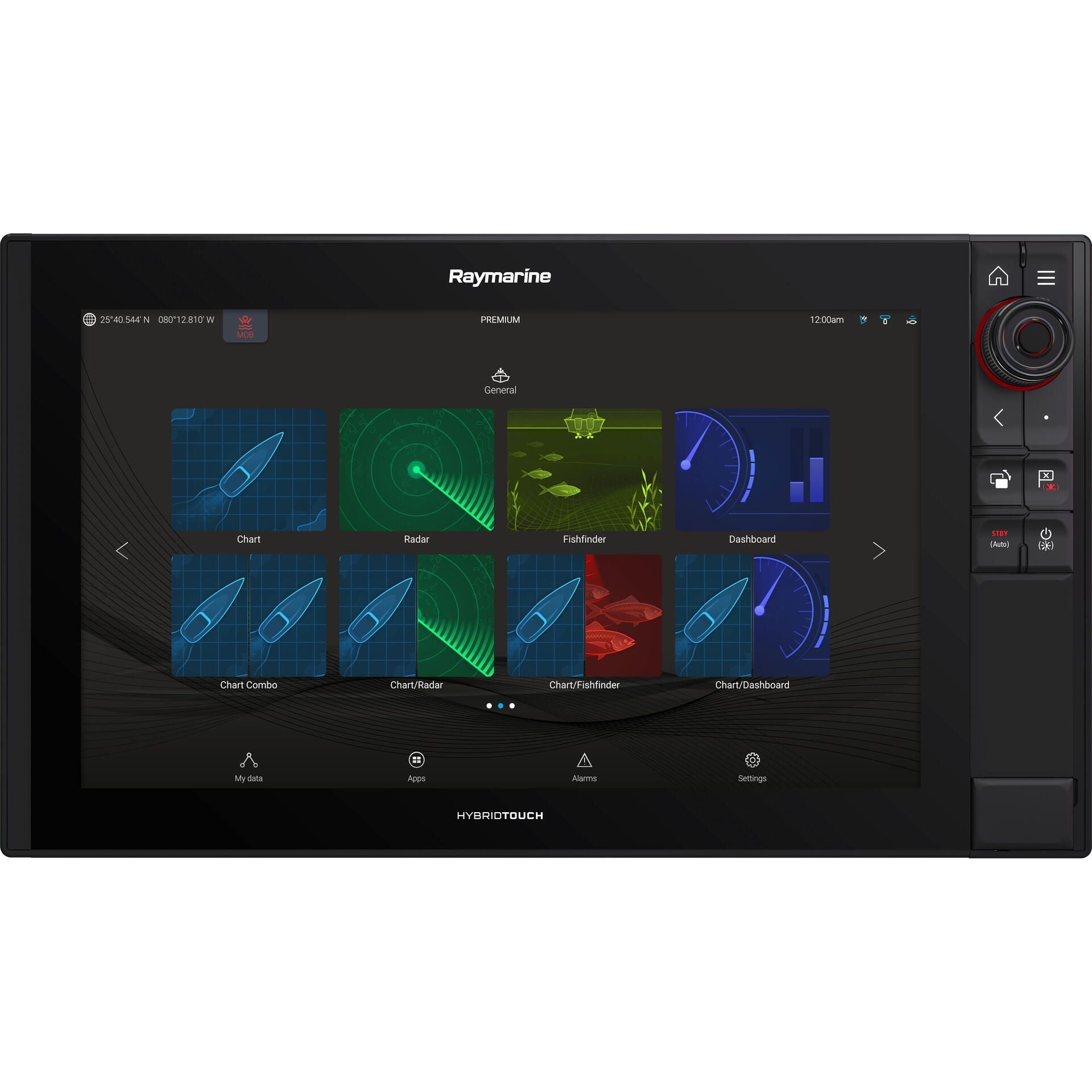

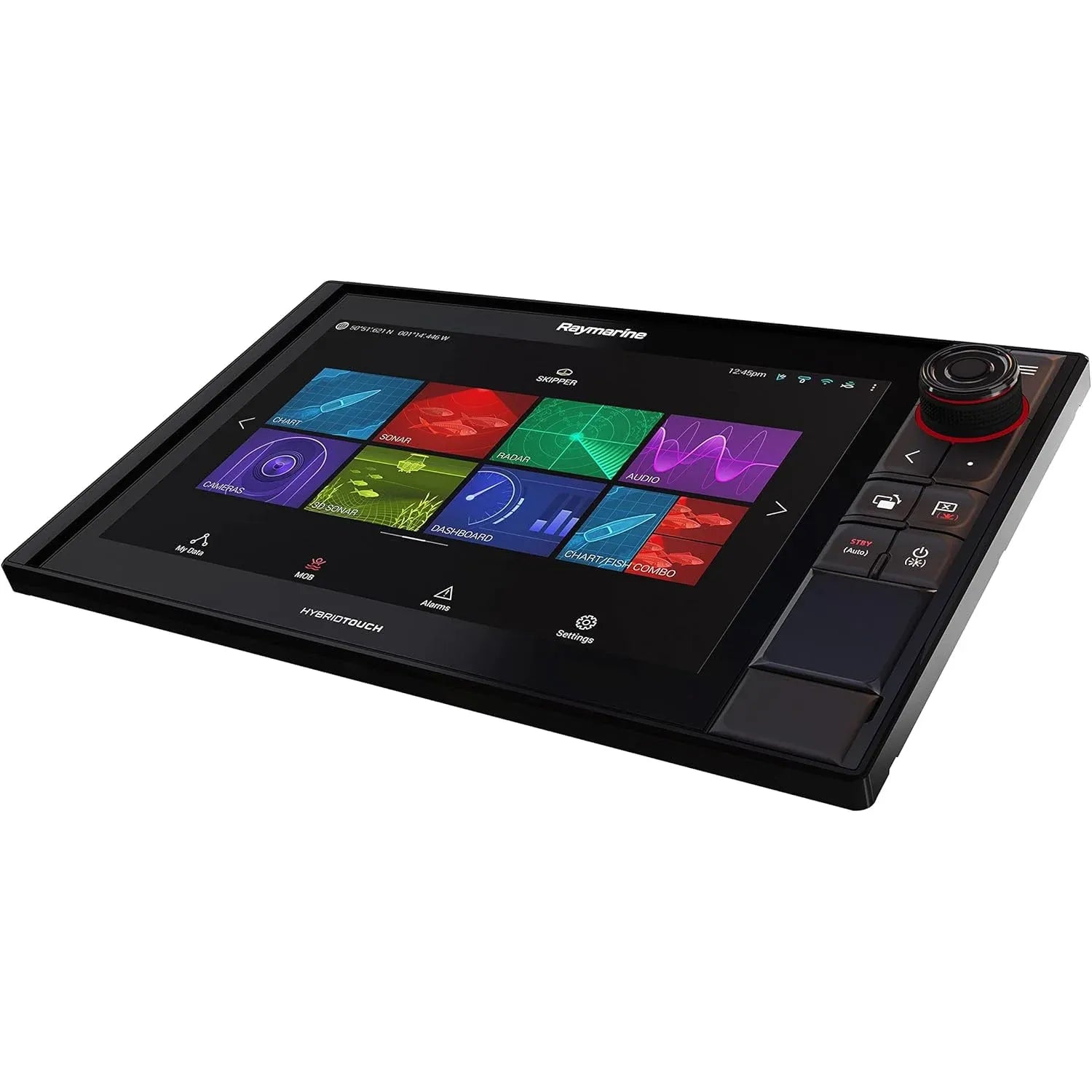

The Raymarine Axiom Pro 16RVX is a high-performance multifunction display (MFD) designed for professional mariners, anglers, and sailing enthusiasts who demand top-tier technology and precision. Featuring a 15.6-inch IPS optically bonded LCD with Full HD resolution (1920 x 1080), this MFD delivers stunning clarity and sunlight readability. The HybridTouch™ interface combines touchscreen functionality with a rugged keypad for seamless operation in all conditions.
Equipped with RealVision 3D and 1kW CHIRP sonar, the Axiom Pro 16RVX offers unparalleled underwater imaging, providing real-time 3D views of the seabed and fish structures. Its powerful quad-core processor ensures ultra-fast performance, supporting advanced navigation, radar integration, and sonar processing with ease. The inclusion of Lighthouse NC3 North America charts enhances navigational accuracy with detailed lake and coastal tide station data.
Designed for seamless connectivity, this unit supports NMEA2000 & NMEA0183, IP and analog video inputs, and Wi-Fi and Bluetooth capabilities. Its rugged waterproof rating (IPX6/IPX7) and wide operating temperature range (-13°F to 131°F) make it a reliable choice for extreme marine environments.
High-Performance Display Technology
- 15.6-inch Full HD IPS LCD with optical bonding for superior visibility
- 1200-nit brightness ensures readability even in direct sunlight
- Multitouch and HybridTouch™ technology for versatile control
- 88° wide viewing angle for effortless monitoring from any position
Sonar and Radar Capabilities

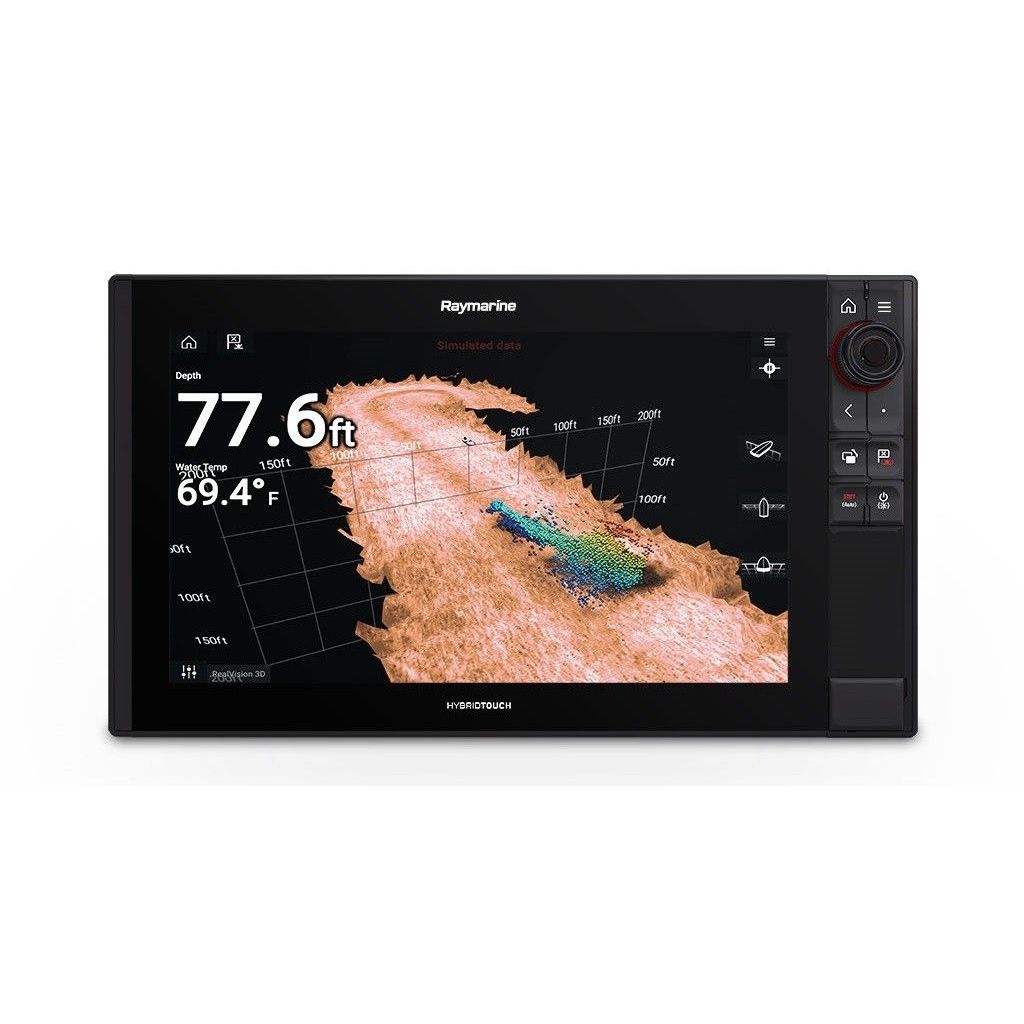

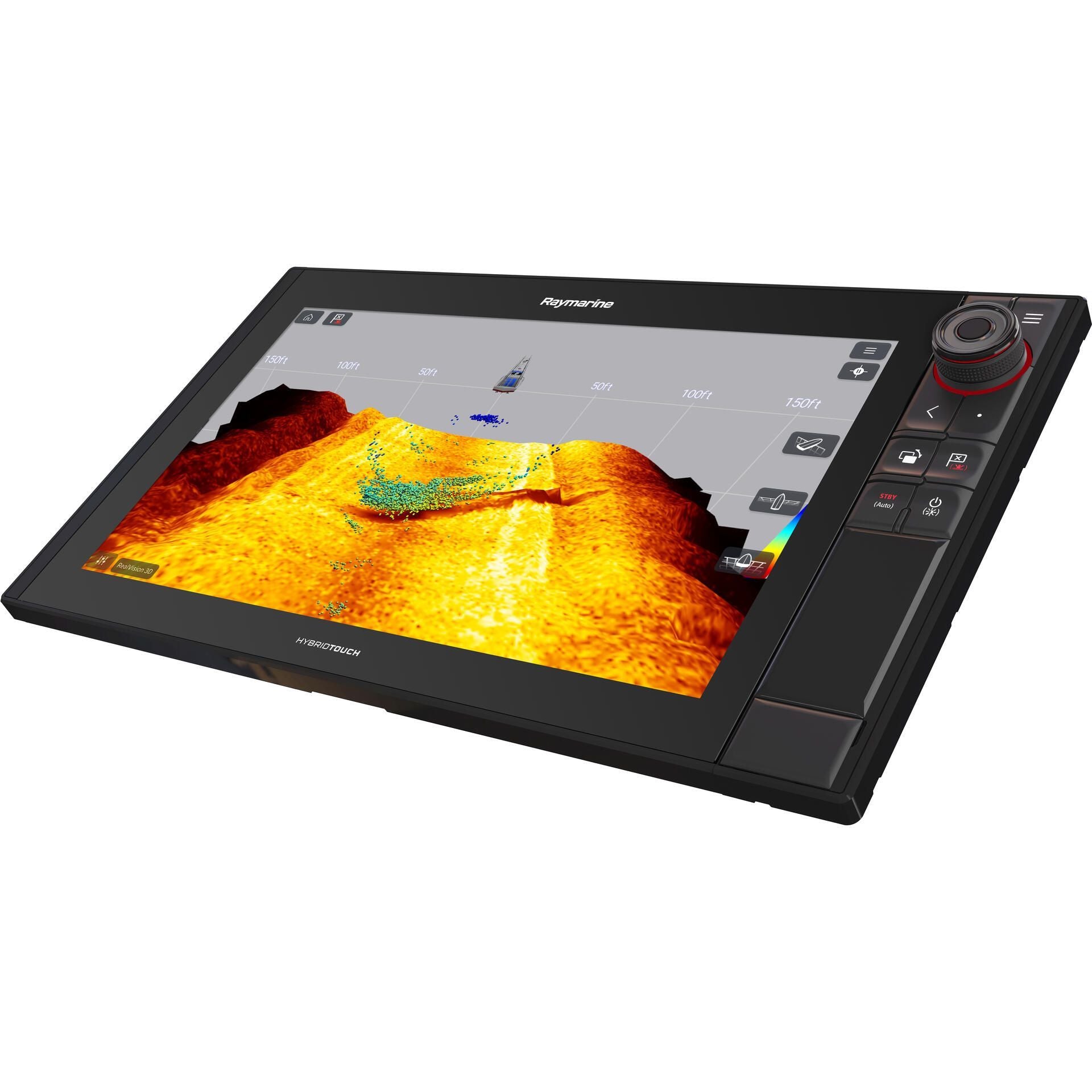

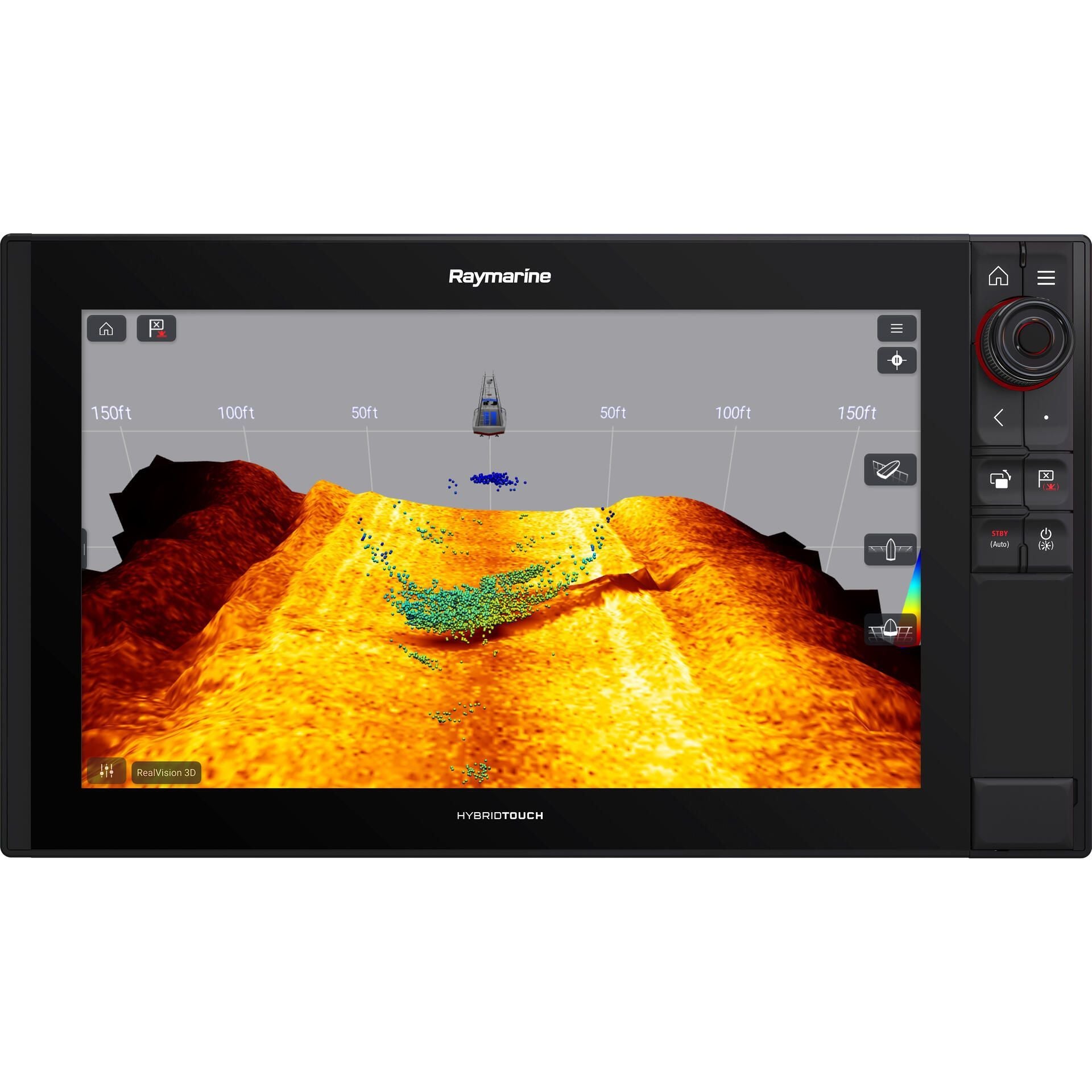

- RealVision 3D sonar delivers realistic underwater imaging

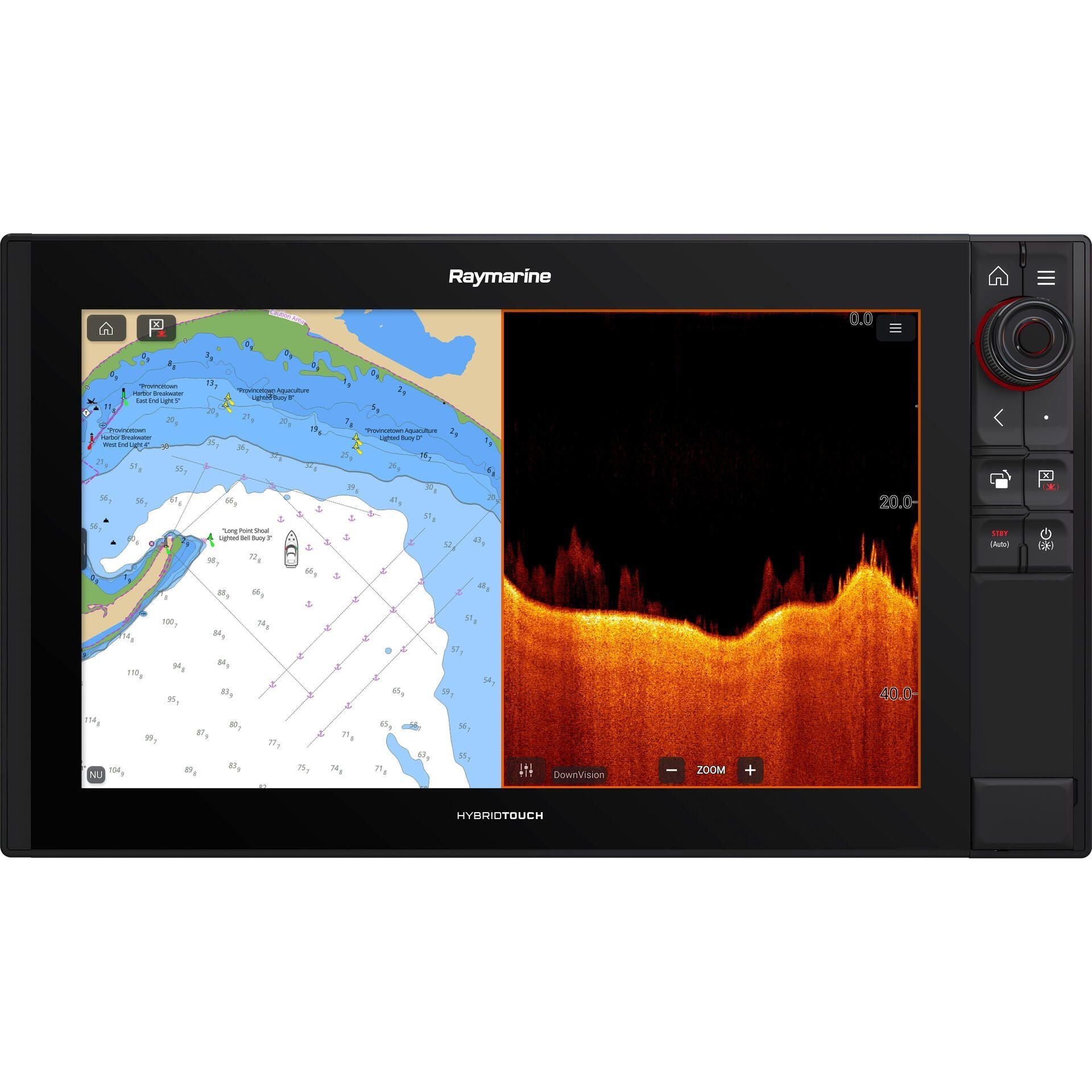

- 1kW CHIRP sonar for deepwater fishing up to 900 feet
- Compatible with CP100, CP200, CP370, CP470, and CP570 external sonar modules
- Supports Quantum CHIRP, HD, and SHD radars for enhanced situational awareness
- AIS integration via NMEA2000 for improved vessel tracking
Advanced Navigation Features
- Built-in GNSS receiver supports GPS, GLONASS, Galileo, and Beidou

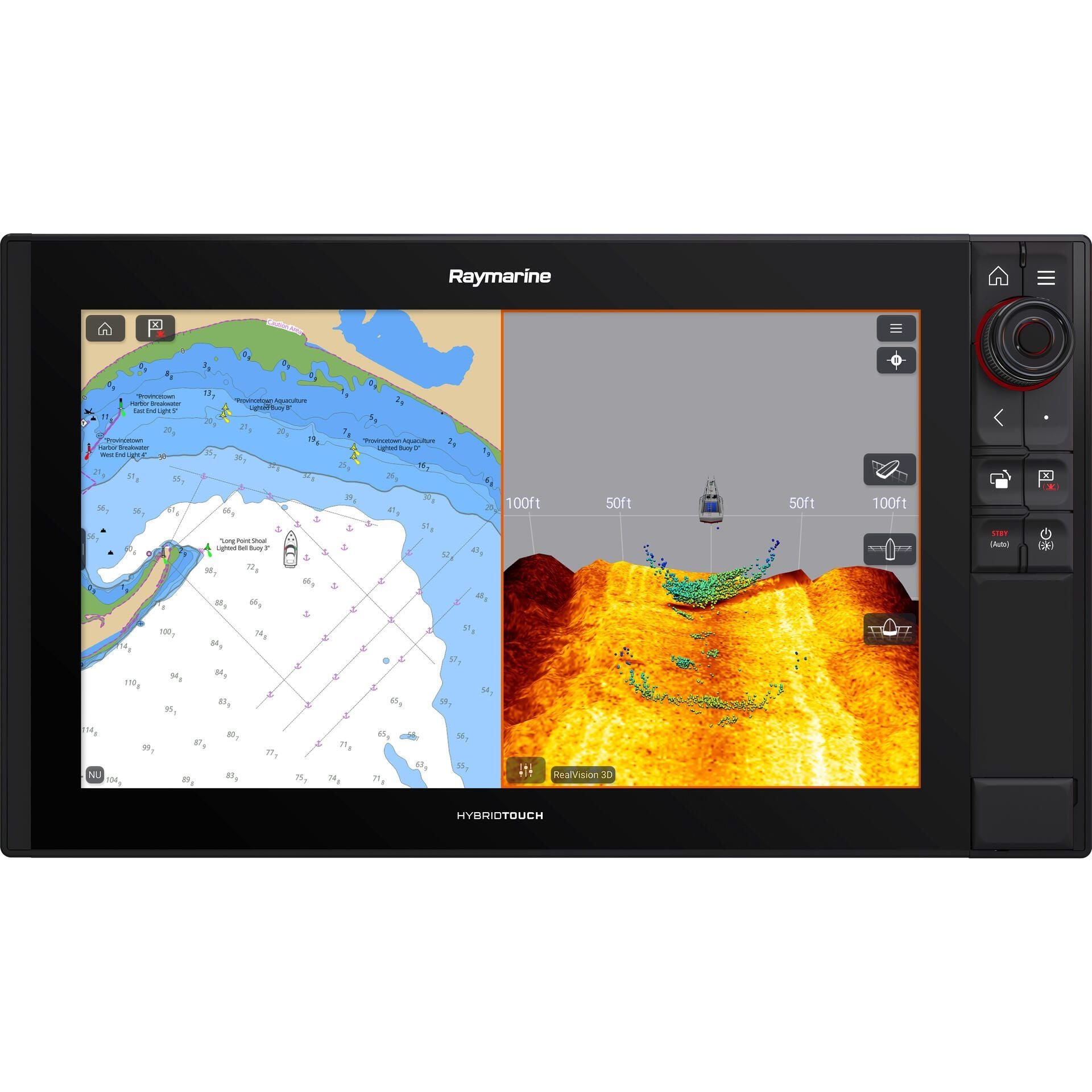

- Lighthouse NC3 North America charts for detailed inland and coastal mapping
- Waypoint, route, and track storage with a 10,000 waypoint capacity
- GRIB weather viewing and SiriusXM compatibility for real-time forecasts
Connectivity and Integration
- Dual Ethernet ports (10/100/1000 Mbits via RayNet)
- NMEA2000 and NMEA0183 for seamless communication with marine electronics
- Integrated Wi-Fi and Bluetooth (future Lighthouse 3 update)
- Supports up to 10 IP cameras and 1 analog video input
Rugged and Reliable Design
- IPX6 / IPX7 waterproof rating for superior durability
- Operational in extreme temperatures (-13°F to 131°F)
- Compatible with RAM ball mount adapters for flexible installation options
Product Dimensions
- 17.8” x 10.2” x 2.72” (452 x 258 x 69 mm)
Power Requirements
- Input Voltage: 12V and 24V DC (8V to 32V DC range)
- Power Consumption: ~45W
Included in the Box
- Raymarine Axiom Pro 16RVX MFD
- Trim Kit & Suncover

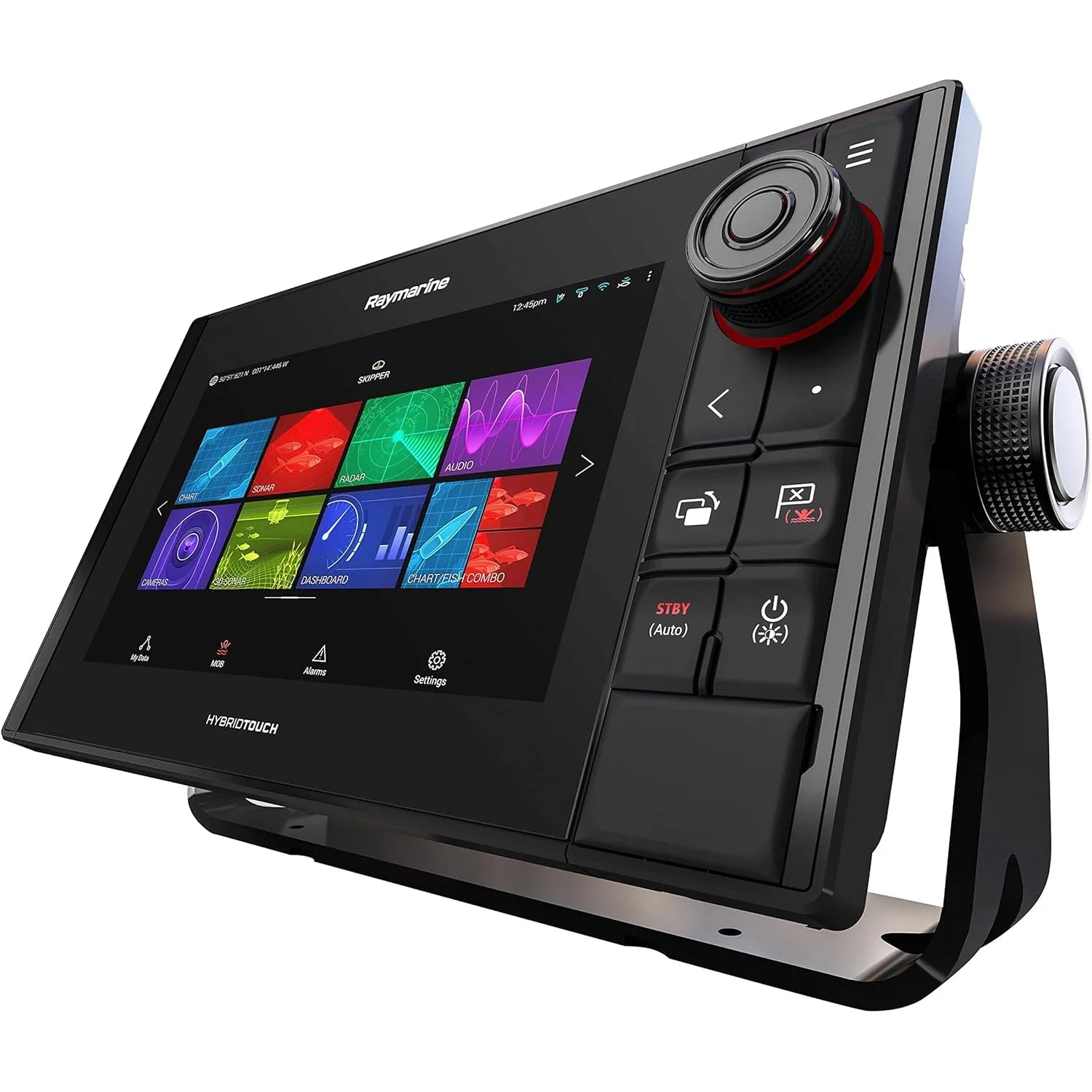

- Trunnion Mounting Kit
- PWR/VIDEO/NMEA0183 Cable (1.5M)
- Mounting Hardware & Template
- Quick Start Guide & Warranty Card
- Raymarine Window Decal
- Lighthouse NC3 North America microSD
The Raymarine Axiom Pro 16RVX is the ultimate solution for serious navigators and anglers, combining cutting-edge sonar, charting, and connectivity features in one powerful marine display. Whether you're charting unknown waters, tracking fish, or integrating with a vessel’s network, this MFD ensures an intuitive and reliable experience on the water.
