Hella Marine RokLUME 380N LED Floodlight, 20-32V, 7500 lm, IP6K8/IP6K9K, 5000K, 84W
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

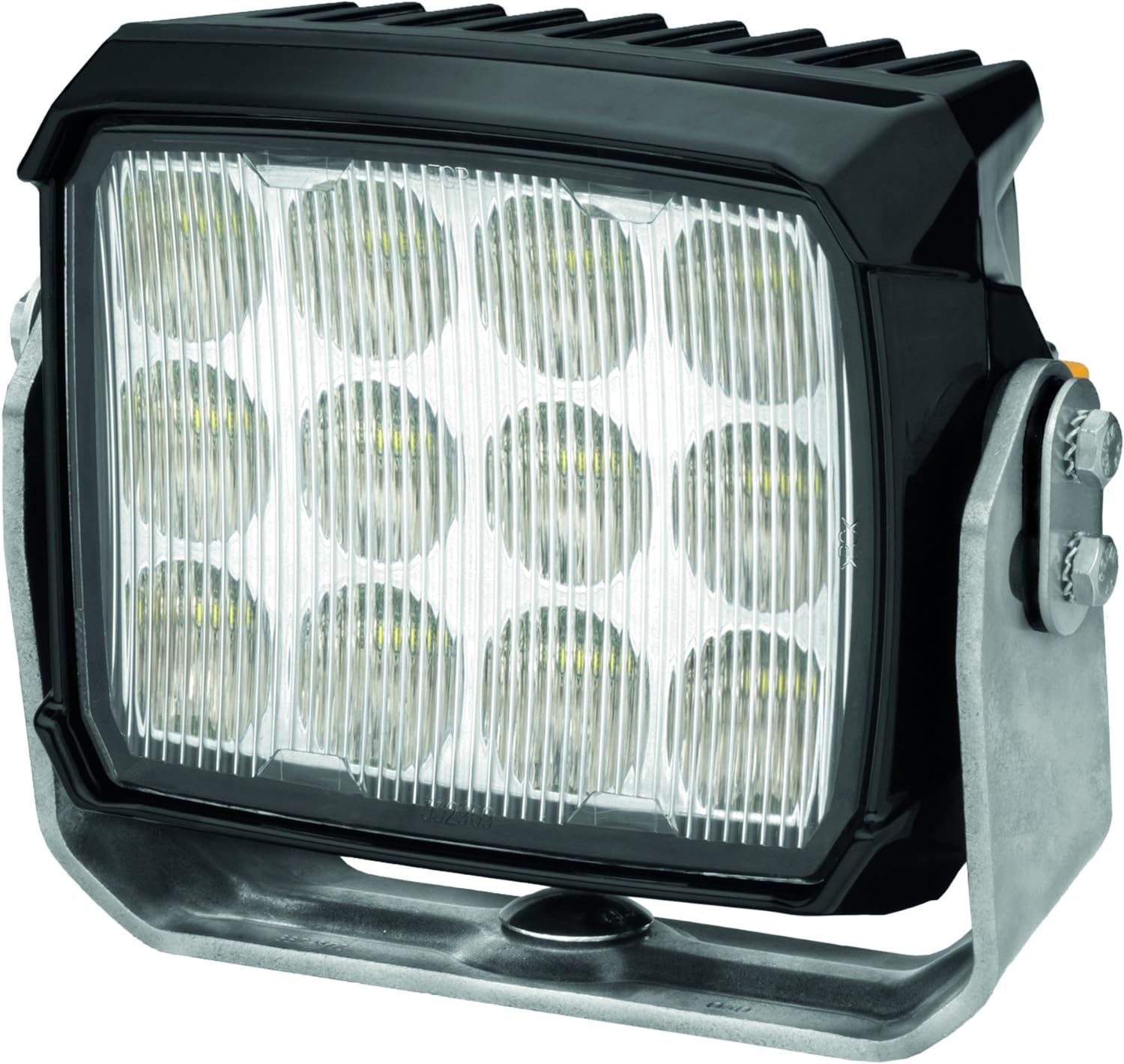

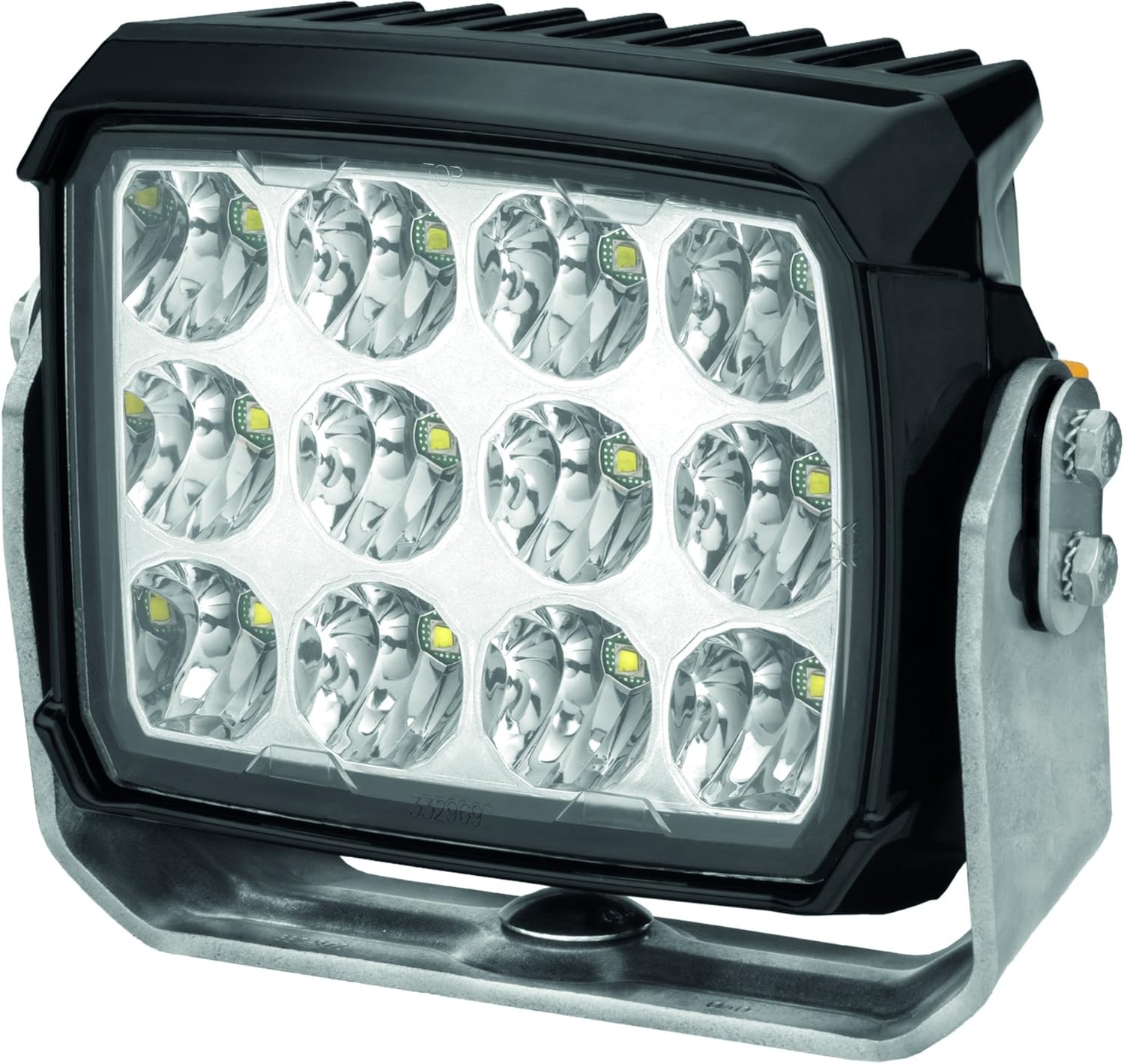

The Hella Marine RokLUME 380N is a 24 V LED worklight for lighting deck and work areas on vessels running a 24 V DC system. It operates across 20 to 32 V DC (nominal 24 V) and produces up to 7,800 measured lumens at 5,000 K, so the light stays clear for close-up tasks without the harsh blue tint some LEDs create.

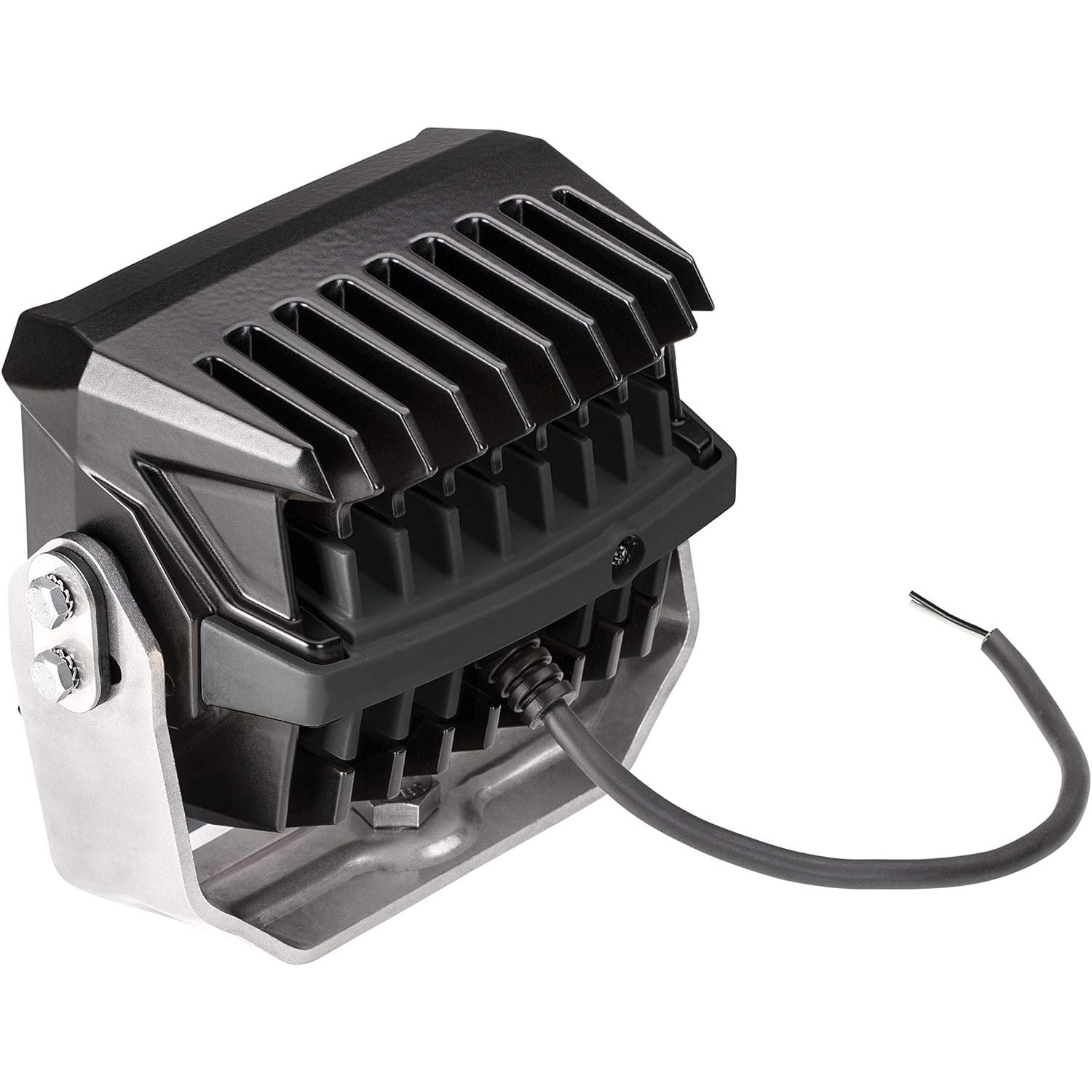

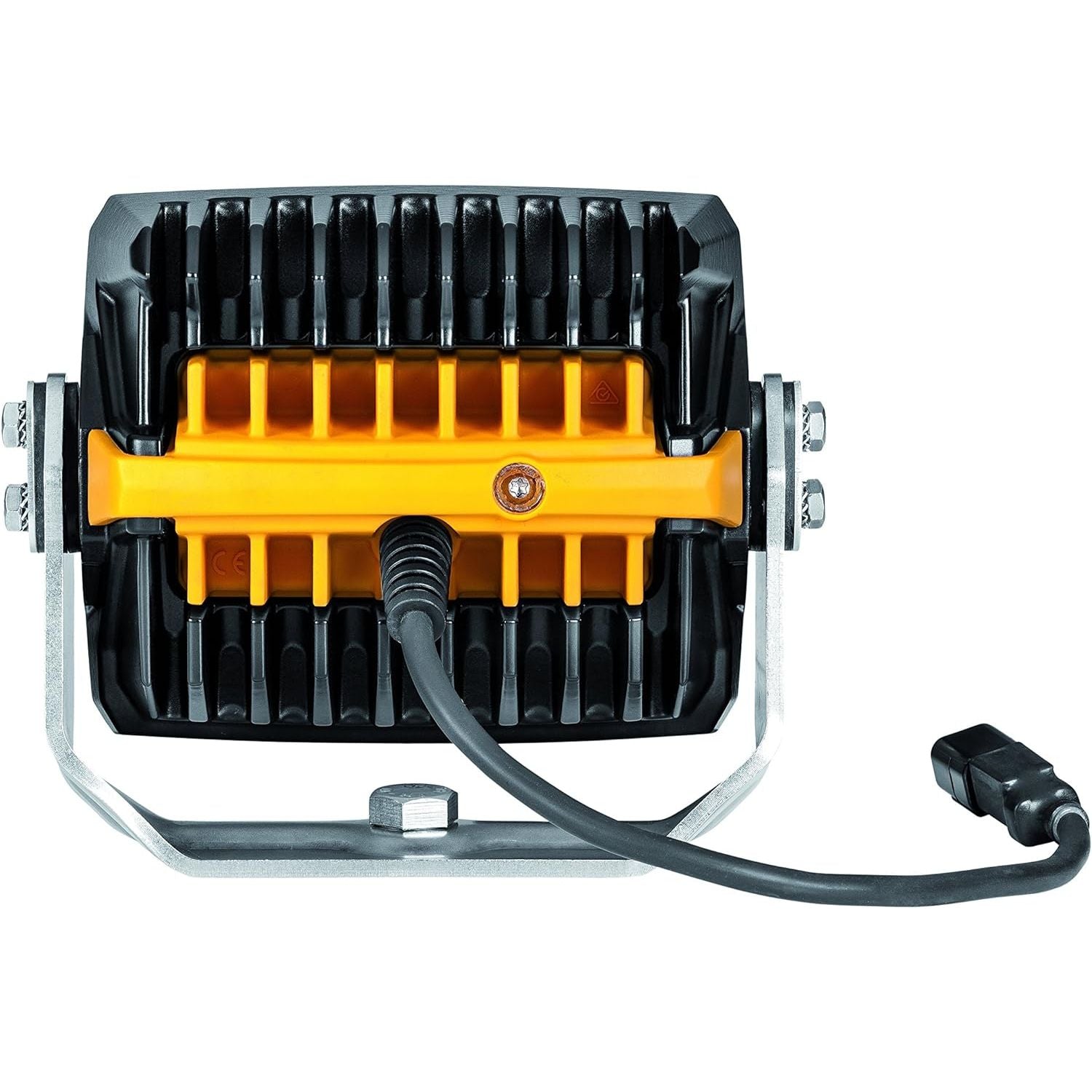

This light is sealed to IP 6K9K and IP 6K8 for dust, heavy washdowns, and submersion exposure, and it is built around a die-cast aluminium housing with a NanoSafe coating plus a hard-coated cover lens. The heavy-duty stainless steel bracket and rubber dampening help it hold its aim on boats that see vibration, and the unit includes polarity reversal protection and overheating protection for day-to-day use on working systems.
Key features
- 24 V platform with 20 to 32 V DC operating range (nominal 24 V)
- Up to 7,800 measured lumens, 5,000 K color temperature
- Power draw averages 75 W and can reach 84 W, with current up to 4.5 A
- Protection class IP 6K9K and IP 6K8 for high-pressure cleaning and submersion exposure
- Die-cast aluminium housing with NanoSafe coating and hard-coated cover lens
- Heavy-duty stainless steel bracket with rubber dampening for vibration control

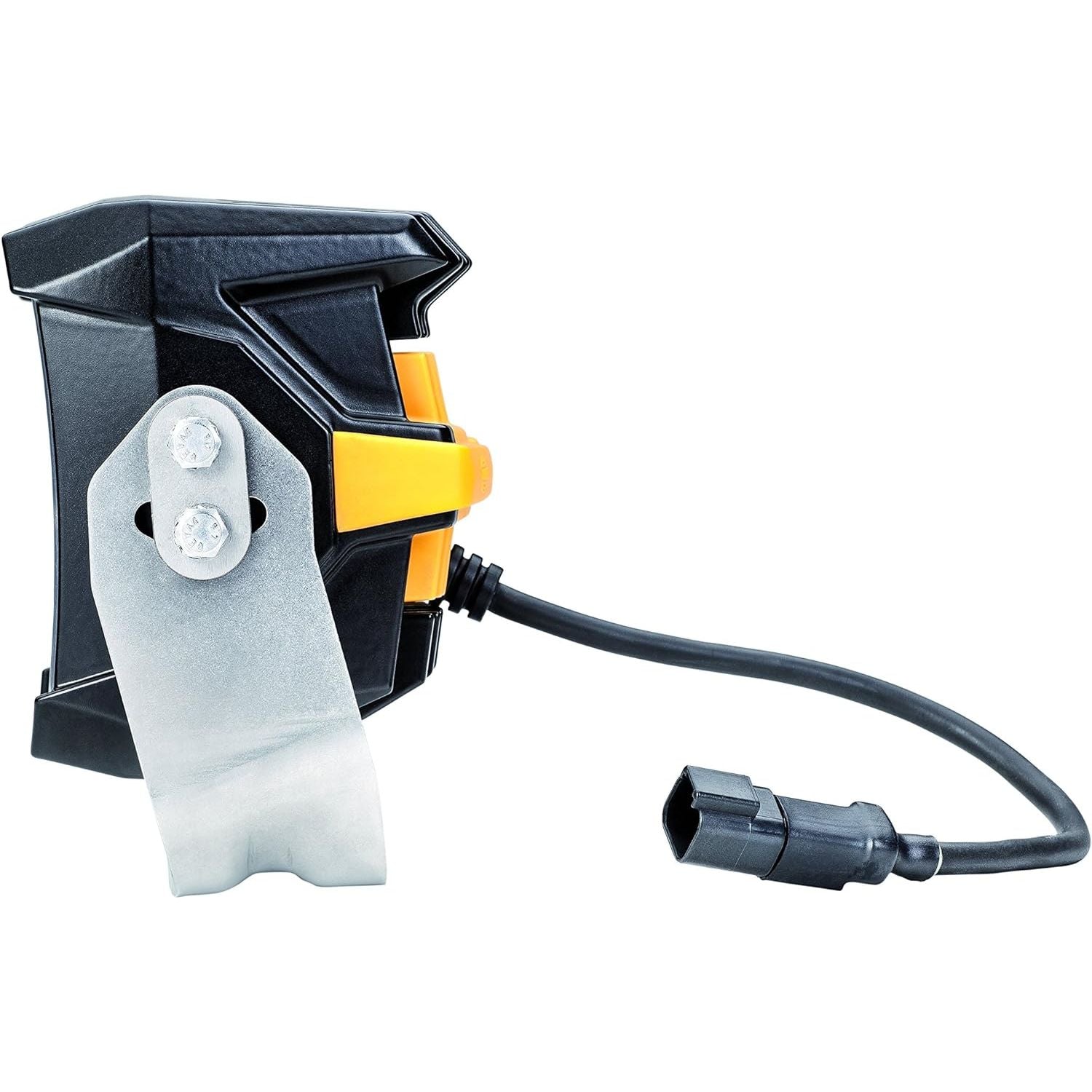

- 300 mm supply cable with 2-pin DEUTSCH DT connector (mating connector included)
- Polarity reversal protection and overheating protection
Variants
This light is offered in multiple configurations that change how the beam is shaped on deck.
The electrical platform and construction stay consistent across the range, while the main difference is the light distribution.

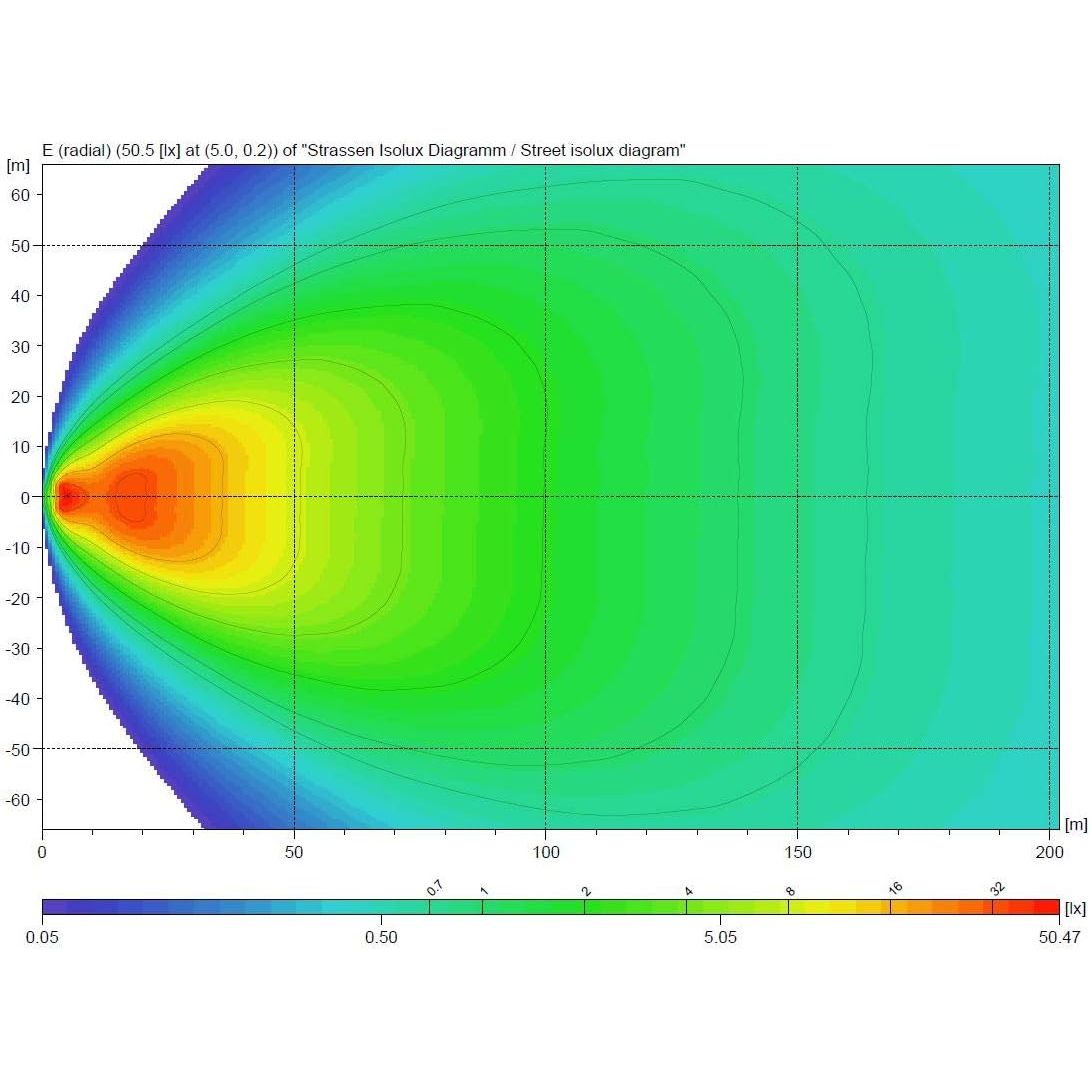

- 996197011: Close-range illumination. This version spreads light broadly across the near field for deck work, loading, maintenance, and other close-up tasks.

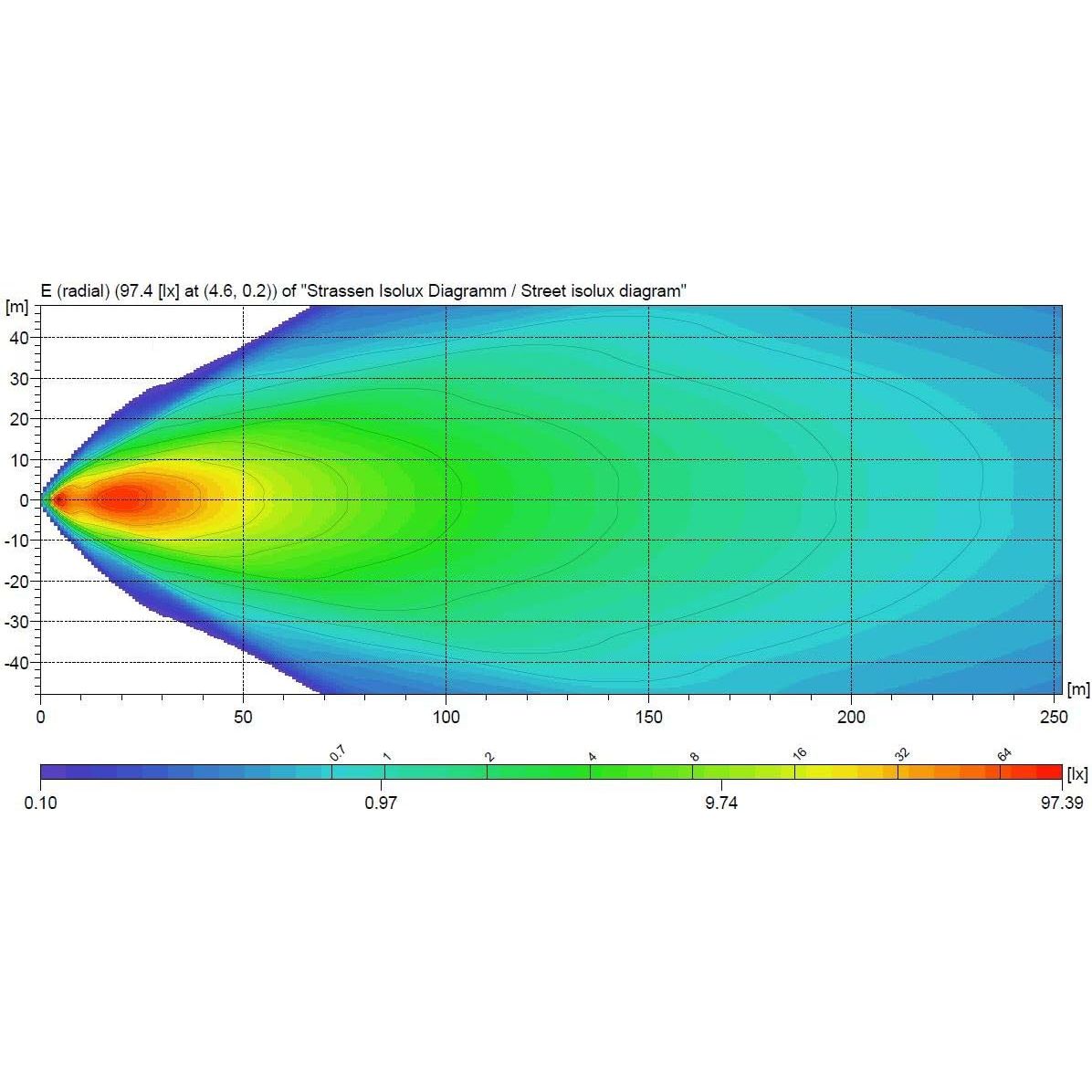

- 996197021: Long-range illumination. This version pushes the beam farther forward for spotting and working at a distance, such as along the bow, dock edge, or forward work zones.
Installation and setup
Mount the bracket to a solid surface where the light can be aimed and locked down without flexing. Leave clearance for adjustment and plan the mounting angle so spray can drain away rather than sit on the lens.
The unit is supplied with a short lead and a 2-pin DEUTSCH DT connector. Keep the connection point out of standing water, support the cable for strain relief, and use marine-grade sealing practices where the wiring transitions into the boat.
Electrical and system integration
This is a 24 V worklight that runs across 20 to 32 V DC. With current up to 4.5 A and power up to 84 W, size the circuit protection, switching, and wire gauge for the run length and the maximum draw.
For clean installs on boats with sensitive electronics, route wiring thoughtfully, keep the light wiring separated from data cabling where practical, and bond and protect circuits in line with common marine wiring practices.
Use on board
RokLUME 380N fits well on hard-working 24 V vessels that need strong task lighting for deck operations, line handling, gear prep, and night maintenance. It also suits yachts with a dedicated 24 V service bus where a high-output work area light is preferred over smaller spreader-style fixtures.
