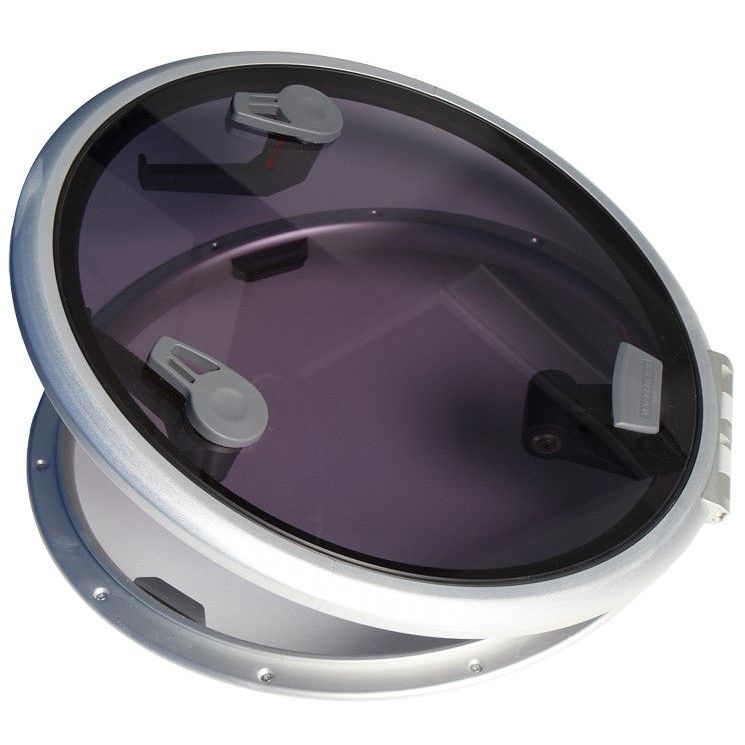

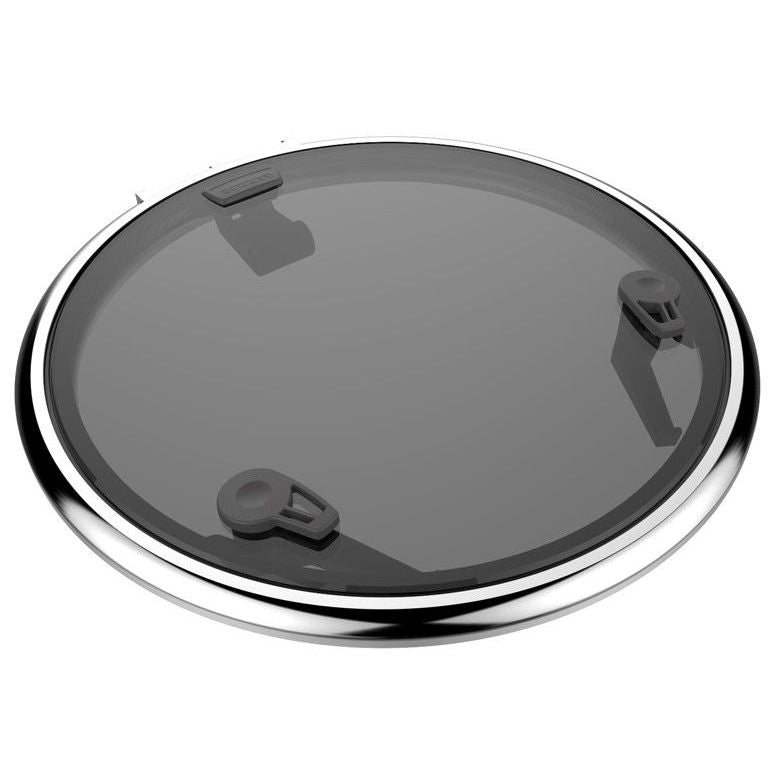

Lewmar - Size 22 Low Profile Hatch Flange Base
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Sleek and Durable Low Profile Hatch for Marine Applications

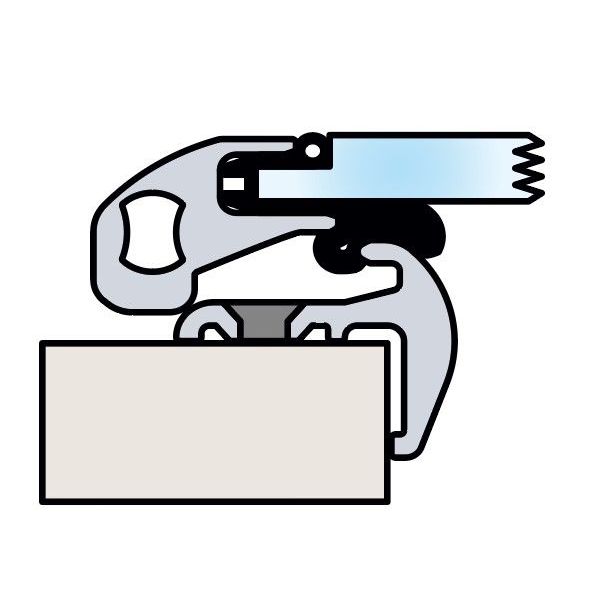

The Lewmar Size 22 Low Profile Hatch Flange Base is designed for versatility and reliability in marine environments. Its streamlined design makes it an excellent choice for powerboats, while its smaller sizes provide optimal ventilation for sailboats. Larger models serve as sturdy foredeck hatches for smaller to mid-size yachts. Built with Lewmar’s innovative sealing system, this hatch ensures a watertight fit and allows for easy acrylic replacement when needed. Additionally, it meets CE Area 2 standards, making it suitable for installation on the deck, coachroof, cockpit, or transom.
Reliable Construction and Performance
Engineered for longevity and performance in harsh marine conditions, the Lewmar Low Profile Hatch features a self-supporting system for smooth and effortless operation. The smoke grey acrylic window enhances visibility while offering protection from excessive sunlight. Its sturdy lower frame and thick acrylic window contribute to the hatch’s robust structure, ensuring safety and durability.
Technical Specifications
- Support System: Self-supporting
- Lower Frame Thickness: 9/16 in
- Acrylic Window Thickness: 3/8 in
- Acrylic Color: Smoke Grey
- Hatch Weight: 12.8 lb
Product Dimensions
- Overall Diameter: 23 1/8 in
- Height (Z): 1 in
- Hinge Length (HX): 23 1/4 in
- Hinge Width (HY): 6 13/16 in
- Cut-Out Diameter: 20 3/8 in
Highlights
- Sleek, low-profile design ideal for powerboats and yachts
- Lewmar’s advanced sealing system for superior water resistance
- Self-supporting opening mechanism for ease of use
- High-quality smoke grey acrylic for durability and UV protection
- Meets CE Area 2 standards for versatile marine applications
This hatch combines performance, durability, and modern design, making it an excellent addition to any vessel in need of a reliable and stylish marine hatch solution.
