Perko Stealth II Series LED Horizontal Mount Bi-Color Navigation Light, 12V, 2 nm, for Vessels Under 20 m

Overview

The Perko LED Stealth II Series is a horizontal mount LED bi-color navigation light for power driven vessels under 20 meters in length. It combines red and green bow visibility in one low-profile fixture, with 12 volt LED operation, 3.75 watt draw, and a 2 nautical mile visibility rating.

This light is a good fit for foredeck and bow installations where a compact fixture matters, especially on runabouts, center consoles, cruisers, and other powerboats that need a clean horizontal deck mount. The housing sits only 5/8 inch high, with a footprint of 2-1/2 inches long by 2-5/8 inches wide, which helps keep the bow area clear while still meeting navigation light requirements for the correct vessel class.

Key features

• Certified for use on power driven vessels under 20 meters, or 65.6 feet, in length.
• Bi-color red and green LED light with a 2 nautical mile visibility rating.
• 12 volt LED operation with 3.75 watt power use and less than 0.25 amp draw.
• Horizontal mount layout suits bow and foredeck installations where a low fixture is preferred.
• Ultra low profile body measures 5/8 inch high, 2-1/2 inches long, and 2-5/8 inches wide.
• Available in stainless steel, black, or white finishes to match common deck hardware and trim choices.
• Uses #8 screws for mounting, which helps when planning the installation hardware and deck preparation.
• LED technology keeps heat low and uses about 10 percent of the energy draw of comparable standard lights.

Variants

This product is offered in three finish configurations. Each version keeps the same horizontal mount, bi-color LED function, 12 volt electrical format, and 2 nautical mile visibility rating.

The finish is the main difference between the variants, so the selection is mostly about matching the light to the surrounding deck hardware, hull color, or console trim.

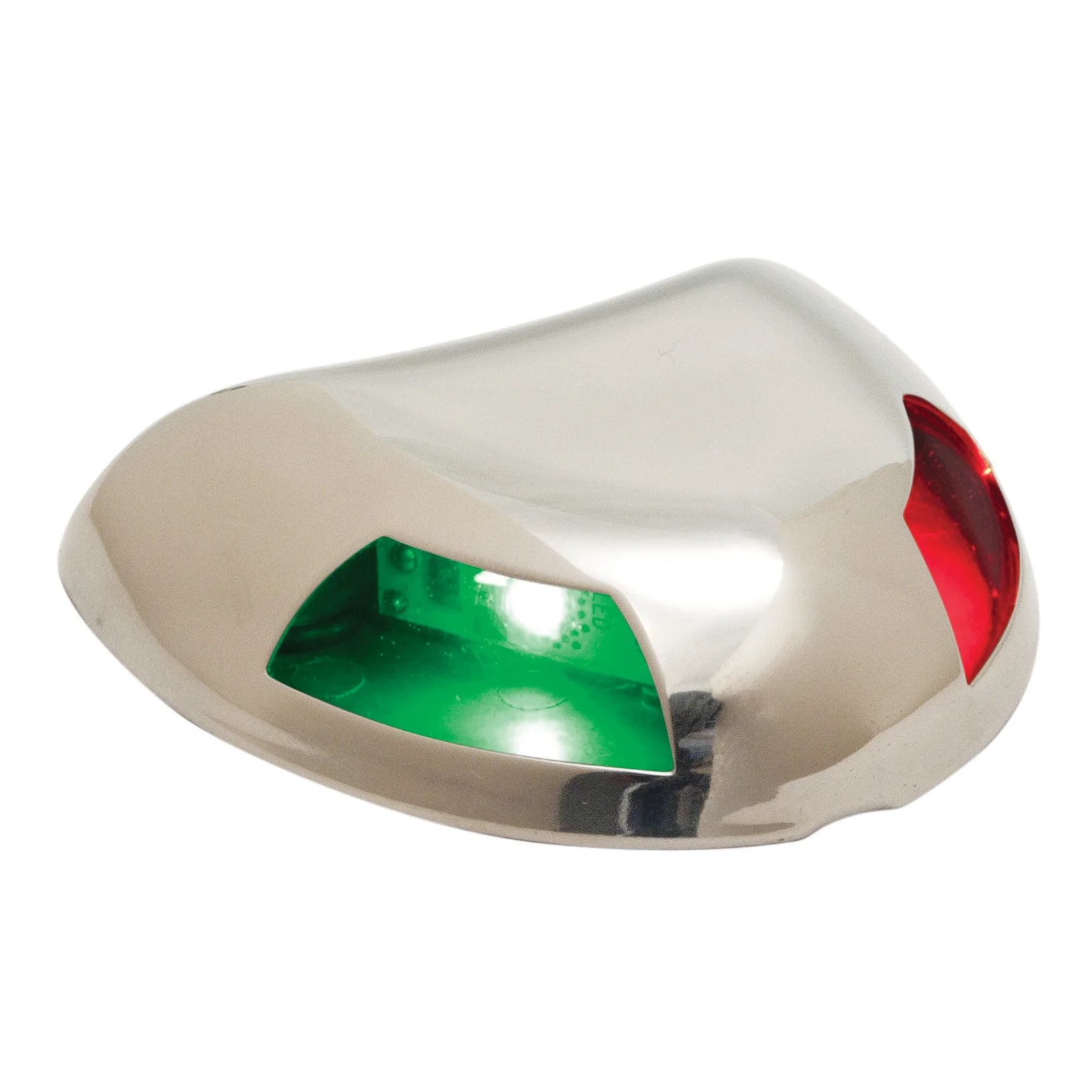

• 0615DP2STS: Stainless finish. This version suits installations where the bow hardware and rail fittings already use stainless or polished metal finishes.

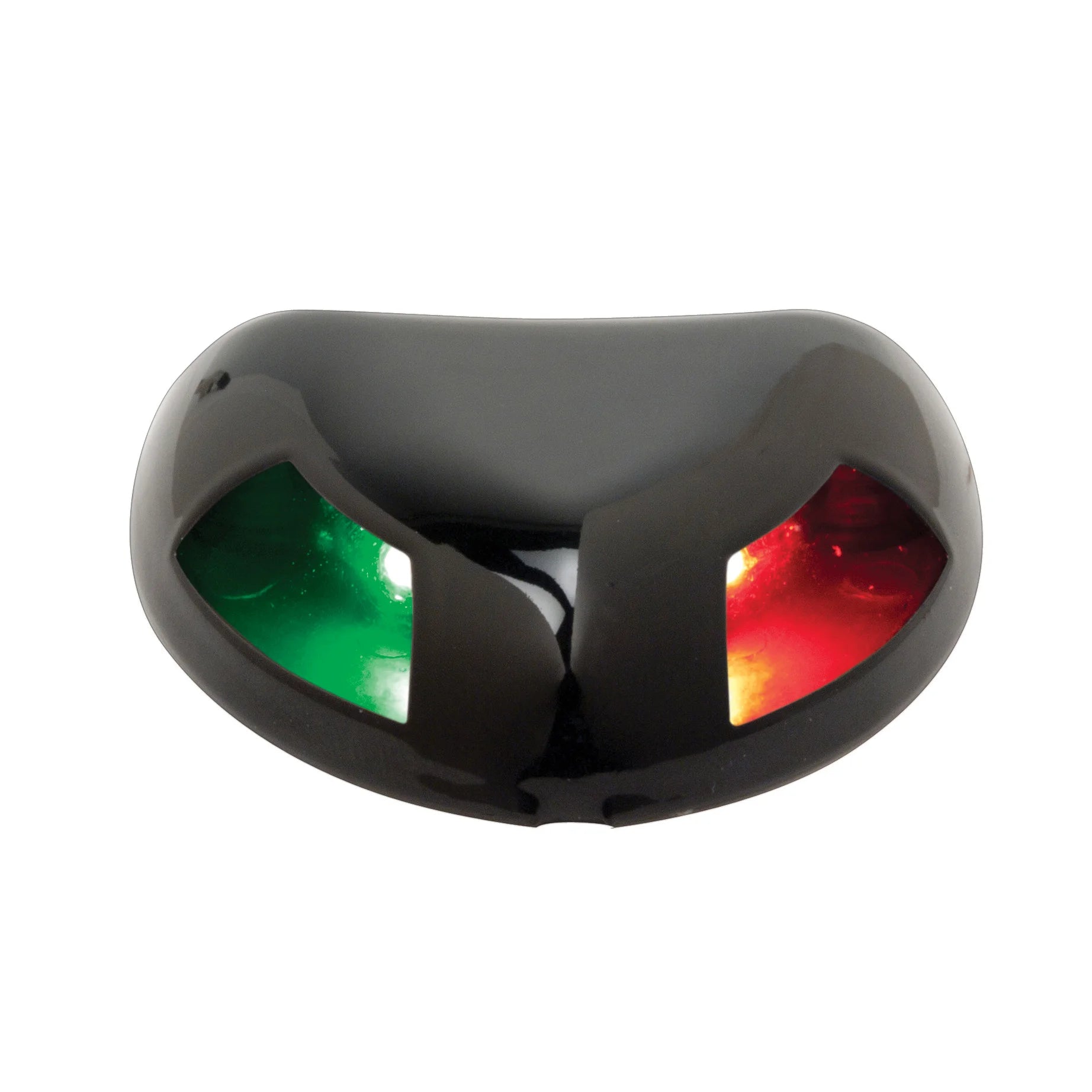

• 0615DP2BLK: Black finish. This version pairs well with dark deck trim, black rails, black powder coated hardware, or modern console layouts.

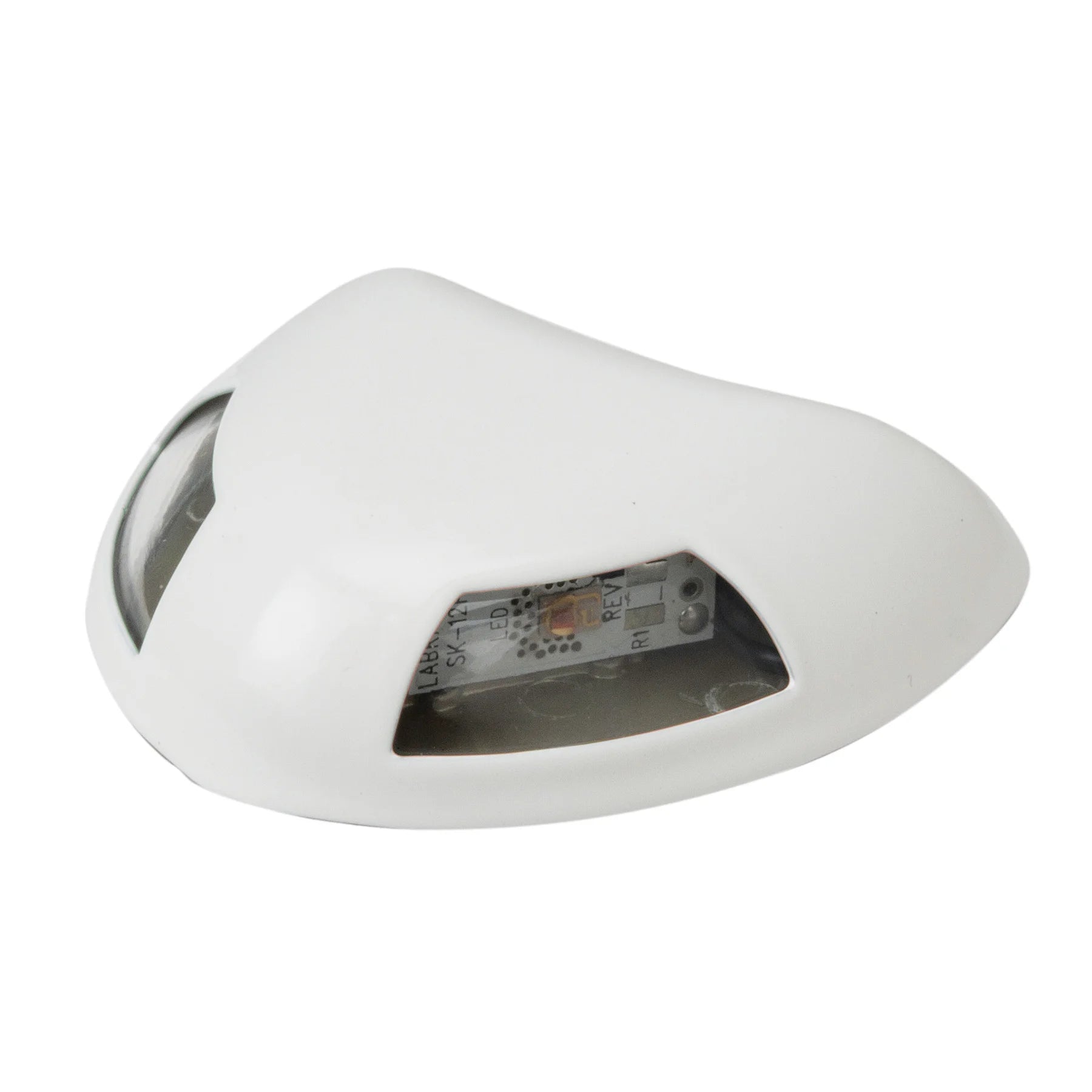

• 0615DP2WHT: White finish. This version blends into many fiberglass decks and lighter gelcoat surfaces for a cleaner visual match.

Installation and setup

Install this light on a horizontal mounting surface at the bow where the red and green sectors are not blocked by rails, anchors, trolling motors, covers, or other hardware. Because navigation lights depend on correct placement as much as the fixture itself, the mounting location should preserve the required visibility angles for the vessel.

The light is sized for #8 mounting screws and should be wired into a protected 12 volt navigation light circuit. As with any deck-mounted electrical fitting, seal the wire pass-through and fastener holes carefully to limit water intrusion into the deck core or mounting surface.

Compatibility and use on board

This is a practical replacement or upgrade for powerboats that use a horizontal bow light and need a compact LED bi-color fixture rather than separate port and starboard side lights. It works well for coastal cruising, fishing, marina operation after dark, and early morning departures where a legal bow navigation light is required.

Before ordering, confirm that the vessel length, power system, mounting surface, and required light configuration match this LED Stealth II Series horizontal bi-color format.
