Raymarine Axiom XL Accessory Pack, GPS Antenna, SD/USB Reader, Alarm Buzzer

Overview

The Raymarine T70431 is an accessory pack for Axiom XL glass bridge displays, bringing together key add-ons commonly needed during a full helm installation. It includes the remote card reader, external alarm buzzer, GNSS antenna, and a 2 m alarm output and analog video input cable, so the display can be integrated more cleanly into a larger navigation station.

This kit is useful when the Axiom XL display is flush mounted or installed where direct access to card slots, alarm wiring, or antenna placement is limited. The remote card reader helps keep chart and data access within reach, while the external alarm and video/alarm cable support system alerts and analog video input as part of a connected helm setup.

Key features

• Accessory pack made for Raymarine Axiom XL display installations.
• Includes an RCR-SDUSB card reader for remote SD card and USB access at the helm.
• Includes an external alarm buzzer for audible alerts from the display system.
• Includes a GA200 passive GNSS antenna to support GPS reception when antenna placement matters.
• Includes an alarm output and analog video input cable with a 2 m length, equal to 6.56 ft.
• Helpful for glass bridge layouts where the display is mounted into a console and service access is limited.

Installation and setup

This pack is intended for Axiom XL installations where accessories need to be placed away from the back of the display. The remote card reader can be mounted in a more accessible location, which is useful on flush mounted helms where the main display is not easy to reach from behind.

The included alarm and video cable supports the Axiom XL alarm output and analog video input connection. During installation, cable routing should be planned to avoid tight bends, wet bilge areas, and sources of electrical noise. For best results, keep service loops accessible behind the helm so the display and accessories can be inspected or removed later.

Compatibility and fit

This is an Axiom XL accessory pack, so it should be matched to Raymarine Axiom XL display installations rather than treated as a universal electronics kit. It is a practical fit for owners, installers, and refit projects that need remote media access, external audible alerts, and GPS antenna support around a large format chartplotter.

What’s included

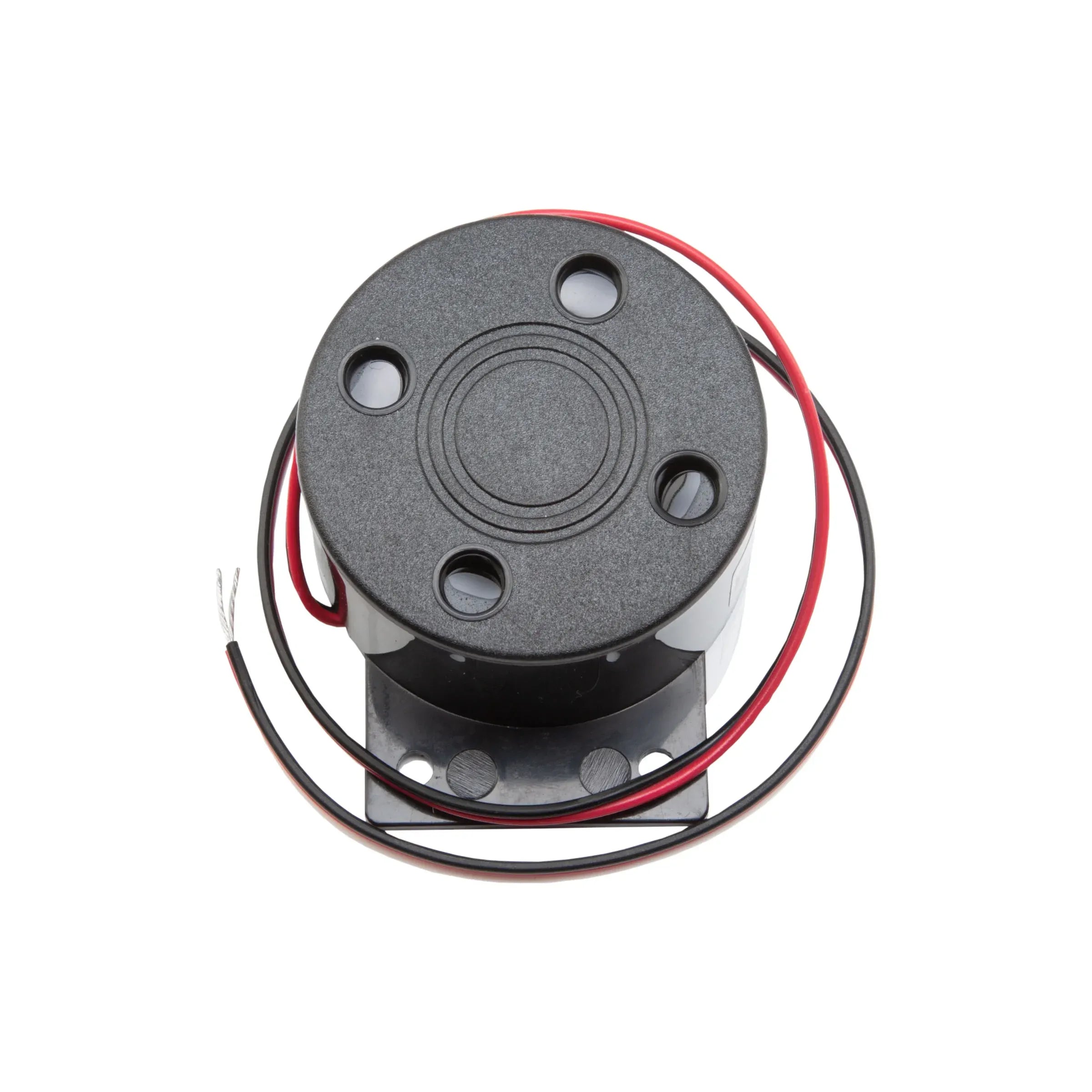

• 1 x External alarm buzzer

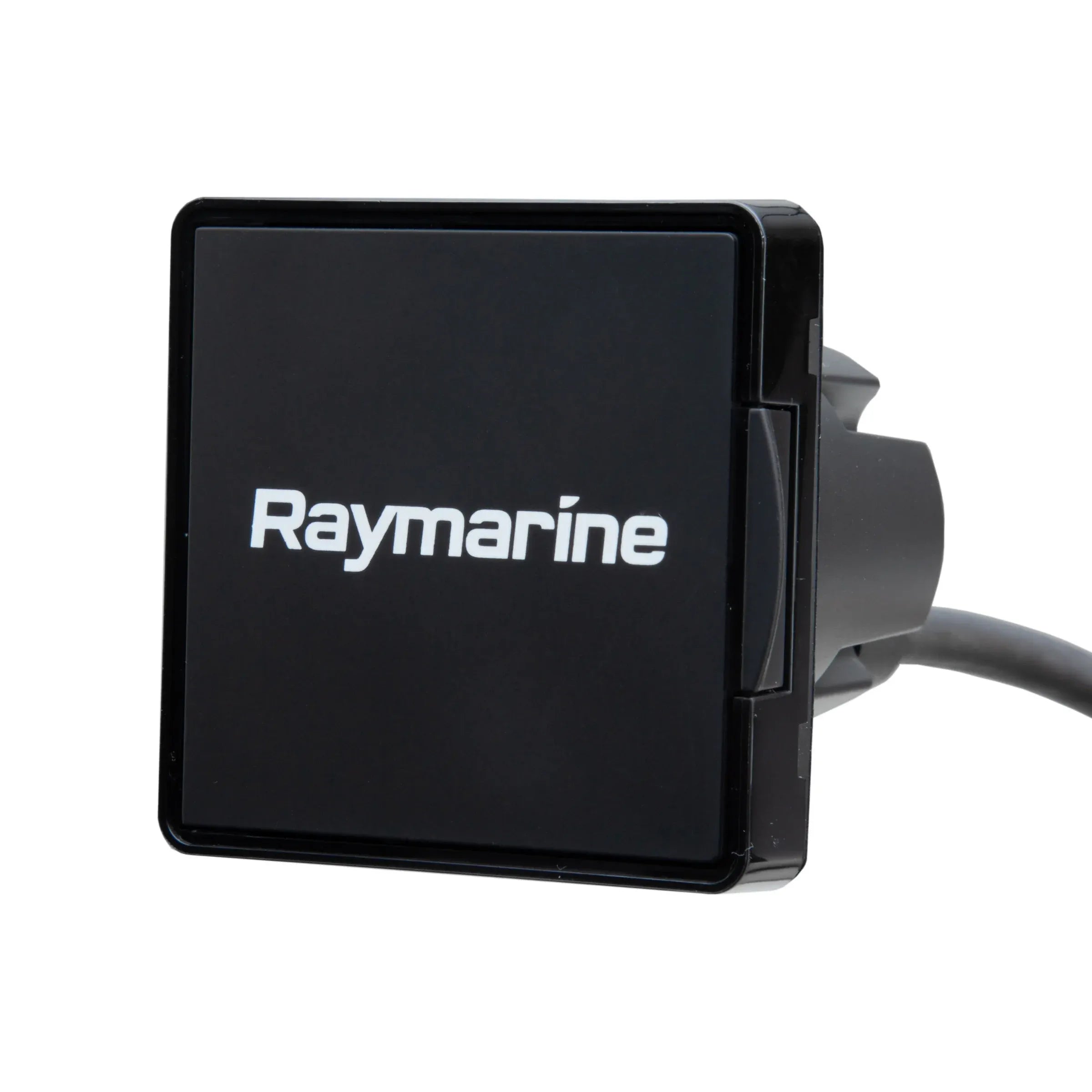

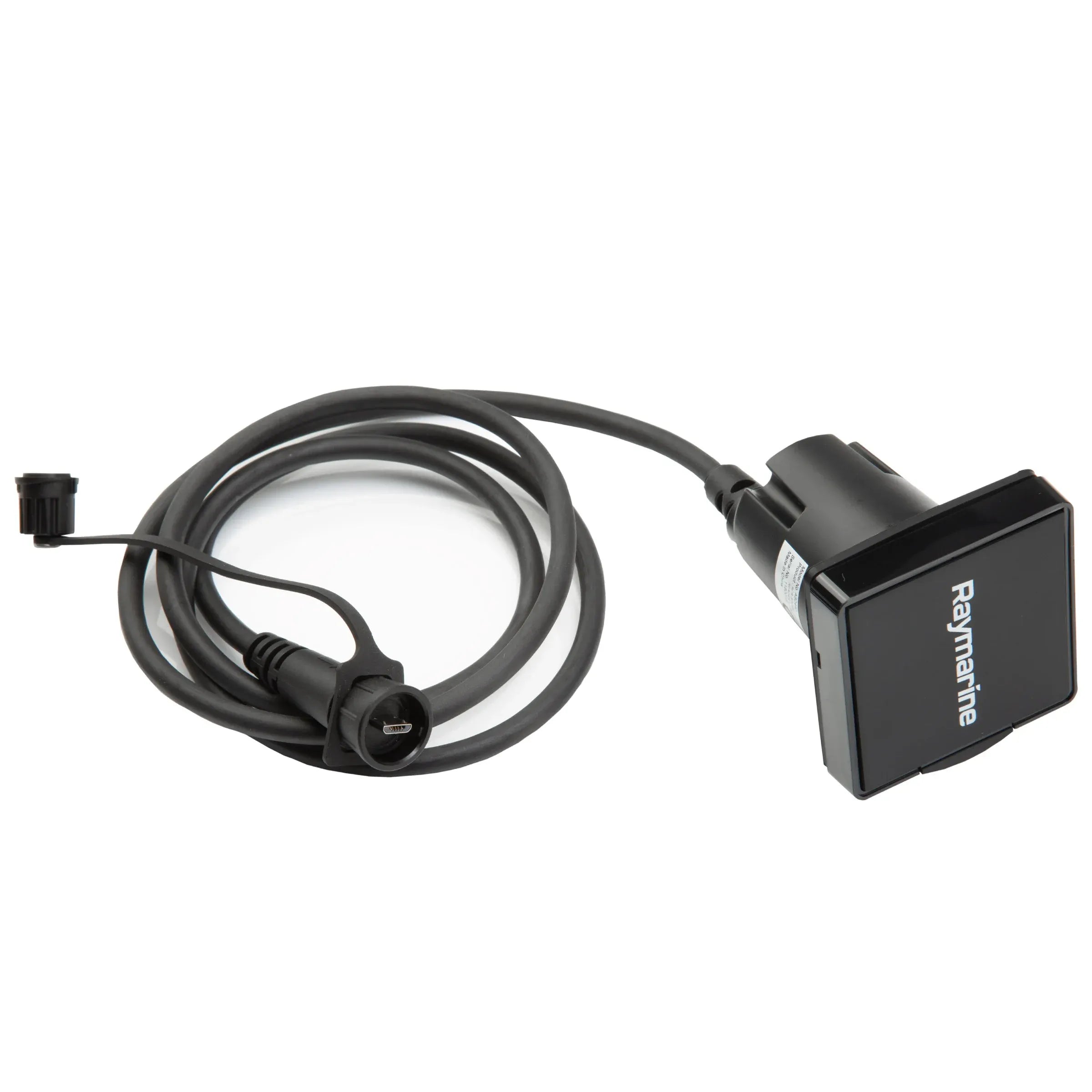

• 1 x RCR-SDUSB card reader
• 1 x GA200 passive GNSS antenna
• 1 x Alarm output and analog video input cable, 2 m (6.56 ft)
