Hella Marine 3562 Bi-Color Navigation Light, Incandescent, 1NM, 12V, IP54
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Hella Marine 3562 is a bi-color navigation lamp that combines port (red) and starboard (green) in one bow light, with 1 nautical mile visibility on 12V systems. It uses an included 12V/10W SV8.5 bulb and is rated IP54. The compact body measures 75 x 63 x 53 mm and mounts to a vertical surface.
Cable entry is through the base plate with a rubber grommet, which helps protect the wire where it passes through the mounting surface. The housing and lens are UV- and impact-resistant plastic, and the fixture is non-magnetic. Approvals include IMO Col Reg 72, USCG, ABYC A-16, and Maritime NZ.
This 1 NM combined bow light format is commonly used on vessels up to 12 m (39.4 ft) that need a straightforward incandescent nav light and want a compact fitting on the foredeck or bow area.
Key features
- Bi-color bow navigation light with red/green sectors and 1 nautical mile minimum visible distance
- 12V incandescent setup with included 12V/10W SV8.5 bulb
- IP54-rated housing for spray and everyday exposure on deck
- Vertical surface-mount installation with cable entry through the base plate and a rubber grommet
- Snap-lock housing for bulb access without tools
- UV- and impact-resistant plastic housing and lens
- Non-magnetic construction for use near helm and compass areas
Variants
This lamp is offered in multiple configurations based on housing color.
Across the listed variants, the mounting style is vertical surface mount, the bulb type is 12V/10W SV8.5 (included), the minimum visible distance is 1 nautical mile, and the ingress rating is IP54.

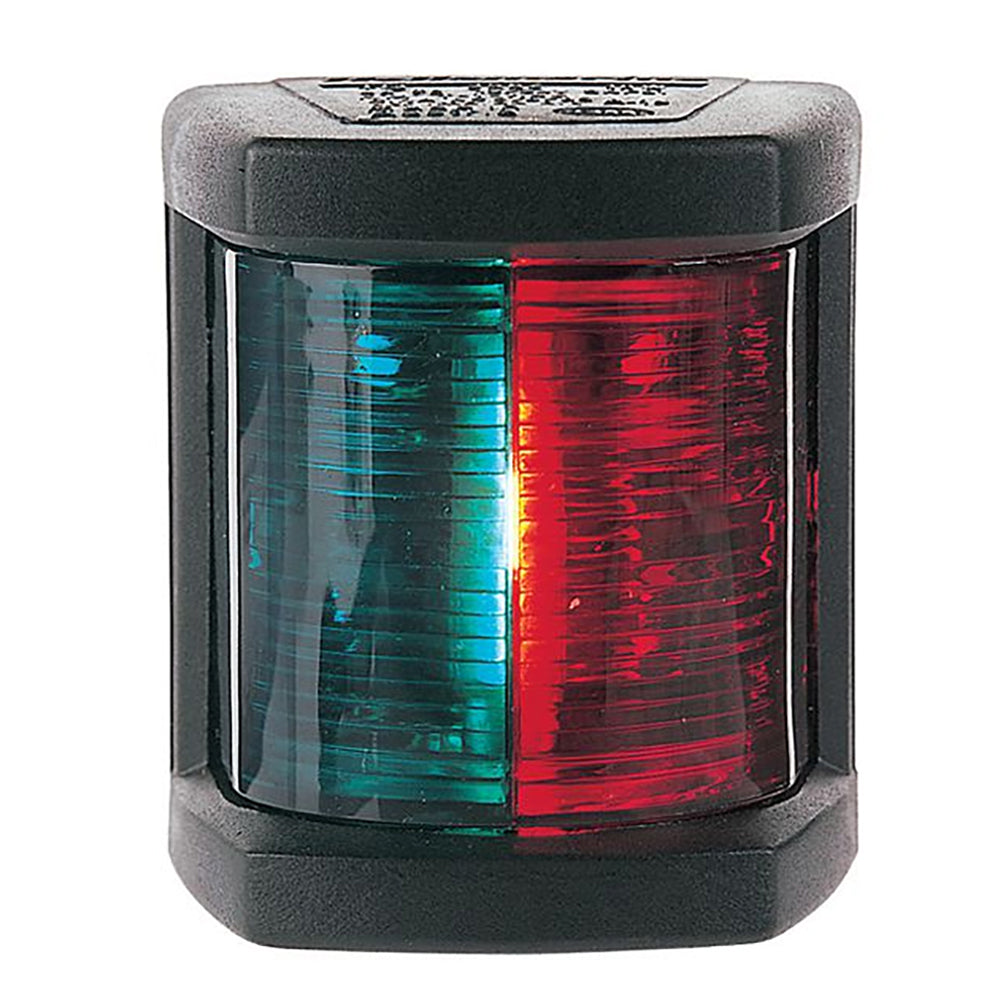

- 003562045: Product color Black. A low-contrast look on dark gelcoat, painted bows, and hardware-heavy foredecks.

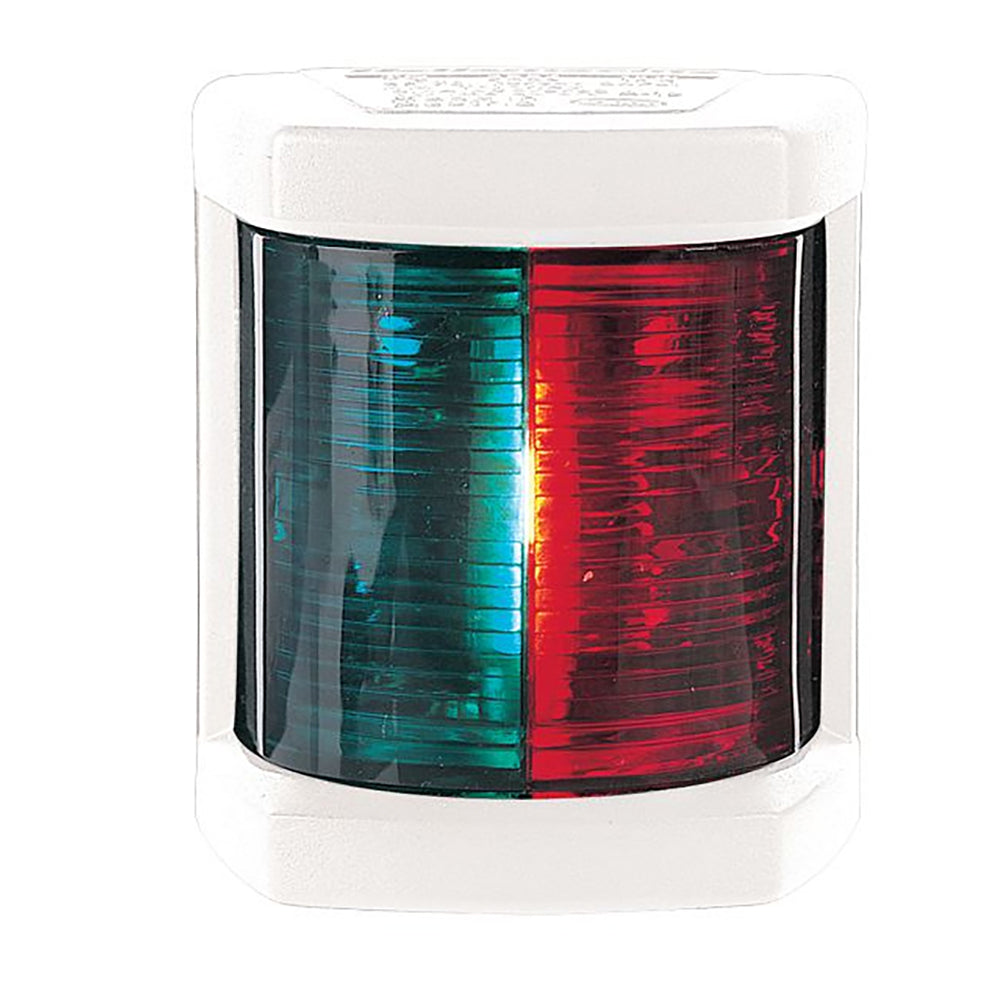

- 003562145: Product color White. A clean match on white gelcoat and light-colored deck layouts.
What’s included
- Bi-color navigation lamp assembly
- 12V/10W SV8.5 bulb
Installation and setup
Mount the lamp on a solid vertical surface at the bow where it has an unobstructed view to port and starboard. Keep it clear of rails, anchor gear, and bow rollers that can block the red or green sector when you are underway.
Route the supply wiring through the base plate and grommet, then seal any deck penetrations as needed for your mounting location. Connect it to a switched navigation-light circuit with wiring and overcurrent protection sized for the lamp load and your boat’s standards.
Maintenance and bulb replacement
Rinse salt and grime off the lens so the color sectors stay crisp at night. The snap-lock housing makes it simple to access the bulb for replacement, which is helpful when you need to service the light at the dock without digging for tools.
