Hella Marine 3562 Series Starboard Navigation Light, Green Light, 1 NM, 12V, IP54, Vertical Surface Mount, Incandescent
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Hella Marine 3562 Series starboard navigation lamp is an incandescent sidelight for 12V systems with a 1 nautical mile visibility rating and an IP54 housing.
It uses a 12V/10W SV8.5 bulb and the snap lock housing lets you change the bulb without tools, which helps when you need a quick service job onboard. The housing and lens are UV and impact resistant plastic, built for saltwater use and non-magnetic installations, with cable entry through the base plate via a rubber grommet. Approvals include IMO Col Reg 72, RINA, USCG, ABYC A-16, and Maritime NZ.
Key features
- Starboard navigation light with 1 nautical mile visibility rating
- 12V incandescent lamp using a 12V/10W SV8.5 bulb
- IP54 protection rating for dust and splashing water
- Snap lock housing for tool-free bulb changes
- Cable entry through the base plate with a rubber grommet for a watertight pass-through
- UV and impact resistant plastic housing and lens, suitable for saltwater use and non-magnetic installations
- Approvals: IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ
Variants
This navigation lamp is offered in multiple configurations so you can match the housing to your boat’s finish.
The variants below differ by product color.

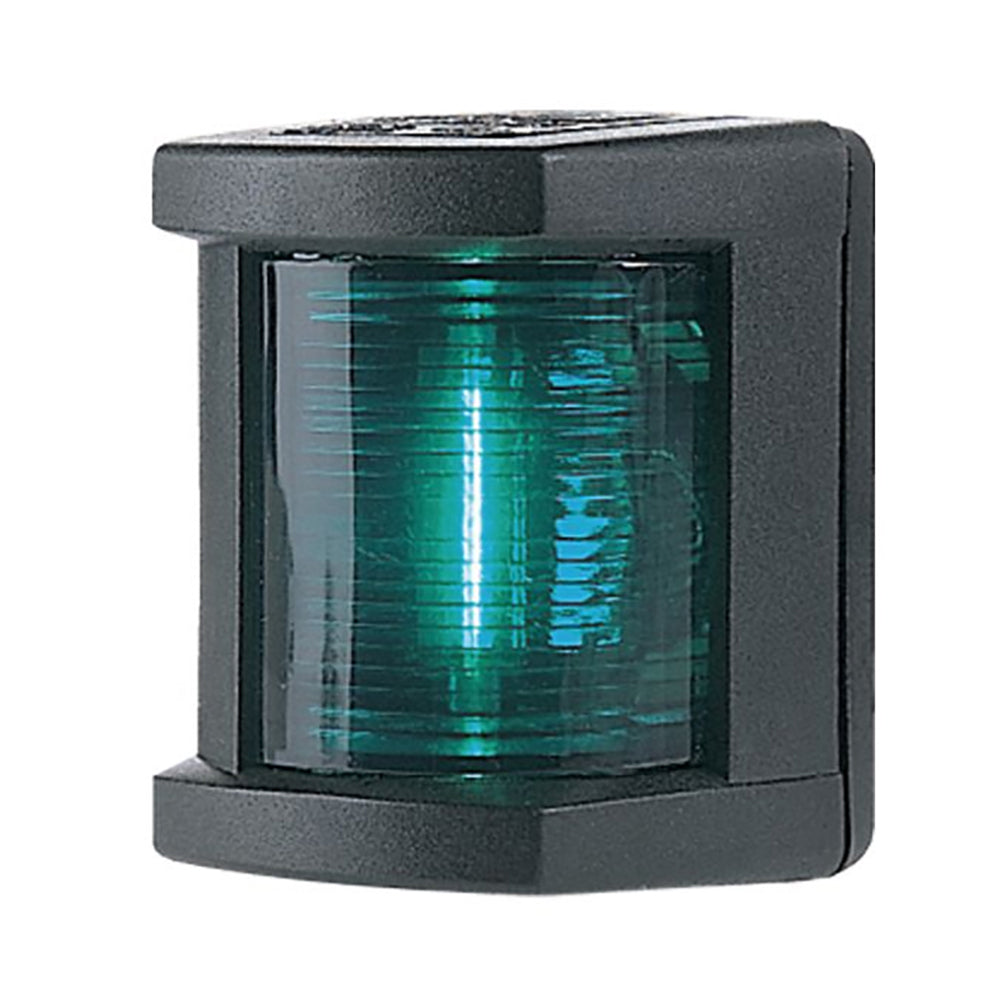

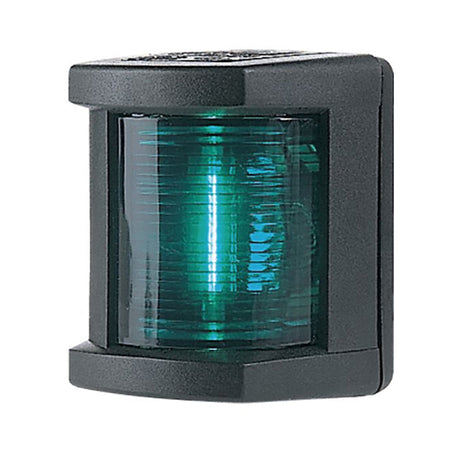

- 003562025: Product color Black. A darker housing can blend in on boats with dark trim, tinted windows, or black deck hardware.

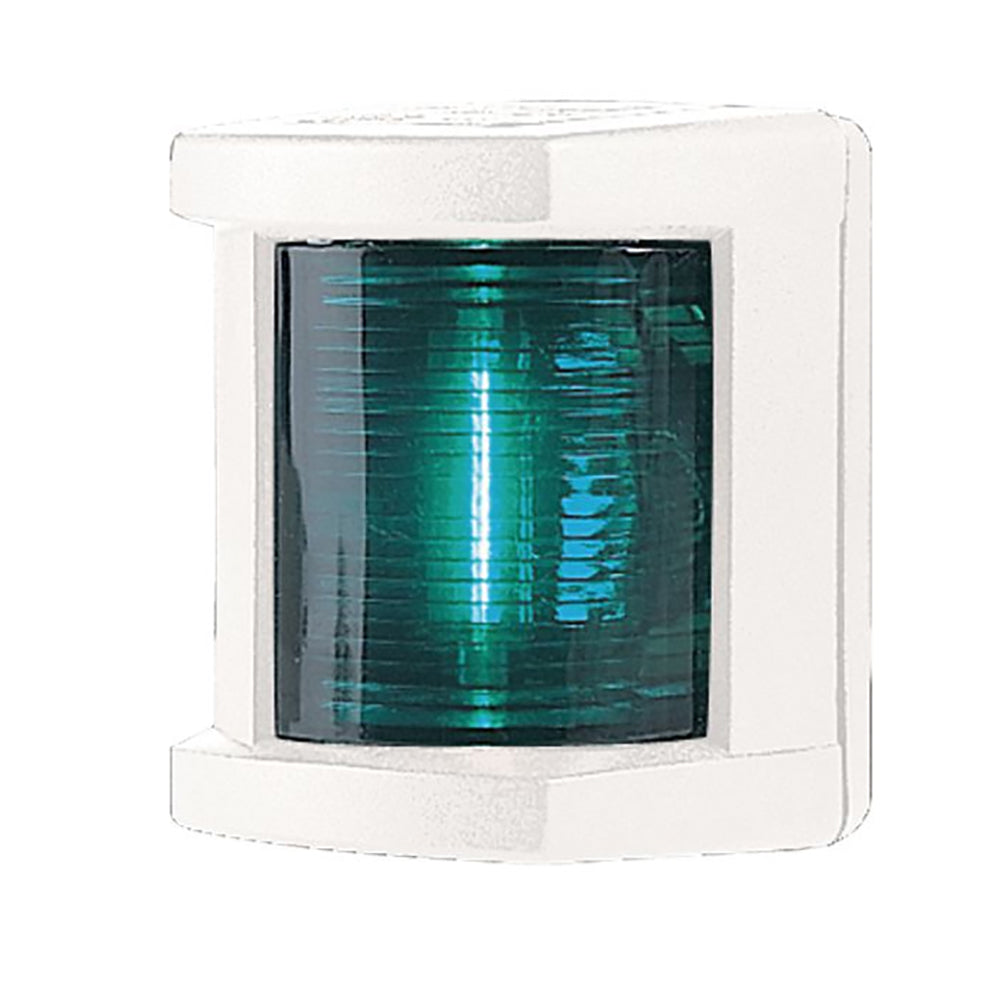

- 003562125: Product color White. A lighter housing tends to disappear visually against white gelcoat and light-colored cabin sides.
Installation and setup
This lamp is made for vertical surface mounting on the starboard side, placed where it has a clear, unobstructed view to the required arc. Route the cable through the base plate and seat the rubber grommet cleanly so the pass-through stays tight and protected from chafe.
On a 12V DC system, use marine-grade tinned wire and keep connections dry and supported so vibration does not work them loose over time. After mounting, confirm the light sits level and is not blocked by rails, rub rails, or deck gear.
Compatibility and fit
As a starboard sidelight, this fixture is used on the vessel’s right-hand side and should be paired with the correct port and stern lights for a complete navigation-light set. The 1 nautical mile rating is typically used on smaller vessels where that range meets the rules for the boat and operating area.
Maintenance and care
Rinse salt residue off the lens and housing during routine washdowns and check the rubber grommet for cracks or hardening. If the light output looks dim or intermittent, replace the 12V/10W SV8.5 bulb and inspect the contacts for corrosion before closing the snap lock housing again.
