Raymarine Display Trim Kit, For Axiom Pro 12/eS12
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

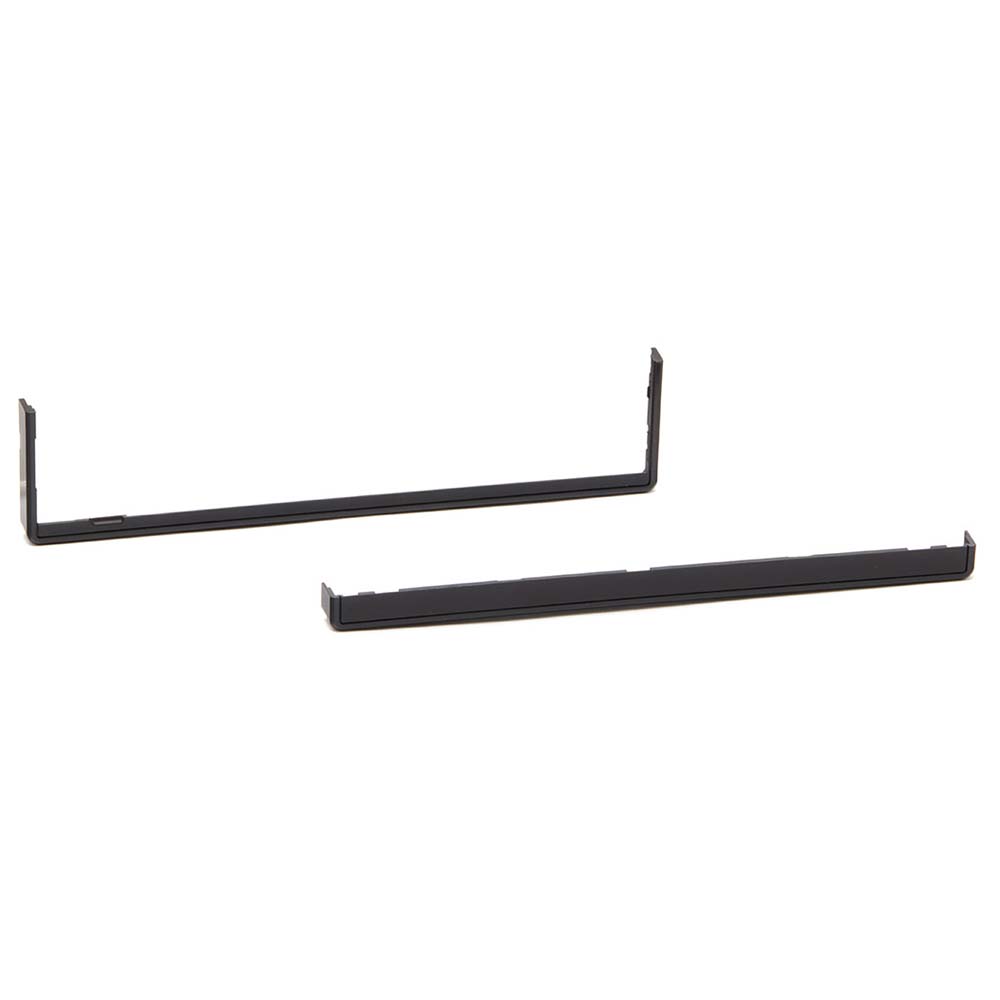

The Raymarine R70387 is a trim kit for fitting a Raymarine Axiom Pro 12 or eS12 multifunction display into a clean helm, dash, or electronics panel installation. It is the trim accessory used when the display needs a finished edge around the mounting area, helping the installation look intentional rather than unfinished after the panel cutout is made.
This is a fit-specific accessory for 12-inch Raymarine displays in the Axiom Pro and eS12 families, not a universal GPS or chartplotter mount. It is a practical part for refits, console updates, and replacement installations where the display itself is already selected and the final panel finish needs to match the equipment.
Key features
- Fits Raymarine Axiom Pro 12 and eS12 multifunction displays.
- Helps finish the visible edge around a dash or helm panel installation.
- Useful for refits where an older display opening needs a cleaner finished appearance.
- Works as a display trim accessory rather than a standalone GPS mount or electronic display.
- Packaged size is approximately 4 in H x 7 in W x 10 in L, with an approximate packed weight of 0.35 lb.
Compatibility and fit
This trim kit should be matched to the display model before installation. It is intended for Axiom Pro 12 and eS12 displays, so it is not the right part for smaller Axiom displays, larger Axiom Pro screens, or non-Raymarine units unless the installation documentation for that display specifically calls for this kit.
For helm upgrades, the key check is the display model and the panel opening. Confirm the display, cutout, and surrounding clearance before final assembly, especially on fiberglass dashboards, aluminum consoles, and enclosed pilothouse panels where there may be limited room behind the screen.
Installation and setup
The trim kit is used during the physical mounting stage of the display installation. It does not change the power, data, NMEA, sonar, or networking setup of the multifunction display, so electrical planning should still follow the requirements of the display being installed.
On boats that see vibration, spray, and regular cleaning, a neat panel finish matters. A proper trim piece helps the display sit visually clean at the helm and reduces the unfinished look that can happen around cut edges after a retrofit or electronics upgrade.
Use cases on board
This part is a good match for owners, installers, and yards working on Raymarine helm electronics where an Axiom Pro 12 or eS12 display needs a cleaner finished installation. It fits common marine projects such as console refits, chartplotter replacements, and electronics panel refreshes on cruising boats, fishing boats, and pilothouse installations.
