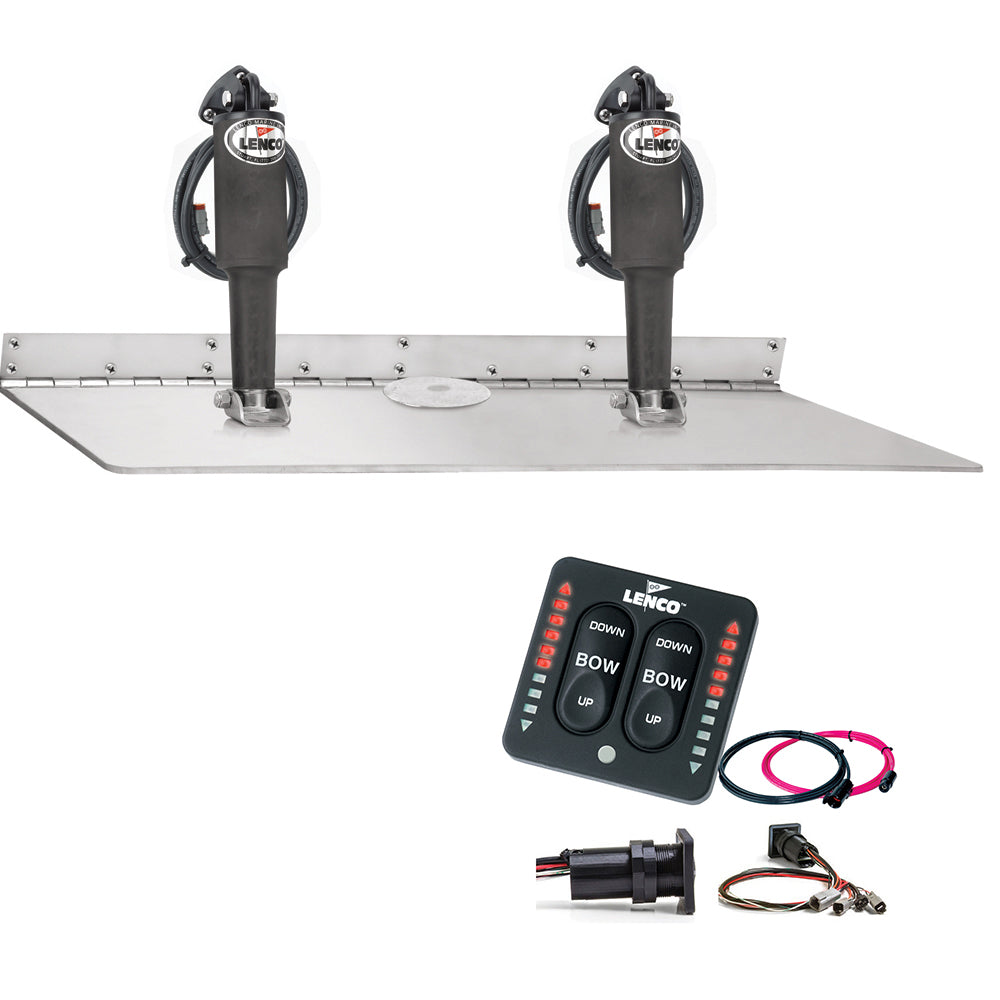

Lenco Marine - Dual Actuator Super Strong Trim Tab Kit - With LED Indicator Switch Kit, 16" x 24", 12V

Elevate Your Boating Experience

Introducing the Lenco 16" x 24" Dual Actuator Super Strong Trim Tab Kit with LED Indicator Switch Kit - 12V, designed for sport-fishing boats, high-speed cruising boats, and large commercial vessels. This trim tab kit is engineered to withstand the toughest conditions, ensuring your boat rides smoother, faster, and safer.

General Description

Built for the most demanding marine environments, the Lenco Super Strong Trim Tab Kit features 7-gauge stainless steel blades and all stainless steel mounting hardware. These trim tabs eliminate spray or mist when mounted in recessed pockets, ensuring a clean and dry ride. The 3/8" diameter hinge pin and 3.75" sacrificial anode add to the durability and longevity of the system. Dual actuator systems come with 10-gauge stainless steel upper and lower mounting brackets, providing extreme strength and reliability.

Key Features and Benefits

• Instant Response: Extreme-duty electric actuators provide precise control and immediate adjustments.
• Unmatched Durability: 7-gauge laser-cut stainless steel blades prevent bending or flexing.
• Robust Hardware: Heavy-duty stainless steel mounting hardware ensures the system can handle the toughest conditions.
• Welded Strength: Stainless steel billet ram ends are welded for extra strength.
• Dual Ram Capability: Available for the most extreme-duty applications.
• Clean Operation: No spray or mist when mounted in recessed pockets.
• Heavy Duty Hinge: Stitch welded stainless steel hinge with a 3/8" hinge rod for enhanced durability.

Actuator Features

• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case.
• Fully submersible, maintenance-free, and sealed for life.
• Electro-polished solid 316 stainless steel billet ends for extreme-duty performance.

LED Indicator Switch Kit

• Self-contained: Sealed keypad and control box module.
• Durable Graphics: Fade/smudge-proof laser engraved graphics.
• Plug & Play: Switch wiring harness connector for easy installation.
• Built-in Retract Feature: Returns tabs to a fully retracted position when power is removed.
• LED Indicators: High-intensity displays show the exact position of trim tabs at all times.
• Ambient Light Adjustment: Photo eye adjusts LED intensity for optimal viewing in direct sunlight.
• Versatile Compatibility: Works with 12 & 24-volt systems.
• Self-Check Feature: Ensures system functionality.

Kit Contents

• Tactile LED Indicator Switch Kit
• 2 Stainless Steel Trim Tab Planes
• 4 Actuators with 6' Leads and Deutsch Plugs
• All Necessary Stainless Steel Mounting Hardware

Note: Actuator Extension Harnesses (4 for Dual Actuator Application) will be required.

Technical Specifications

• Suggested Boat Length: 17' to 30'
• Length of Tab: 16"
• Width of Tab: 24"
• Material: 7-gauge stainless steel
• Finish: Smooth
• Voltage: 12-volt actuators
• Compliance: CE Certified
• Compatibility: Suitable for any boat

• 1264301_qbp239273.pdf
