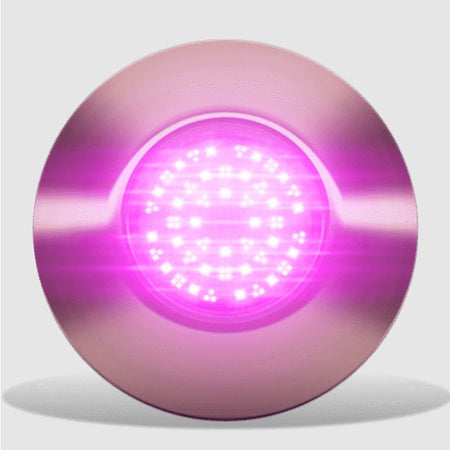

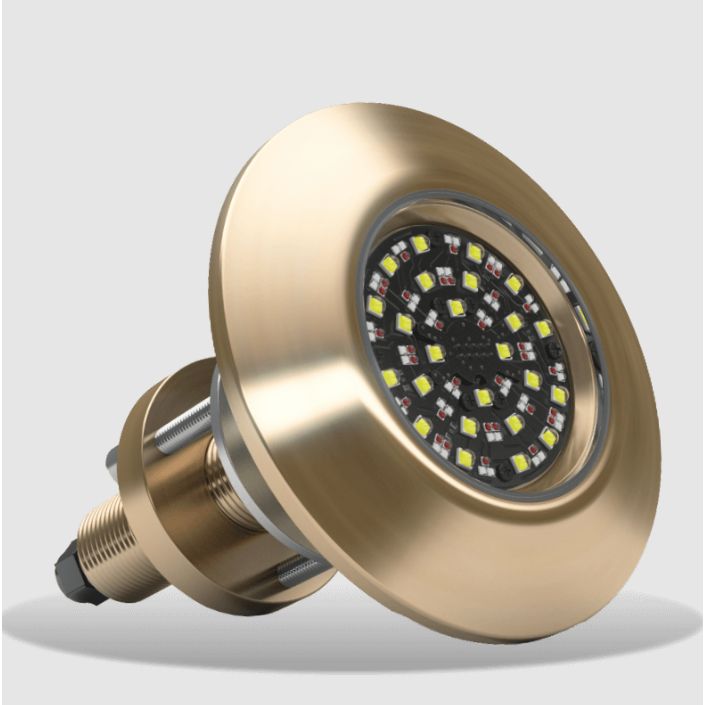

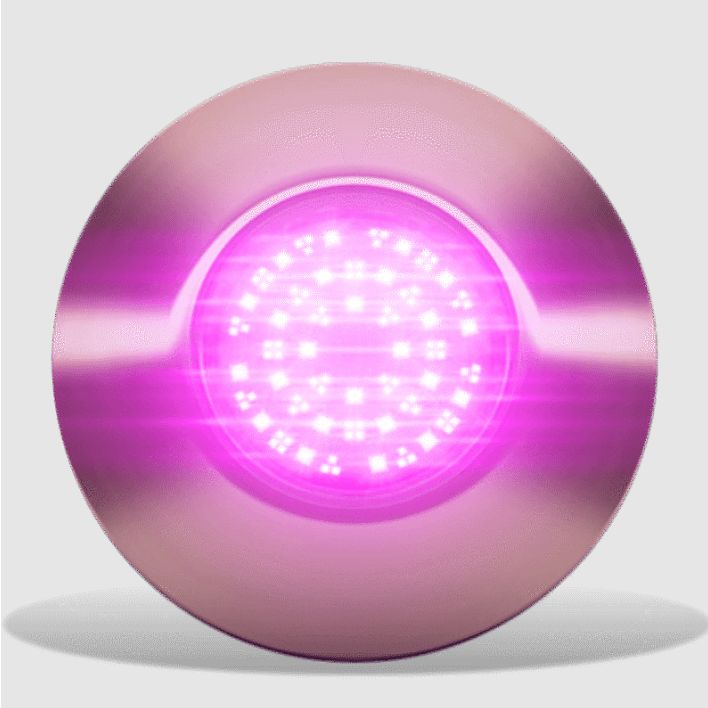

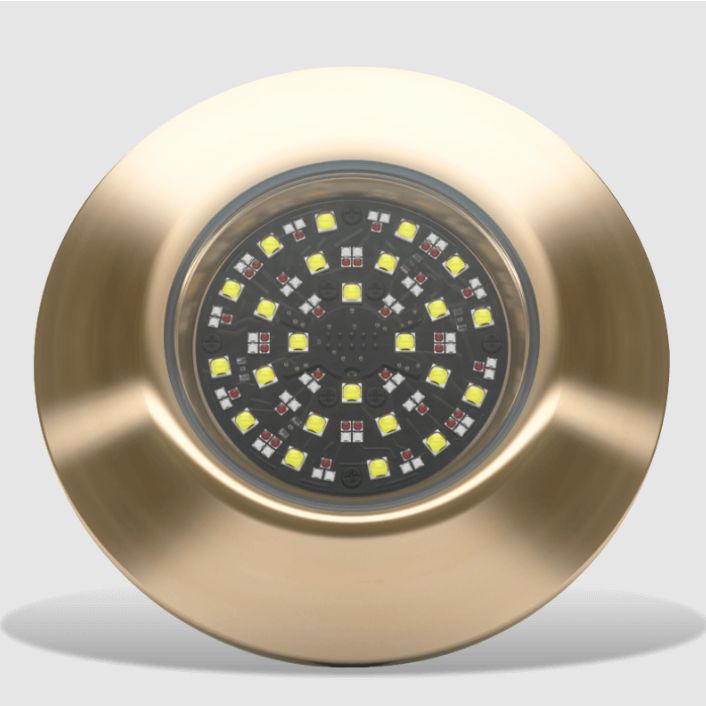

Lumishore - Underwater Light - 24V, IP68, Bronze (LM600340)
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Introducing Lumishore's EOS Thru-hull lighting systems, the ultimate choice in high-performance full spectrum underwater lights. These lights are designed with the latest technology and boast the widest beam angles and the brightest color-changing lights on the market. Lumishore's EOS Thru-hull lighting systems have more installed systems than any other manufacturer and provide unmatched performance for marine lighting needs.
The THX1603 Color Changing Thru-Hull Light is a single light that comes with a remote driver and 1M of DMX cable with plug & play connectors, making it simple to connect to an existing light color changing system. This light is compatible with an EOS STV2202 Controller and offers all the capabilities, including pre-set colors, color cycling, fixed/random strobe, color sweep, "sound to light," scenes, and Wi-Fi connection with iPad/iPhone devices. You can add up to 128 THX/TIX fixtures to your system, making it customizable for your specific needs.
The THX models feature a narrow 1" (25mm) shaft diameter with a remote DC driver, while the interchangeable TIX models require a larger hole cut-out. However, the TIX models feature a super flush bezel profile and integrated driver/LED array for easy upgrading in the future. Choose which one is best suited for your needs.
This light has a low profile and flush-fit design, making it perfect for transom, hull side, or bottom mounting. It is recommended for boats ranging from 25-330ft (7-100M) and offers 34,875 lumens (15,500 fixture lumens) with a 110° beam angle. It also has 9 preset colors plus 6 user-defined selections, color scene, sweep, mix, cycle, & strobe modes, and exclusive Sound to Light integration with on-board audio.
This light is made with toughened BK7 Borosilicate Lens and Marine-grade Aluminum Bronze for added durability. It is also certified and compliant with CE, ROHS, and ABS standards. The output color is full spectrum color-changing (RGBW), and it has a lifetime of 50,000 hours. The light has Class III and Cut-out Dimensions of 0.98" (25mm), and the Trim Ring (Bezel) Dimensions are 5.10" (130mm) dia x 0.47" (12mm) profile height. The Trim Ring (Bezel) is made with Marine-grade aluminum bronze, and the light has an Input Voltage of 20-31VDC. It measures 5.10" (130mm) dia x 0.47" (12mm) profile x 5.51" (140mm) shaft length (with grommet) and has a Power Consumption of 156W max. The Recessed Depth is 5.51" (140mm), and it has an Ingress Protection rating of IP68.
The Load Rating is 6.5A (24V), and the Mounting Method is Thru-hull, backing plate, bonding required. It has a Beam Angle of 90°+ and Luminous Flux of 34,875 lms (15,500 fixture lms). The Driver is External, and the light is suitable for installation at Transom, Bottom, or Hull-Side. Additionally, the light has Electrical Protections for ATRB, Surge, APR, soft start, reverse polarity, in-rush current, and power line noise suppression. The approximate ship weight of this product is 3 pounds.
Experience the best in marine lighting with Lumishore's EOS Thru-hull lighting systems. Enjoy the unmatched performance, highest quality materials, and the latest technology in lighting for
