Garmin ECHOMAP UHD2 93sv Chartplotter/Fishfinder LiveScope Plus Bundle, 9 in Touchscreen, GT56UHD-TM, GLS 10, LVS34, Navionics+ U.S. Inland Maps

Overview

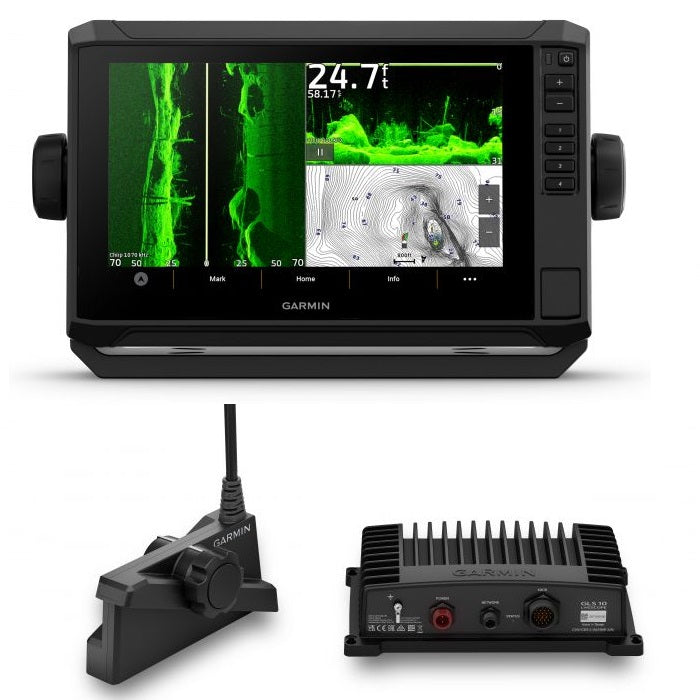

The Garmin 010-02688-01/LVS34 is a 9-inch touchscreen chartplotter and fishfinder bundle that combines an ECHOMAP UHD2 93sv with a GT56-TM transducer and the LiveScope Plus LVS34 real-time sonar system. The display runs 1024 x 600 resolution and uses a keyed-assist layout so you can still work the unit when hands are wet or cold.

Power is 9 to 18 Vdc and the unit is IPX7 rated, which fits typical helm electronics installs on freshwater and coastal boats. Built-in Garmin Navionics+ U.S. inland maps cover more than 18,000 lakes with up to 1 ft contours, so it is easy to confirm you are buying the right mapping region for where you run.

This bundle makes sense for anglers who want scanning views for structure, plus live sonar for working jigs, tracking suspended fish, or seeing what is happening ahead of the boat when you are on a trolling motor.

Key features

• 9-inch keyed-assist touchscreen display (1024 x 600) for quick control at the helm or bow
• Built-in Garmin Navionics+ U.S. inland maps with coverage for more than 18,000 lakes and up to 1 ft contours
• GT56-TM transducer supports Garmin traditional sonar plus ClearVü and SideVü scanning views
• LiveScope Plus system with LVS34 adds real-time sonar viewing, including Forward, Down, and Perspective mounting styles
• Built-in Wi-Fi for wireless sharing with compatible ECHOMAP UHD2 units and mobile connectivity through the ActiveCaptain app
• Multi-band GPS for improved position accuracy in areas where signals can be weak or reflected
• NMEA 2000 support for bringing compatible boat data and accessories onto the chartplotter screen
• 9 to 18 Vdc input with a 3 A fast-acting fuse included, plus IPX7 water rating for spray and washdowns
• microSD card slot supports up to 32 GB for charts and data management

What’s included

• ECHOMAP UHD2 93sv chartplotter and fishfinder
• GT56-TM transducer
• Power cable
• Tilt mount with quick-release cradle
• Protective cover
• Hardware
• Documentation
• LiveScope GLS 10 sonar module
• LiveScope LVS34 transducer
• Perspective mount
• Trolling motor barrel mount
• Shaft mount
• 2 m Garmin Marine Network cable
• Network adapter cable

Installation and setup

Plan your install around two sonar sources: the GT56-TM on the transom for traditional and scanning sonar, and the LiveScope Plus LVS34 mounted on a trolling motor, shaft, or in Perspective orientation. The GLS 10 sonar module needs a dry, supported mounting location with clean cable routing, then it connects to the chartplotter over the included network cable.

On the power side, this unit is built for 9 to 18 Vdc systems, so a dedicated 12 V electronics feed is the normal approach. Leave room behind the display for cabling and strain relief, including about 118 mm of clearance for the wiring bend radius and connectors.

Sonar and mapping notes

The GT56-TM handles day-to-day scouting by showing bottom hardness, edges, brush, and bait with ClearVü and SideVü, while traditional sonar helps confirm arches and depth. LiveScope Plus adds the real-time view that is useful when you are hovering over a spot, following fish that move, or watching how fish react to your presentation.

The included cartography is focused on U.S. inland lakes and rivers. If you run coastal water or travel outside that region, plan for the charts that match where you navigate.

Networking and on-board integration

Wi-Fi lets you share user data such as waypoints and routes with a compatible ECHOMAP UHD2 unit and keeps updates straightforward through the ActiveCaptain app. NMEA 2000 support is there when you want the chartplotter to also act as a hub for compatible accessories, so one screen can cover navigation plus the boat data you care about while underway.
