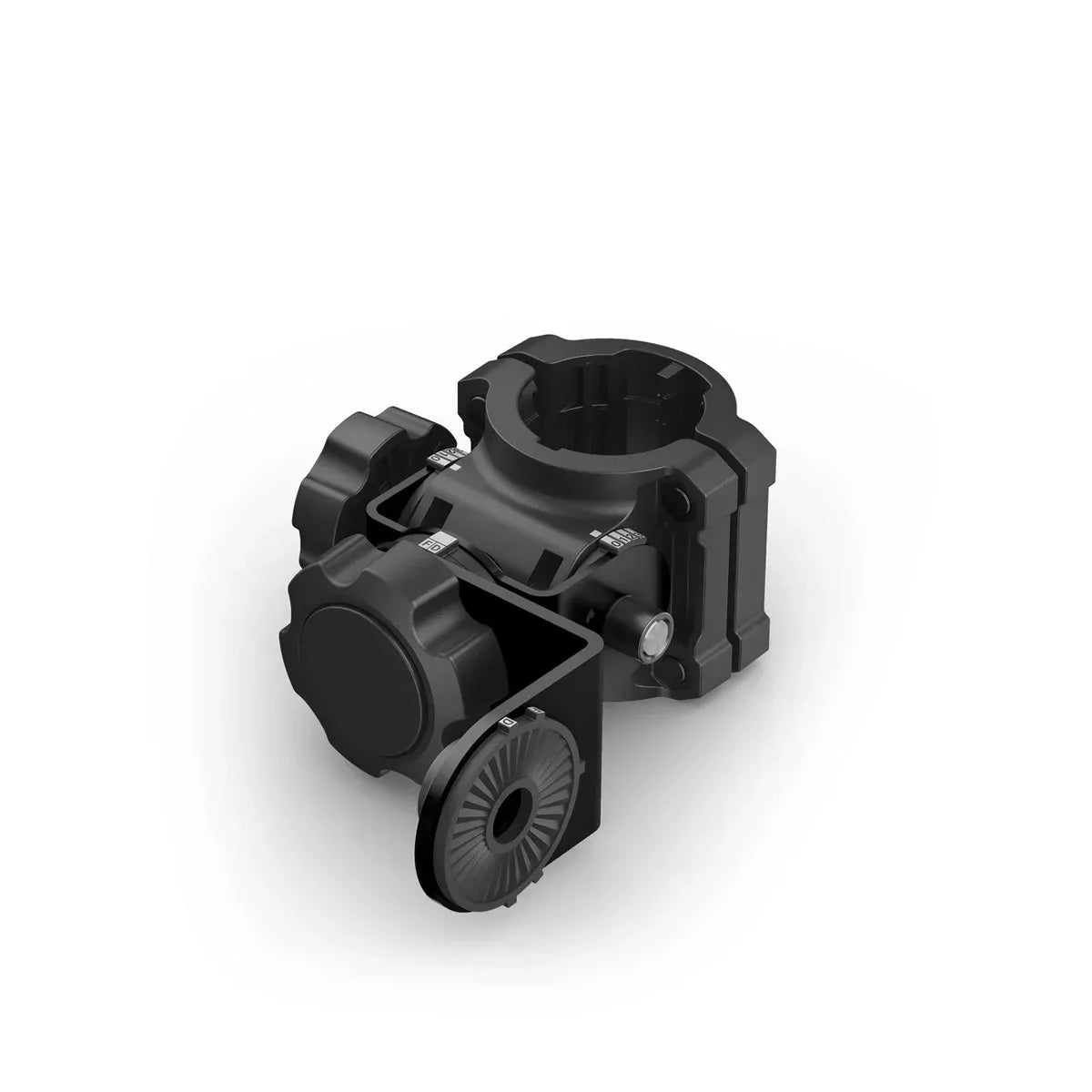

Garmin Adjustable Perspective Shaft Mount for LiveScope Transducers, For Spy Pole and Force Pro/Force Trolling Motors, Forward/Down/Perspective Modes, Adjustable Viewing Angles 0°-22.5°

Overview

The Garmin 010-13404-41 is an adjustable perspective shaft mount for LiveScope™ transducers that lets the transducer sit on the shaft of a Spy™ pole, Force® Pro trolling motor, or Force® trolling motor. It supports forward and down viewing at 0°, plus perspective positions at 0°, 7.5°, 15°, and 22.5°.

This mount is made for anglers who need to change the LiveScope viewing angle from the bow without rebuilding the transducer setup. It is especially useful when moving between forward-looking target scanning, vertical work under the boat, and perspective views over shallow cover or structure.

Key features

• Mounts a LiveScope™ transducer to the shaft of a Spy™ pole, Force® Pro trolling motor, or Force® trolling motor.
• Supports forward 0°, down 0°, and adjustable perspective angles of 0°, 7.5°, 15°, and 22.5°.
• Angle changes are handled by loosening the knob, setting the transducer angle, and tightening the knob again.
• Includes back mount pieces for both Garmin trolling motor shaft and Spy™ pole installations.
• Adapter discs are labeled by LiveScope™ transducer model number to help match the hardware during setup.

Installation and setup

The transducer cable is routed up the shaft before the transducer is fastened to the perspective mount. The mount clamps around the compatible shaft, can be adjusted for height during setup, and is then tightened with the included 5 mm hex wrench.

The kit uses transducer-specific adapter hardware so the LiveScope transducer sits correctly against the mount. For an LVS32 installation, the angle is set and secured with the included 5 mm hex wrench.

Compatibility and fit

This shaft mount fits compatible Garmin trolling motor shafts and Spy™ pole installations. It works with LiveScope™ transducers using the proper adapter disc for the transducer model.

For a Spy™ pole shaft installed on a trolling motor, an LVS62 transducer is not mounted with this shaft mount. That setup uses the adjustable perspective bottom mount for LiveScope™ transducers instead.

Use cases on board

This mount suits fishing boats running LiveScope from the bow, where quick viewing-angle changes matter while working docks, brush, weed edges, channels, or visible fish. It gives the transducer a fixed shaft-mounted location while still letting the sonar view change as conditions and fishing style change.

What’s included

• Adjustable perspective shaft mount
• Back mount piece for Garmin trolling motor shaft installations
• Back mount piece for Spy™ pole installations
• Transducer adapter hardware
• 5 mm hex wrench
• Documentation
