Newmar Power - PTM-24-22 Charge Module - Only Use - With PTMS
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Enhance Your Marine Electrical System with Unmatched Reliability
The Newmar PTM-24-22 Charge Module is a game-changer for marine electrical systems, designed to significantly improve system reliability and efficiency. This module is part of the advanced PTMS system, providing robust and uninterrupted power to marine batteries and equipment, ensuring that your vessel’s electronics remain operational under all conditions.
General Description
The PTM-24-22 Charge Module stands out by using multiple independent charger modules that can be easily plugged into the unit. Should a fault occur in one module, the system continues to operate, thereby maintaining continuous power supply. This design greatly enhances system reliability and reduces downtime.

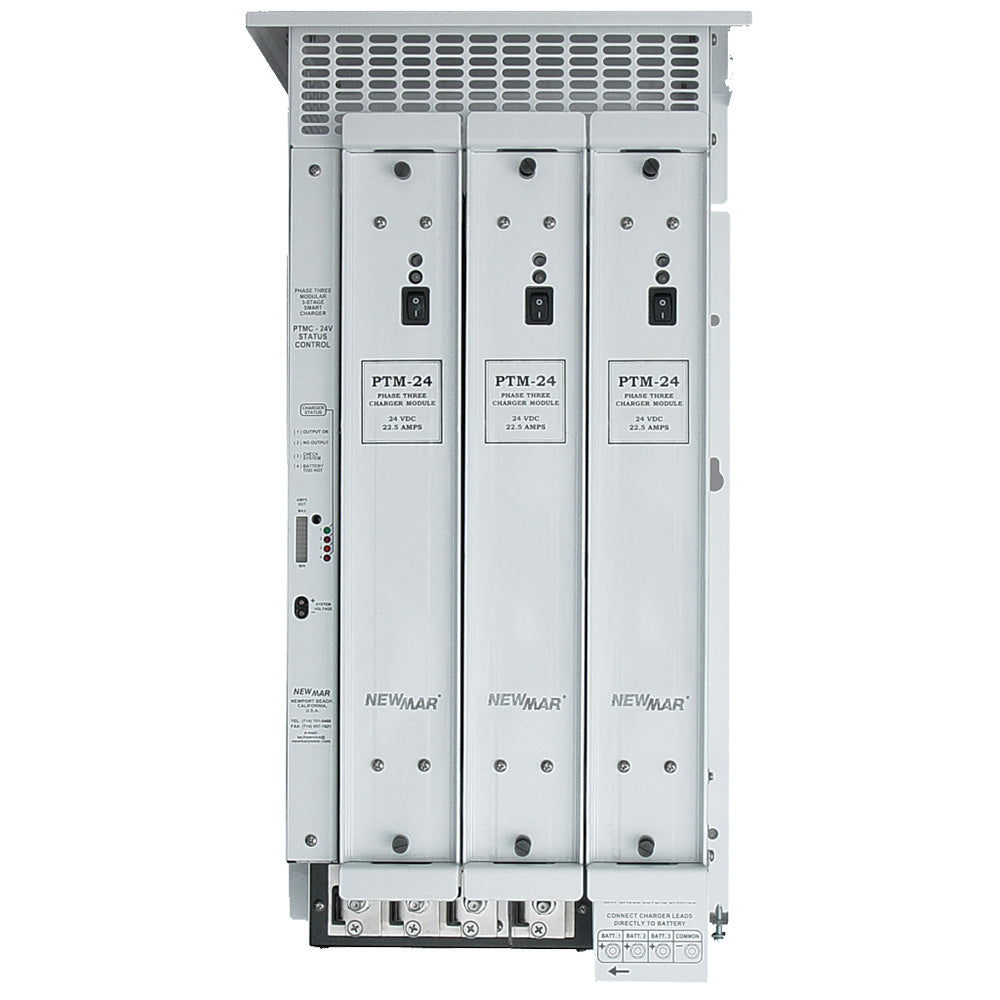

The PTMS system consists of a wall-mount case that serves as a connection point to AC input and battery output (three banks). It contains three front-facing power bays, each accommodating a 22.5-amp charger module that slides and locks in place, creating a comprehensive 24V, 67-amp charger setup.
Key Features
- Modular Design: Allows for easy replacement and maintenance of individual modules.
- Fault Tolerance: Ensures continuous operation even if one module fails.
- High Efficiency: Achieves 85% typical efficiency, reducing energy loss and heat.
- Comprehensive Protection: Includes input and output fuses, current limiting, over-voltage protection, and automatic thermal shutdown/recovery.
Technical Specifications
- Input Voltage/Frequency: 90-264 VAC; 47-63 Hz (derate linearly from 100% output @ 105 VAC to 80% output @ 90 VAC)
- Input Current: 3 amps @ 230VAC; 6 amps @ 115 VAC
- Output Current: 22.5 amps max in Bulk Phase; 20 amps max in Absorption/Float Phases
- Power Factor: 0.96-0.99
- Efficiency: 85% typical
- Protection Features: Input fuse, output fuse, current limiting, over-voltage protection, cooling fan, automatic thermal shutdown/recovery
- Status Indicators: Output OK/FAULT
- Weight: 6 lbs.
Product Dimensions
- Size: Standard dimensions fitting PTMS systems
- Weight: 6 lbs.
Highlights
- Reliable Power: Ensures consistent and uninterrupted power supply to your marine electronics.
- Ease of Maintenance: Modular design allows for quick and easy replacement of faulty units.
- Durable Construction: Built to withstand the harsh marine environment, ensuring long-lasting performance.
- User-Friendly: Easy installation and operation, with clear status indicators for quick troubleshooting.
Application and Usage
Ideal for marine vessels requiring robust and reliable charging systems, the Newmar PTM-24-22 Charge Module is perfect for ensuring that your critical electronics are always powered and ready to go. Its fault-tolerant design makes it a dependable choice for any marine environment.
