Raymarine Power/Data/Video Cable, For Axiom Pro & Legacy MFDs, 1.5m

Overview

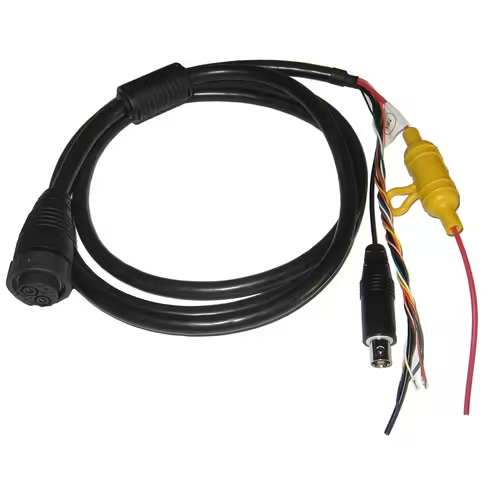

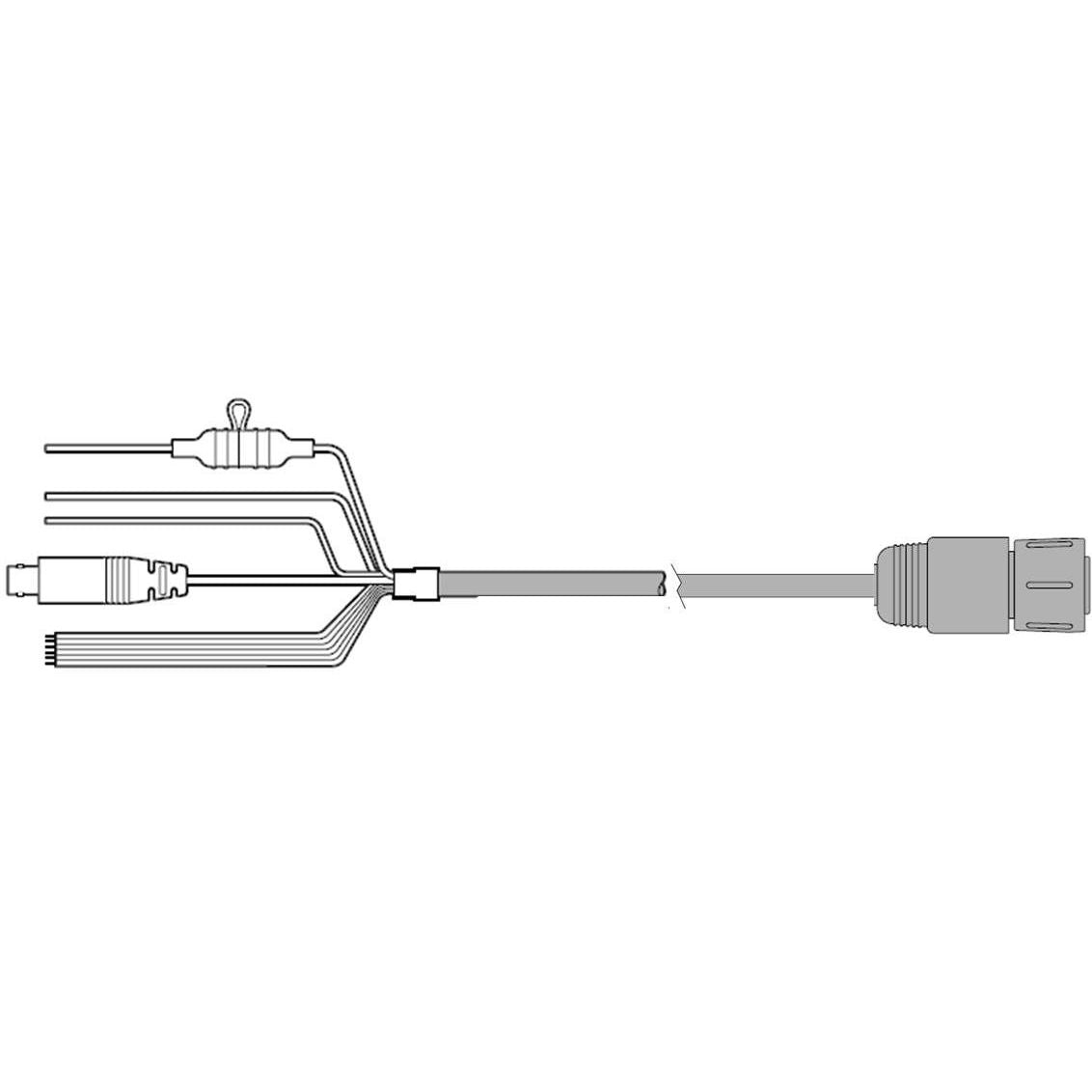

The Raymarine R62379 is a straight power, NMEA 0183, and video input cable for compatible Raymarine multifunction displays. It gives a display the required power connection while also carrying NMEA 0183 data and video input through the same cable assembly, which is useful when replacing a damaged lead or completing an electronics refit at the helm or nav station.

The cable length is 1.5 m, giving installers a short, tidy run behind the display without leaving excess cable in tight dash spaces. It is used with Raymarine Axiom Pro, Axiom XL, a9/a12, c9/c12, e7/e9/e12/e165, eS9/eS12, and gS units where this combined power, data, and video connection is required.

Key features

• Combines power, NMEA 0183 data, and video input connections in one Raymarine display cable.
• 1.5 m cable length helps keep helm and console installations neat when the power and data connection point is close to the display.
• Straight connector style for installations where the rear of the display has enough clearance for a direct cable exit.
• Compatible with selected Raymarine Axiom Pro, Axiom XL, a Series, c Series, e Series, eS Series, and gS Series multifunction displays.
• Useful for display replacement, electronics upgrades, and service work where the original power, data, and video cable is missing or damaged.

Compatibility and fit

This cable should be matched to the display model before installation, especially when replacing older Raymarine wiring. It is intended for compatible Raymarine multifunction displays that use the combined power, NMEA 0183, and video input cable connection rather than a separate power-only lead.

The straight connector needs space behind the display for the cable to exit without a tight bend. On compact helm panels, overhead pods, or flush-mounted consoles, checking rear clearance before routing the cable can help prevent strain at the connector.

Installation and setup

During installation, route the cable away from sharp edges, high-heat areas, and moving steering or throttle components. Secure the cable so vibration and wave impact are not transferred directly to the display connector.

For NMEA 0183 and video input use, connect only to compatible equipment and follow the wiring requirements for the connected device. This cable is a good match for boat owners, installers, and service technicians working on Raymarine display systems that need power plus legacy data or video input support in a single cable assembly.
