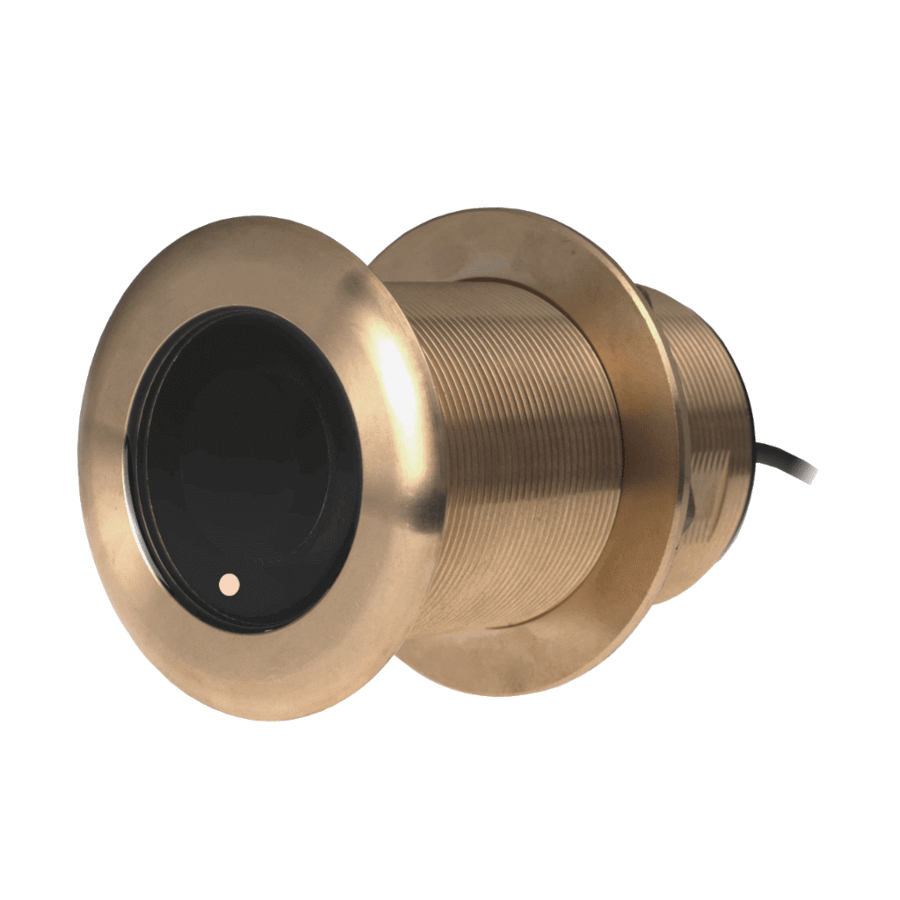

Airmar - B75C-20-HW 20d Tilt High Wide CHIRP Transducer - With Mix-n-Match Plug

High-Performance CHIRP Transducer for Exceptional Marine Clarity

The Airmar B75C-20-HW is a high-wide CHIRP transducer designed to deliver superior underwater clarity and precision. With a powerful 600W output and a high-frequency range of 150 to 250 kHz, this transducer ensures outstanding target separation, making it ideal for detecting baitfish and schooling gamefish. Its wide 30° beamwidth provides maximum coverage under the boat, offering improved visibility in shallow waters up to depths of 106 meters (350 feet).

Equipped with a fast-response depth and water-temperature sensor, the B75C-20-HW is an excellent choice for serious anglers and marine professionals. The low-profile, thru-hull design enhances resolution even at high speeds, ensuring optimal performance in various marine conditions.

Advanced Tilted Element for Precision Readings

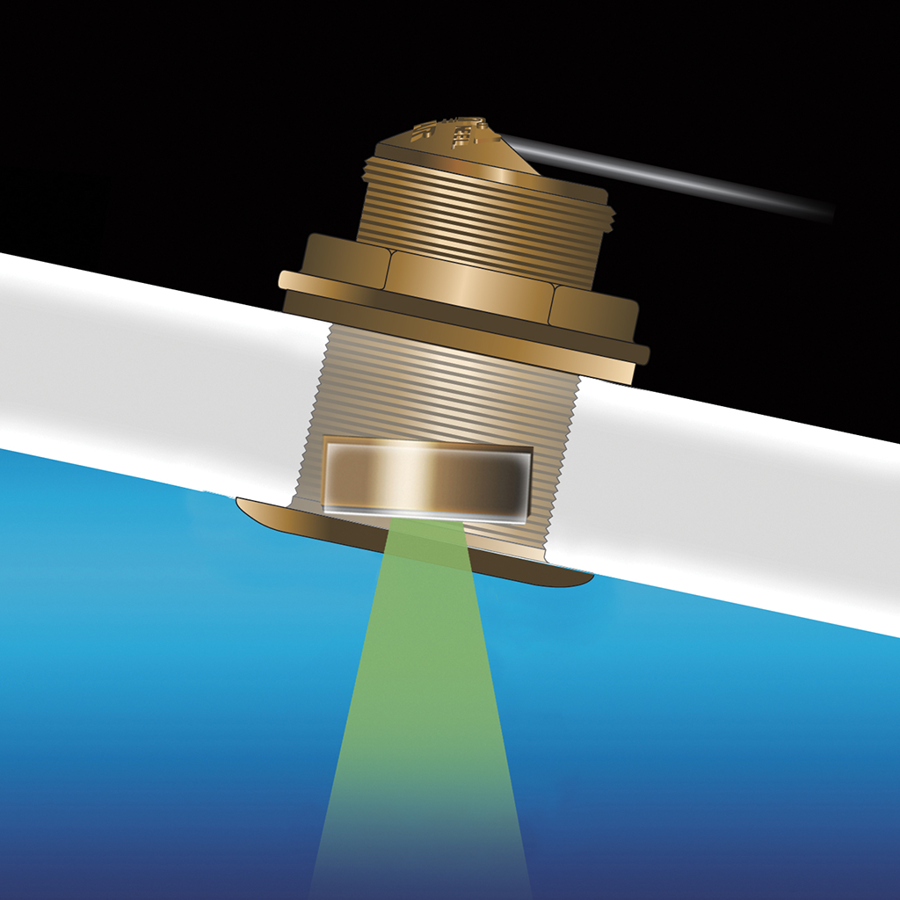

Featuring Airmar’s Tilted Element™ technology, the ceramic element within the housing is fixed at a 20° angle, compensating for hull deadrise ranging from 16° to 24°. This design allows the transducer to be mounted nearly flush with the hull while maintaining a direct downward beam orientation for the most accurate depth readings.

Robust Construction for Marine Durability

The Airmar B75C-20-HW transducer is built with a rugged bronze housing, making it suitable for installation on stepped, planing, or displacement hulls. Its durable construction ensures longevity and reliability in challenging marine environments.

Technical Specifications

• Power Output: 600W
• Maximum Depth Performance: 106 meters (350 feet)
• Frequency Range: 150-250 kHz (High Wide)
• Beamwidth: 30°
• Deadrise Compatibility: 16° to 24°
• Functions: Depth and fast-response temperature sensing
• Housing Material: Bronze
• Acoustic Window: Urethane
• Cable Length: 9 meters (30 feet)
• Connector Type: Airmar 12-Pin (MMC)
• Hole Size for Installation: 70 mm (2-13/16 inches)

Key Features

• High-wide CHIRP technology for enhanced target separation and fish detection
• Wide 30° beamwidth for maximum underwater coverage
• Low-profile, thru-hull design for optimal performance at speed
• Fast-response depth and temperature sensor for real-time data
• Bronze housing for durability in various hull types
• Tilted Element™ technology for precise echo returns and accurate depth readings

This transducer is a reliable addition for boaters seeking precise sonar readings, broad underwater coverage, and superior marine performance.
