Vimar Eikon 1-Module Panel Mounting Frame, With Screws, Thermoplastic

Overview

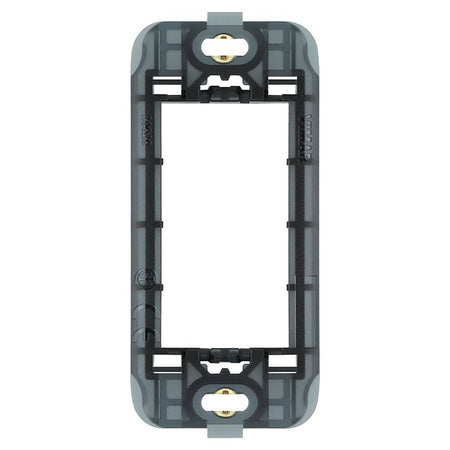

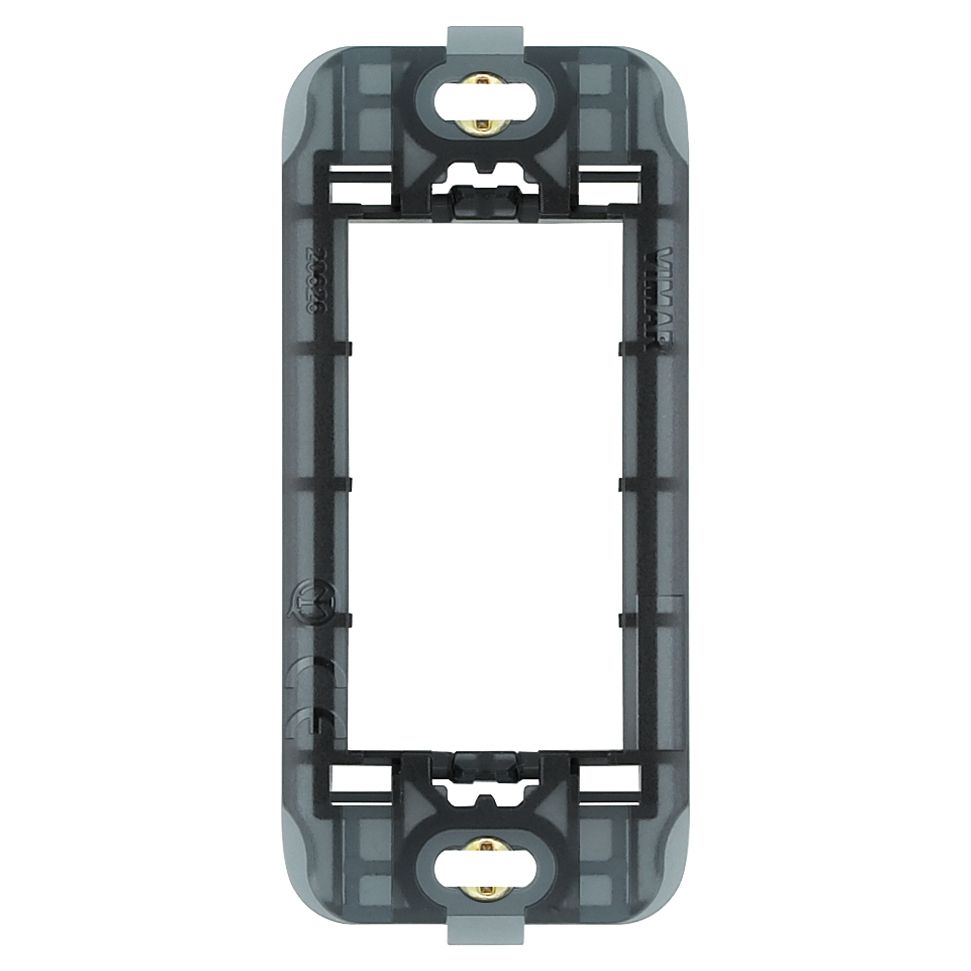

The Vimar VM20626 is a 1-module mounting frame with fixing screws for panel mounting in the Eikon modular system. It supports one module and can be installed in either a horizontal or vertical orientation, which helps when you are laying out switches and outlets on a helm console, cabin bulkhead, or an electrical accessory panel.

This is a flush-mounted holder style frame made from thermoplastic, and it mounts from the front side. Because it does not include a built-in installation box, plan for a proper panel cut-out and enough clearance behind the panel for wiring and the device you are installing.

Key features

• 1-module frame for panel mounting in the Vimar Eikon range
• Supports horizontal or vertical mounting orientation for flexible panel layouts
• Front-side mounting with screw fixing for a secure install on flat panels
• Thermoplastic construction for electrical insulation around the module support
• No built-in installation box, leaving you free to manage wiring space behind the panel
• Not intended for 60 mm round junction boxes, floor boxes, wall ducts, or 35 mm DIN rail mounting

What’s included

• 1-module panel-mounting frame
• Fixing screws

Compatibility and fit

This frame is meant for Vimar Eikon modular domestic switching devices that mount into a panel rather than a standard in-wall box. Match it with the correct 1-module Eikon insert and cover plate for your layout, and verify your panel thickness and rear clearance before cutting.

Installation and setup

Position the frame in the panel opening, fasten it with the supplied screws, then mount the chosen module from the front side per the device’s instructions before fitting the cover plate. On a boat, it helps to mount it on a rigid surface that will not flex with vibration, and to keep the installation in a protected location unless the module and cover plate you are using are suited to spray and washdowns.

Use cases on board

This part is a good match for refits and new builds using Vimar Eikon modules for cabin lighting control, service outlets, or accessory panels where you want a clean, serviceable front-side install. It is also useful when you are building custom panels and need a consistent way to mount single-module devices without committing to a full electrical box behind the surface.
