TACO Marine Grand Slam 300XL Outrigger Mount Pair, For 1-1/2 in Outriggers, For Hardtops up to 4.5 in, Single-Handle, Stainless Steel/Anodized Aluminum

Overview

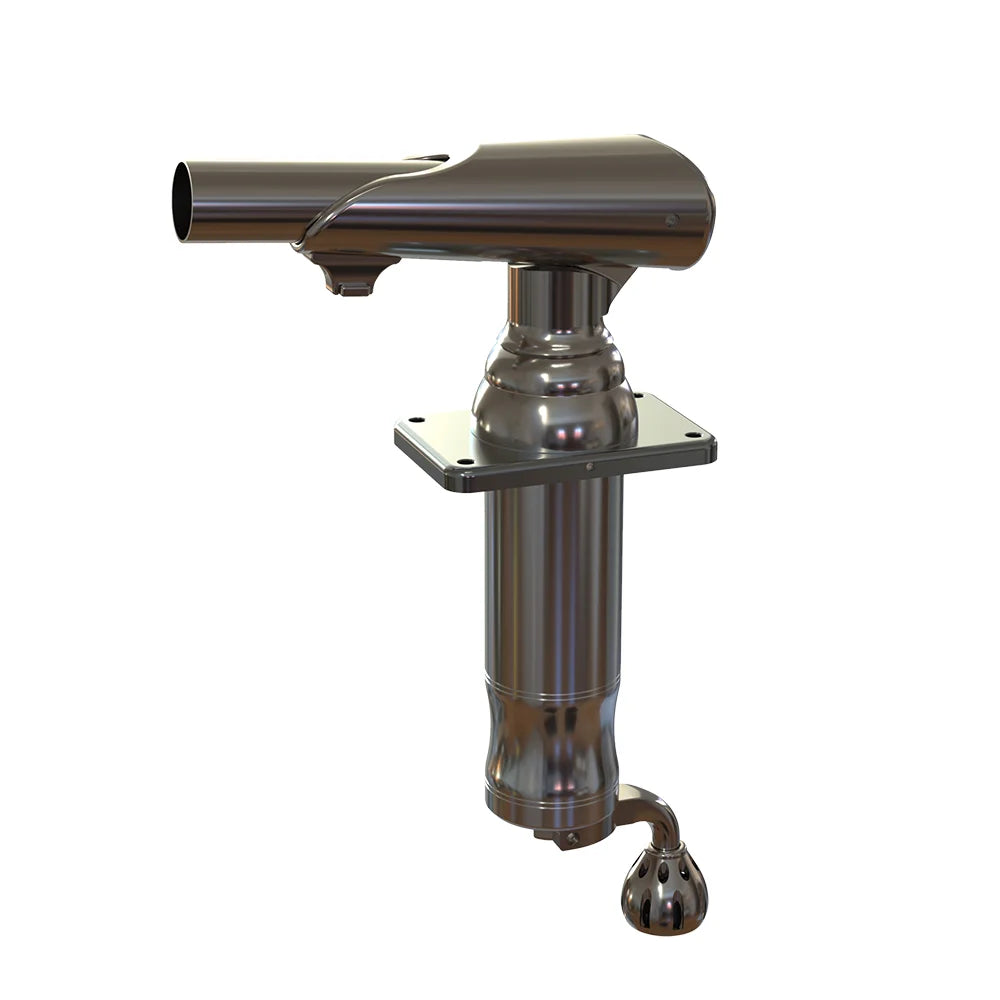

The TACO Marine GS-300XL is a Grand Slam 300XL outrigger mount for 1-1/2 inch outrigger poles, made for larger hardtops up to 4-1/2 inches thick. It gives offshore and coastal fishing boats deck-level control of outrigger lift and rotation, so the crew can deploy or adjust poles without reaching above the hardtop.

This mount uses a stainless-steel and polished anodized aluminum construction with an all-metal design and no plastic components. The arm can lift up to 46.5 degrees from horizontal for kite fishing and dock clearance, and the controlled 180 degree rotation helps keep pole movement manageable during setup, trolling, and retrieval.

The GS-300XL is sold as a pair and works with 1-1/2 inch outrigger poles, with compatibility noted for TACO Open Water internal and collapsible carbon fiber poles, plus aluminum or carbon fiber Tele-Outrigger poles up to 22 feet. It can also be used with an outrigger base reducer for 1-1/8 inch diameter poles.

Key features

• Single-handle crank operation lets the crew lift and rotate outrigger poles from the deck.
• Fits hardtops up to 4-1/2 inches thick, making it suitable for larger T-tops and hardtops.
• Pin-locking arm has no port or starboard designation, which simplifies installation and replacement planning.
• Arm lifts up to 46.5 degrees from horizontal for kite fishing clearance and dockside clearance.
• Controlled 180 degree rotation helps reduce uncontrolled pole movement during deployment.
• Locking head helps prevent downward creep of the outrigger poles while in use.
• Cast stainless-steel and machined aluminum construction keeps the base strong without relying on plastic components.
• Base hole pattern matches TACO Marine Grand Slam models and common top-mount outrigger system hole patterns.
• Includes mounting hardware for installation, while backing plates are sold separately.

Installation and fit

This mount is built for top-mount outrigger installations on fishing boats with a hardtop or T-top. The extra hardtop depth capacity is the key difference for buyers replacing a smaller top-mount system or rigging a larger center console, walkaround, or sport fishing boat.

Each mount weighs 15 pounds, for 30 pounds per pair, so the hardtop structure should be checked before installation. Backing plates are sold separately and are worth planning for when the top needs better load distribution under outrigger torque, vibration, and offshore running loads.

Use on board

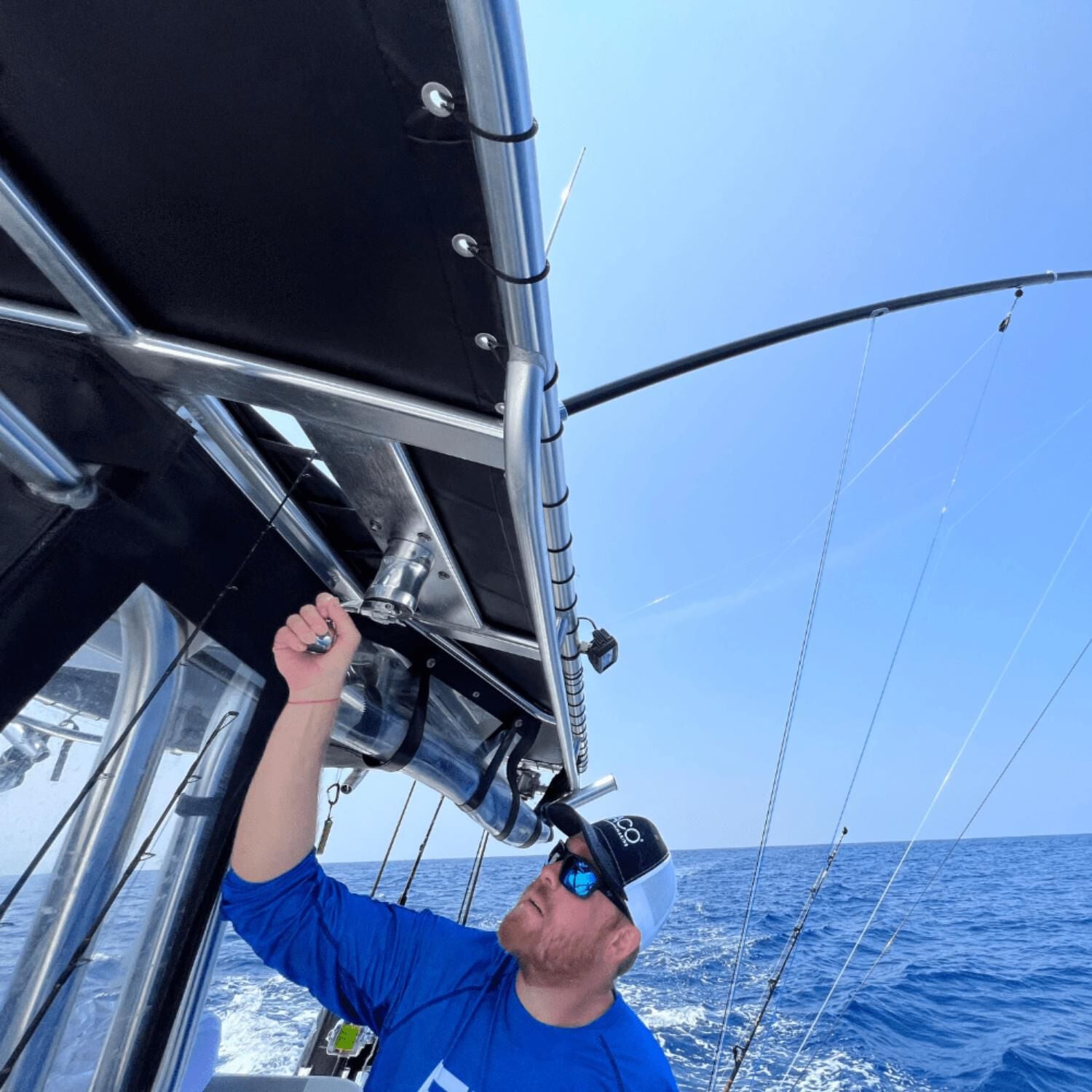

The GS-300XL is a good match for anglers who run outriggers regularly and want lift and rotation control from a safer deck position. It suits trolling setups where controlled deployment matters, and it also helps when raising poles for kite fishing or clearing docks, bridges, and storage areas.

The underside locking pin connection and non-handed arm layout make the pair easier to manage during installation because the mounts are not separated into dedicated port and starboard units. That is useful for new installs as well as upgrades from older top-mount bases.

What’s included

• Pair of Grand Slam 300XL outrigger mounts
• Mounting hardware
