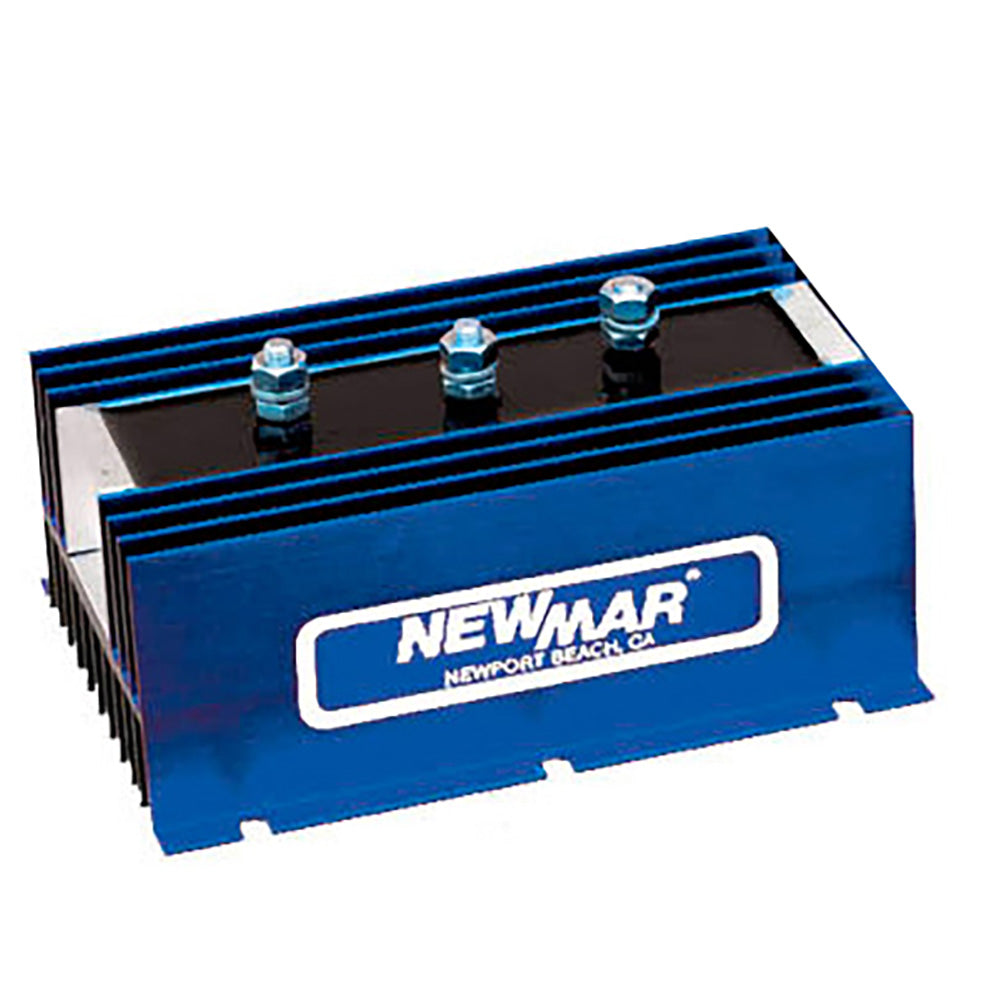

Newmar Power - 1-3-165 Battery Isolator
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Seamless Battery Charging for Marine Vessels
The Newmar 1-3-165 Battery Isolator is an essential component for marine vessels, providing reliable and efficient management of multiple batteries. This heavy-duty isolator ensures automatic charging from one or two alternators, preventing the discharge or 'dumping' of one battery into another. It is designed for 12-, 24-, or 36-volt negative ground DC systems, making it versatile for various marine applications.
General Description
Crafted for durability, the Newmar 1-3-165 Battery Isolator features conservatively rated diodes and a rustproof anodized aluminum heat sink case. This construction ensures long-term performance and protection against the harsh marine environment. By charging each battery according to its need, it maintains optimal charge levels without the risk of overcharging.
Key Features
- Efficient Multi-Battery Charging: Allows automatic charging of multiple batteries from one or two alternators.
- Prevents Battery Dumping: Ensures no discharge from one battery to another, maintaining optimal charge levels.
- Durable Construction: Rustproof anodized aluminum heat sink case and conservatively rated diodes for long-lasting use.
- Versatile Compatibility: Suitable for systems up to 48 volts DC, negative ground.
- Complete Installation Kit: Includes stainless steel mounting hardware and protective terminal covers.
Technical Specifications
- Alternator Sources: 1
- Battery Banks: 3
- Max. Amperage Input Capacity: 165 A
- Stud Terminal Size: 6mm
- Dimensions (L x W x H): 9" x 4.5" x 3.1"
- Weight: 5 lbs.
- Operating Temperature: -40 to +80°C
- Duty Cycle: Continuous rating to 50°C; derates linearly to 70% at 80°C
- Temperature Rise: 5°C at full rated current (mount vertically for optimum cooling)
- Voltage Drop: 0.7V at 50% load, 0.9V at full load
Product Dimensions
- Length: 9 inches
- Width: 4.5 inches
- Height: 3.1 inches
- Weight: 5 lbs
