Vimar Eikon Mounting Frame and Protection Cover, 4-Module
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Vimar Eikon is a 4-module mounting frame and protection-cover range for rectangular boxes. In this range, the frame mounts flush with screws, accepts 4 modules in a horizontal layout or 1 module vertically, and takes the module inserts from the front side.
For marine refits and new panel work, this is the hardware used behind a clean flush installation when an Eikon switch or outlet position has to line up neatly in a cabin wall, console, or service panel. The matching cover version is transparent and fits over the 4-module frame so the opening stays protected while wiring, finishing, or later service work is underway.
Key features
- 4-module format for rectangular mounting boxes
- Frame version fixes with screws and supports horizontal or vertical mounting
- Front-side insert mounting keeps device access at the working face of the frame
- Frame uses thermoplastic construction and is made for flush-mounted installation
- Protection cover version is transparent, halogen-free plastic for the 4-module Eikon frame
- Not intended for 60 mm round junction boxes, floor boxes, wall ducts, or 35 mm DIN rail mounting
Variants
This product is offered in two configurations for the same 4-module Eikon position.
The main difference is function. One variant is the mounting frame that carries the modular devices, and the other is the accessory cover that protects that opening. Both relate to the same 4-module rectangular box format.

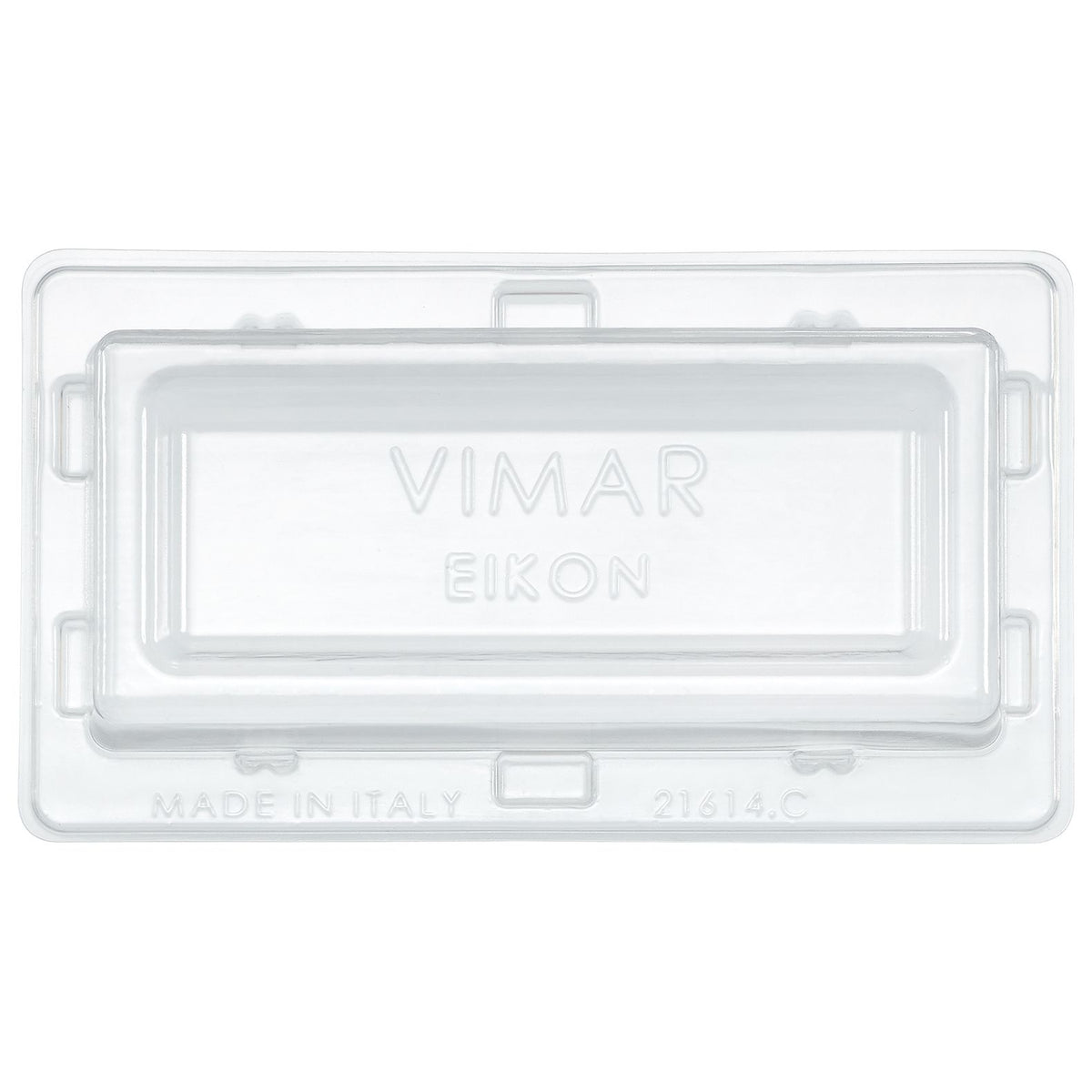

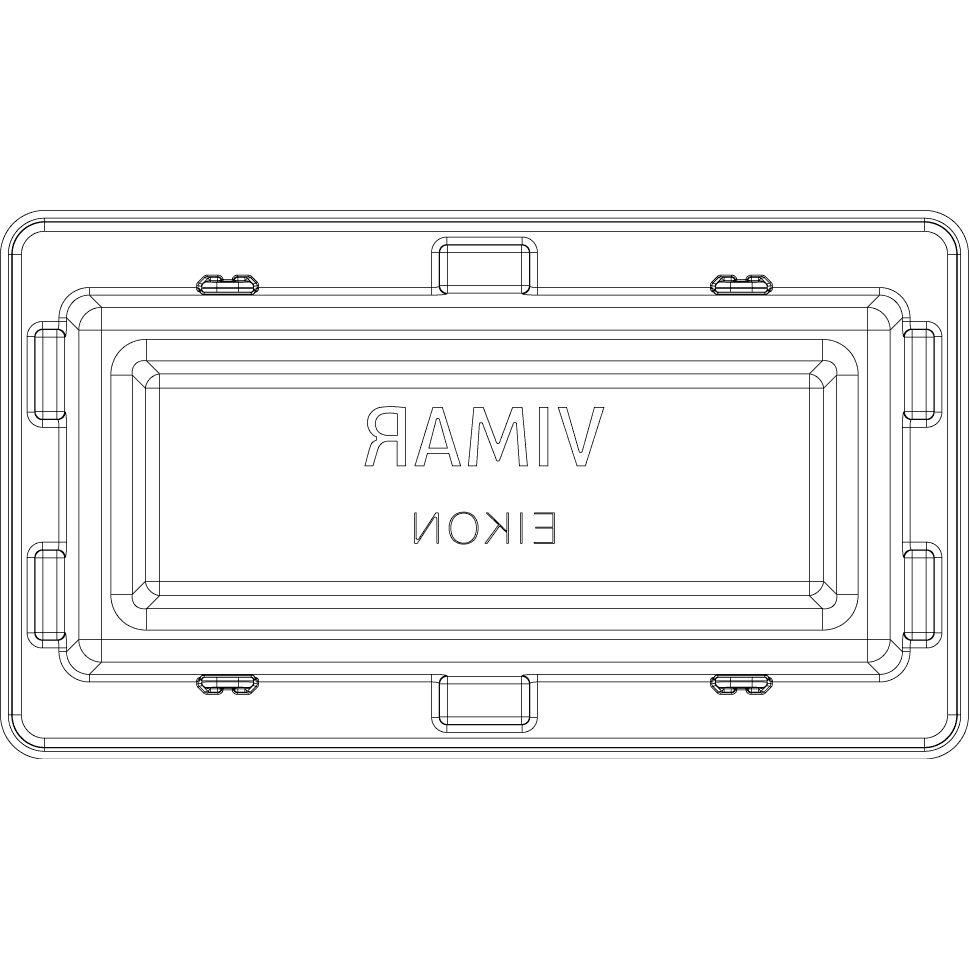

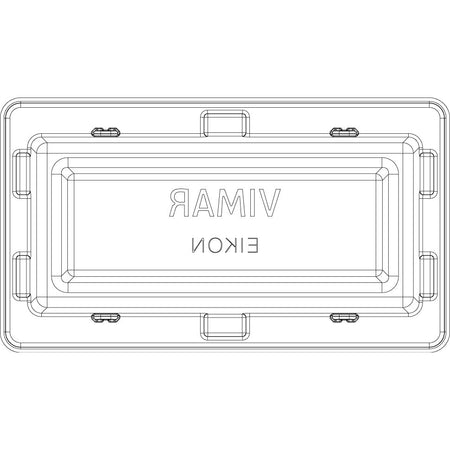

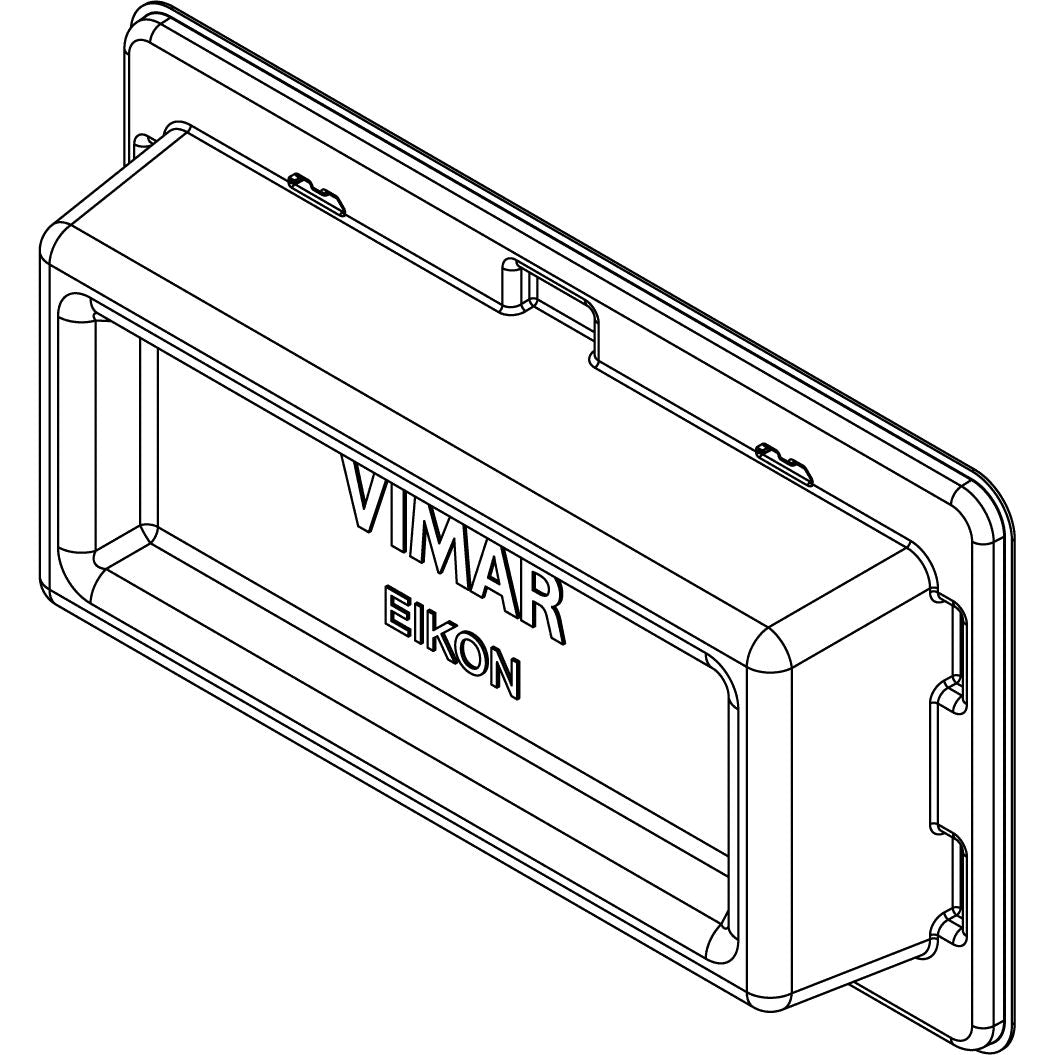

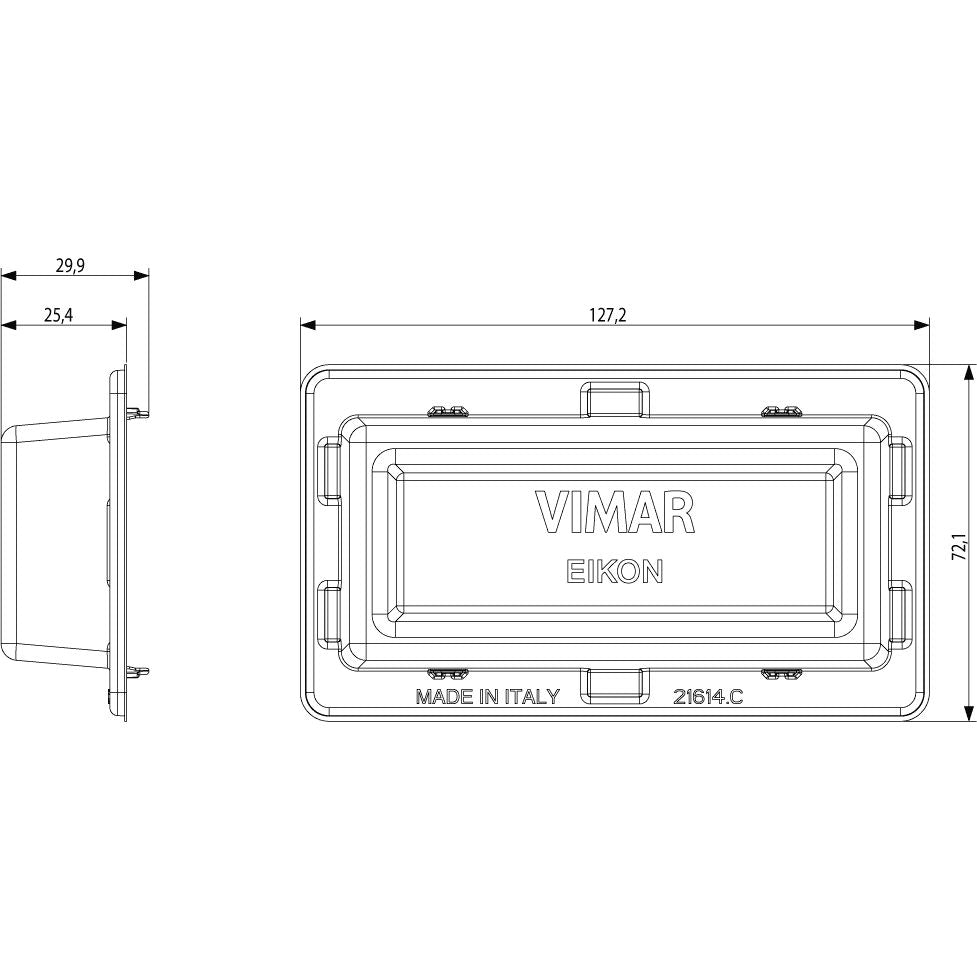

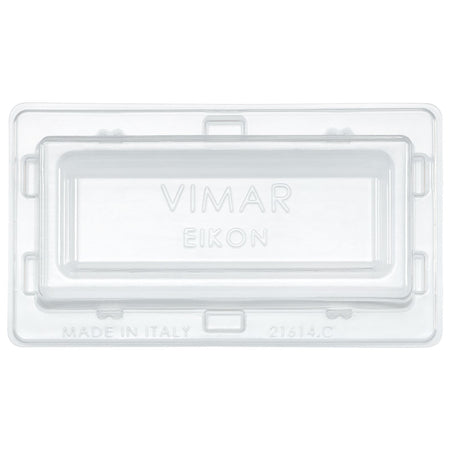

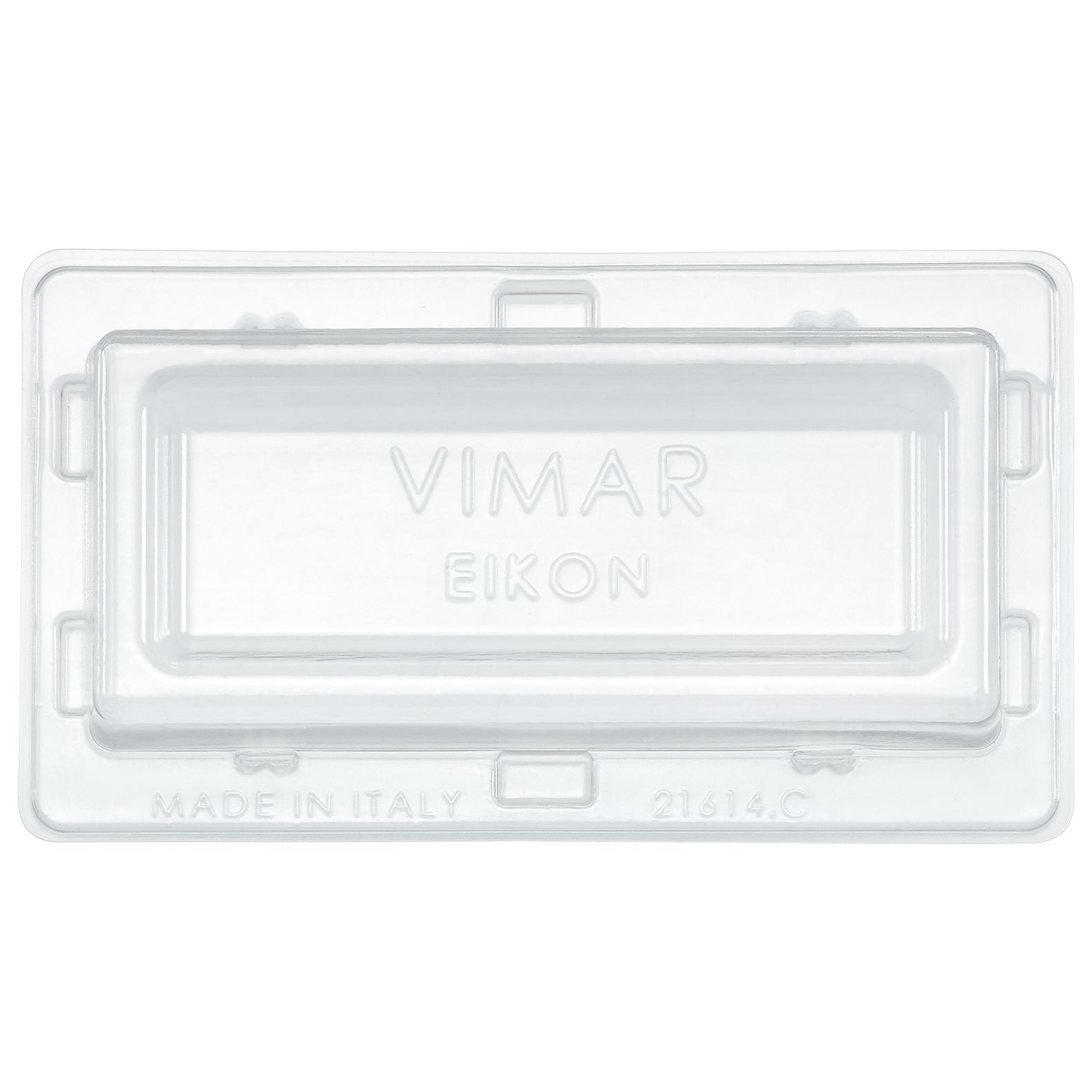

- VM21614.C: Accessory Protection Cover. This is the transparent cover that fits over the 4-module Eikon mounting frame and helps keep dust and debris out while the installation is open.

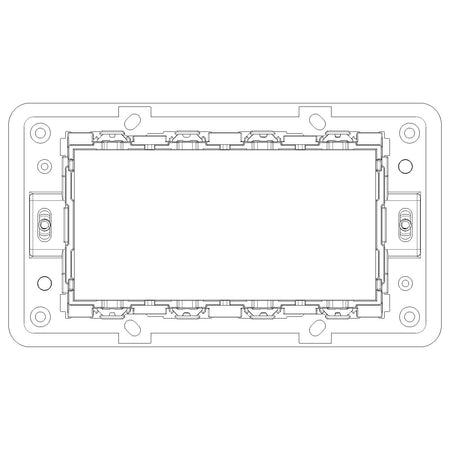

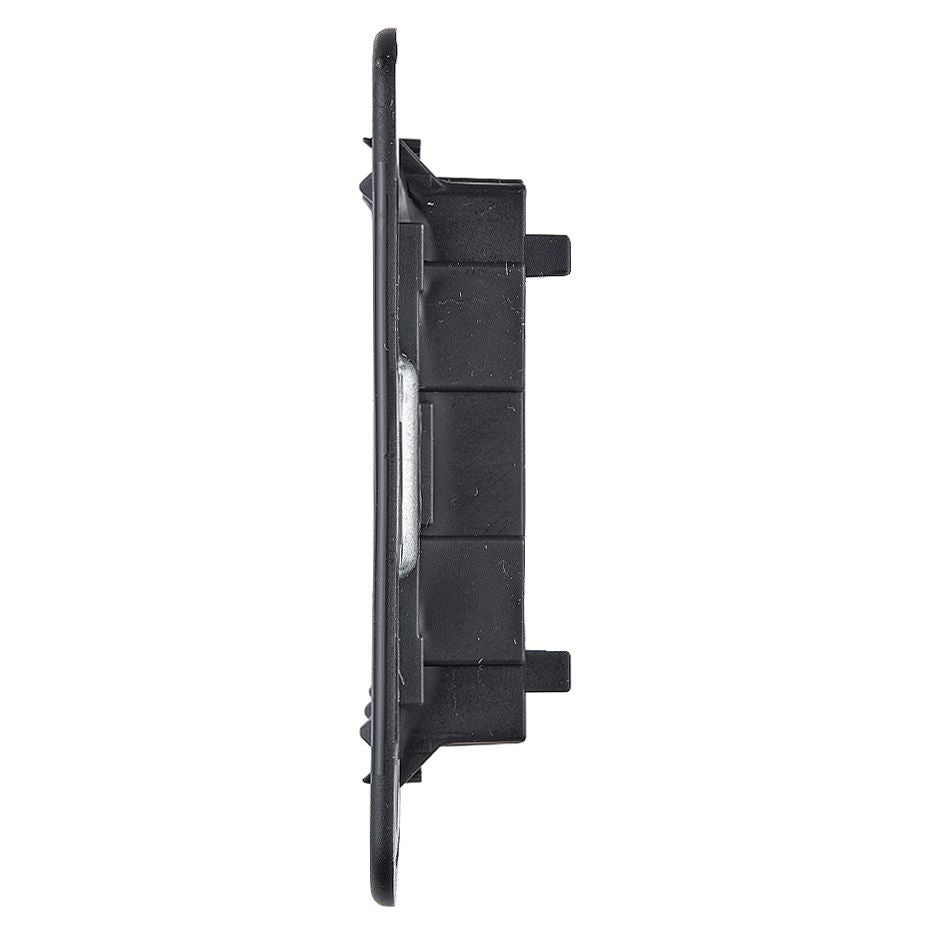

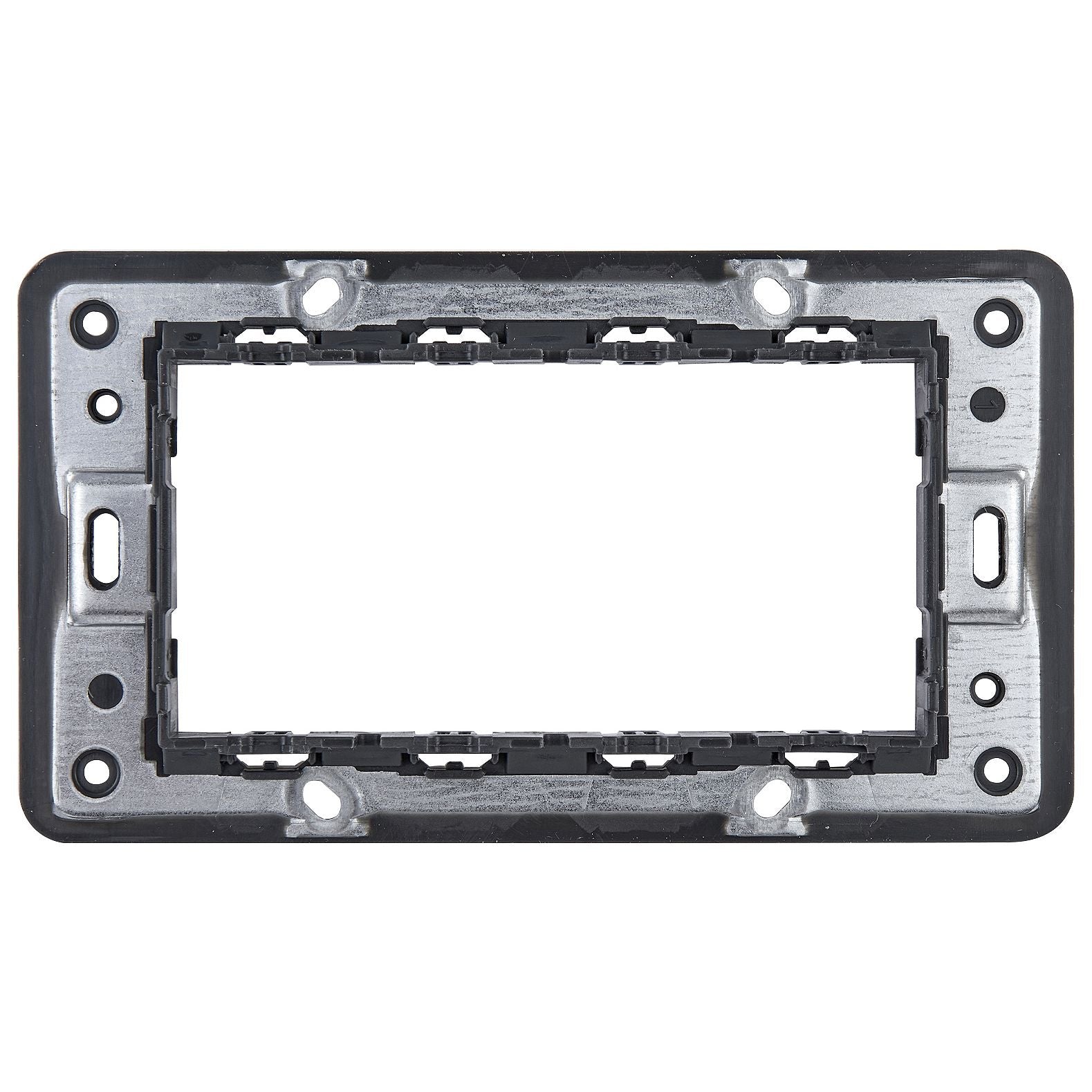

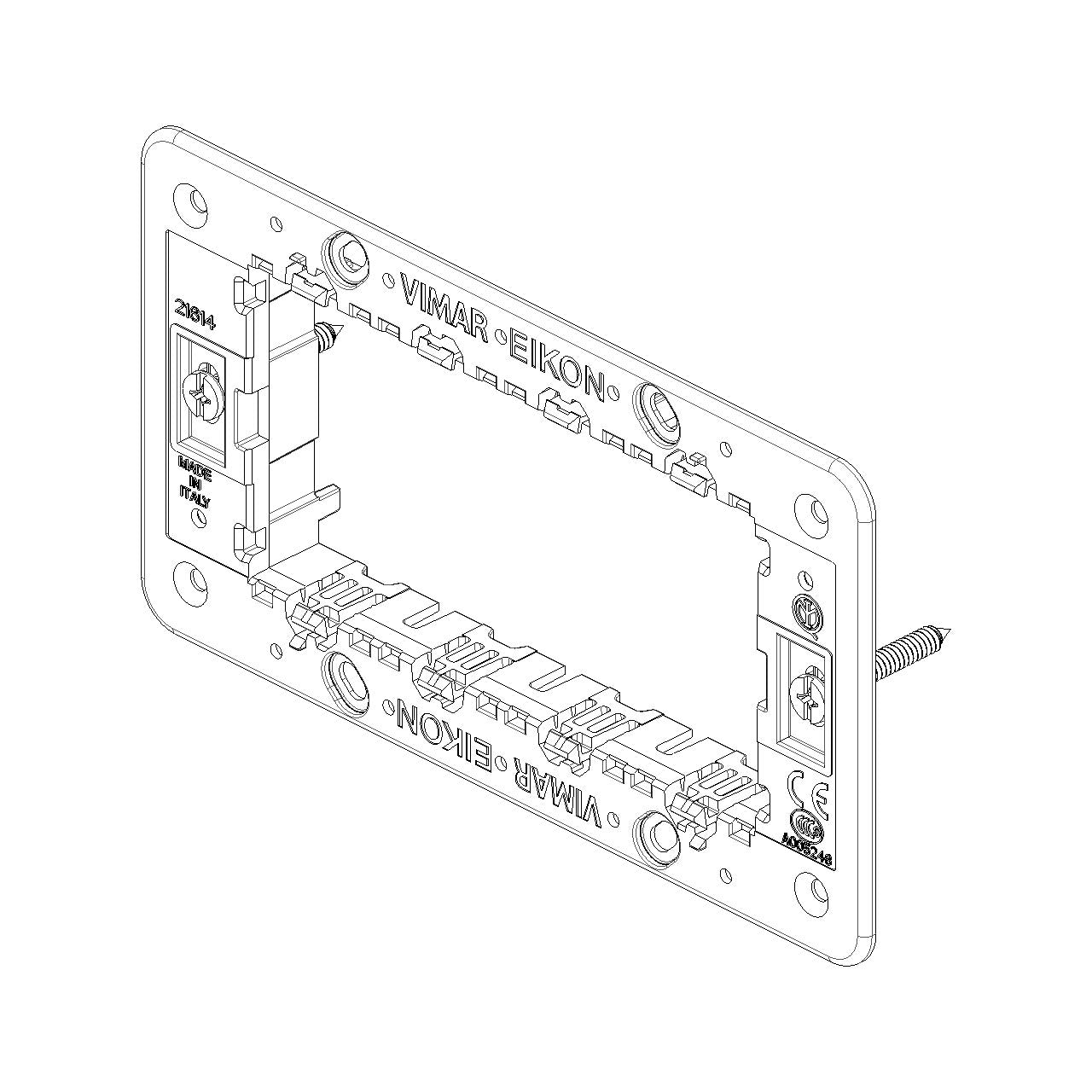

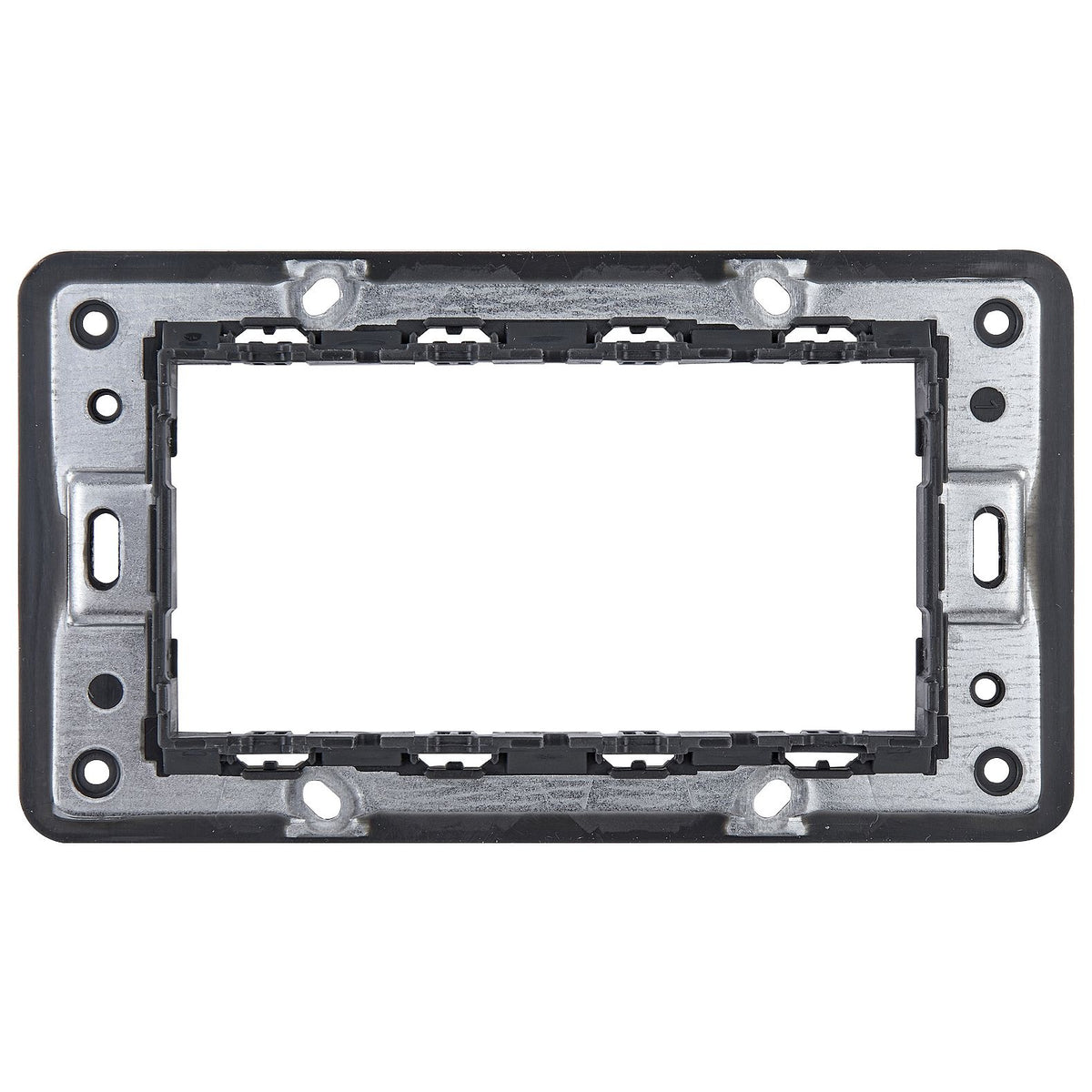

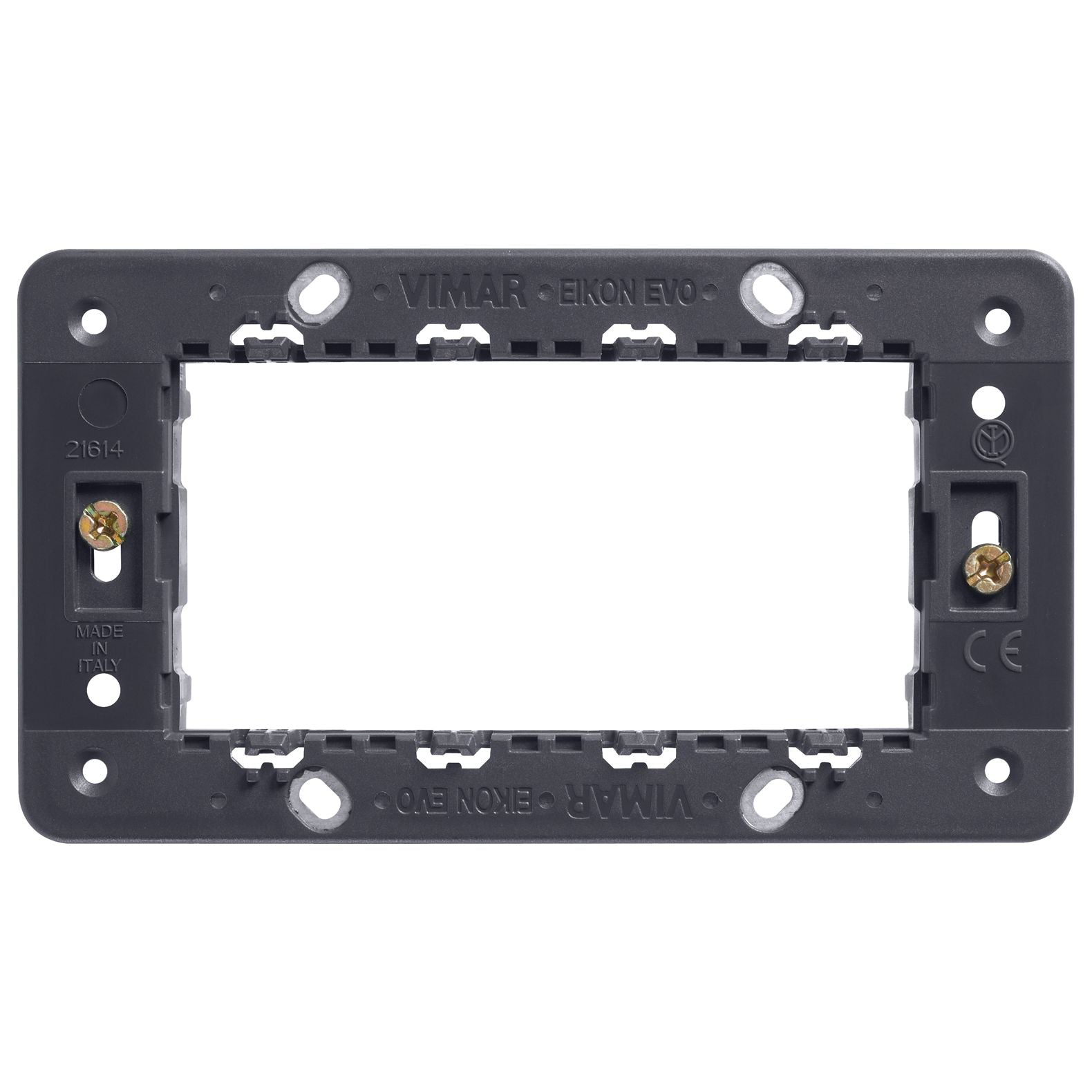

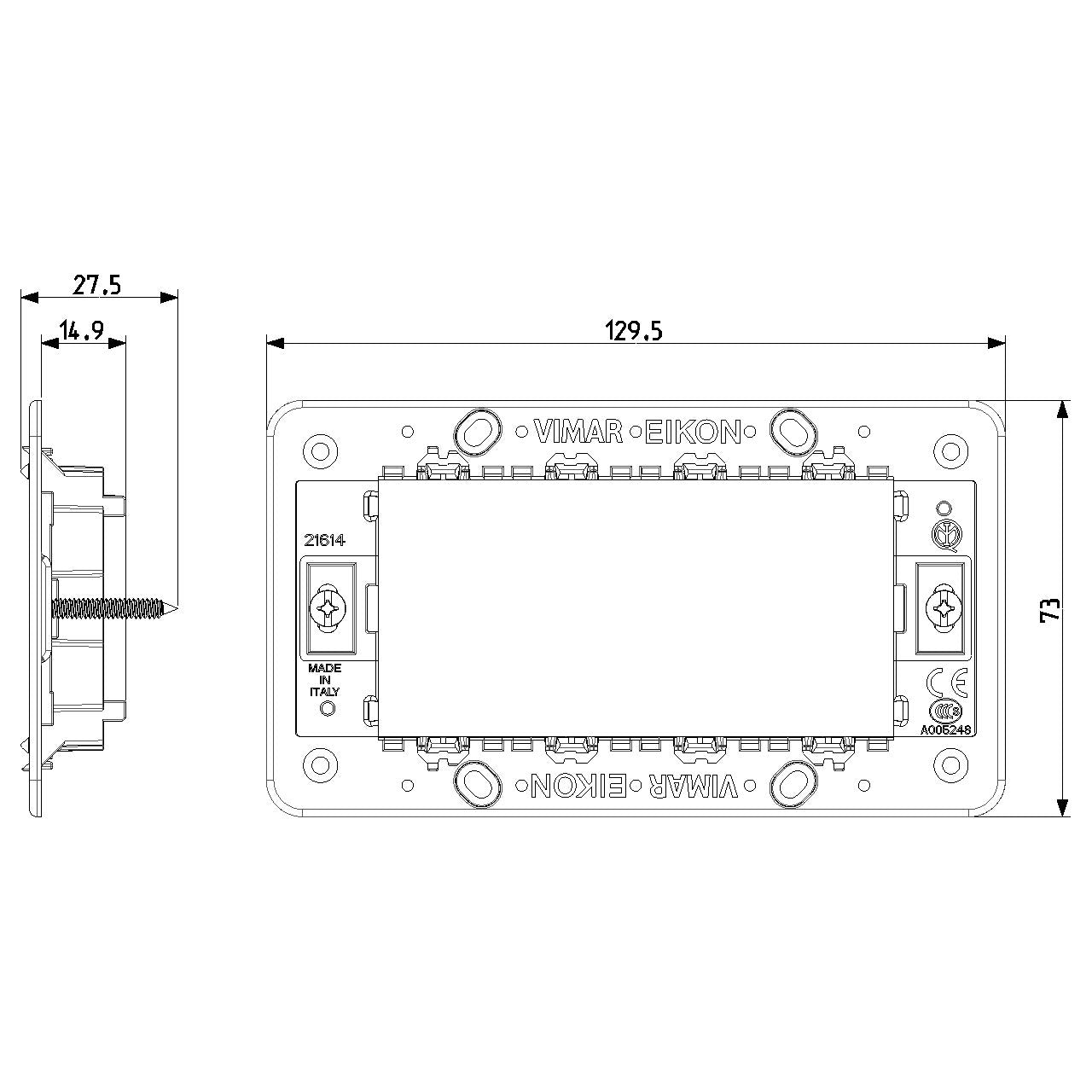

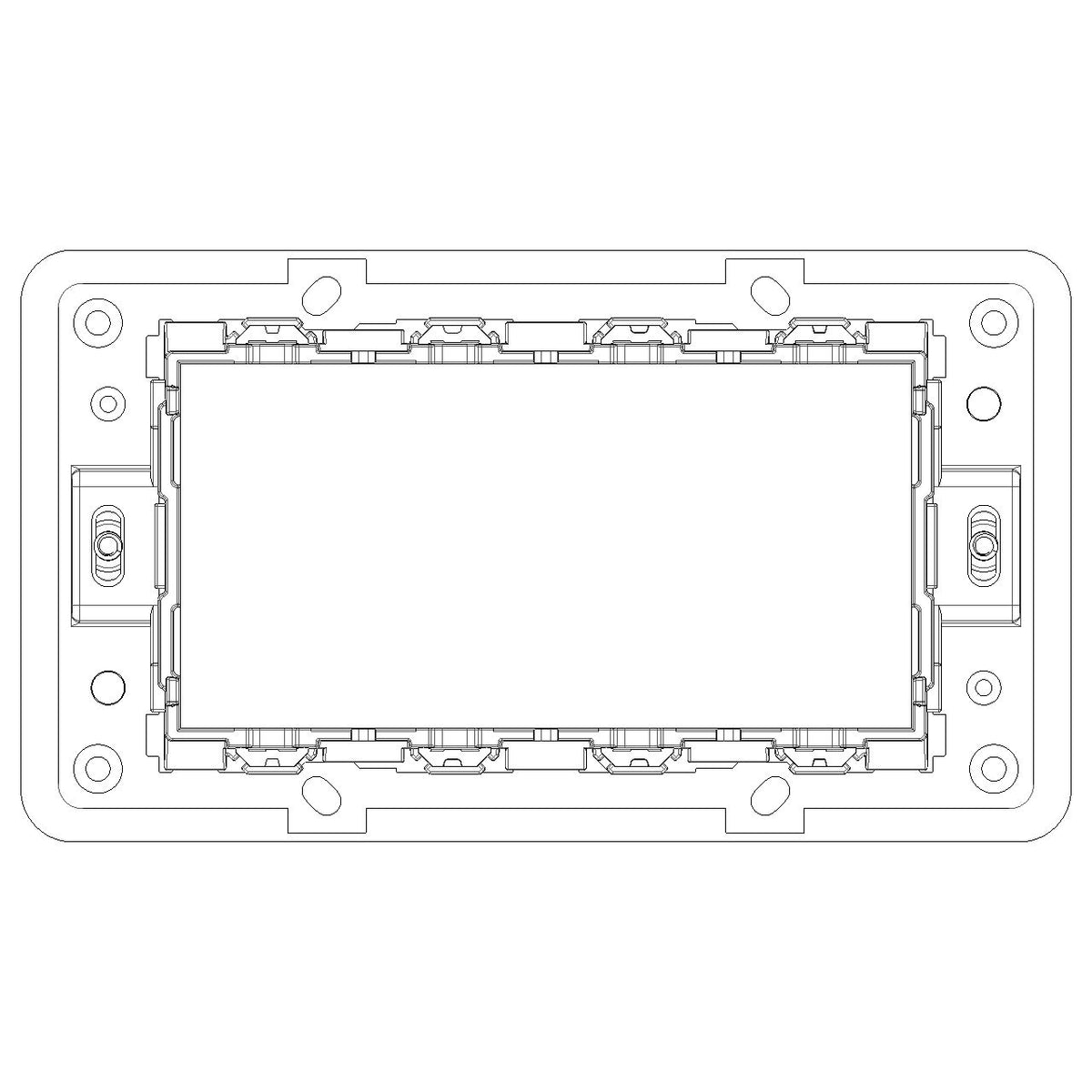

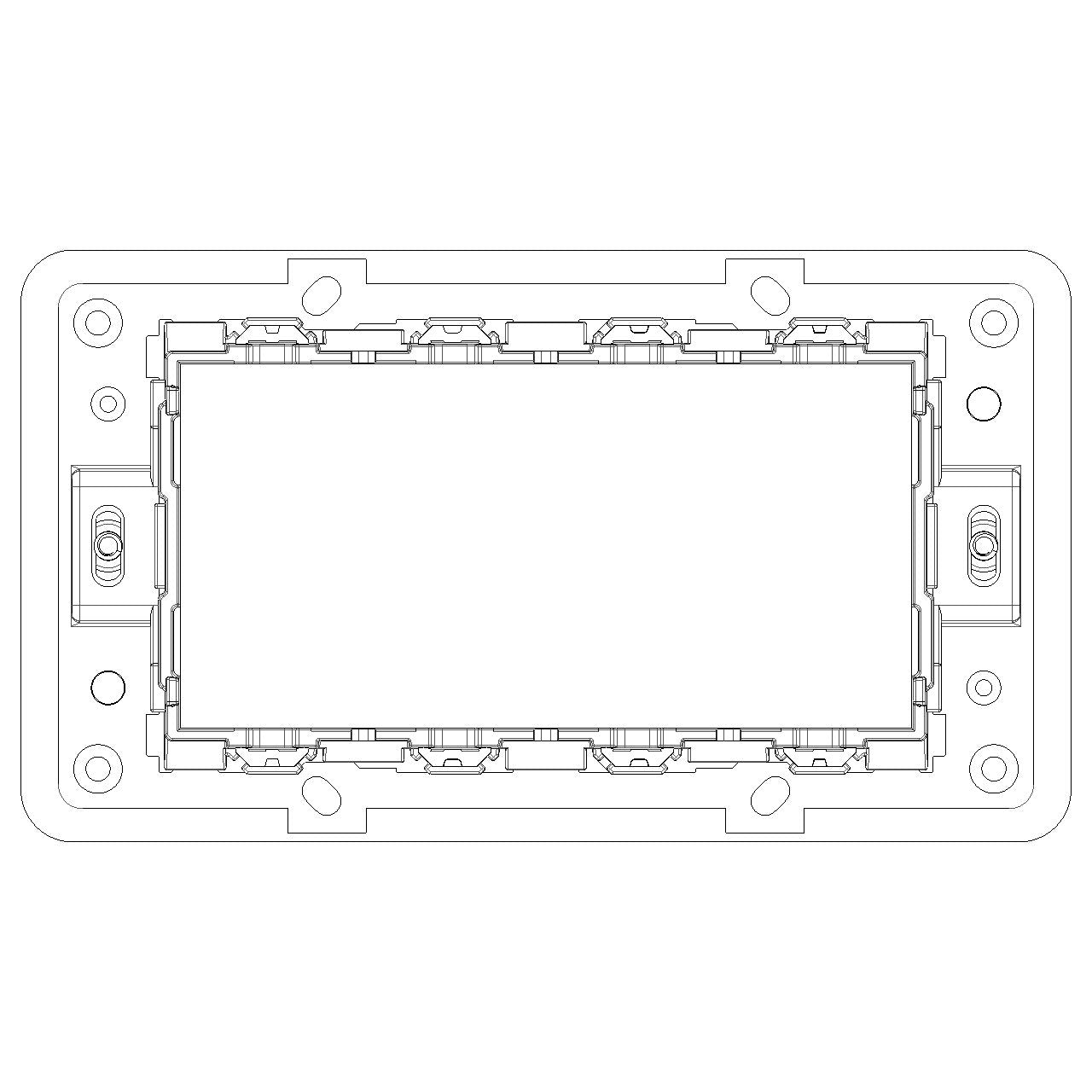

- VM21614: Accessory Mounting Frame. This is the screw-fixed frame used to mount the modules in the box, with front-side insert mounting and support for horizontal or vertical orientation.
Compatibility and fit
This range is meant for Vimar Eikon 4-module work with a rectangular flush box. Check the box style before ordering, because it is not intended for a 60 mm round junction box and it is not a DIN rail or wall-duct mounting part.
Installation and setup
The frame is the piece that gets fixed into the box first, then the modules are fitted from the front. The protection cover is a separate accessory for keeping the opening clean between rough-in and final device assembly, or when a panel position needs temporary protection during service.
Use on board
On boats, it suits interior electrical positions where a flush Eikon installation makes more sense than surface hardware. It is a good match for cabins, enclosed helms, and utility spaces where the switch layout is built around rectangular module boxes.
