Vimar Eikon 2-Way Switch Mechanism, 1P, 16AX, 250V, Lightable, IP40
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

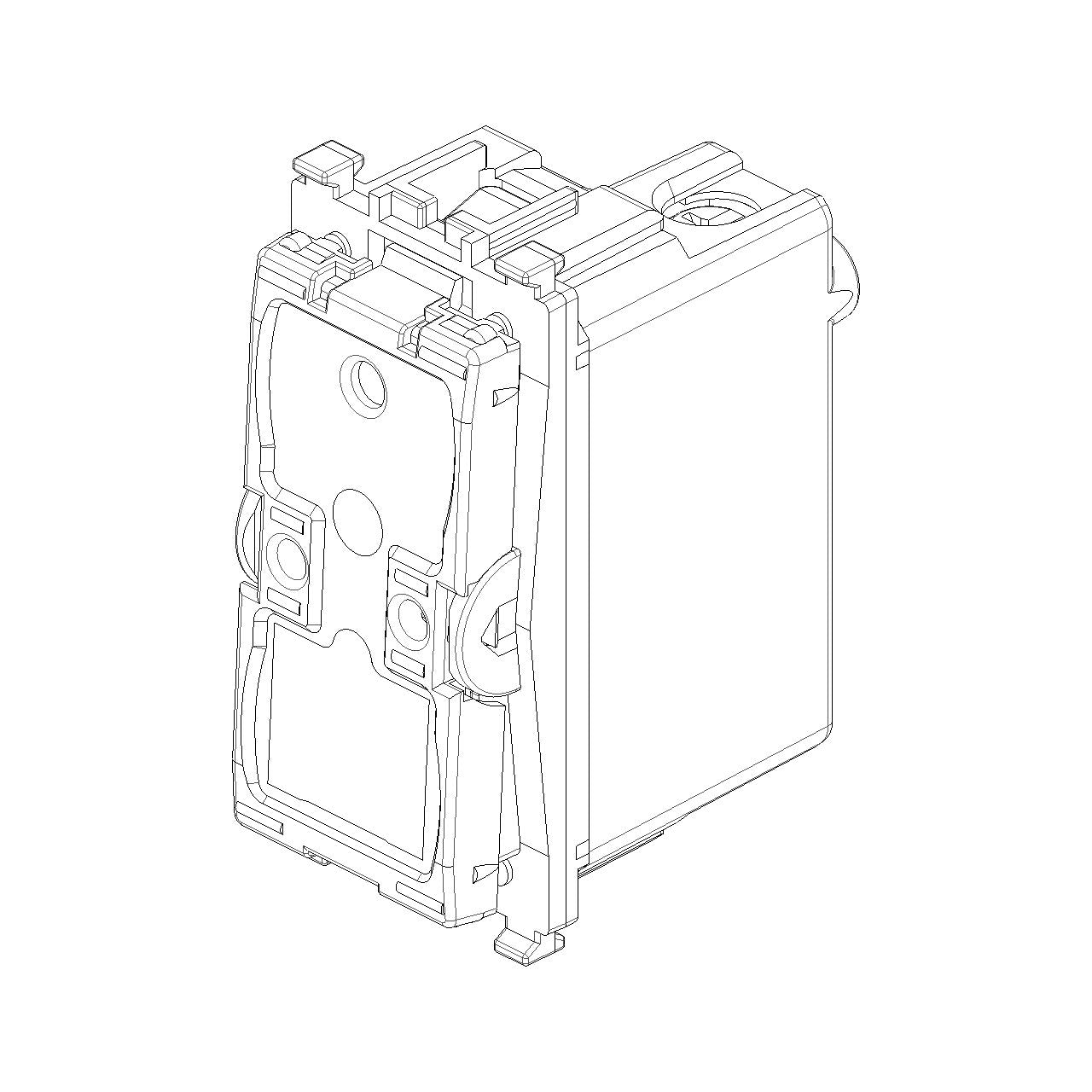

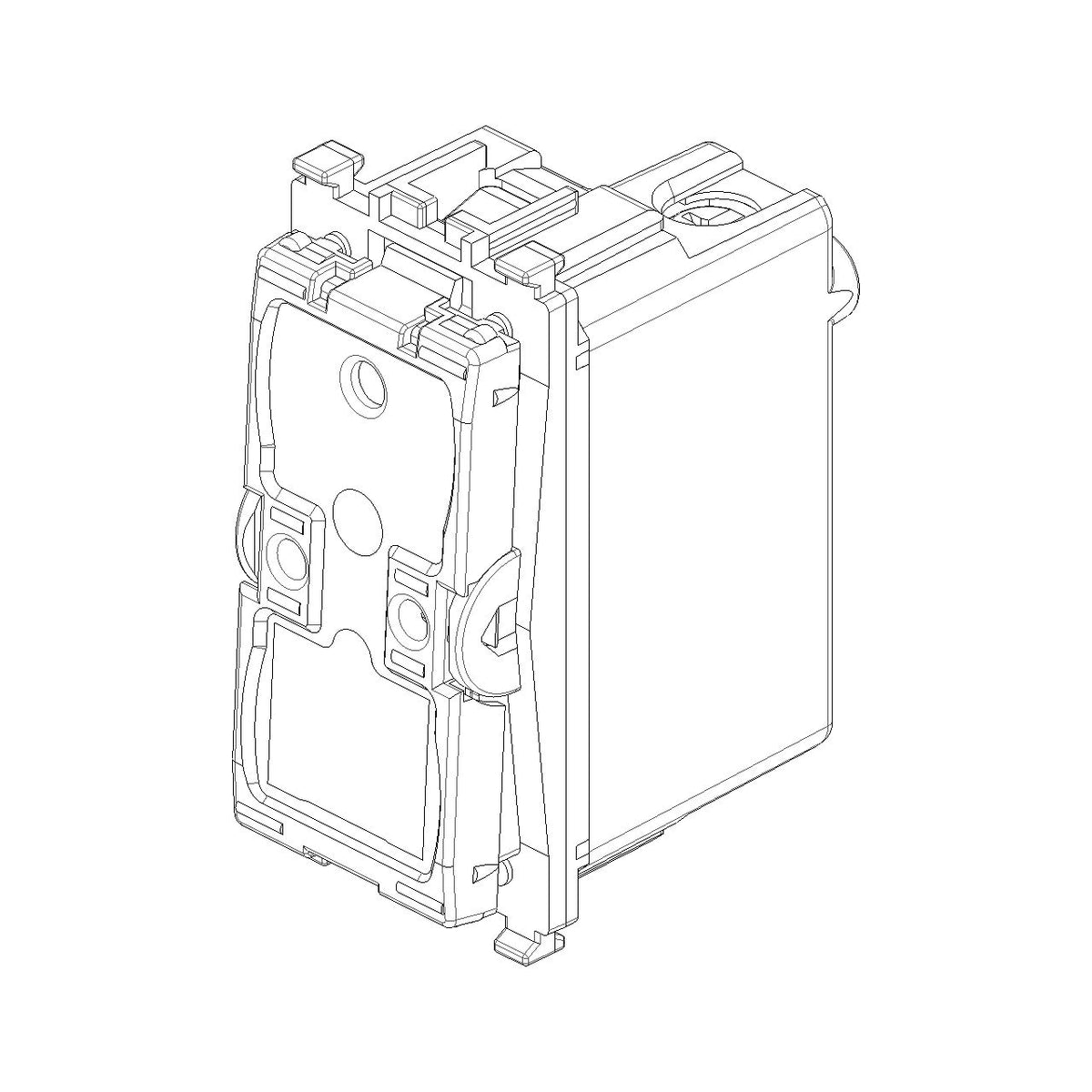

The Vimar VM20005.0 is a 1-pole 16 AX two-way switch mechanism rated 250 V~ that can be fitted with optional illumination for finding the switch in low light.
It is commonly used for lighting circuits where you want control from two locations, such as a companionway light that can be switched from both the entry and the cabin.

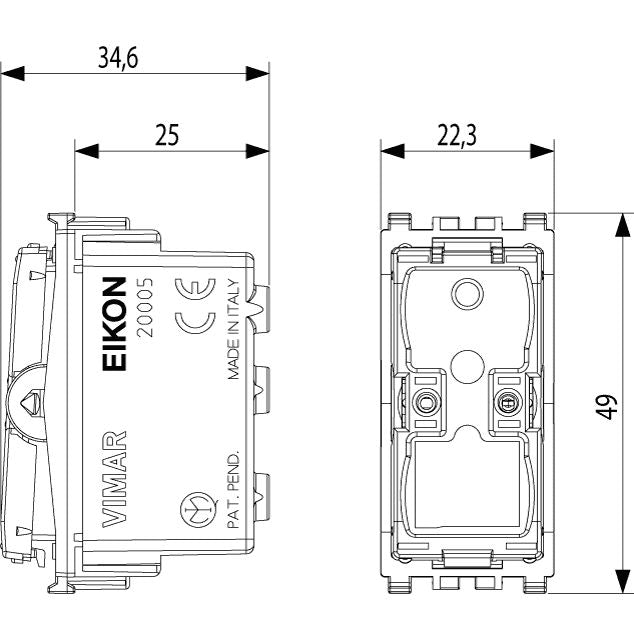

The body occupies 1 module and is completed with the matching Eikon rocker/button and cover plate. Overall size is 22.3 mm wide by 49.0 mm high, with a 25.0 mm built-in depth.
Key features
- 16 AX switching rating at 250 V~ for many onboard AC lighting and general loads
- Two-way (SPDT) mechanism for single-point switching or two-location control when paired in a circuit
- Optional illumination with a replaceable LED lamp for orientation/control lighting
- 1-module format for Vimar Eikon modular frames and cover plates
- Screw terminals for a secure connection when panels see vibration
- Suitable degree of protection IP40 in its intended installed configuration
- Rated up to 200 W with self-ballasted lamps
Compatibility and fit

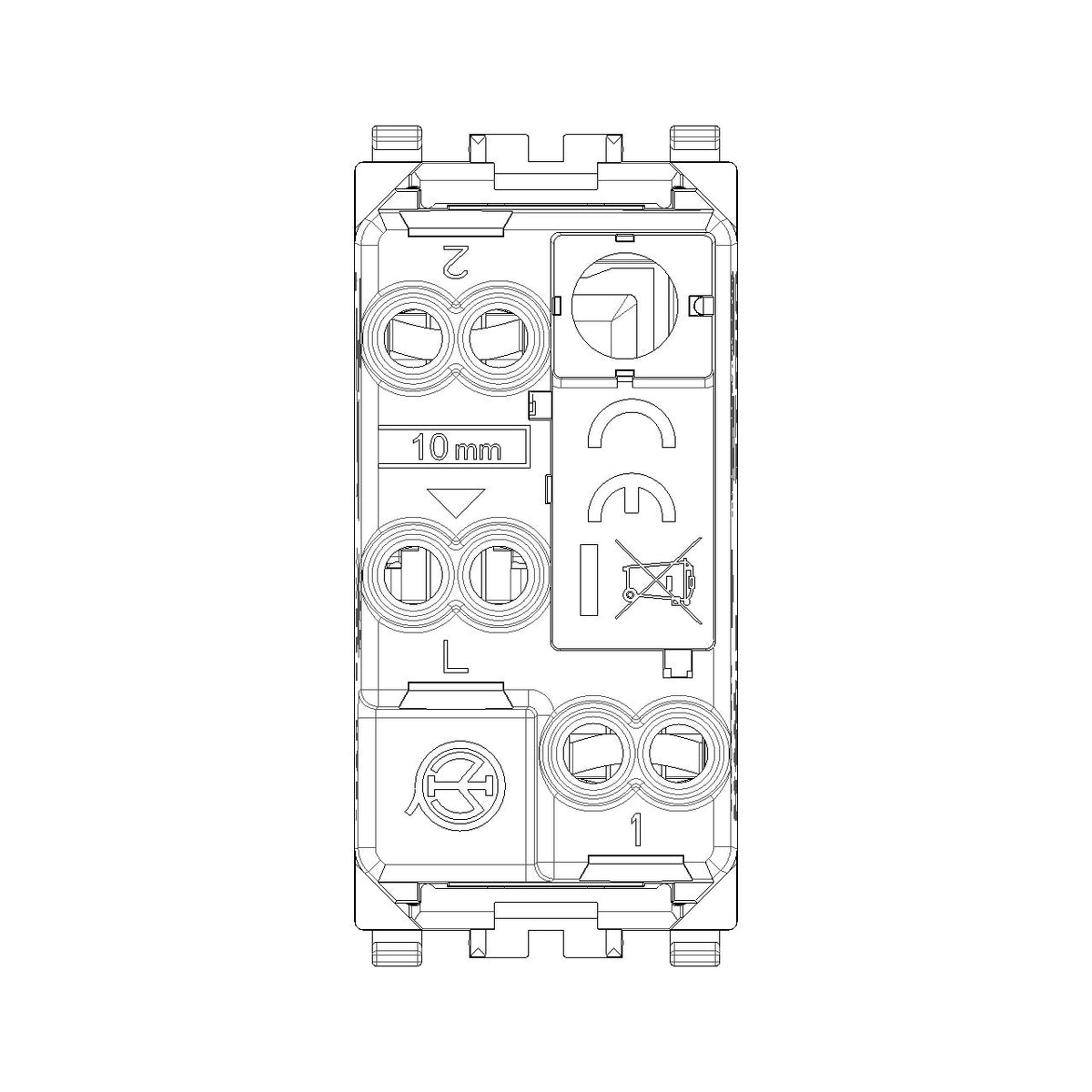

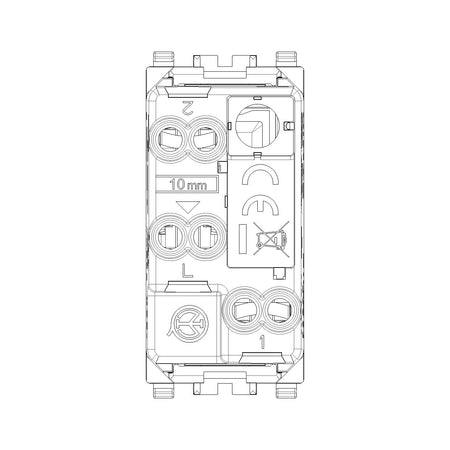

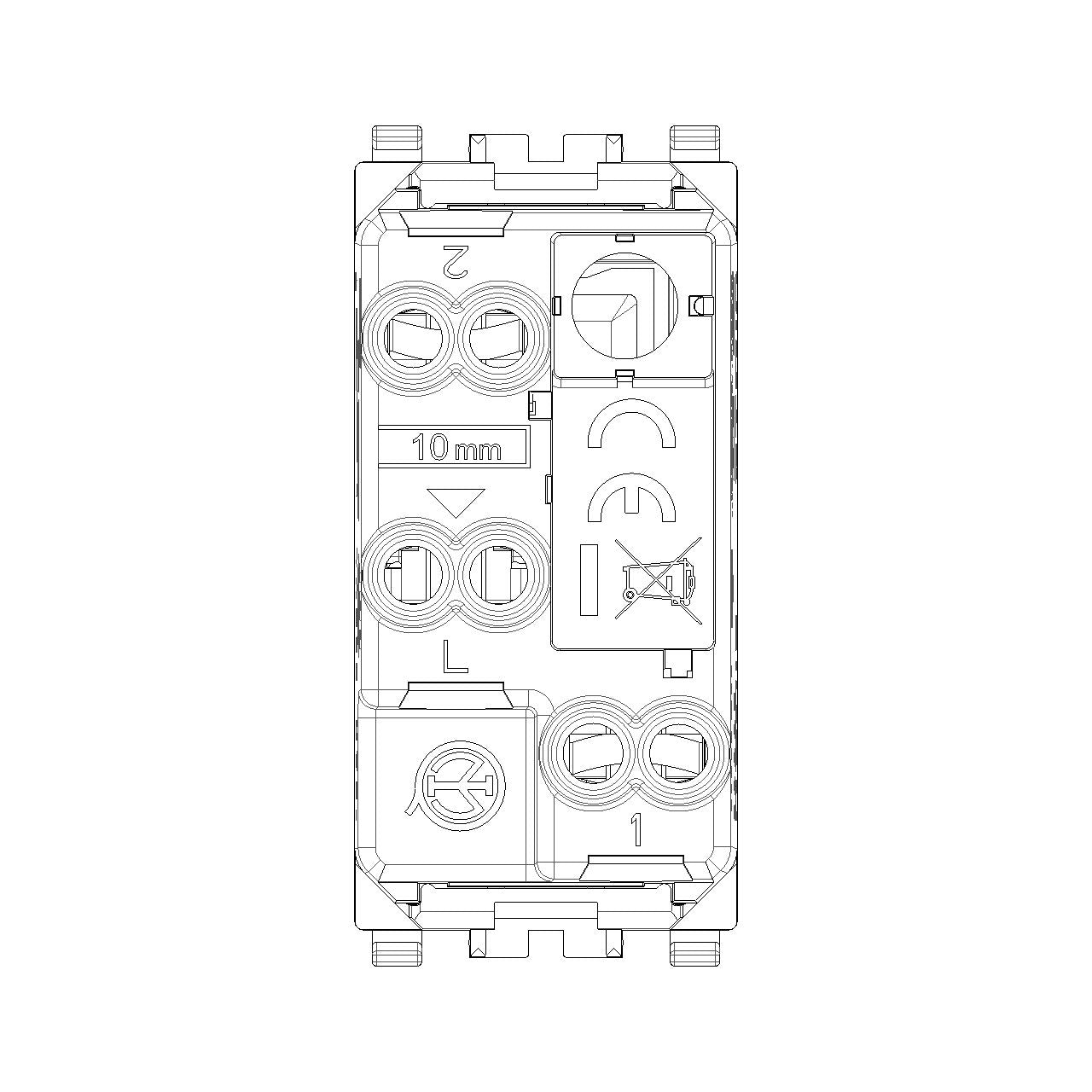

This mechanism is for Vimar Eikon modular frames and plates. It snaps into the frame, and the wiring lands on screw terminals, so leave enough space behind the panel to route conductors without putting strain on the connections.
Because the mechanism is listed as suitable for IP40, it belongs in protected locations such as the cabin, nav station, or inside a sheltered helm panel. For areas exposed to spray or washdowns, mount it behind a weather-protected panel or inside an enclosure that provides the protection level you need.
Electrical and lighting notes
Use it on AC circuits within its 250 V~ rating and size the upstream breaker or fuse to the load and your wiring. The 16 AX rating covers many lighting applications where inrush current matters.
If you want the switch to light up, it supports a replaceable LED lamp for orientation/control lighting. Match the lamp to your system voltage and the indicator style you want on the panel.
Materials and finish
The housing is halogen-free thermoplastic with a matte anthracite gray finish similar to RAL 7024, which suits gray Eikon rockers and plates on modern switch panels.
On-board use
This is a good match for refits and new builds that standardize on Vimar Eikon modules across a helm or cabin switch bank and want the same feel and layout from position to position.
Maintenance
After the first few outings, recheck terminal tightness and wire support, especially if the panel sees vibration. Clean with a soft cloth and mild soap and avoid solvents that can haze plastic parts.
