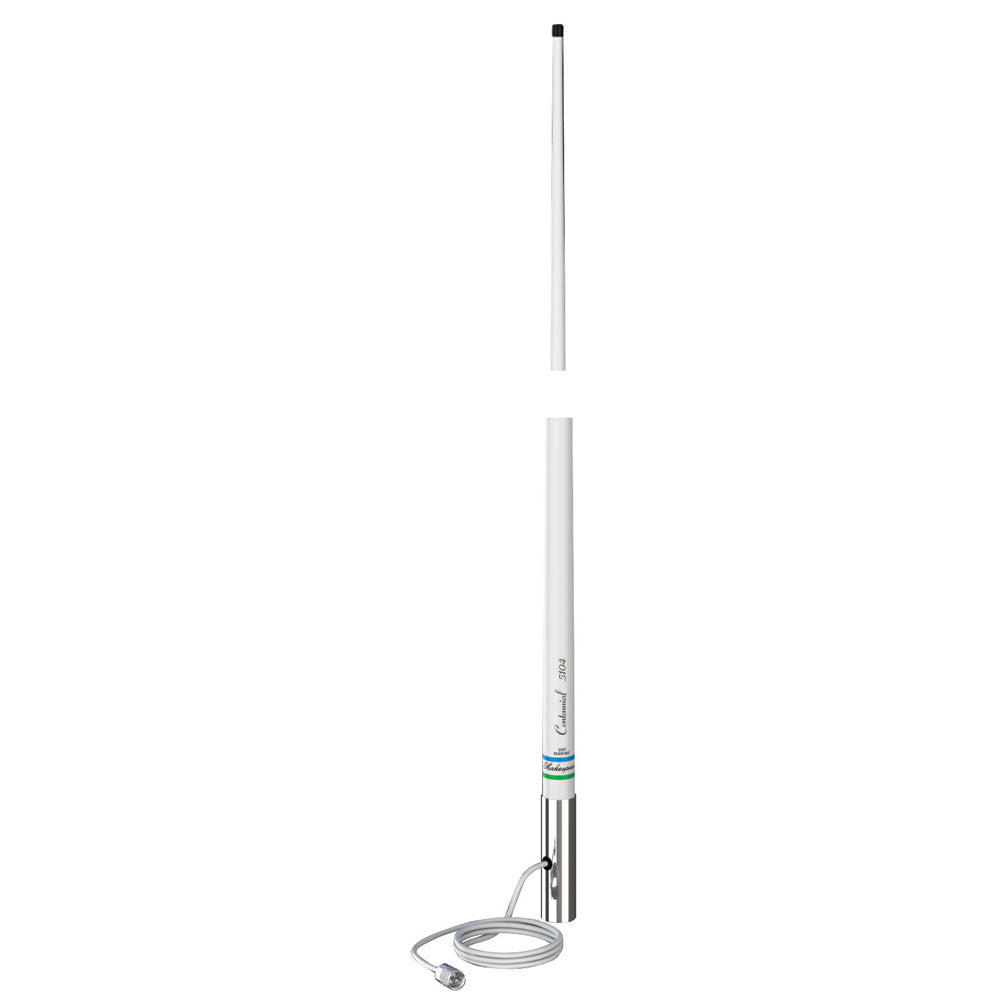

Shakespeare - 5104 VHF 4' Antenna

Celestial Echo 5104: Transforming VHF Marine Communication

Welcome the Celestial Echo 5104, a 4ft. (1.2m) VHF Marine Band antenna crafted for unparalleled performance and sophisticated aesthetics. This 3dB end-fed antenna is replete with advanced features, placing it on the top of the marine communication gear list.

Key Highlights – The Spotlight Features

• Brass and copper elements for enhanced performance
• Chrome-plated brass ferrule with a standard 1in-14 thread for a smooth installation process
• Included 15ft RG-58 cable and a PL-259 connector for a seamless setup
• High-gloss, sun-resistant finish for durability and style
• One-piece design for manageable handling and installation
• Compatible with Style 4187 or 5187 Ratchet Mount (sold separately)

Unveiling the Magic – In-Depth Description

The Celestial Echo 5104 captures attention with its four-foot stature and 3dB antenna gain, hitting the sweet spot between performance and visual appeal. It incorporates brass and copper elements, meticulously devised for excellent signal reception and transmission.

The chrome-plated brass ferrule comes with a standard 1in-14 thread for secure and hassle-free mounting. The antenna set includes a 15ft RG-58 cable, which can be cut to the preferred length, and a PL-259 connector for easy connection to your marine radio.

The Celestial Echo 5104 is designed with a smooth, high-gloss finish that elevates its look and withstands the sun's harsh rays, promising enduring durability.

Enjoy the superior performance of the Celestial Echo 5104 antenna in a sleek white shade, enhancing any vessel's aesthetics while providing unmatched performance.

Peek Under the Hood – Technical Specifications

• Band: VHF Marine Band
• Antenna Gain: 3dB
• Max. Input Power: 50W
• SWR: Approximately 1.5:1 at 156.8 MHz
• Bandwidth: 5 MHz within 2.0:1 VSWR
• Ferrule: Chrome-plated brass
• Coax Supplied: 15 ft of RG-58
• Connector Supplied: PL-259, not installed
• Color/finish: White
• Polarity: Vertical
• Impedance: 50 Ohms
• Manufacturer’s Warranty: 2 years

Standout Features – Highlights

• Exceptional performance powered by brass and copper elements
• Effortless installation with the chrome-plated brass ferrule
• Simple setup with the included 15ft RG-58 cable and PL-259 connector
• Durable, sun-resistant high-gloss finish
• Flexible with various mount options
• Protected by a reliable 2-year manufacturer's warranty

Palette of the Seas – Color Options

The Celestial Echo 5104 antenna is currently available in an elegant white finish, designed to complement your vessel's appearance while delivering premium performance.

Sizing the Marvel – Product Dimensions

The Celestial Echo 5104 features a length of 4ft. (1.2m), providing an optimal balance between performance and aesthetics, without compromising the maneuverability of your vessel.

Dive into Variety – Available Variations

Enhance your marine communication with the Celestial Echo 5104. However, depending on your needs and preferences, you can explore other variations in the same product line, such as the Celestial Echo 5106 (6ft. length) or Celestial Echo 5108 (8ft. length). Each variation offers its unique combination of length and antenna gain, catering to different communication requirements.
