Vimar Idea SICURY Italian P30 Socket Outlet, 2P+E 16A 250V, 1P+N C16 Circuit Breaker, 3-Module, IP20
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

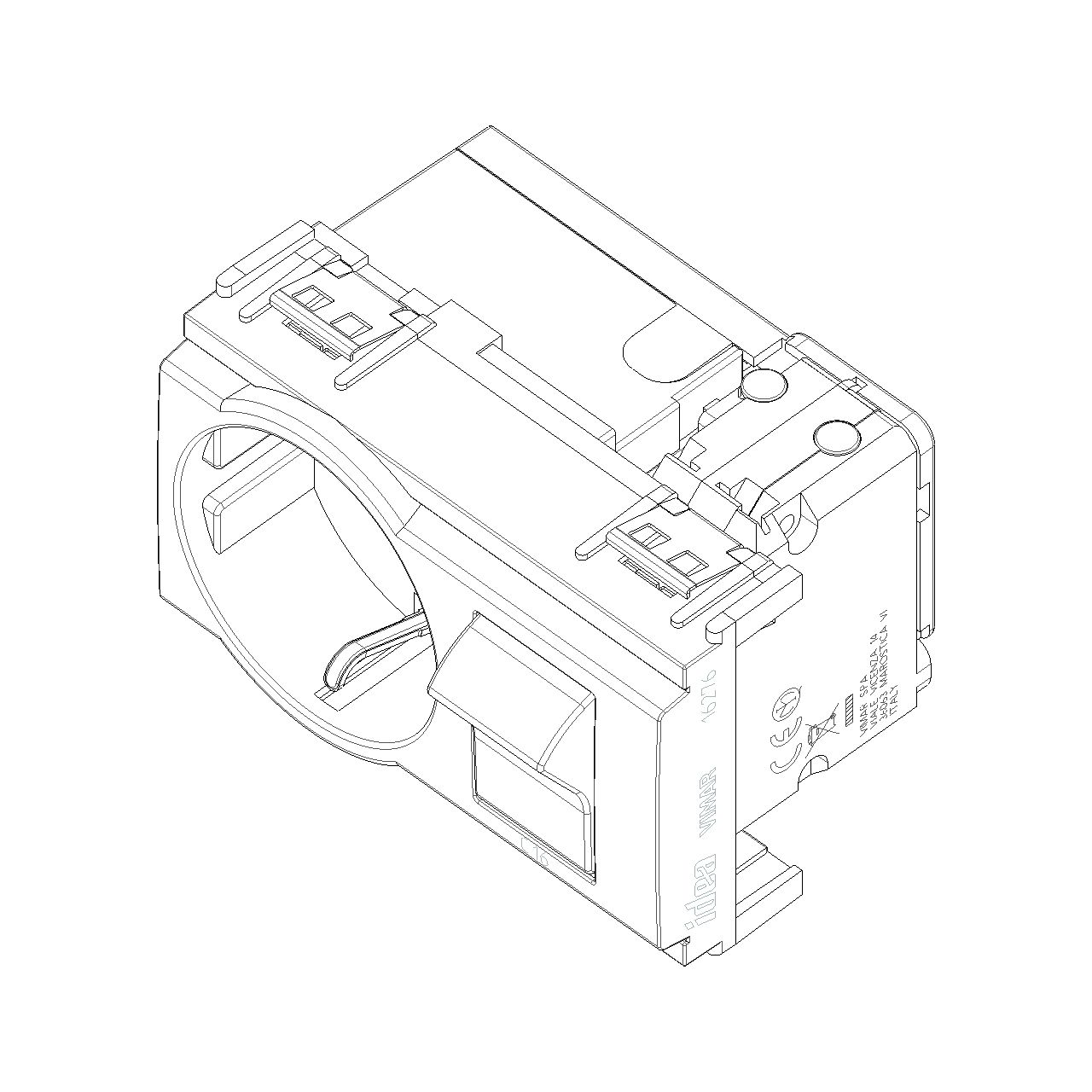

The Vimar Idea SICURY Italian socket outlet is a 3-module device for 230 V~ 50 Hz AC circuits, combining an Italian standard P30 socket with lateral and central earth contacts and an interlocked 1P+N C16 circuit breaker. It is rated 16 A at 250 V~, has a 3000 A breaking capacity, and uses screw terminals in a flush-mounted body.
For boats already set up around 230 V AC service and Italian plug standards, this is the kind of outlet used in cabins, galleys, or utility panels where you want a protected socket point in the same module. The housing is halogen-free thermoplastic with enhanced contact protection and an IP20 rating, so it belongs in dry interior spaces rather than exposed deck or washdown areas.
Key features
- Italian standard P30 socket with lateral and central earth contacts
- 16 A, 250 V~ rating for 230 V~ 50 Hz AC distribution
- Interlocked 1P+N C16 circuit breaker with 3000 A breaking capacity
- 3-module format for flush-mounted Idea installations
- Screw-terminal wiring and snap mounting
- Enhanced contact protection, halogen-free thermoplastic body, and IP20 protection for dry interior locations
- Built-in on/off switching and label space on the device face
Variants
This product is offered in two finish configurations.
The finish changes between variants. The electrical format stays the same across both versions: 3 modules, Italian P30 socket, 16 A 250 V~ rating, 230 V~ 50 Hz supply, interlocked 1P+N C16 breaker, screw-terminal connection, and IP20 protection.

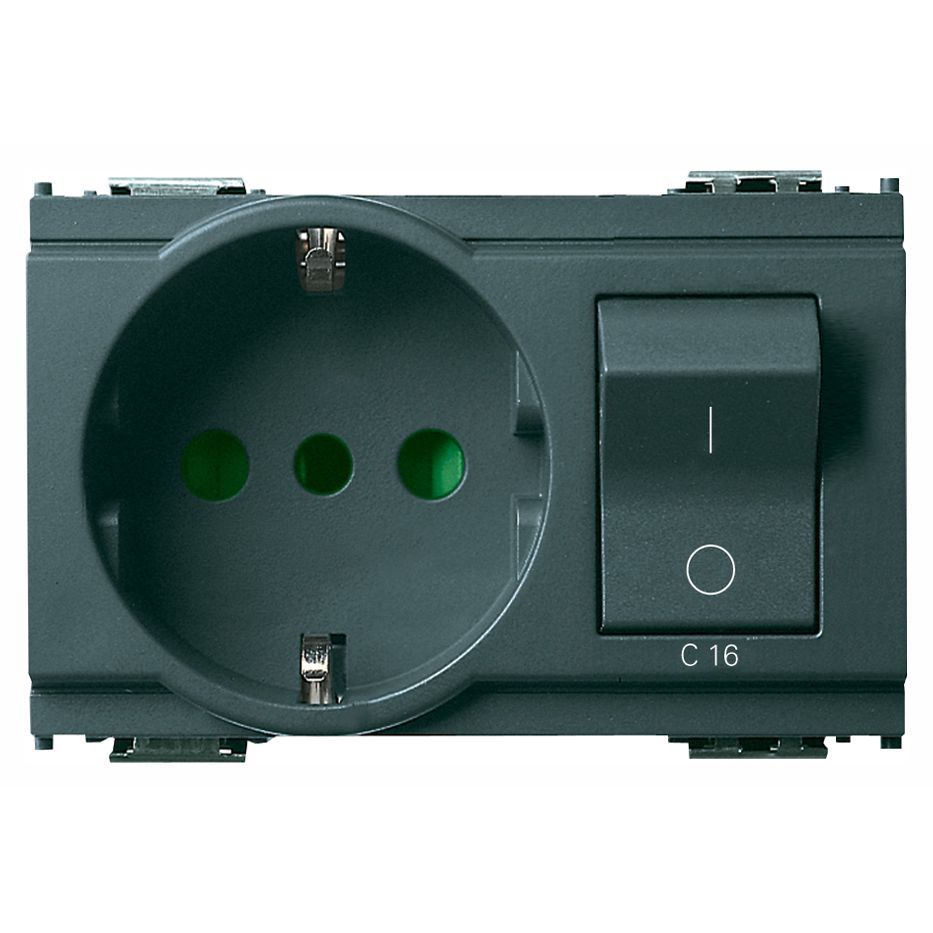

- VM16276: Grey finish. This darker tone suits panels and switch banks already built around grey Idea devices.

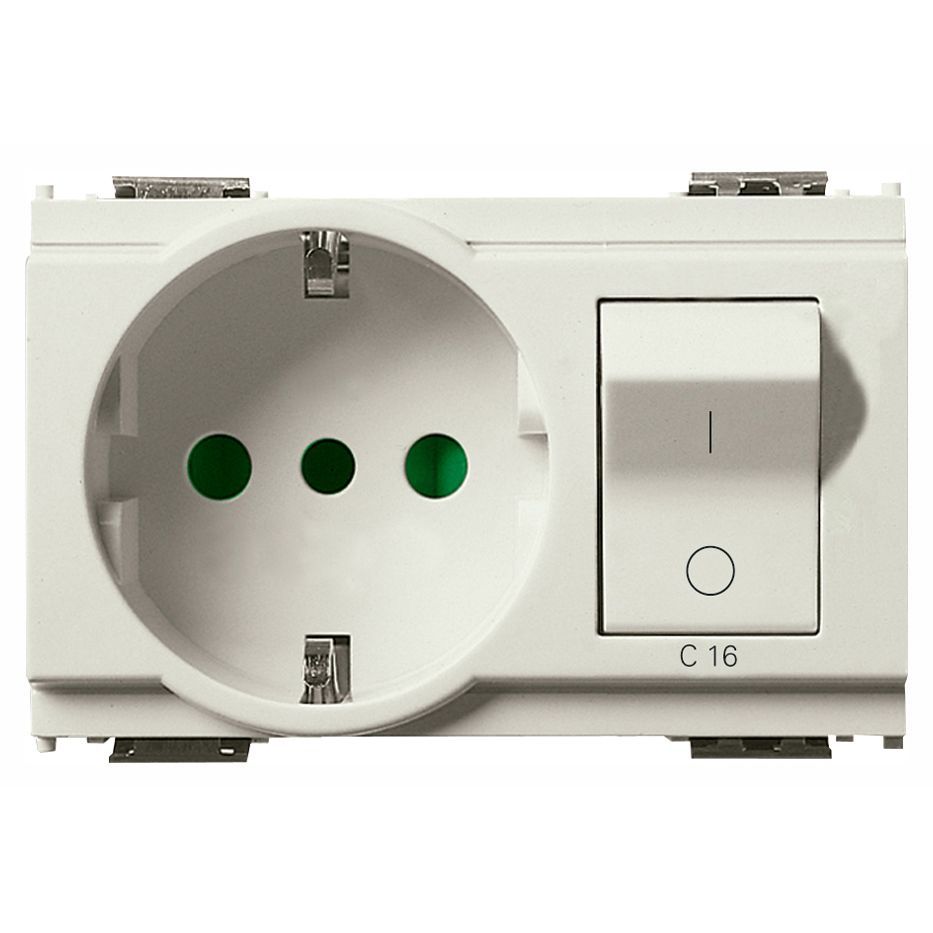

- VM16276.B: White finish. This lighter tone blends more easily into white liners, cabin joinery, and lighter interior trim.
Installation and fit

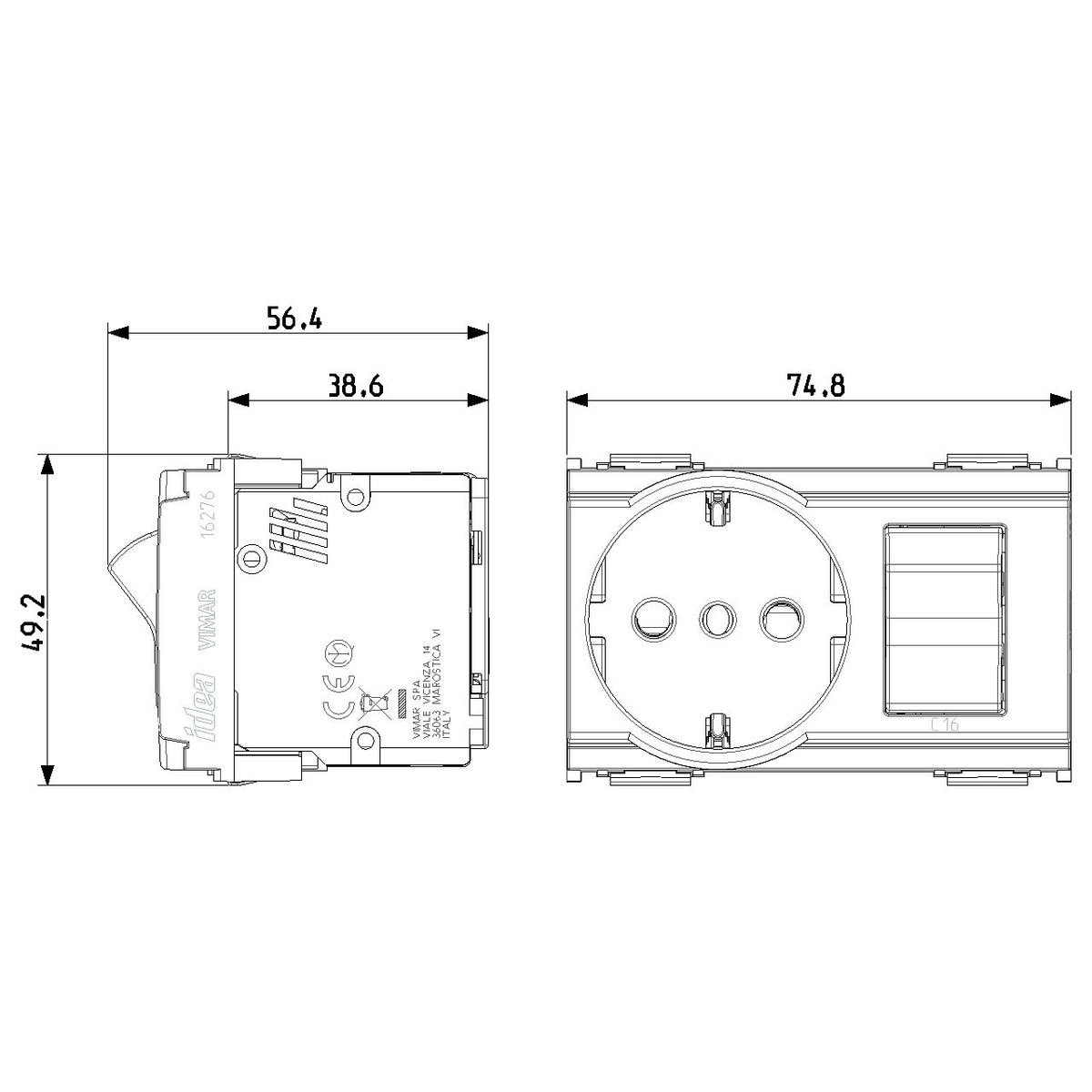

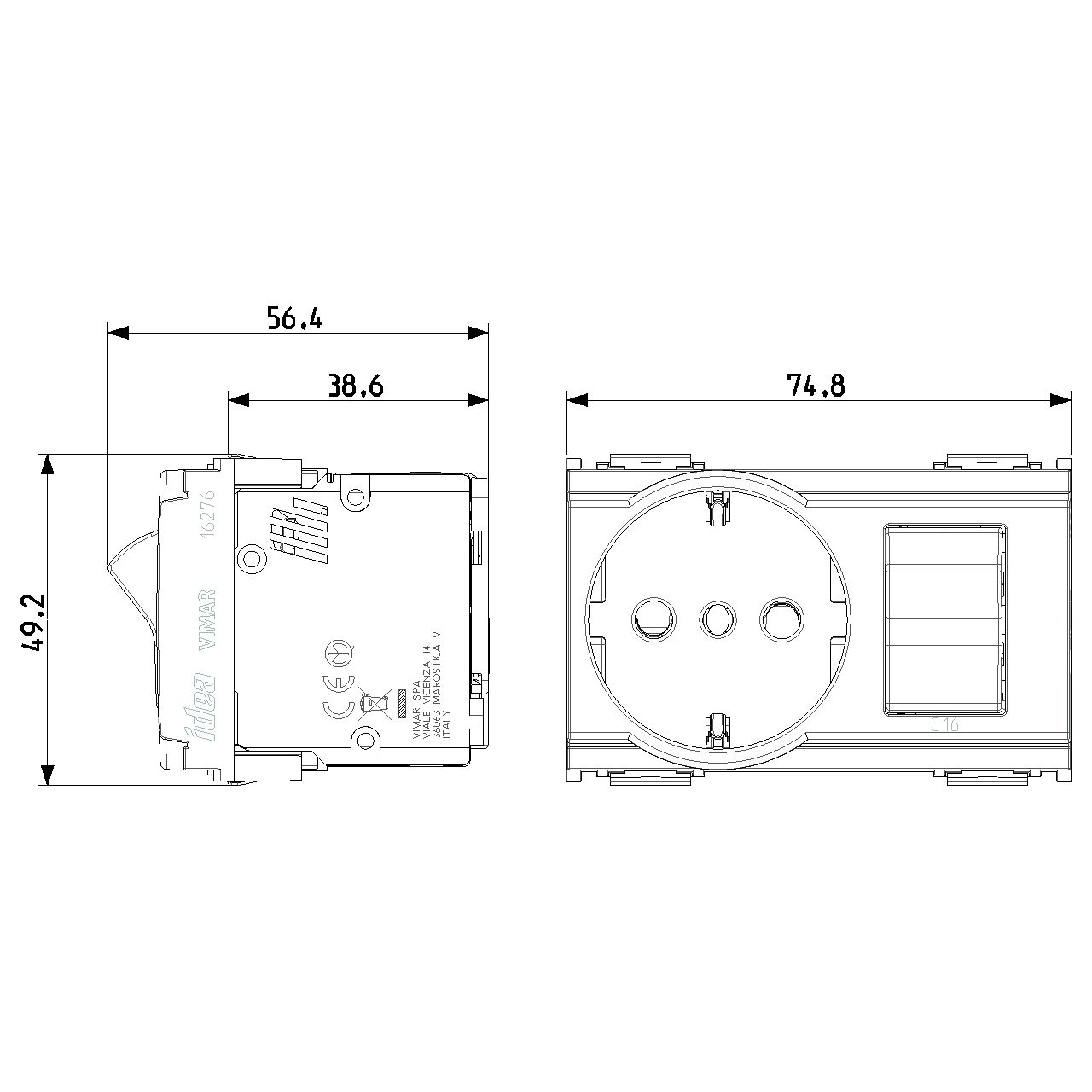

The body measures 74.80 mm wide, 50.10 mm high, and 57.30 mm deep. It occupies 3 modules, so it needs matching space in an Idea frame and a flush-mounted position with enough depth behind the panel for the wiring and breaker body.

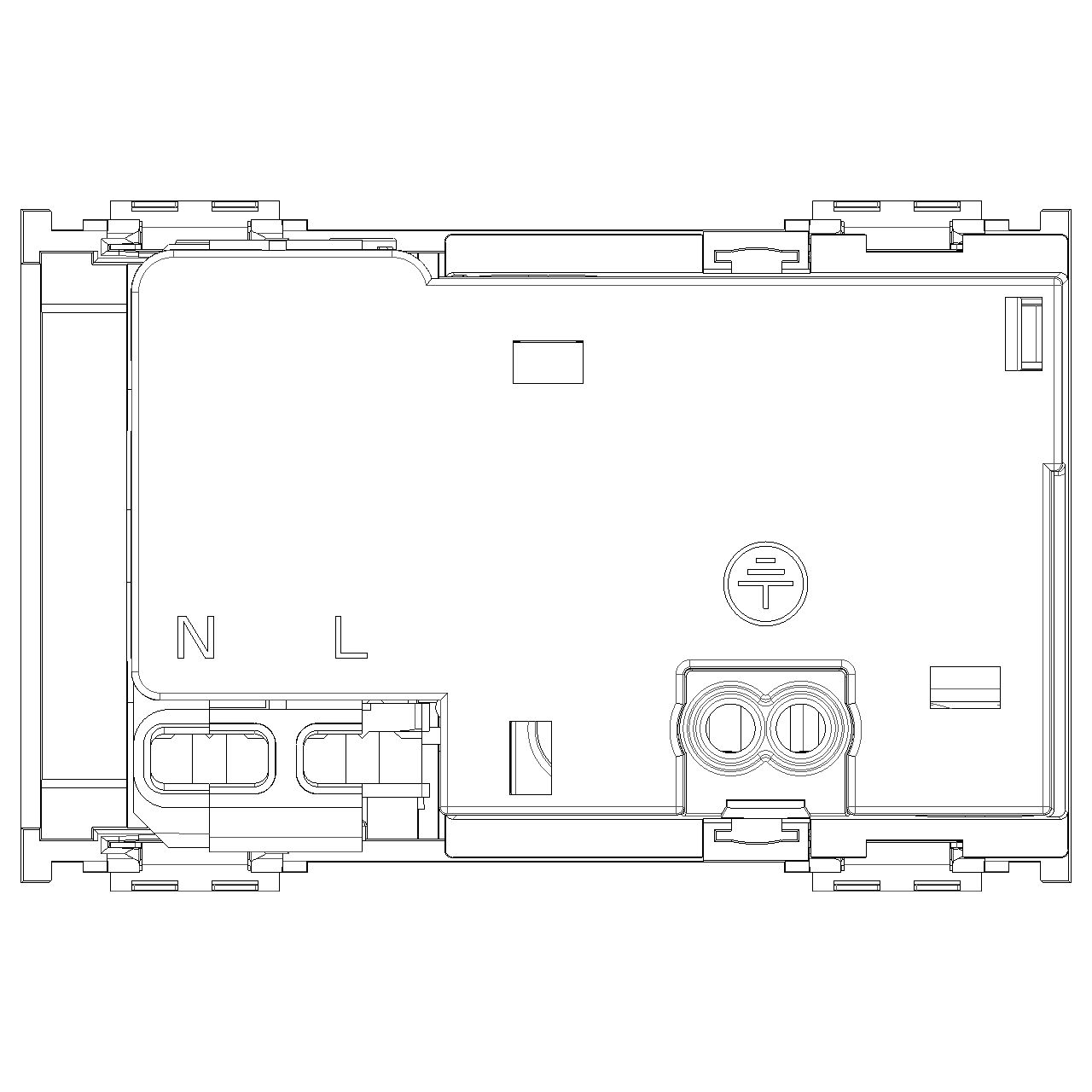

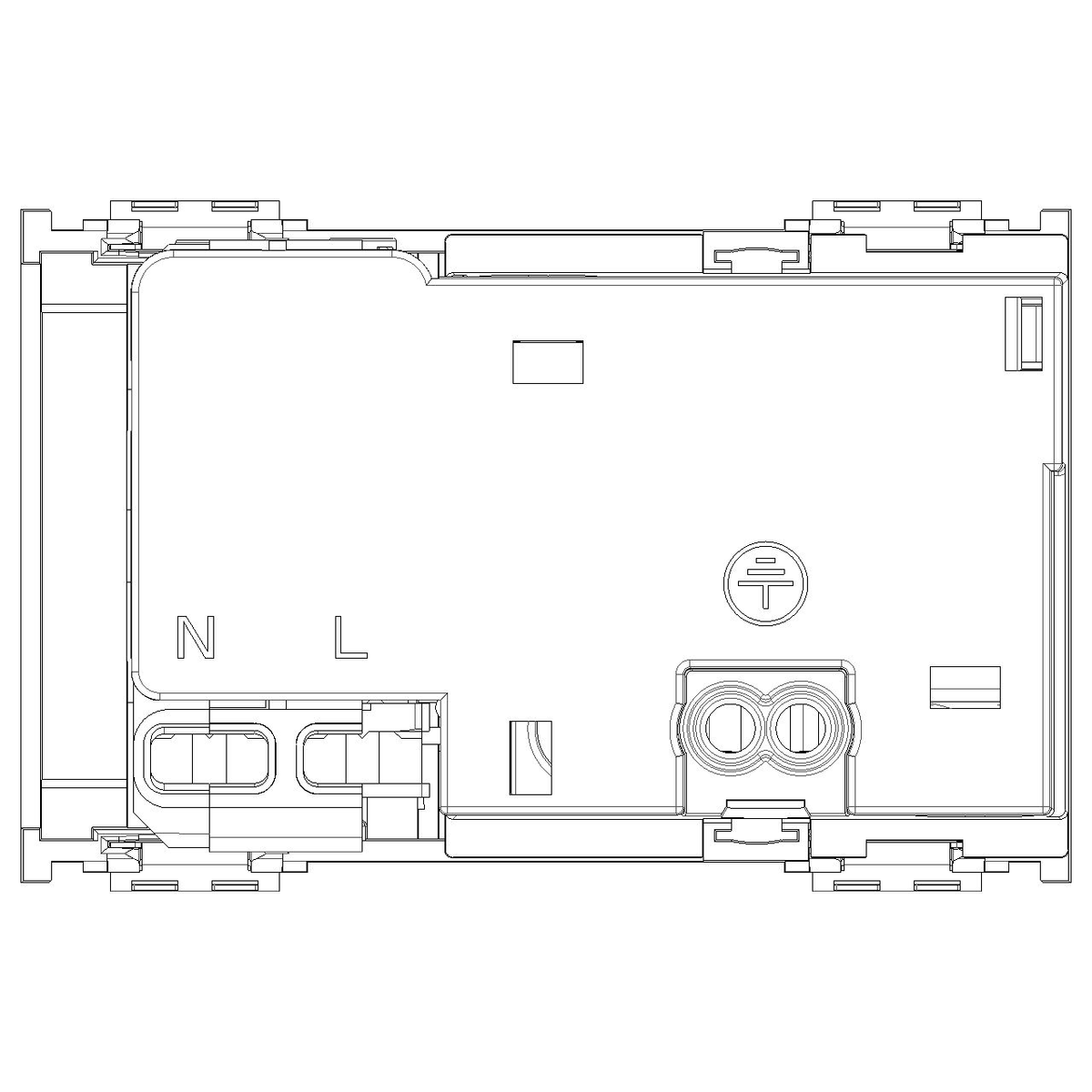

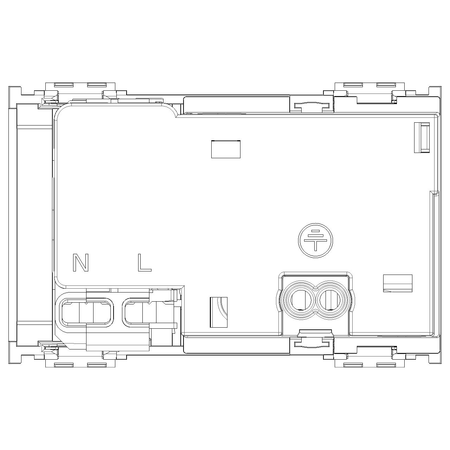

Because the connection is by screw terminals, this suits fixed AC wiring rather than plug-in harnesses. On refit jobs, it is worth checking both the module layout and the outlet standard already used on board before ordering, especially if the vessel mixes Italian, Schuko, or other shore power outlet formats.
Electrical and system integration
This unit belongs on the boat's 230 V AC side, not on 12 V or 24 V DC circuits. The interlocked C16 breaker gives the outlet its own protected point, which can be useful where an accommodation-space receptacle needs local control and circuit protection in one device.
Use on board
It is a good match for yachts, commercial craft, and passenger spaces that already use the Vimar Idea module system and Italian P30 sockets. The IP20 build points it toward interior service areas such as cabins, galleys, salons, or protected electrical panels where the outlet is kept away from spray and direct weather.
