Vimar Idea 2P+E British Standard SICURY Socket Outlet, 16A 250V, 2 Modules, IP20

Overview

The Vimar Idea 16258 SICURY English socket outlet is a 2-module British Standard outlet with 2P+E contacts, a 16 A rating, and 250 V operation. It uses screw terminals, includes enhanced contact protection, and has a front label area for circuit identification.

This insert is made for flush-mounted IDEA modular installations in protected interior spaces. The body is halogen-free thermoplastic with a matt finish, rated IP20, and measures 24.8 x 50.1 x 37.5 mm, so it suits cabin panels, bulkheads, and other dry onboard locations where a British Standard AC outlet is needed.

Key features

• British Standard 2P+E socket outlet rated 16 A at 250 V, 50 to 60 Hz
• 2-module format for Vimar IDEA modular installations
• Enhanced contact protection for safer everyday use

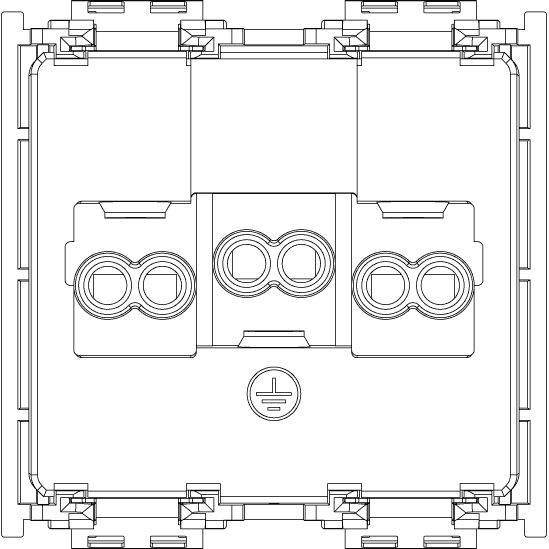

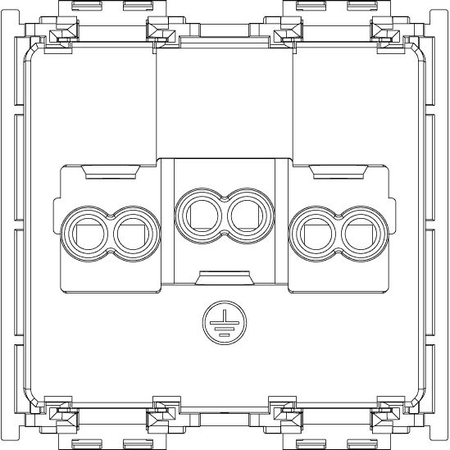

• Screw-terminal connection for fixed wiring
• IP20 halogen-free thermoplastic body with matt surface
• Front label space for circuit identification
• Device size 24.8 x 50.1 x 37.5 mm

Variants

This outlet is offered in two color configurations within the same 2-module IDEA format.

Across both versions, the electrical format remains the same: British Standard 2P+E, 16 A, 250 V, flush-mounted, with enhanced contact protection and IP20 protection. The visible difference between these variants is the front color.

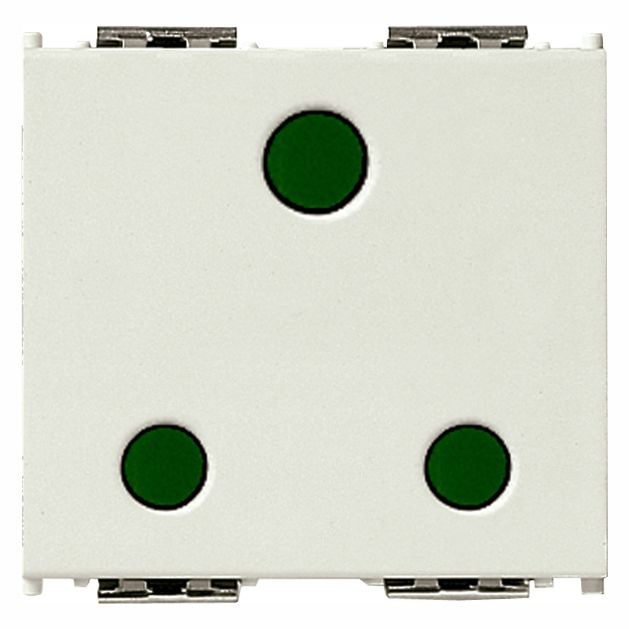

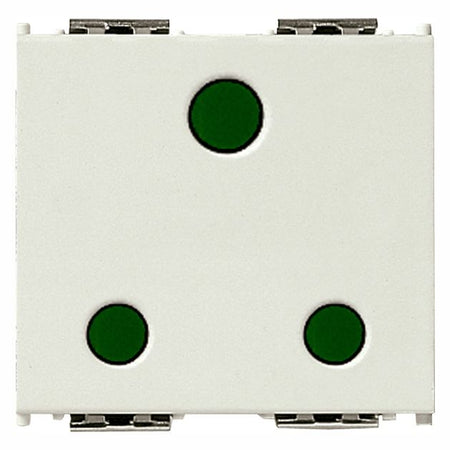

• VM16258.B: Color Ivory. This is the lighter finish in the range and works well where the surrounding trim or panelwork is off-white or cream.

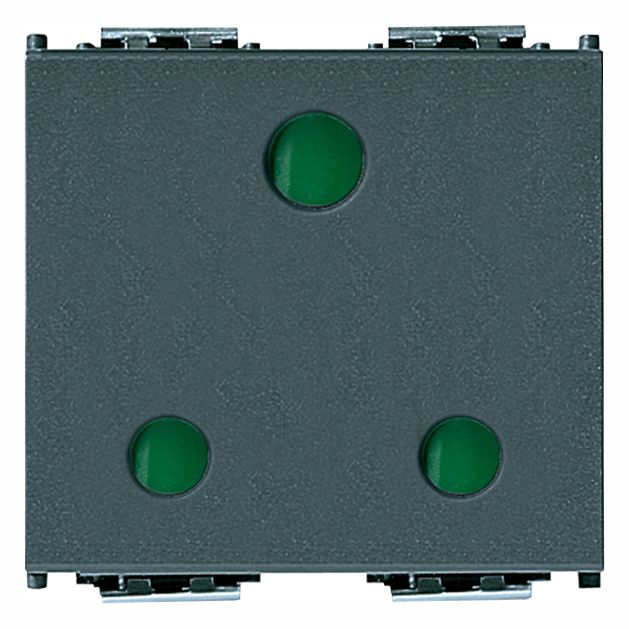

• VM16258: Color Gray. This darker finish blends more easily with gray trim and tends to show handling marks less on busy interior panels.

Compatibility and fit

This is a 250 V AC socket outlet for British Standard plugs. It is not a USB charger, it does not include an on off switch, and it is not intended for 12 V or 24 V DC circuits. Check that your boat uses the Vimar IDEA modular system and has space for a 2-module flush-mounted device in a dry location.

Installation and use

IP20 protection makes this outlet suitable for interior spaces only, not exposed decks, cockpit coamings, wet lockers, or other areas that see spray or washdowns. It is a good match for cabins, the galley, or a nav station on boats that carry a British Standard AC system and want matching IDEA switches and outlets through the interior.
