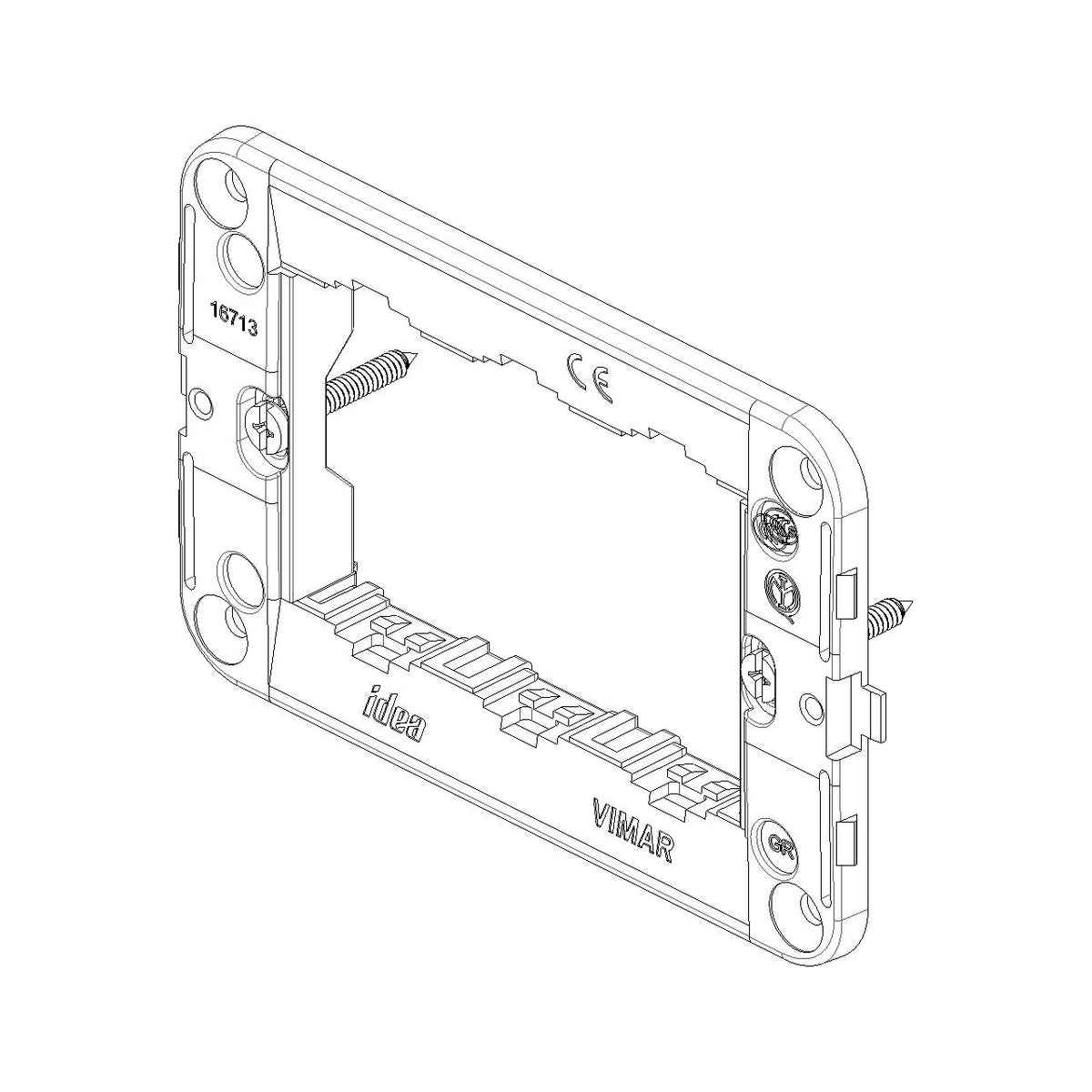

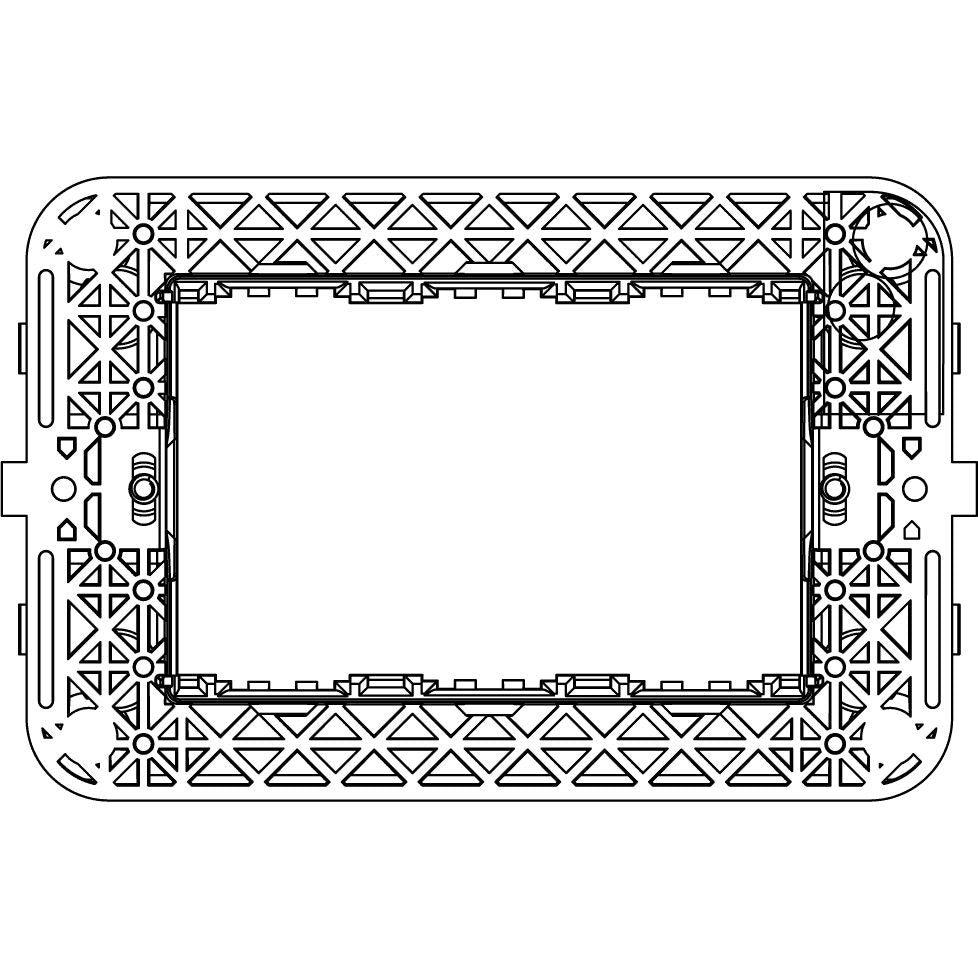

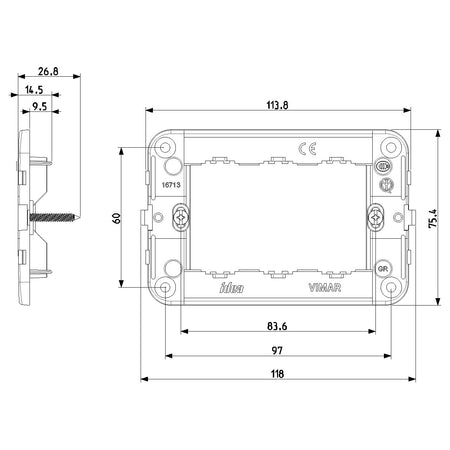

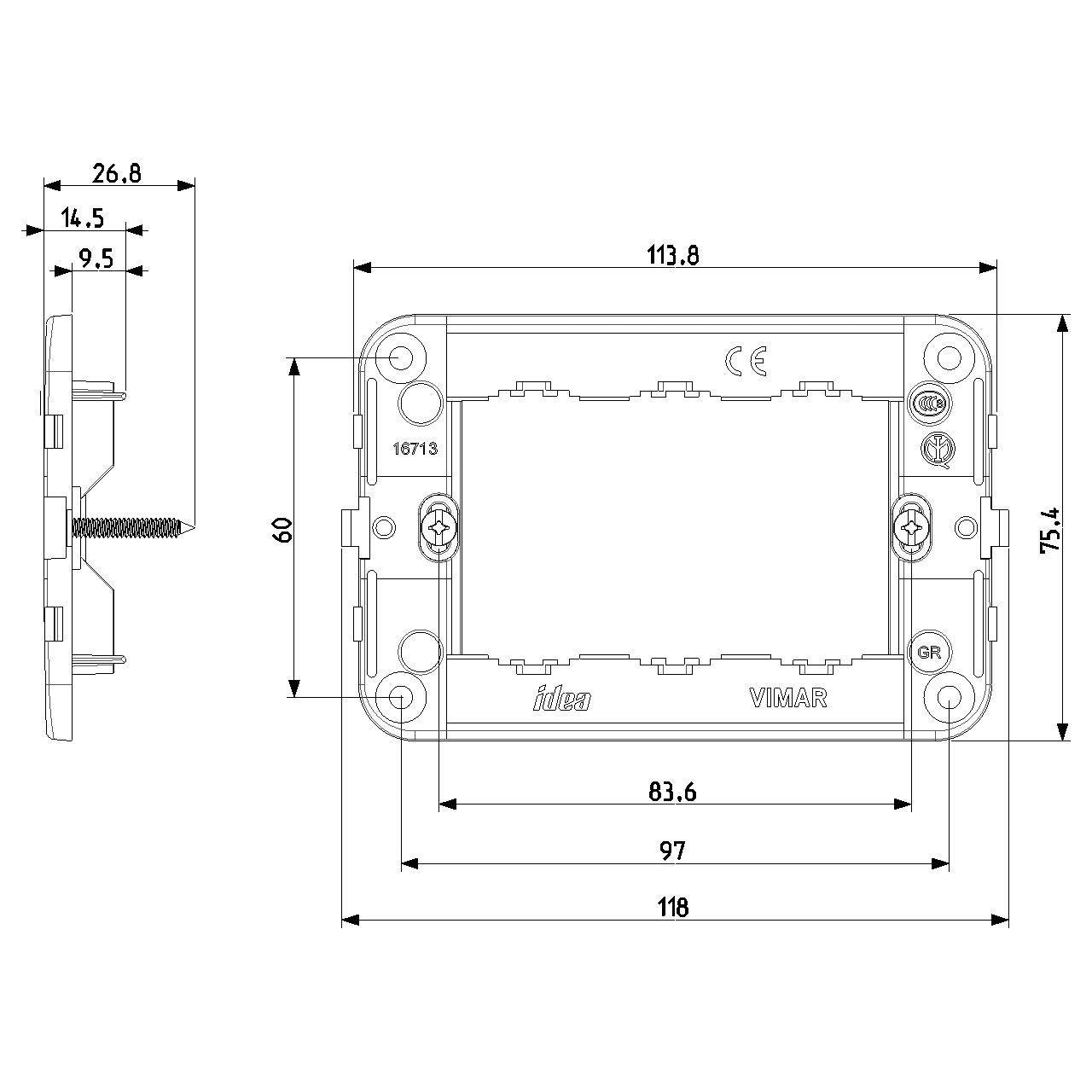

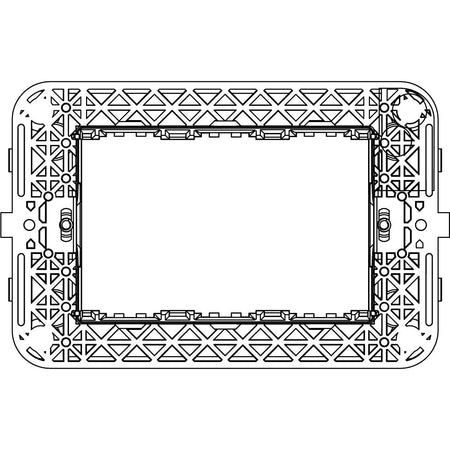

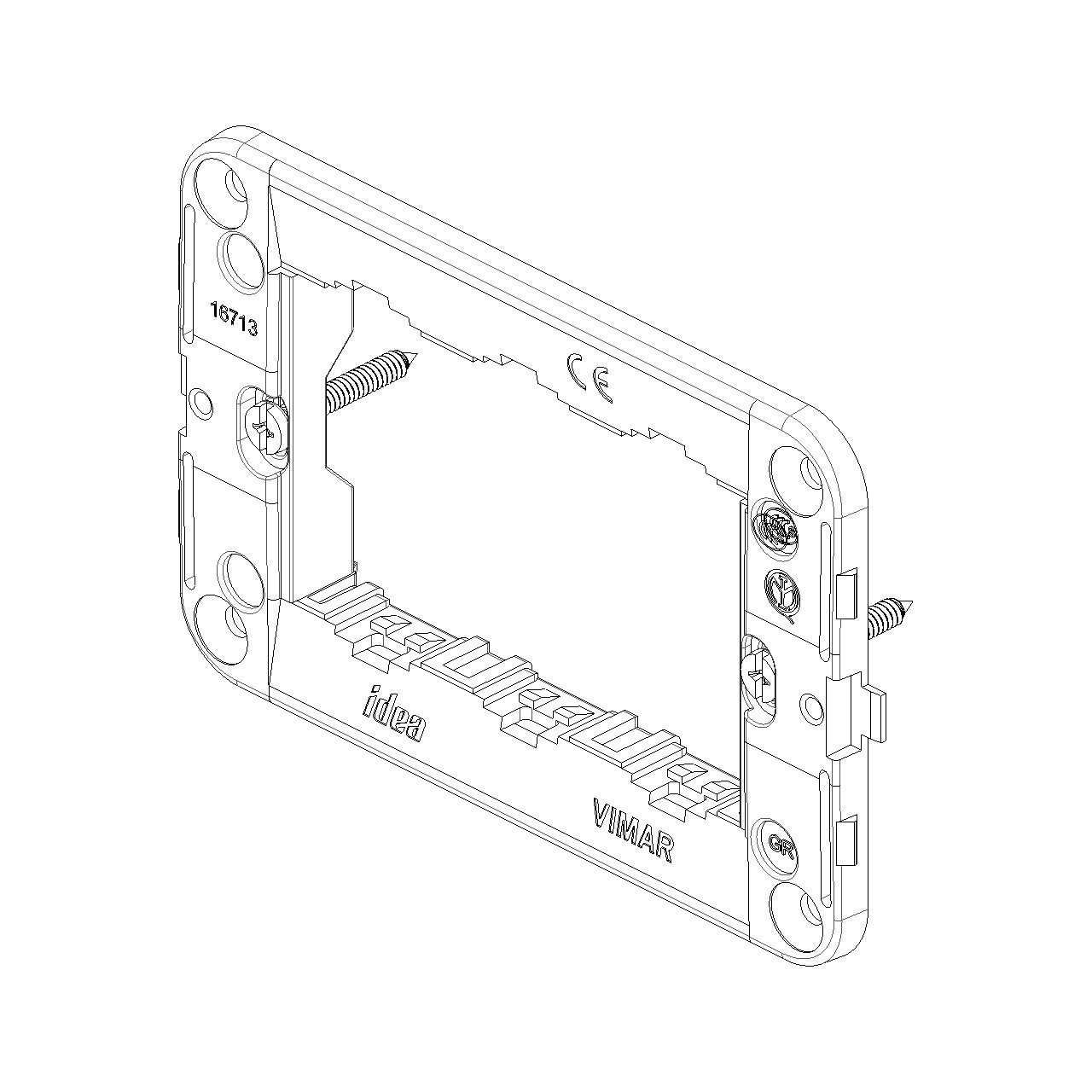

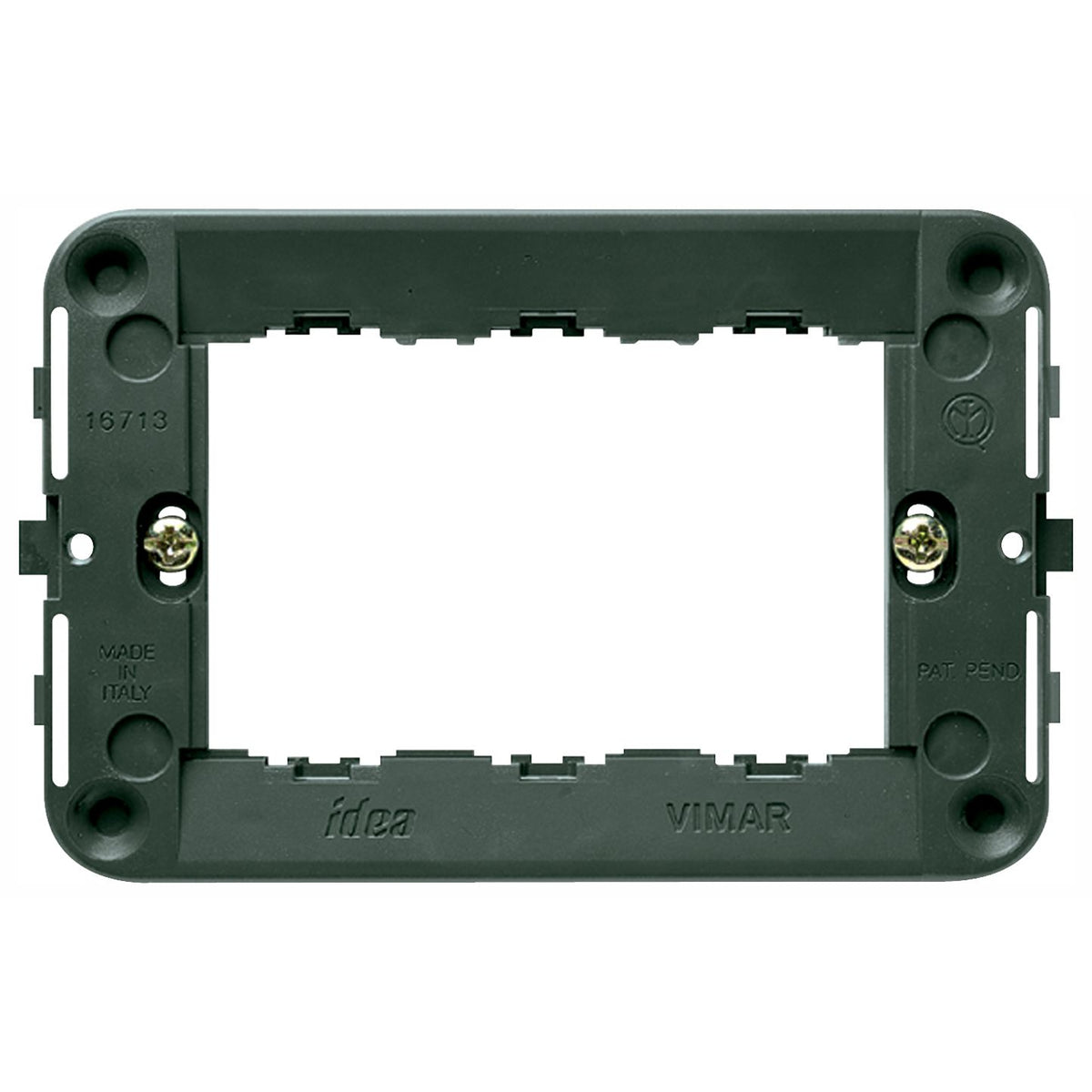

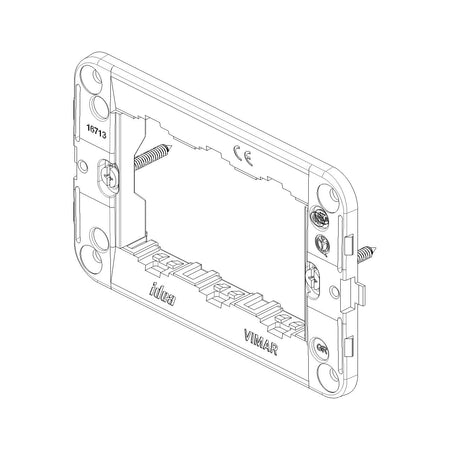

Vimar Idea 3-Module Mounting Frame, With Screws, 60 x 97 mm, Grey

Overview

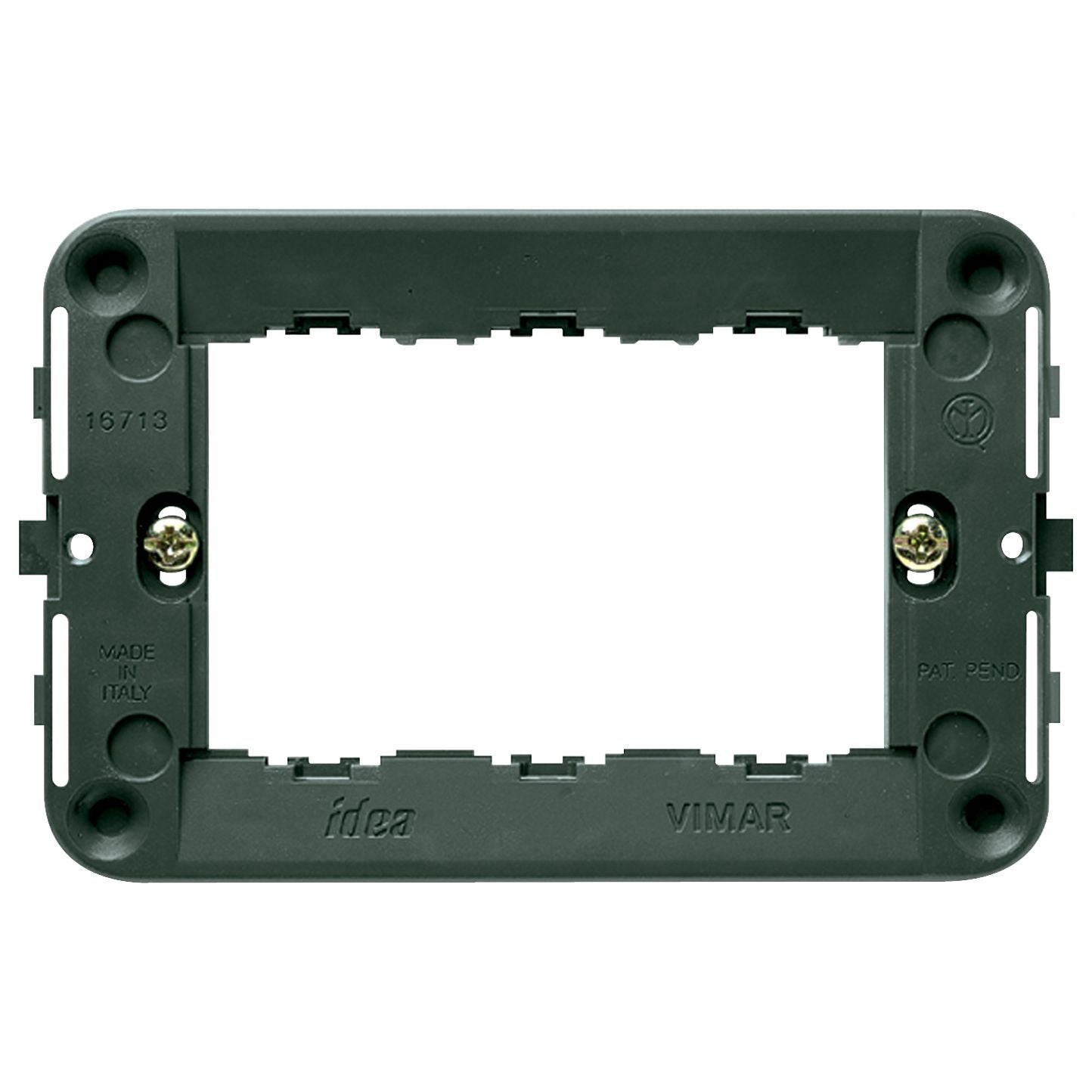

The Vimar VM16713 is a 3-module mounting frame that holds Vimar IDEA modular devices steady in a compatible 3-module mounting box so the front plate sits flush and does not shift over time.

It mounts with screws and the modules fasten from the back side of the frame, which helps when you want to wire the devices first and then bring the assembly forward for final alignment. The grey thermoplastic body does not corrode, which is handy around damp lockers and humid cabins, but it still relies on the box and plate to keep everything protected from spray.

Key features

• 3-module frame for Vimar IDEA installations on compatible 3-module mounting boxes
• Supplied with fixing screws for a screw-mounted install that stays put on boats that see vibration
• Modules mount from the back side of the frame for cleaner wiring and easier device positioning
• Can be installed horizontally or vertically while still supporting three modules
• Thermoplastic construction in grey for a clean match behind common IDEA cover plates
• No built-in installation box, so the correct flush-mount box behind the panel or bulkhead is required
• Not intended for 60 mm round junction boxes or wall-duct style systems

Compatibility and fit

This frame is meant for Vimar IDEA 3-module cover plates and the matching 3-module mounting boxes used in that system. It is commonly used behind modular switches, sockets, and low-voltage inserts where you want three devices grouped in one position.

Before ordering, confirm you have a rectangular 3-module box at the mounting location and that your plate and inserts are from the IDEA range. If your cutout is for a 60 mm round box, this is not the right support.

Installation and setup

Fasten the frame to the mounting box with the included screws, then secure the module inserts from the back side. Once the wiring is terminated and strain-relieved inside the box, fit the front plate and verify the devices sit square to the bulkhead or panel. In areas that may see moisture, keep terminations protected inside a suitable box and route cables to avoid drip paths.

Use on board

This is a good match for boats already using the Vimar IDEA modular system, especially for refits where you are cleaning up a helm switch bank, a nav-station outlet cluster, or a cabin control point and want a tidy 3-module layout.

Maintenance and care

After the first few runs, recheck screw tightness if the panel is exposed to vibration. Clean the visible edges with mild soap and water and avoid aggressive solvents that can haze plastics.
