Vimar Idea Double Push Button, 1P NO + 1P NO, 10A 250V, IP40, Flush Mount
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

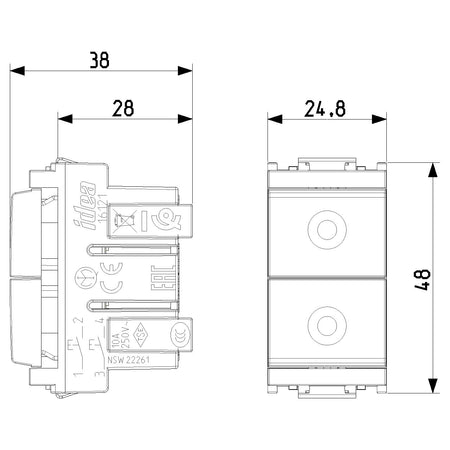

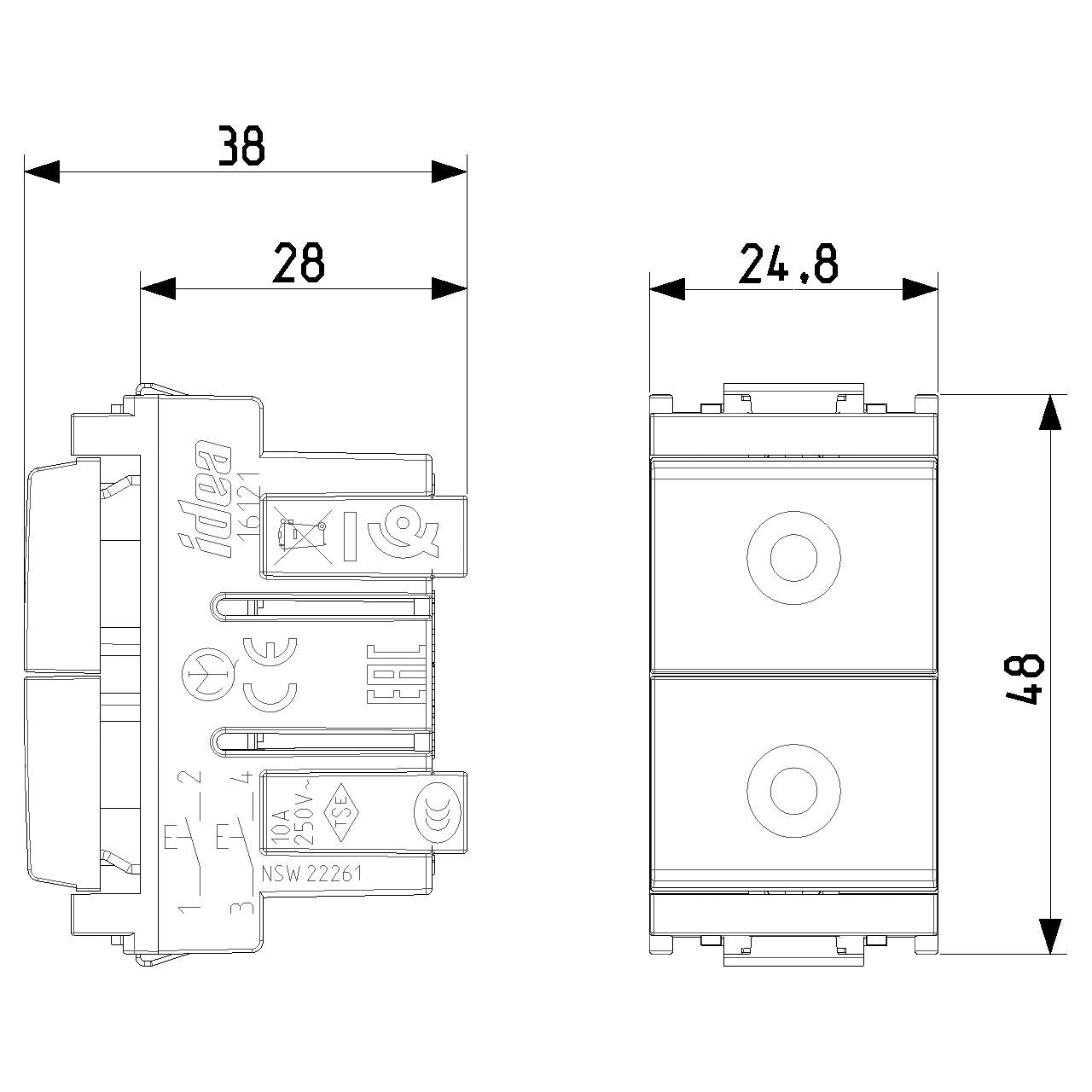

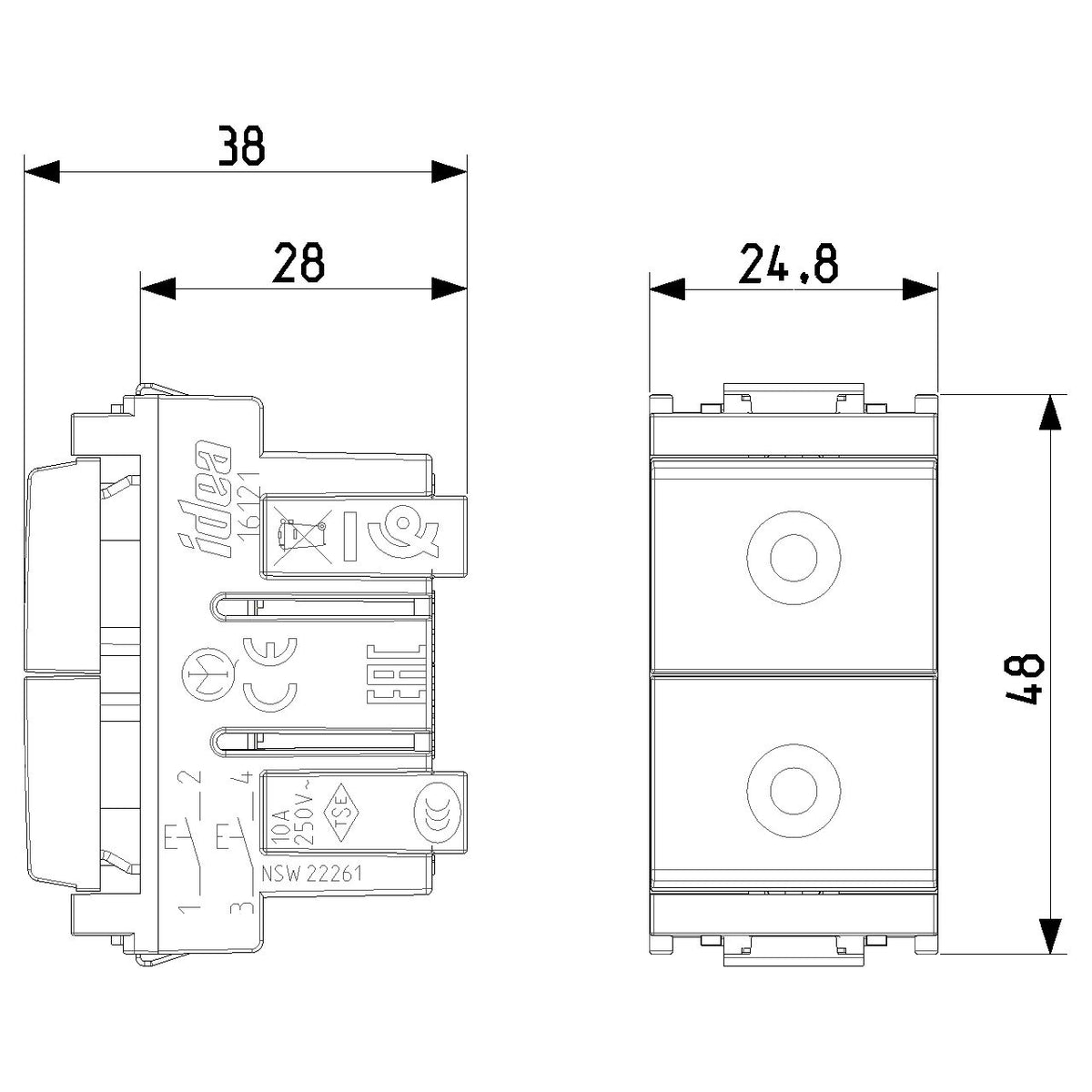

The Vimar Idea 16121 push button is a built-in modular switch with two independent 1P NO push buttons, rated at 10 A and 250 V, in a compact 24.8 x 50.1 x 38.0 mm body.
Each button works with momentary action and can close its circuit independently. Both buttons can also close at the same time, so this unit is not meant for reversing motor functions. With IP40 protection, a matt thermoplastic housing, and a halogen-free build, it makes more sense behind a protected interior panel than in an open cockpit, wet locker, or washdown area.
This belongs to the Vimar Idea range and is made for built-in installation with snap fastening. It is a straightforward non-illuminated push button with no monitoring contact, so it suits simple control points where a clean, compact switch is needed.
Key features
- Two independent 1P NO momentary push buttons in one module
- Rated 10 A at 250 V
- Built-in snap-in mounting for flush installation within the Vimar Idea system
- IP40 protection for dry interior locations
- Thermoplastic, halogen-free body with matt finish
- Label space on the device for circuit identification
Variants
This product is offered in two color configurations.
The confirmed difference between variants is color and part number. The electrical rating, body size, mounting method, finish, and IP40 protection stay the same across both versions.

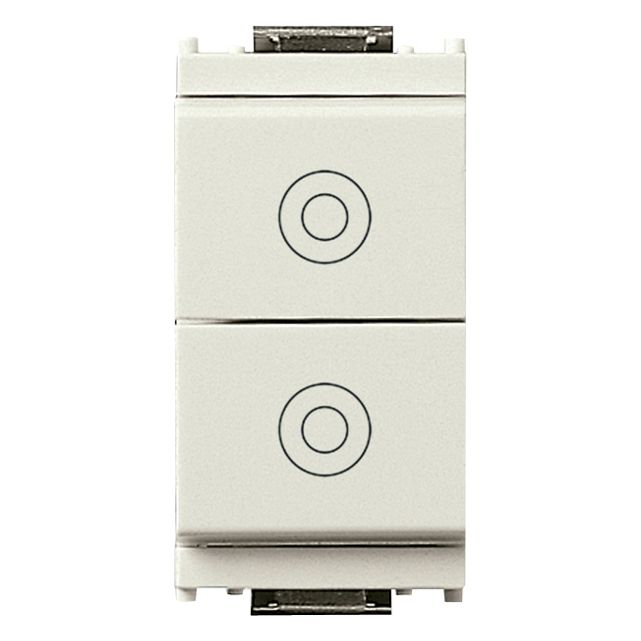

- VM16121.B / Color White. This keeps the same switch layout and rating, with a light finish that sits neatly in bright interior panels and cabin switch positions.

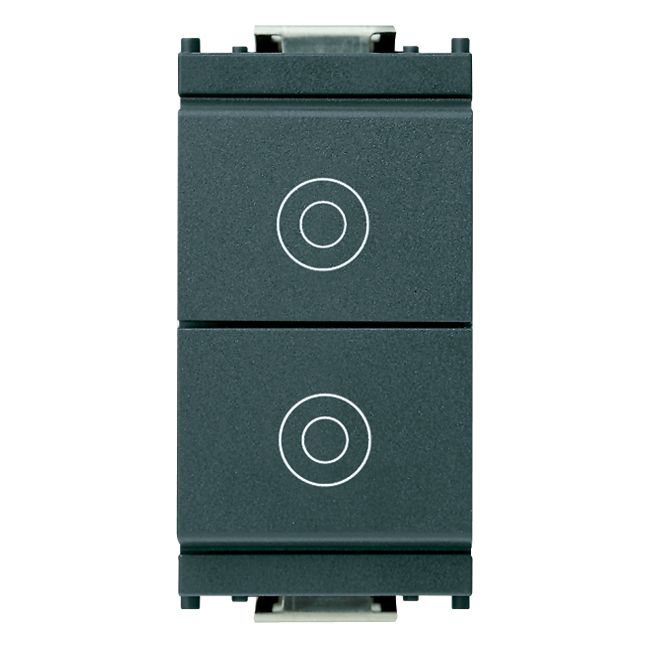

- VM16121 / Color Gray. This keeps the same switch layout and rating, with a darker finish that matches gray or darker panel trims more naturally.
Installation and fit
This is a built-in device with engage snap fastening, so it should be fitted into a recessed switch location within a compatible Vimar Idea assembly. Before ordering for a refit, check the existing frame and cover system on board and confirm that the mounting depth can accept a 38.0 mm device.
Because the switch is non-illuminated and has no monitoring contact, it is best used where a plain momentary command is needed without status feedback at the button itself.
Use on board
This push button suits interior helm panels, cabins, galleys, or utility spaces where a protected switch position is available and the boat already uses, or is being built around, the Vimar Idea modular format. It is a sensible match for owners and installers who want a compact dual push button for sheltered control points rather than an exposed-weather deck switch.
