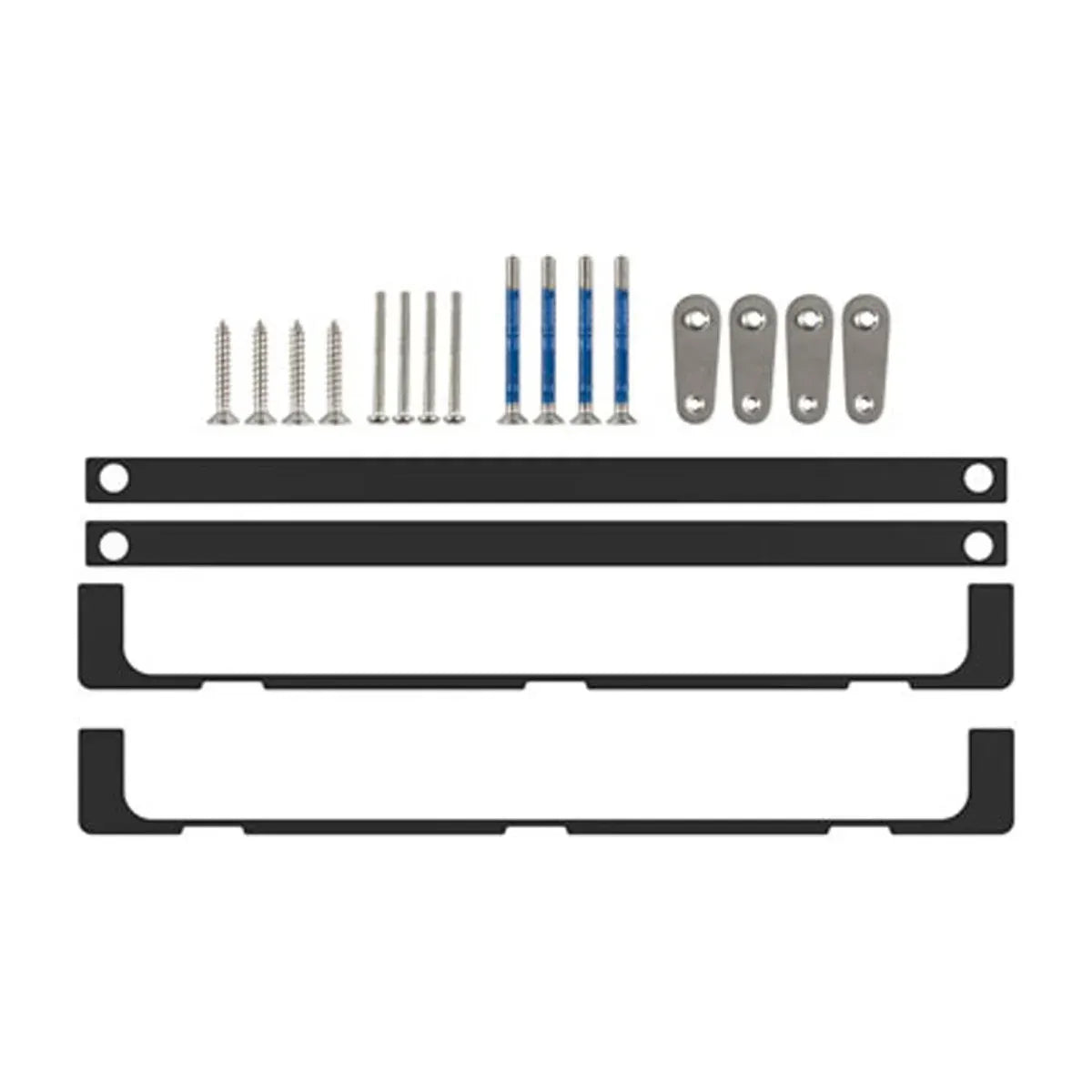

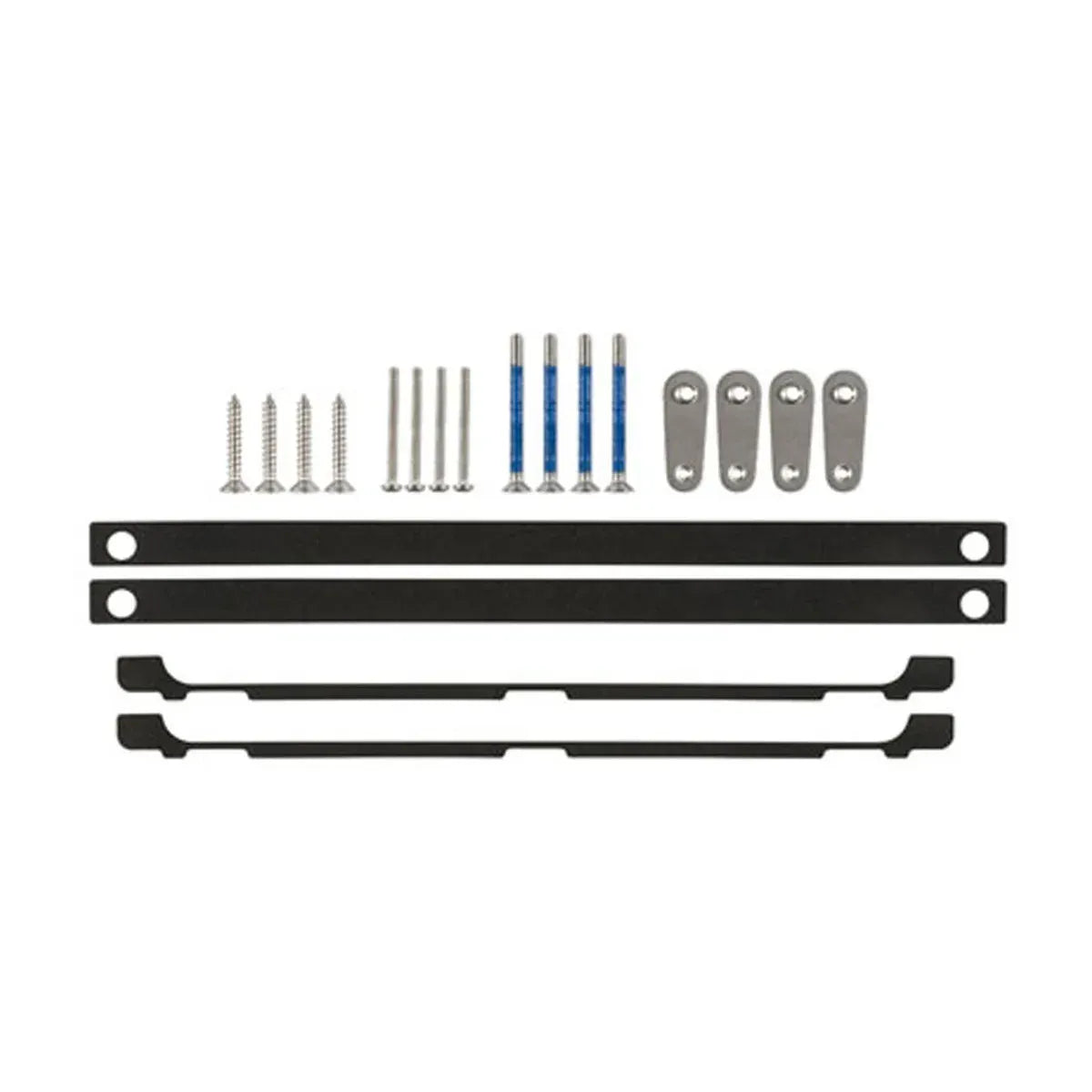

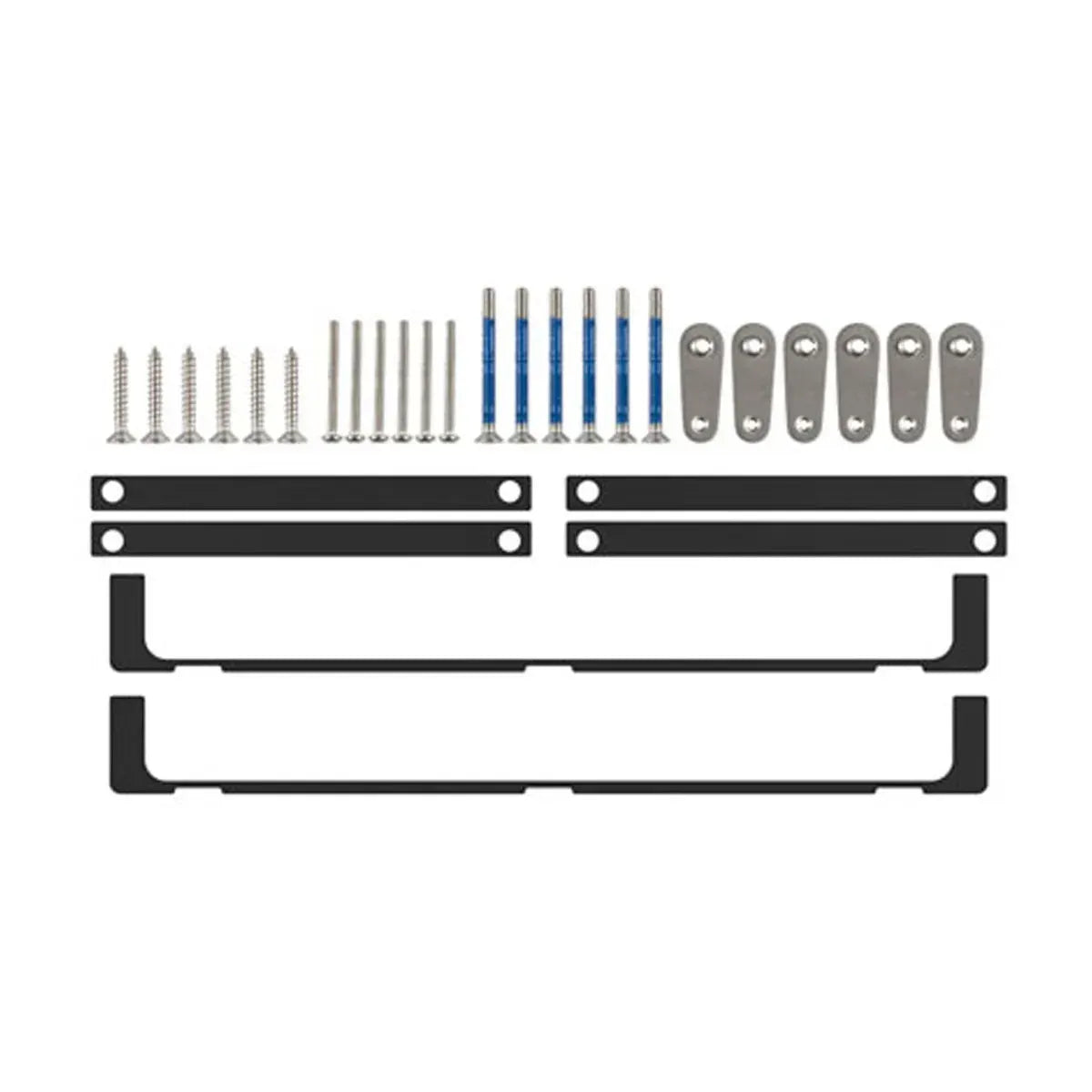

Garmin Flush Mount Kit, For GPSMAP 9000 Series Chartplotters

Overview

The Garmin GPSMAP 9000 Series flush mount kit is a cut-in mounting accessory for installing compatible GPSMAP chartplotters into a helm, dash, console, or other flat surface on a boat. It helps the display sit cleanly in the panel rather than standing proud on a bracket, which is useful when space at the helm is limited or when a lower-profile electronics layout is preferred.

This kit is offered for GPSMAP 9x10, 9x13, and 9x17 chartplotters, with separate configurations for 10", 13", and 17" display sizes. It is made for fixed installations where the mounting location can support the chartplotter, allow cable routing behind the panel, and keep the screen positioned for clear viewing while underway.

Key features

• Flush-mount installation kit for compatible Garmin GPSMAP 9000 Series chartplotters.
• Supports cut-in mounting against most flat surfaces on a boat, including helm panels and dash consoles.
• Available in 10", 13", and 17" configurations to match GPSMAP 9x10, 9x13, and 9x17 display sizes.
• Helps create a lower-profile electronics layout while keeping the chartplotter secured in a permanent mounting position.
• Suited for installations where rear cable access, panel strength, and protection from excessive vibration are considered during mounting.

Variants

This Garmin flush mount kit is offered in multiple size configurations for different GPSMAP 9000 Series chartplotters.

The size is the key difference between the variants. Each configuration matches a specific GPSMAP display size, so the kit should be selected to match the chartplotter being installed.

• 010-13903-00: Size 10". This configuration fits GPSMAP 9x10 chartplotters and is used when the installed display size is 10".
• 010-13903-01: Size 13". This configuration fits GPSMAP 9x13 chartplotters and is used when the installed display size is 13".
• 010-13903-02: Size 17". This configuration fits GPSMAP 9x17 chartplotters and is used when the installed display size is 17".

Installation and setup

Flush mounting requires a suitable panel cutout, enough space behind the surface for the chartplotter body and cables, and a location that gives the operator a practical viewing angle. Before cutting, the installer should confirm that the chosen surface can support the chartplotter and that the area behind the panel is clear of wiring, structural members, plumbing, or other equipment.

This type of mount is a good match for refits, new helm builds, and electronics upgrades where the goal is to integrate the GPSMAP display into the console. It works especially well on center consoles, pilothouse helms, sportfishing boats, and cruising vessels where a clean dash layout matters but the display still needs to be easy to reach and read while underway.

Compatibility and fit

Fit depends on matching the kit size to the GPSMAP chartplotter size. A 10" kit is not interchangeable with a 13" or 17" display, so the display model and screen size should be checked before installation. The mounting location should also leave room for cable connections and service access behind the panel.
