Vimar Idea 3-Module Mounting Frame, For 2-Module Arké Devices, For Idea Cover Plates, For 3-Module Mounting Boxes
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Vimar Idea 16723 is a 3-module mounting frame with screws for fitting 2-module Arké devices behind Idea cover plates in 3-module mounting boxes. It is a flush-mounted thermoplastic frame, and the module inserts mount from the front side, which helps when assembling or servicing the finished installation.
The frame can be installed horizontally or vertically, with a 3-module layout in the horizontal position and 1 module in the vertical position. It does not include an installation box, so it is used with the correct 3-module box already in place.
Key features
- 3-module mounting frame for 3-module mounting boxes
- Made for 2-module Arké devices used with Idea cover plates
- Supplied with screws for fixed mounting
- Front-side insertion of module inserts helps during assembly and service
- Supports horizontal or vertical mounting orientation
- Thermoplastic construction in a flush-mounted format
Variants
This frame is offered in two color configurations.
The change between variants is the frame color. The mounting format stays the same across the range: 3 modules, screw fixing, flush mounting, and compatibility with 2-module Arké devices used with Idea cover plates in 3-module mounting boxes.

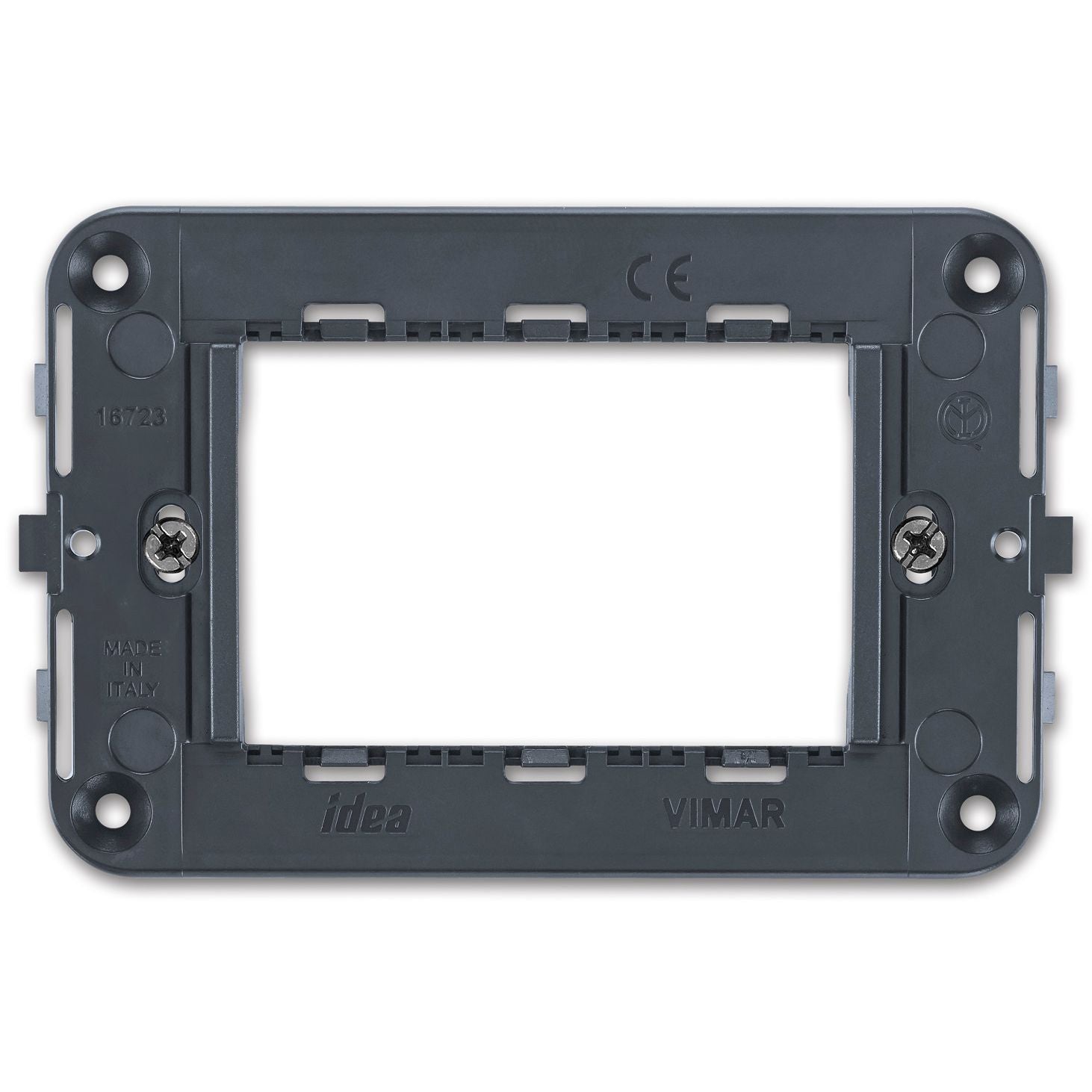

- VM16723: Color Gray. This version keeps the same frame layout in a gray finish for installations using darker trim combinations.

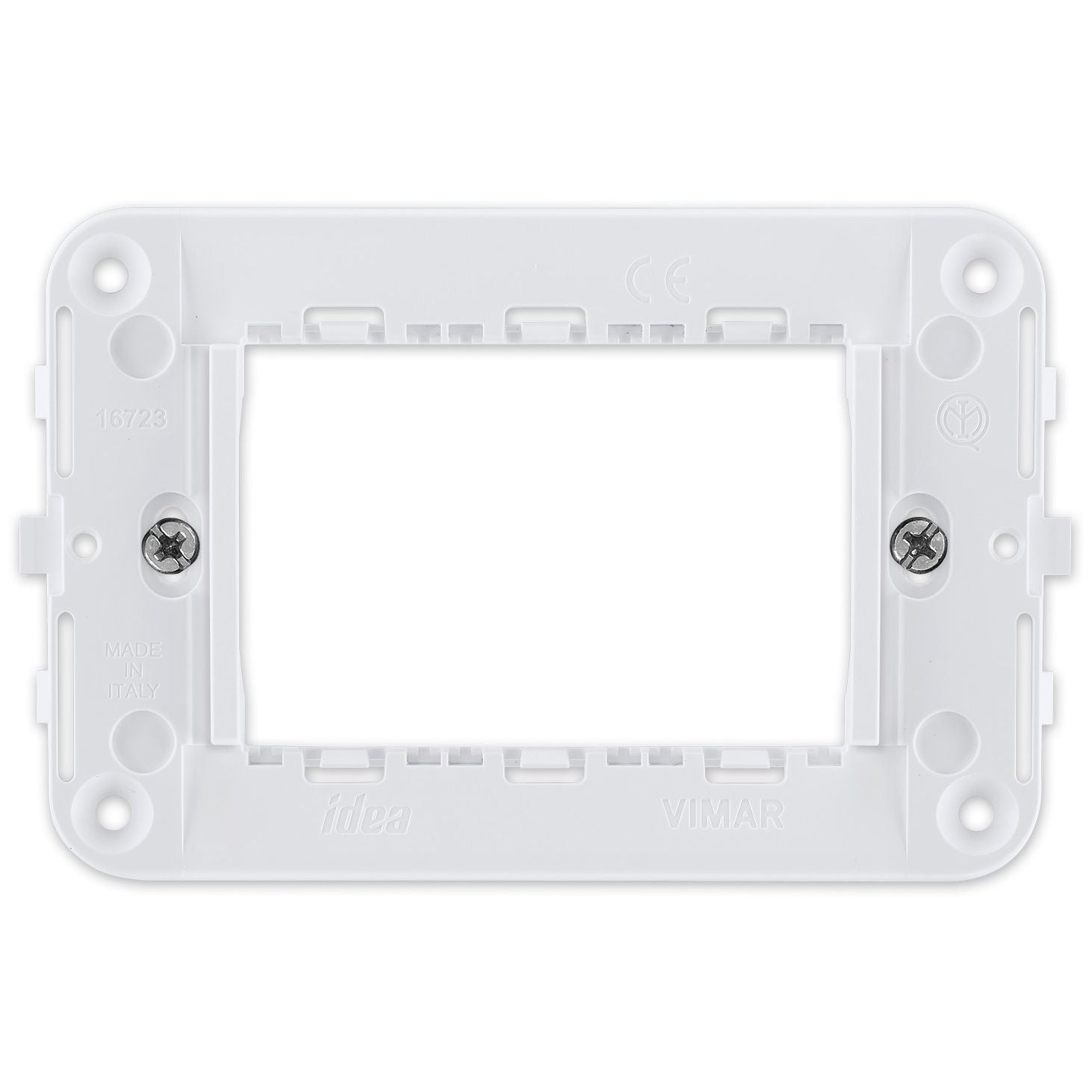

- VM16723.B: Color White. This version keeps the same frame layout in a white finish for installations using light cover plates and interior panels.
Compatibility and fit
This frame is for Vimar installations that combine Arké devices with Idea cover plates. It is not a universal frame, so fit depends on using the matching Vimar modular parts and a 3-module mounting box.
It does not have a built-in installation box and it is not intended for 60 mm round junction boxes, wall ducts, subfloor installation duct boxes, or 35 mm DIN rail mounting.
Installation and setup
The frame fixes with screws and sits flush once the matching box, device, and cover plate are assembled. Because the modules insert from the front, it works well in refits and service jobs where access from the face of the panel matters.
Use on board
For marine interiors, this frame fits best in protected accommodation spaces where Vimar modular switching or control points are built into a wall panel or furniture face. It makes sense on boats already using the Idea plate format and needing to adapt a 2-module Arké device into a 3-module box layout.
