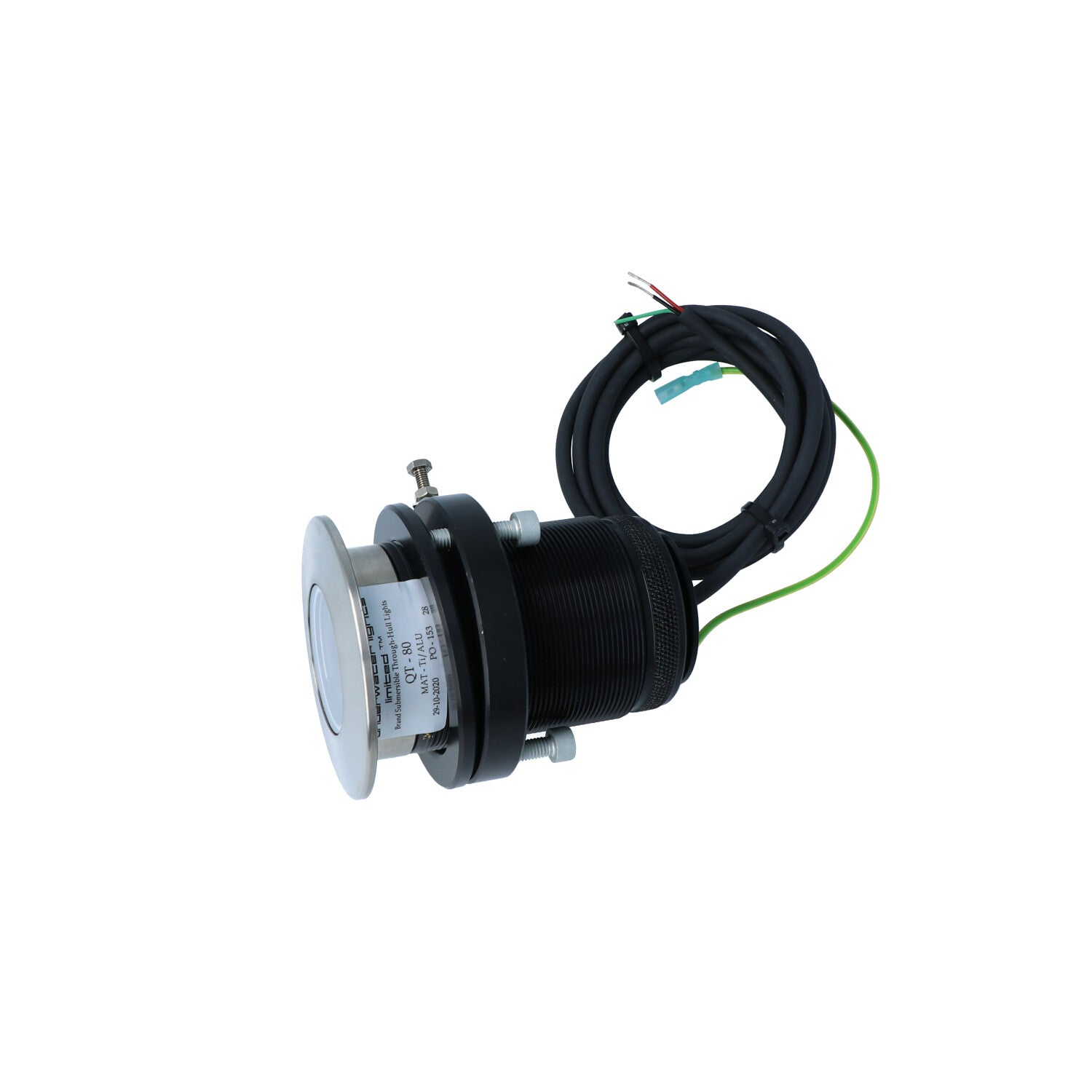

UWL - QTS-Ti-80 Underwater Light - 12/24V, 7000 Lumens

Introducing the UWL - QTS-Ti-80 Underwater Light - Illuminate the Depths

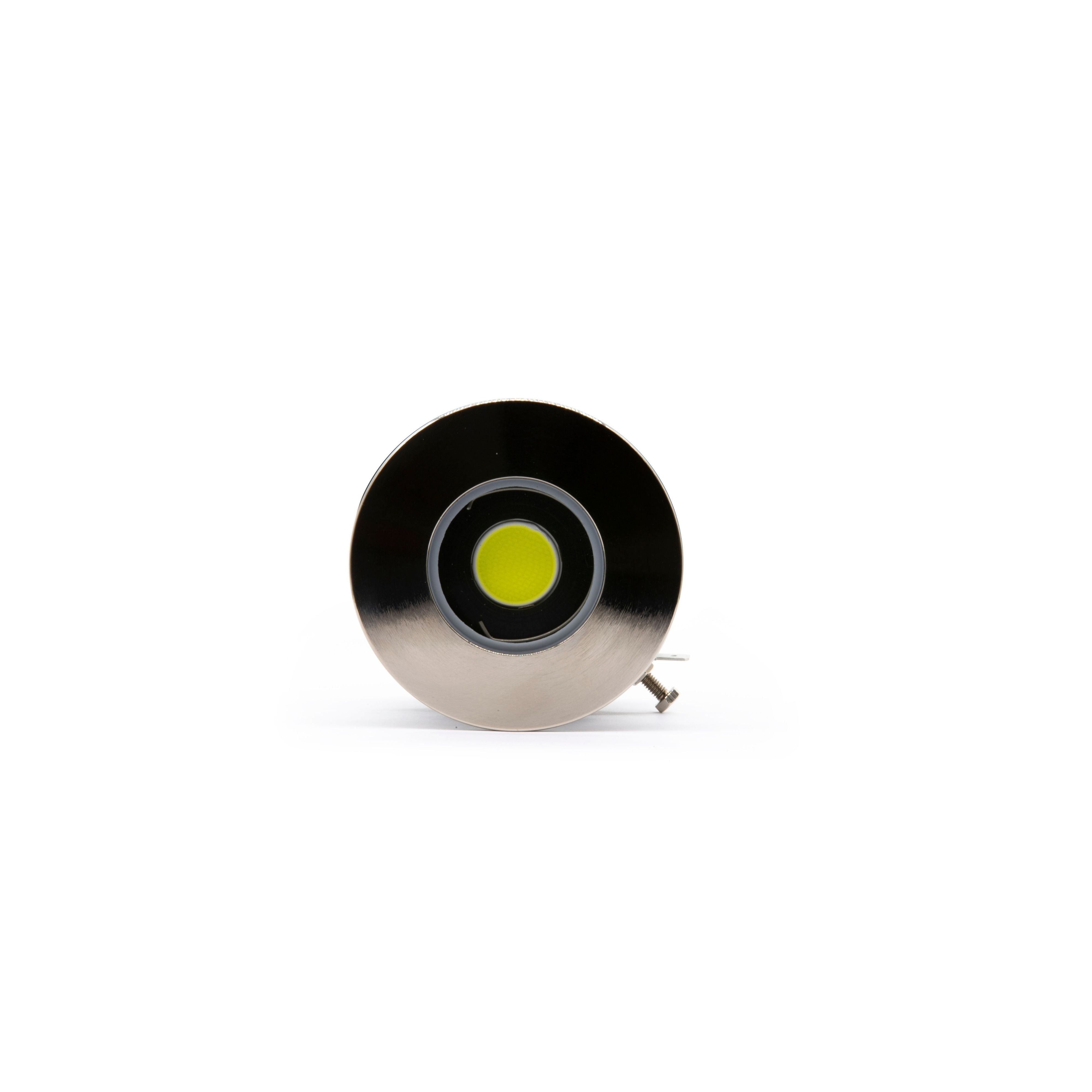

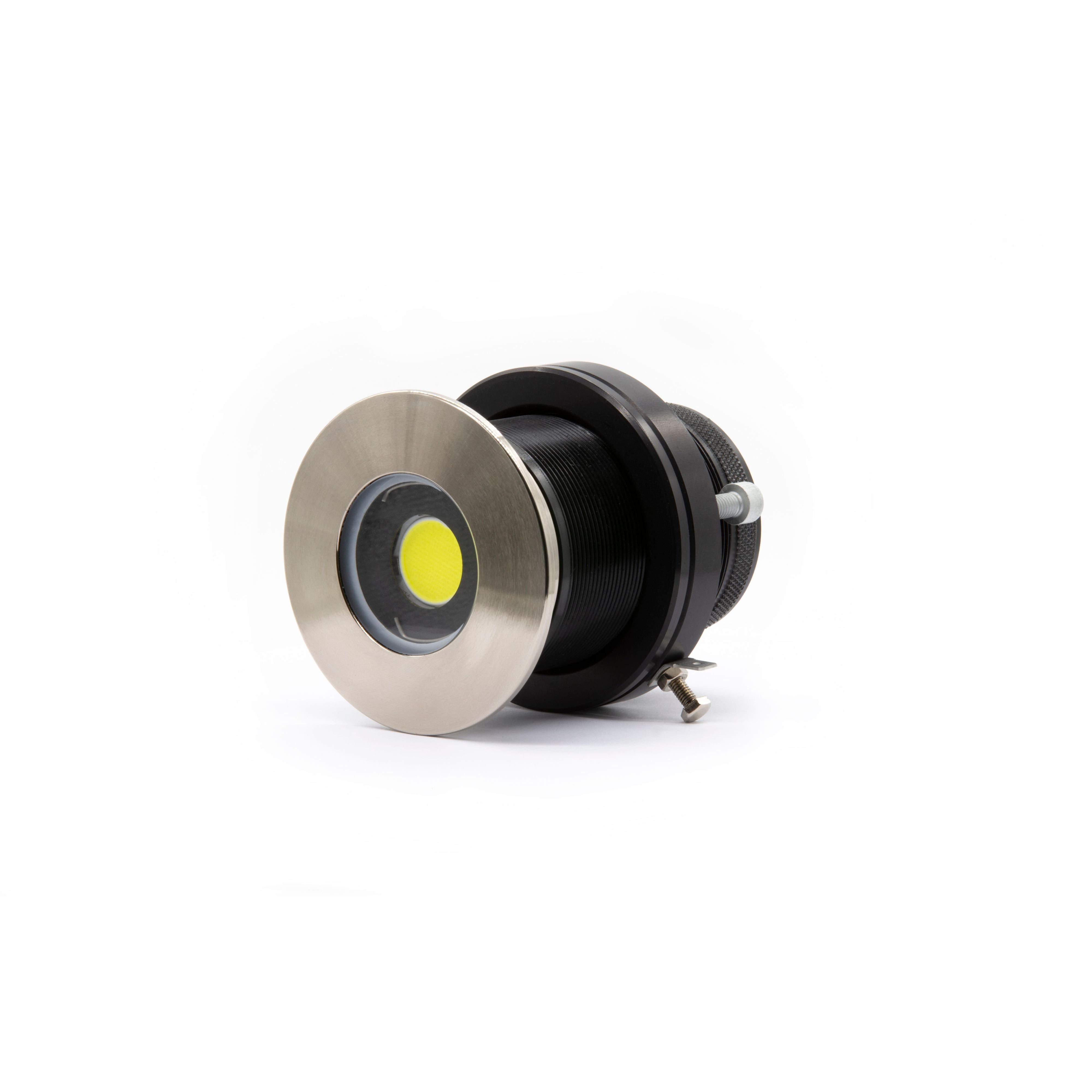

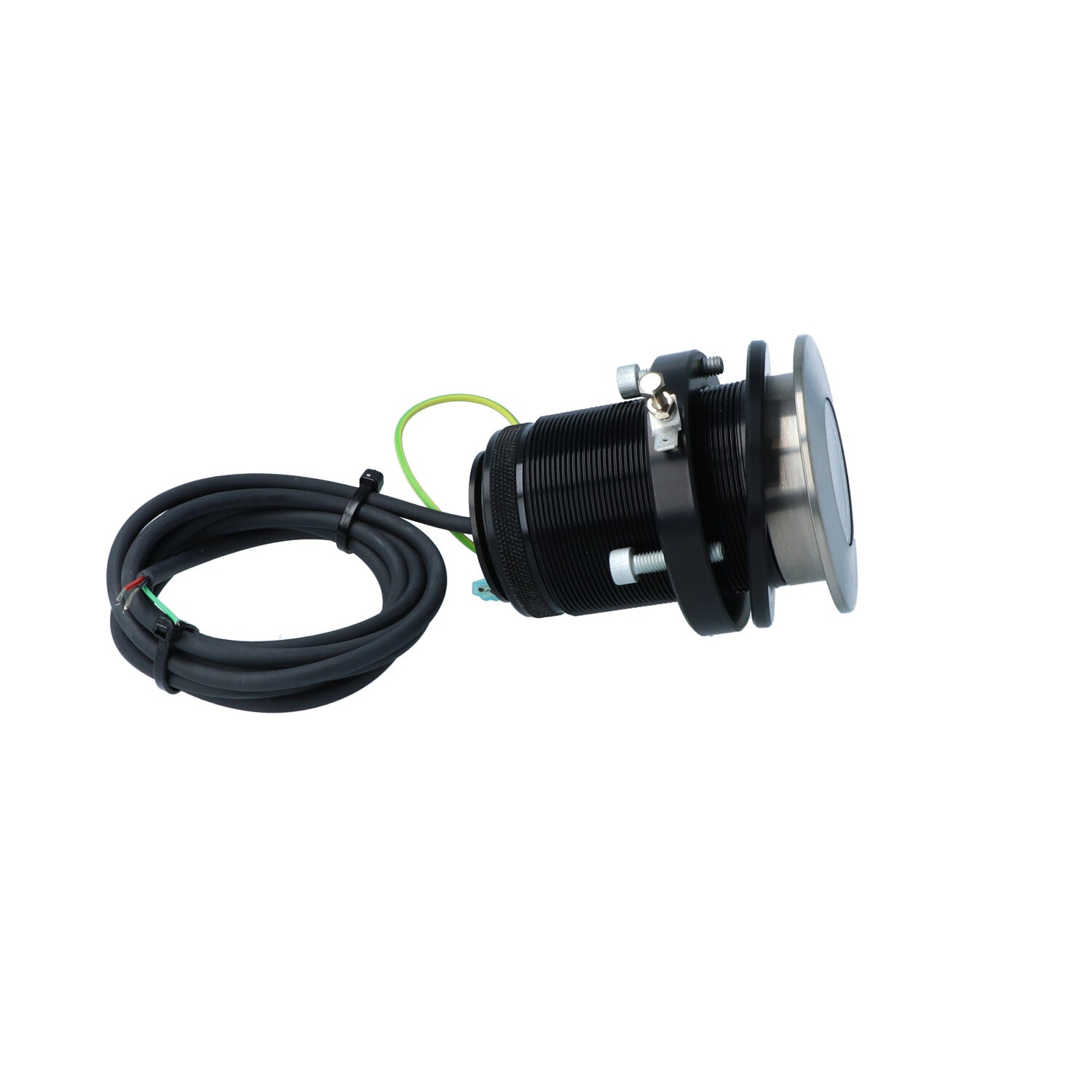

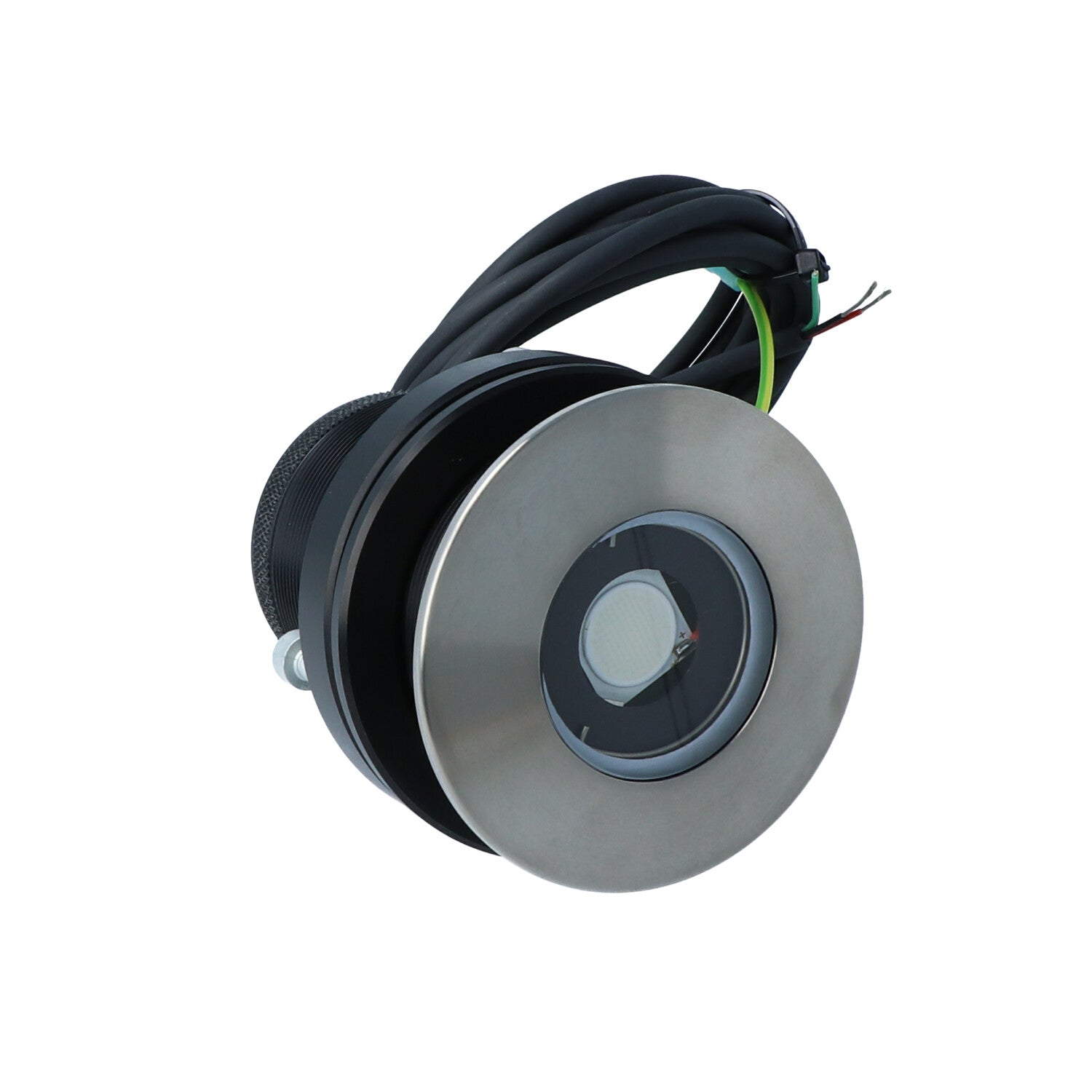

Introducing the UWL - QTS-Ti-80 Underwater Light in white or blue, a powerful marine lighting solution that's perfect for boats up to 90 feet in length. With 7000 lumens of light output and a 120-degree beam angle, this light provides excellent illumination to help you navigate through the dark waters.

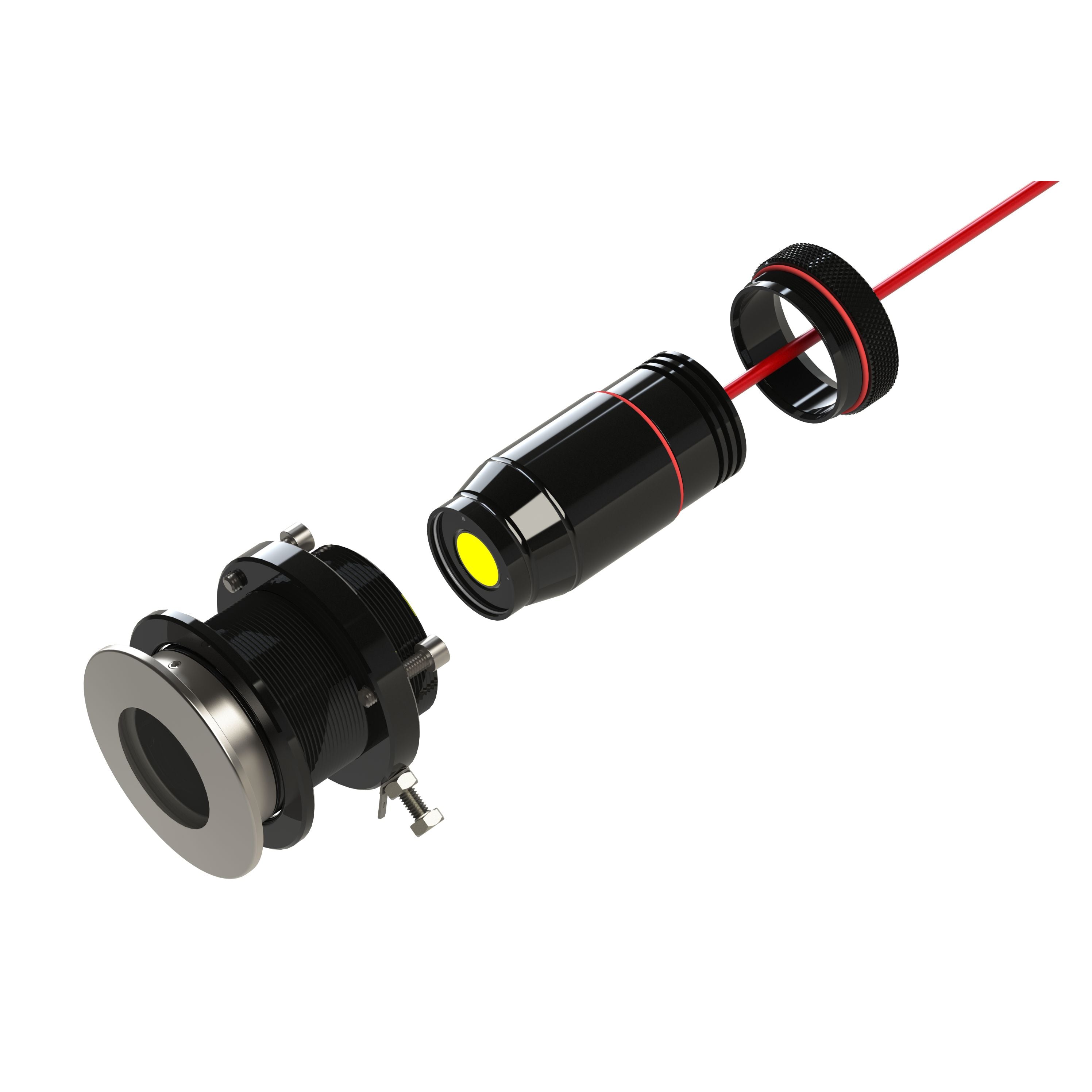

All-in-One Driver Technology and Exchangeable Inserts

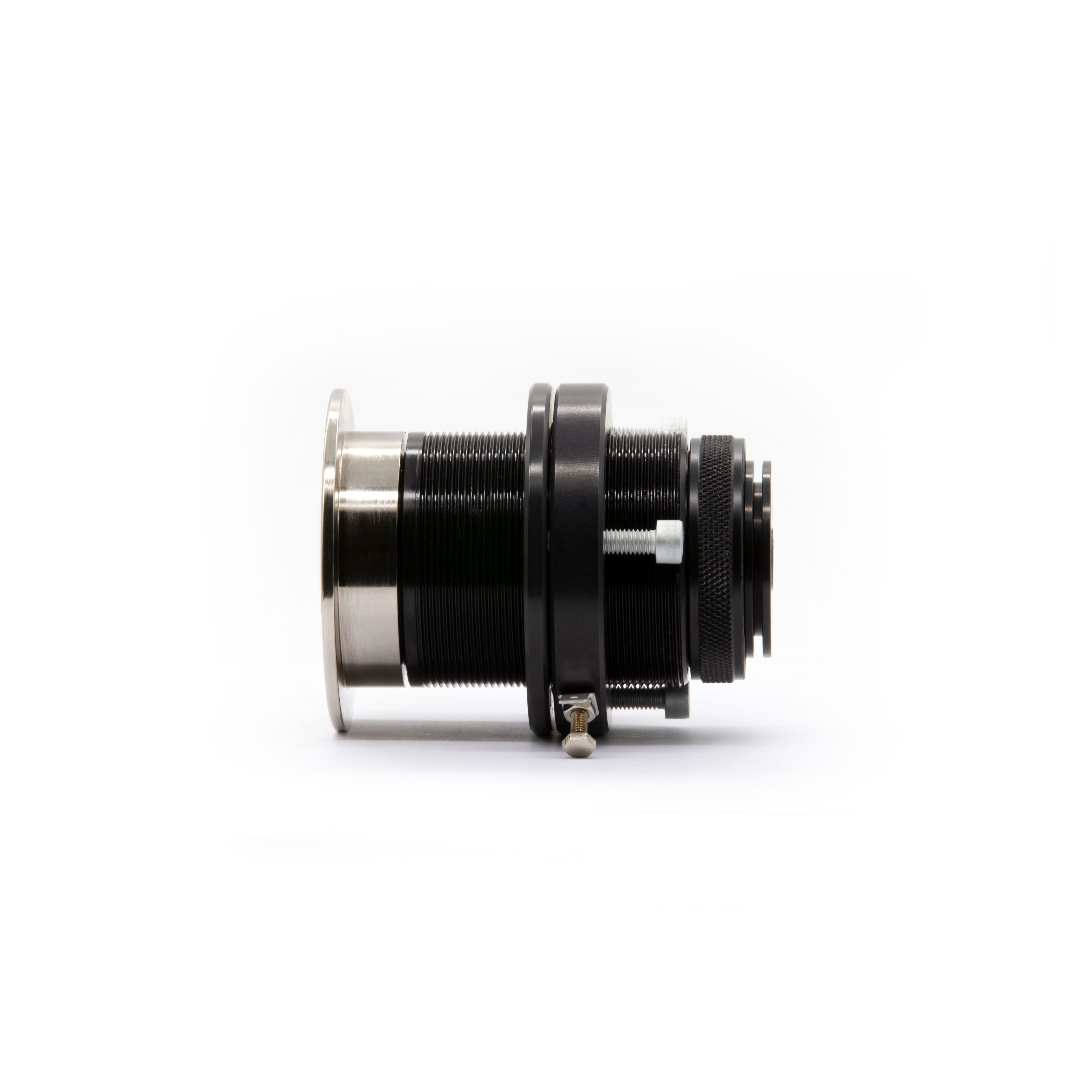

The QT-80Ti LED Underwater Light boasts all-in-one driver technology and exchangeable inserts, making it easy to service and upgrade without the need to haul your boat. The compact design of the insert means that it can be installed almost anywhere on your boat, and the housing is made from anodized aluminum and armor-coated AB2 bronze for durability.

Easy Maintenance and Growth-Resistant Lens

Designed for easy maintenance, the UWL - QTS-Ti-80 Underwater Light can be changed from the inside of the hull, eliminating the need for a hull-out. The growth-resistant lens is made of borosilicate glass and ensures long-lasting performance, even in harsh marine environments.

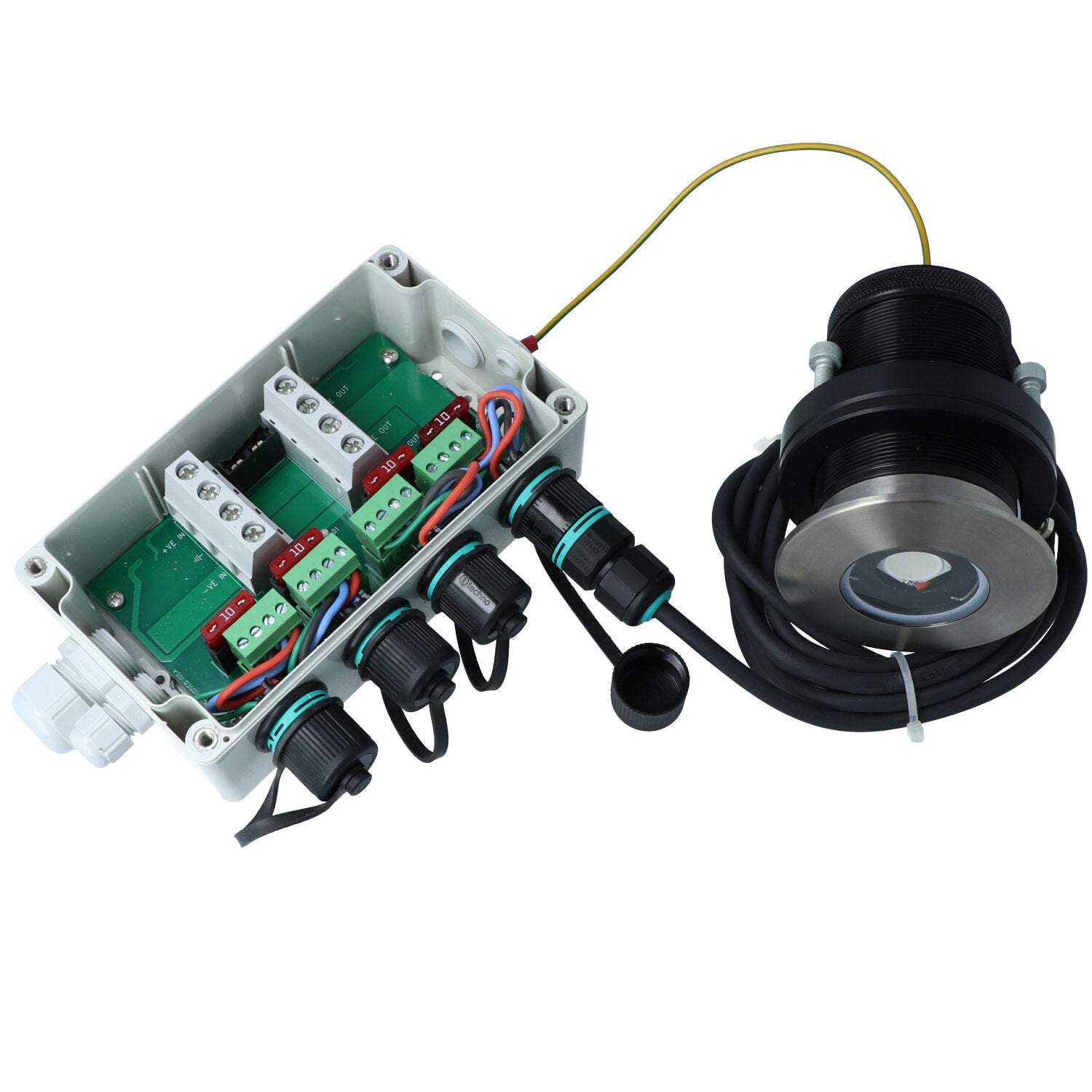

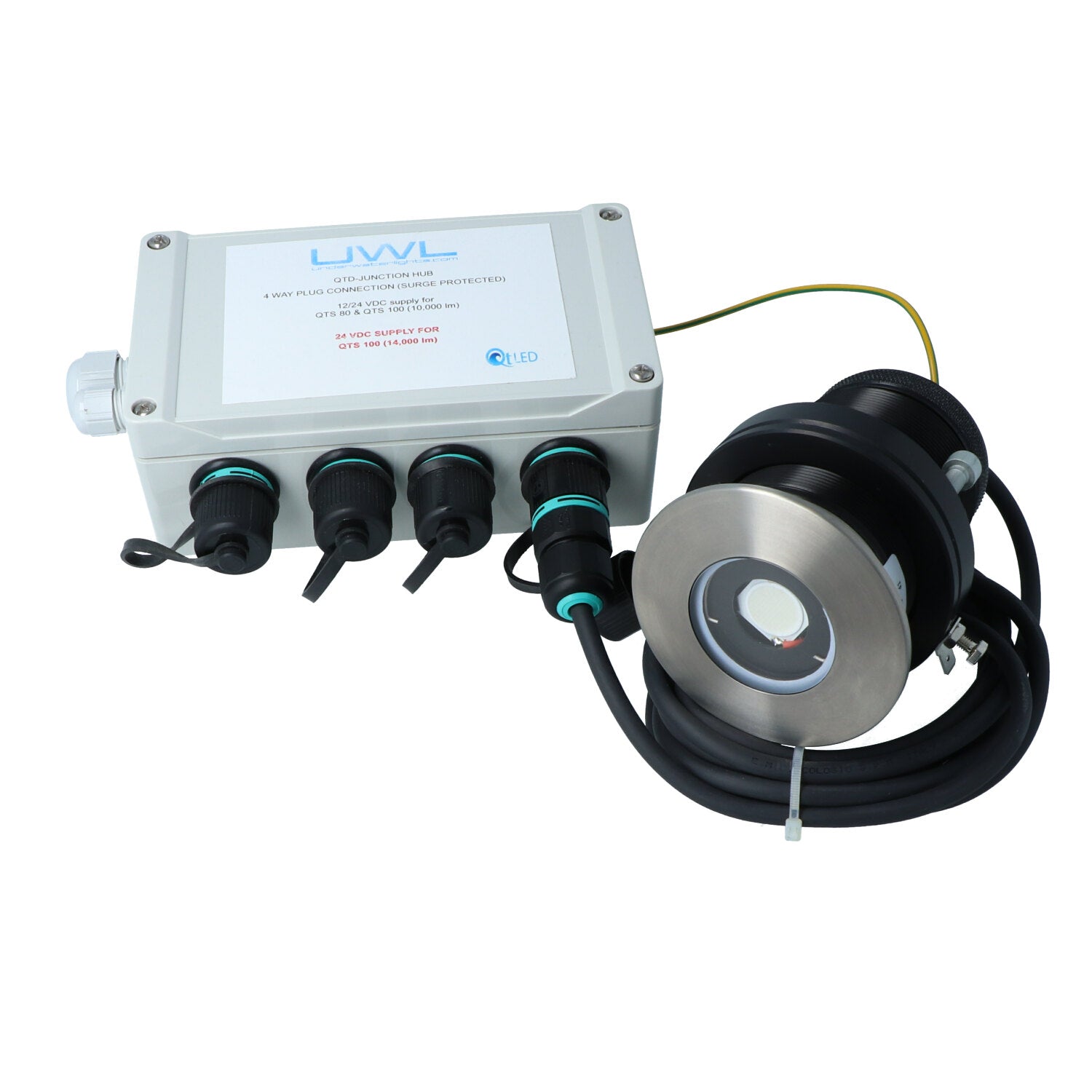

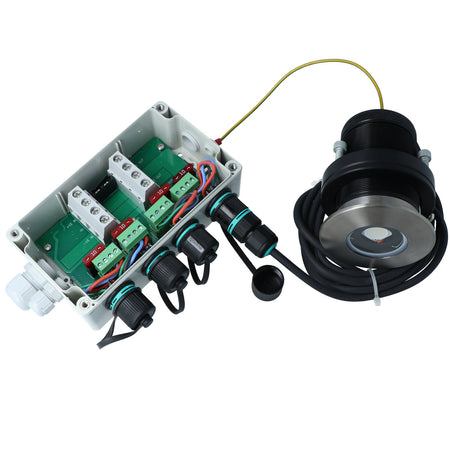

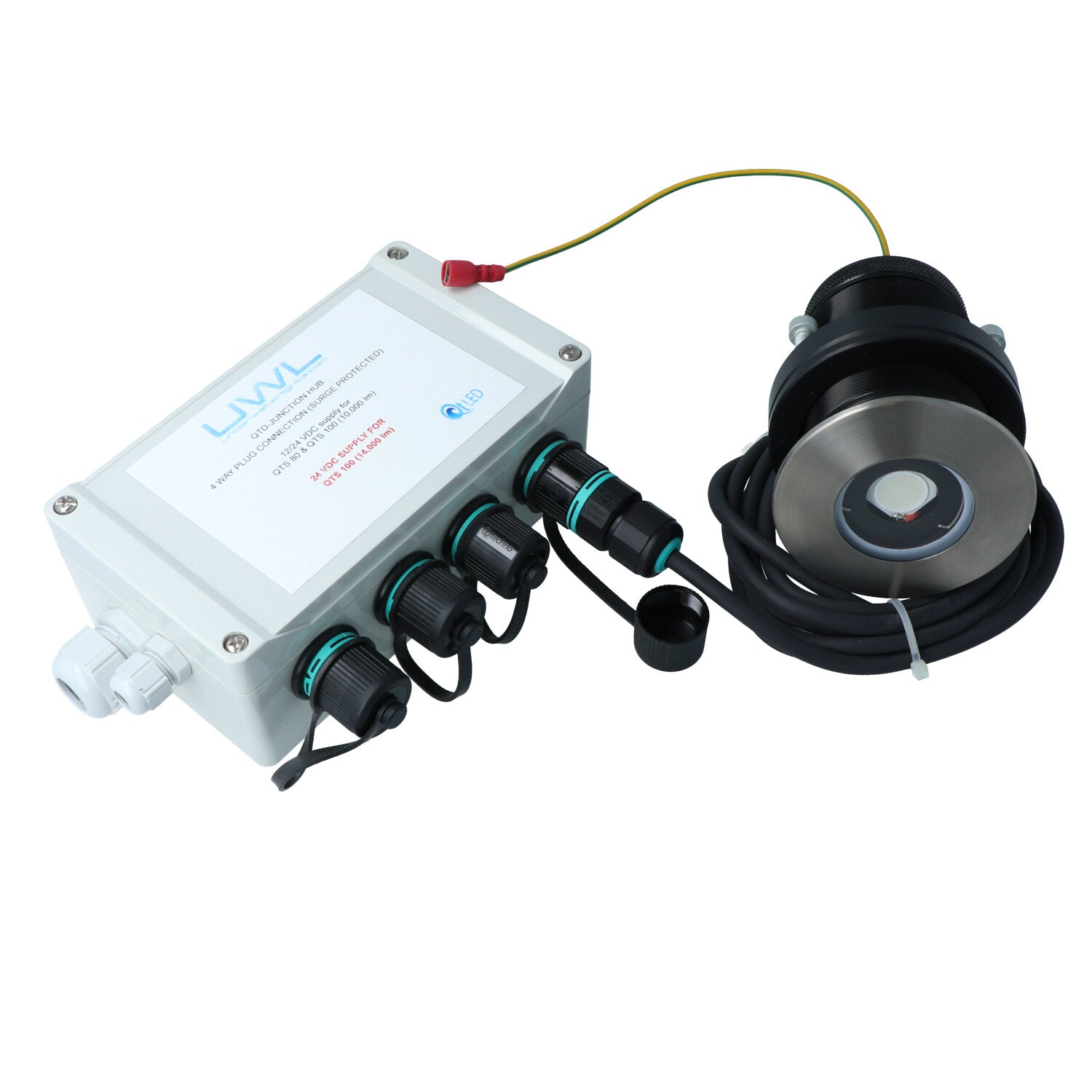

Junction Box Availability

Upon request, a Junction Box can be added to enhance the connectivity and functionality of the UWL - QTS-Ti-80Underwater Light.

Longevity and Safety Features

With a life expectancy of 40,000 hours, this light is built to last. It also features reverse polarity protection and over-temperature thermal roll-back protection for added safety. The UWL - QTS-Ti-80 Underwater Light comes with all the necessary mounting and connection hardware, making installation a breeze.

Dimensions:

• Max Hull Thickness: 2 7/16” (62mm)
• Length of Fixture: 4 1/8” (105mm)
• Diameter of Fixture: 3 7/32“ (82mm)
• Profile (height) of Fixture: 7/16” (11.5mm)
• Removal Space Required: 6 1/2” (160mm)
• Hole Cut-out: 2.5“ (64mm)

Controlled and Streamlined Design

Please note that up to 4 lights can be connected using a junction box, the Junction Box is a Required Part (QTD-JUNCTION HUB), but if you need more than 4 lights, an additional junction will be required. The UWL -QTS-Ti-80Underwater Light is controlled by an on/off switch, and the driver is internal for a clean and streamlined look. Please note that the lights come with plugs for connecting to the junction hub. These plugs can be removed if the junction hub is not used.

Highlights:

• Powerful underwater light for boats up to 90 feet in length
• 7000 lumens of light output with a 120-degree beam angle
• All-in-one driver technology and exchangeable inserts
• Anodized aluminum and Titanium housing
• Easy maintenance and growth-resistant borosilicate glass lens
• Long life expectancy of 40,000 hours
• Reverse polarity and over-temperature protection for safety
• Includes mounting and connection hardware
• Cable Length: 5’ (1.5M)
• Requires the QTD-JUNCTION HUB

• 1257143_qbp163902.pdf
