Blue Sea Systems MRBF Fuse Block, 58V DC, M8 Stud
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Blue Sea Systems MRBF Terminal Fuse Block is a range of fuse blocks for placing high-amperage DC circuit protection close to the power source on a boat. These blocks use MRBF terminal fuses and are suited to battery mains, inverters, windlasses, bow thrusters, battery chargers, and other DC loads where space is limited and short-circuit protection needs to be close to the battery, switch, or bus bar.
The listed configurations are rated for up to 58V DC. The single and dual terminal-mounted versions handle up to 300A, while the surface-mount three-circuit versions are rated up to 240A per circuit, with the common-source version also rated up to 300A per block.
This product family is useful when a boat owner, installer, or refit yard needs MRBF fuse protection without adding a larger fuse block panel. The range includes non-ignition-protected terminal styles and ignition-protected surface-mount styles, so the correct version depends on the circuit layout and mounting location.
Key features
- Uses Blue Sea Systems MRBF terminal fuses for high-current DC circuit protection; fuses are sold separately.
- Supports 58V DC systems, covering common 12V, 24V, and 48V marine DC installations when the rest of the system is specified correctly.

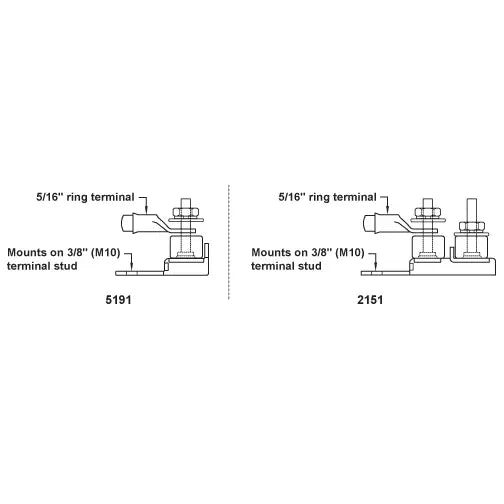

- Single and dual terminal versions mount on 3/8 in terminal studs and accept 5/16 in ring terminals.
- Surface-mount versions accommodate three MRBF fuses for grouped circuit protection in charger, bus, or multi-load layouts.
- M8 5/16 in terminal studs provide a familiar connection point for appropriately sized marine lugs.
- Insulating caps or covers help reduce the risk of accidental shorts at exposed high-current connections.
- Ignition-protected versions are available for installations that require ignition protection around gasoline-powered vessels or machinery spaces.
- The surface-mount independent-source and common-source versions use M5 #10 mounting hardware and include label recesses for circuit identification.
Variants
The product is offered in four configurations that change the circuit layout, mounting approach, and ignition-protection rating.
Across the listed configurations, the shared electrical limit is 58V DC and the cable connection studs are M8 5/16 in. The fuse arrangement, source layout, current rating, and ignition-protection rating vary by part number.

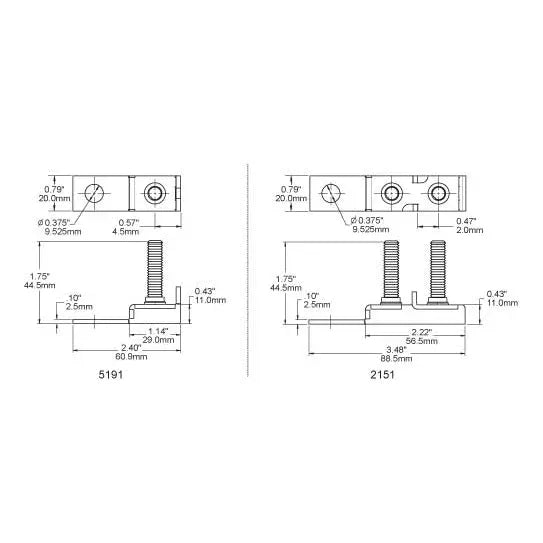

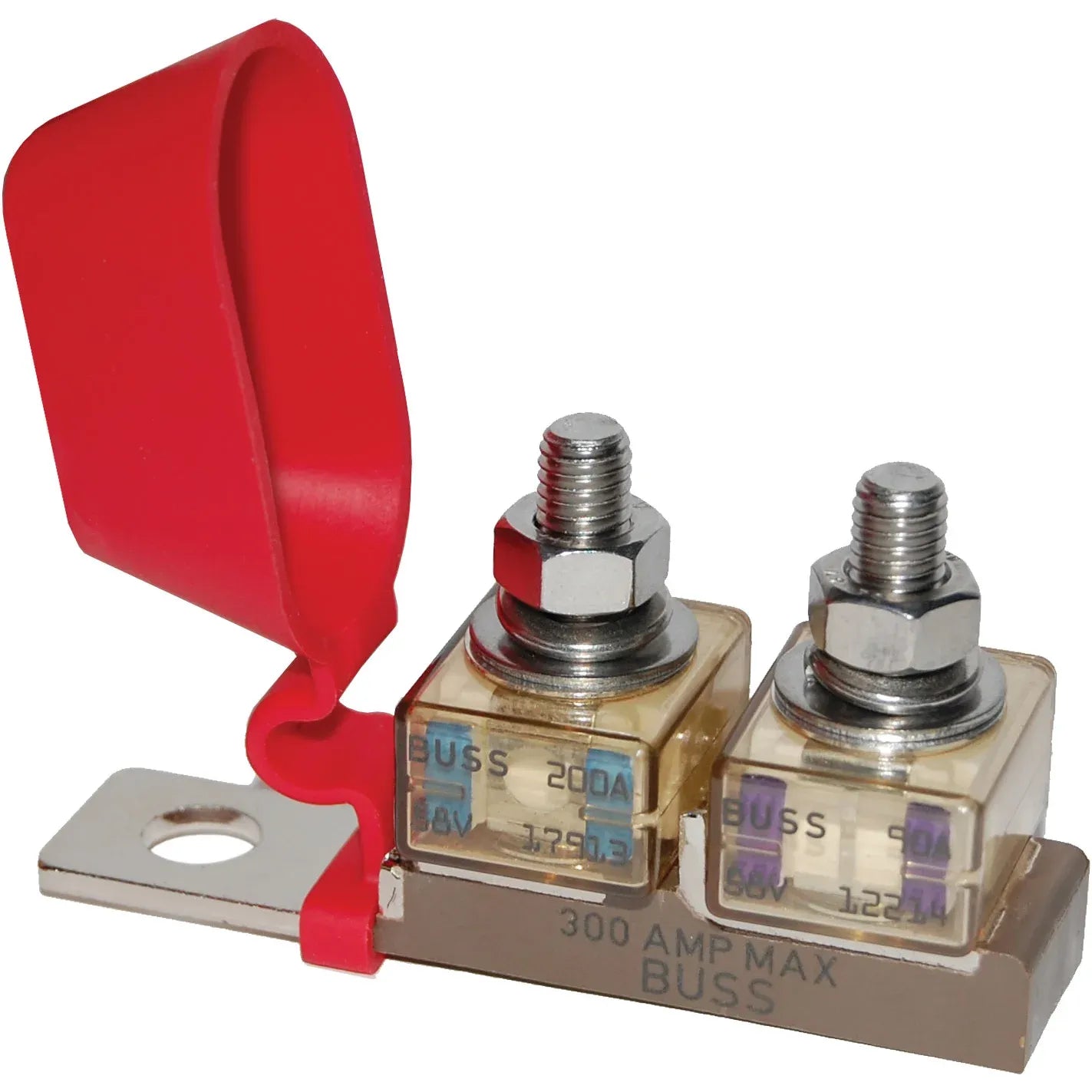

- 2151: Dual type, not ignition protected. This terminal-mounted version provides two MRBF fuse positions and is rated up to 300A total, which suits compact battery-post, switch-stud, or bus-bar protection where two fused outputs are needed from the mounting point.

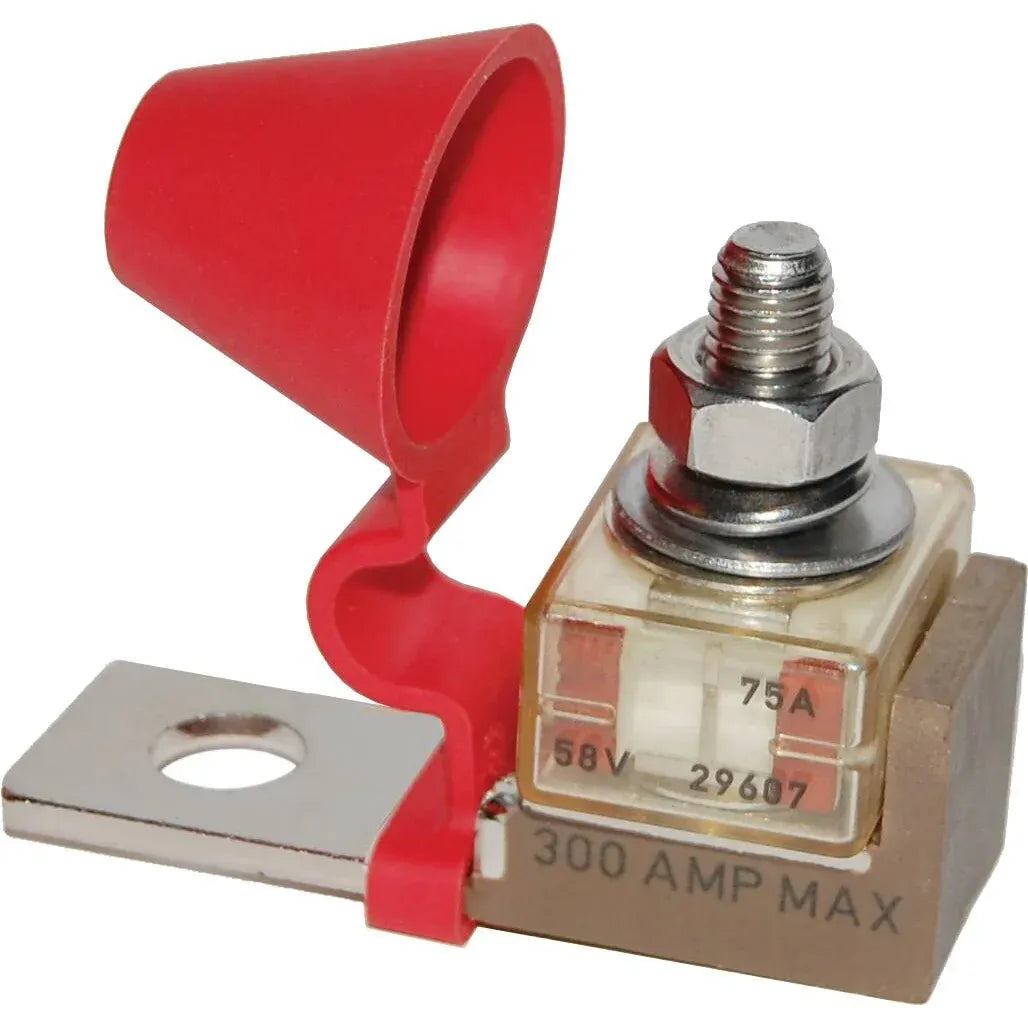

- 5191: Single type, not ignition protected. This terminal-mounted version covers one MRBF fuse position and is rated up to 300A, making it a straightforward choice for one protected high-current DC feed.

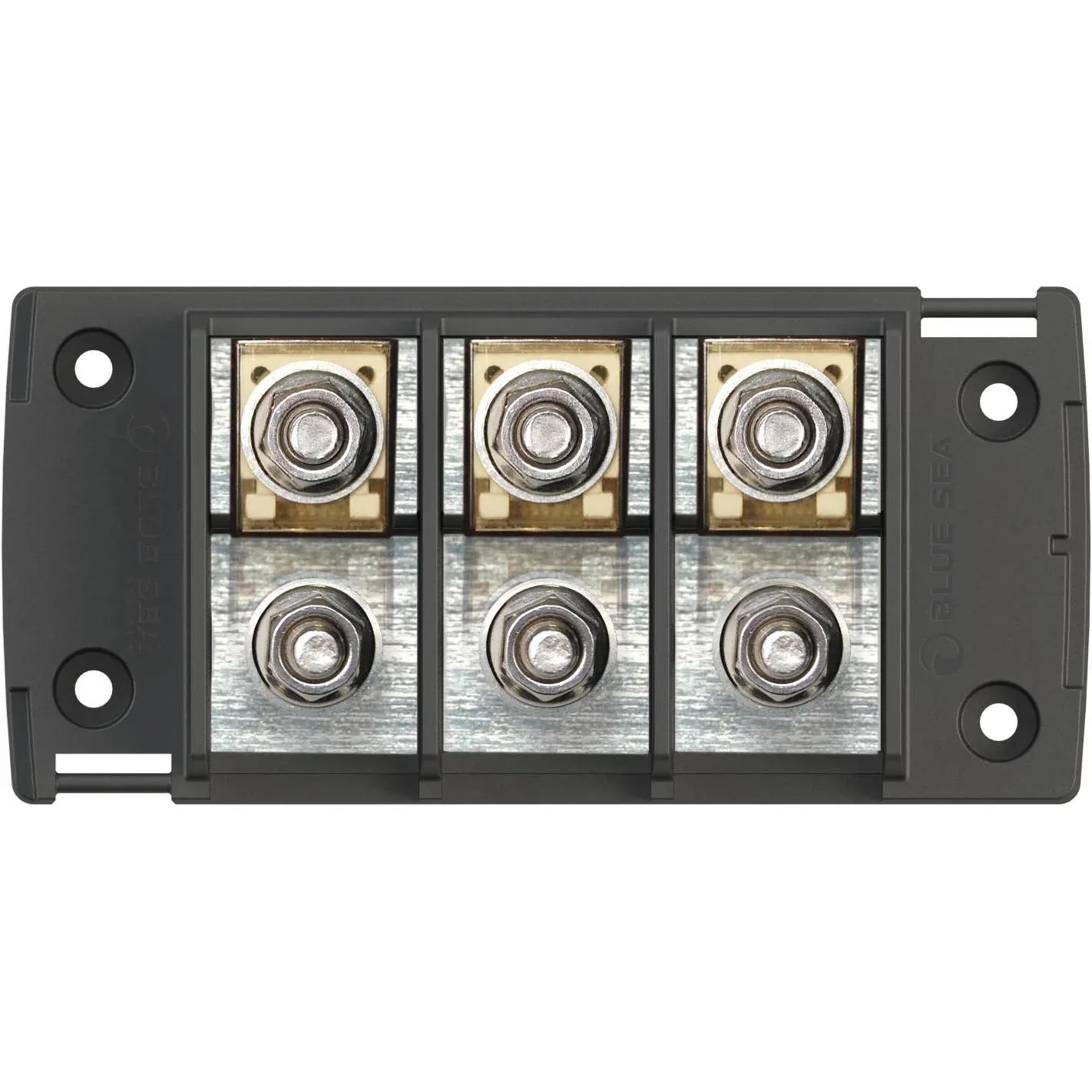

- 5194: Independent Source type, ignition protected. This surface-mount version accommodates three MRBF fuses with independent source wiring, a layout commonly used with multi-output battery chargers or separate incoming feeds.

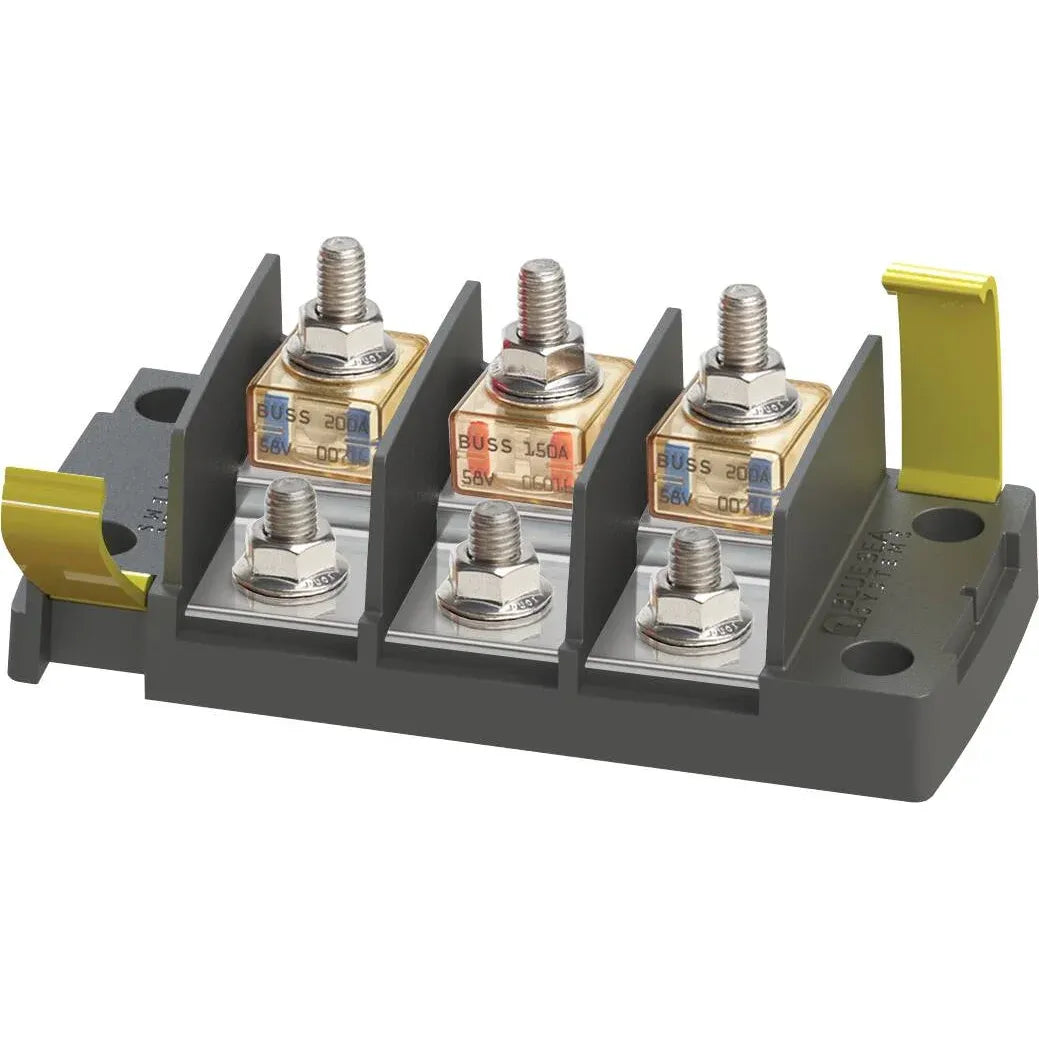

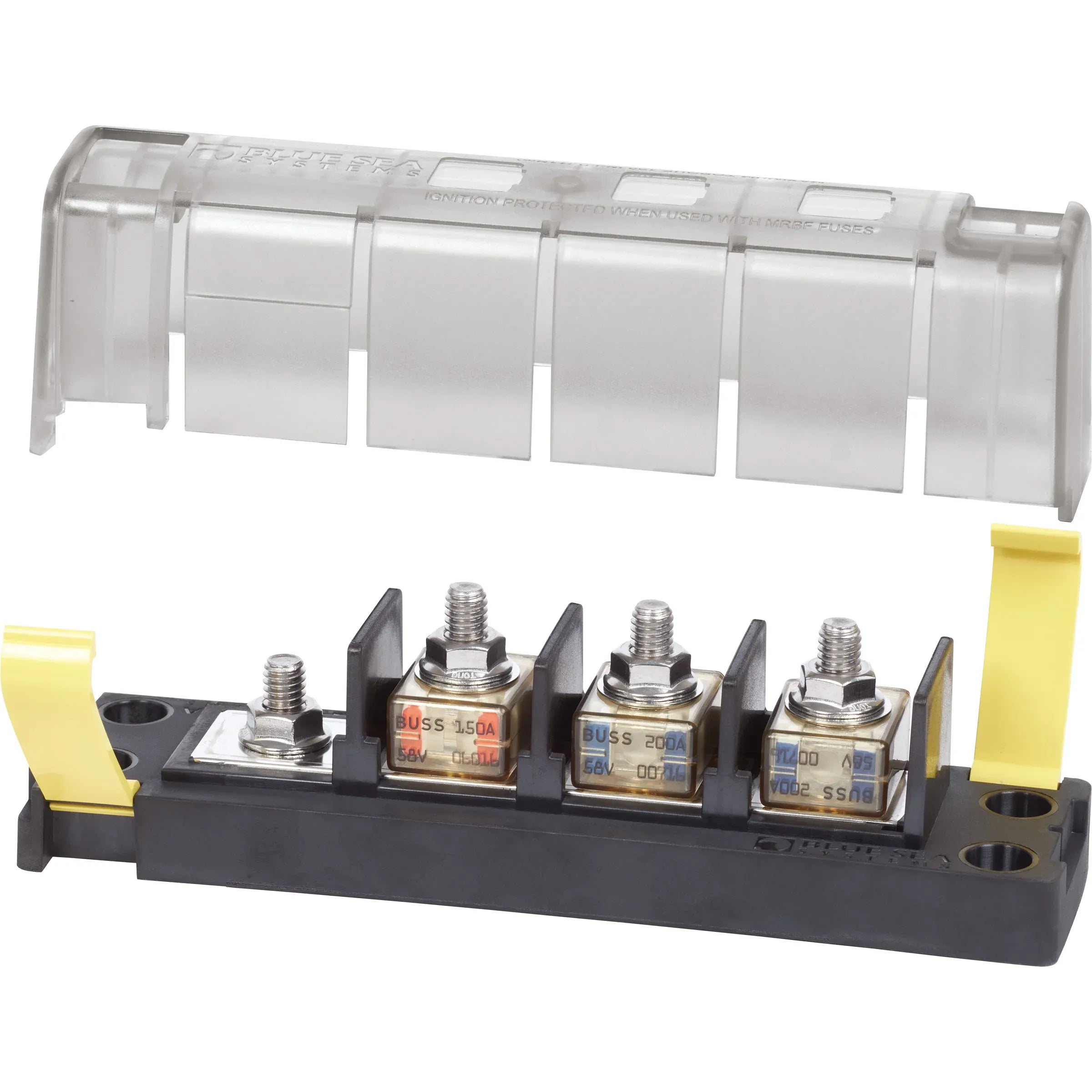

- 5196: Common Source type, ignition protected. This surface-mount version accommodates three MRBF fuses from one common source and distributes that source to three separately fused loads.
Installation and fit
The terminal-mounted versions are intended for compact installations at a battery post, battery switch stud, or bus bar stud where overcurrent protection needs to stay close to the source. They use standard M8 hardware at the fuse connection and allow terminal stacking when the installation layout and hardware stack height are appropriate.
The surface-mount versions are better suited to a fixed mounting location near a battery bank, charger, or DC distribution point. Their wiring layout allows cables to exit from one side, which helps keep high-current cabling organized in tight lockers, under-seat battery compartments, and electrical panels.
Fuse rating, cable size, lug size, and torque should be matched to the actual load and installation standard for the vessel. MRBF fuses should be used with the proper fuse block rather than mounted directly to a battery terminal.
Electrical and system integration
This is DC power protection hardware, not a data or instrument-network connector. It does not connect to NMEA 2000, NMEA 0183, or other marine electronics networks. Its job is to protect high-current conductors by placing a correctly rated MRBF fuse close to the source of power.
For refits and new electrical builds, the range works well where a full panel-style fuse holder would take too much space or where the protection point needs to be right at the battery, switch, bus bar, charger, or load distribution point.
Protection and serviceability

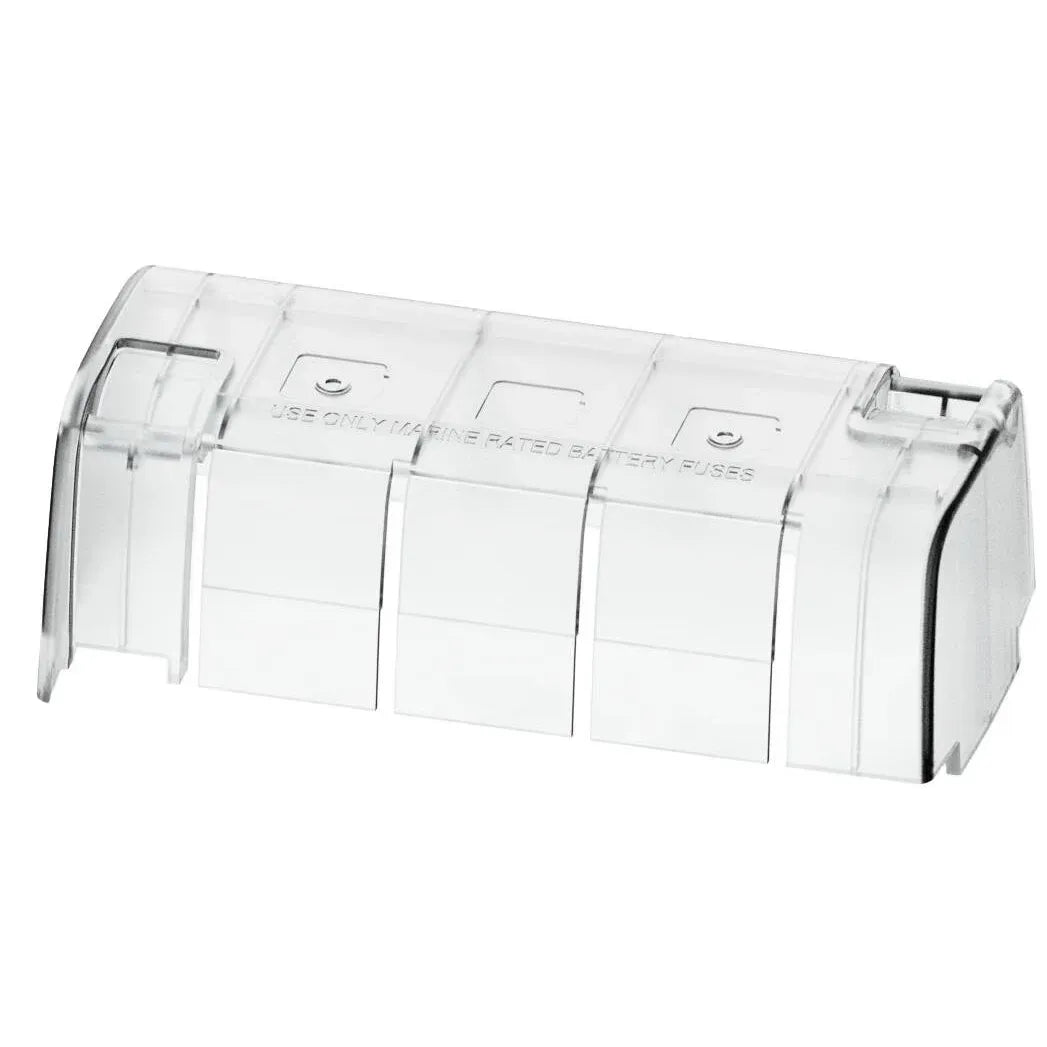

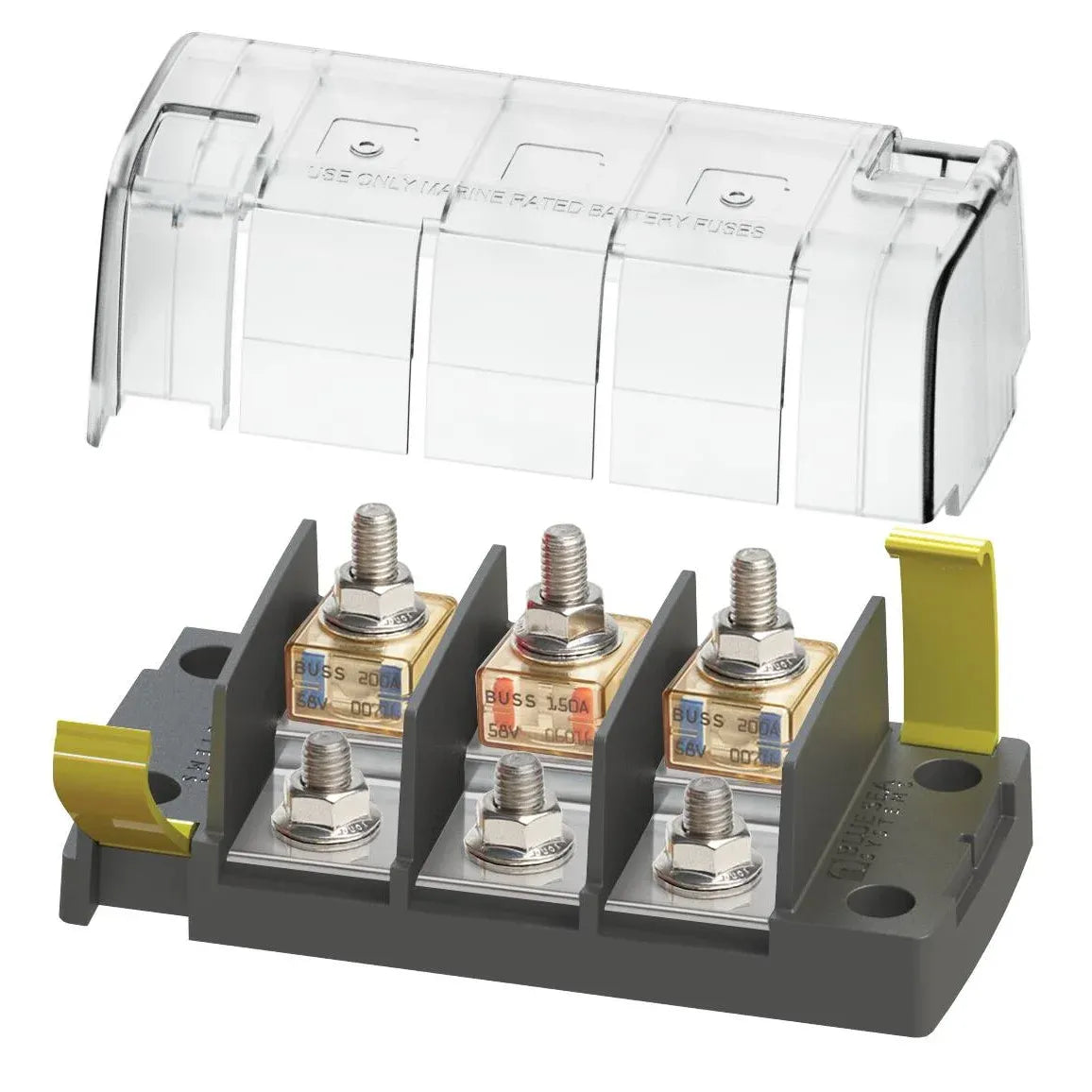

The insulating cap on the terminal versions and the clip-on cover on the surface-mount versions help shield energized hardware from accidental contact. On the surface-mount models, label recesses make it easier to identify circuits during service, troubleshooting, or battery charger maintenance.
Because the fuses are sold separately, the installer can select the MRBF fuse rating that matches the protected conductor and connected equipment. This keeps the fuse block flexible for different marine DC loads while still using one consistent MRBF fuse format.
