Imtra - Emden-Medium LED Downlight - Stainless Steel, Warm White/Blue, 10-30VDC, IP67, 3.0W (ILPB23303705)
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.

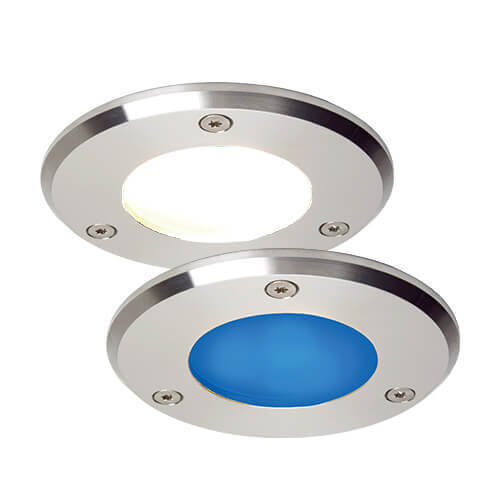

The Imtra Emden-Medium LED is a top-quality lighting fixture designed to withstand the toughest marine environments. This dimmable Bi-Color LED downlight is a "slave" model that features both blue and white operation. To control the dimming of both colors, a single Emden bi-color "master" is required in the circuit.
The Emden-Medium LED is perfect for those who desire advanced lighting control. For basic on/off control without dimming, a "master" is not required. When used in a dimmed circuit, the light is switched on or off by pressing briefly on the remote momentary switch. The brightness can be adjusted by holding down the switch.
To switch between blue and white light, simply double-click. The LED light can be dimmed to a minimum of 10% or pushed to maximum brightness of 100%. The light remains at that level until the next change. If Emden single color (white) slave lights are used in the group circuit, they will completely turn off when switching to the red mode.
Constructed from marine grade 316 stainless steel, Emden is engineered to the highest standards and will provide years of maintenance-free top performance. The low profile bezel edge and high polish finish provide a style element that will surely be appreciated by the meticulous yacht owner and his/her guests.
The Imtra Emden-Medium LED features integrated 10-30VDC constant current LED driver, polished stainless steel housing finish, frosted glass lens material, and IP67 ingress protection rating from the front. It has a beam angle of 90°+, 175 lumens of luminous flux, and a correlated color temperature of 3000K/Blue. The Emden-Medium LED also boasts a lifetime of 50,000 hours, class III classification, and is CE and ROHS certified.

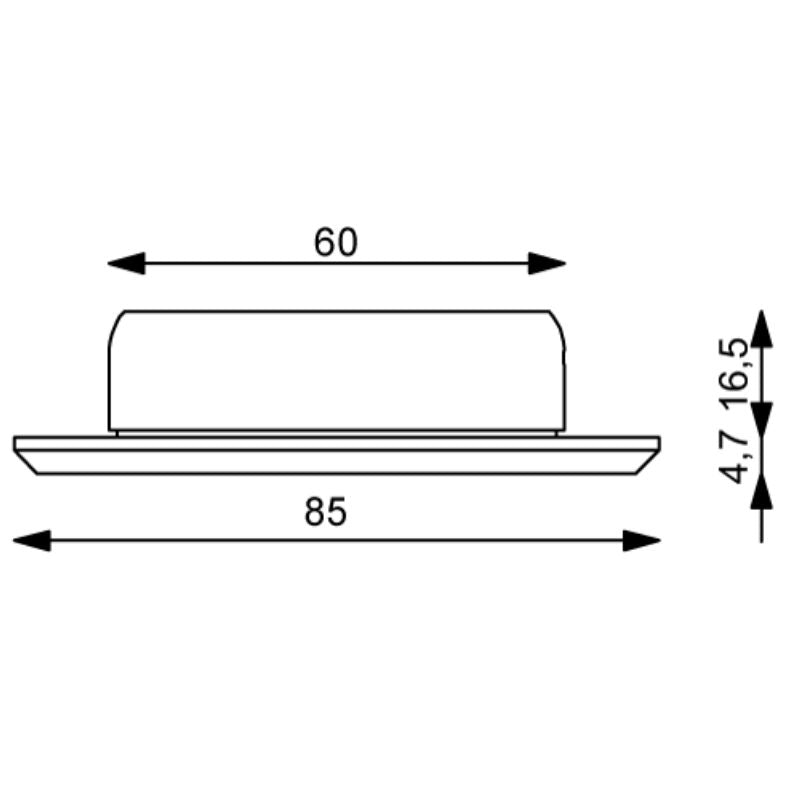

This stunning fixture has a trim ring (bezel) dimensions of 3.35" (85mm) and a cut-out dimensions of 2.36" (60mm). It has a recessed depth of 0.67" (17mm) and power consumption of 3.0W. The Emden-Medium LED is perfect for wet or dry installations and features electrical protections against transient and reverse polarity. The approximate ship weight is 1lb.
Choose the Imtra Emden-Medium LED for superior marine lighting control and long-lasting, beautiful performance.
