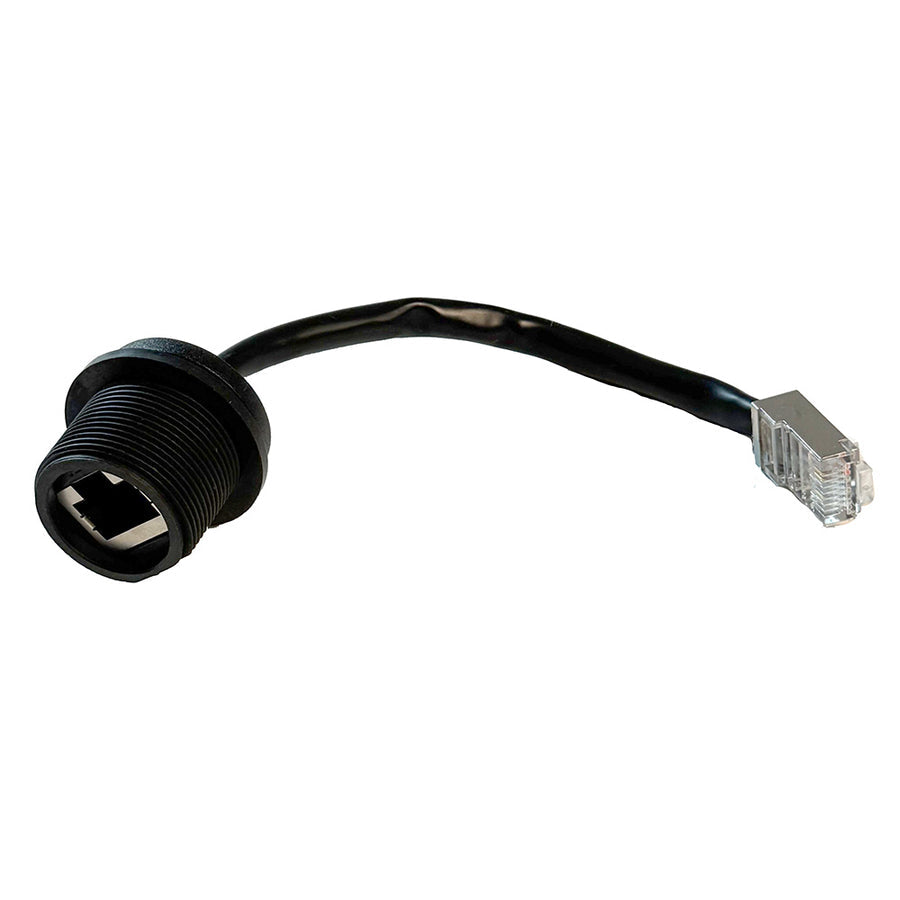

Lumishore MFD Conversion Cable, For Lumishore EOS Underwater Lights
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Lumishore 010-14453-00 is an MFD conversion cable used when a Lumishore lighting controller is being connected to a Garmin multifunction display network for on screen lighting control. It is a 1.6 ft cable, which is typically used as a short adapter run inside the helm electronics area.
In a typical install, this cable sits in the Ethernet link between the lighting control module and the Garmin network cabling that runs to the MFD or a Garmin network expander. For Garmin MFD installations, the conversion cable is required and the link should be made using Garmin network cables, not generic Ethernet patch leads.
Key features
- Used to connect compatible Lumishore lighting control hardware into a Garmin MFD network connection for on screen control
- Intended for Garmin MFD installs where the adapter must be used with Garmin network cabling in this link
- 1.6 ft length keeps the conversion close to the equipment and helps avoid extra slack behind the helm
- Black cable jacket that routes cleanly with typical marine electronics looms
- Commonly used in systems where a Lumishore control module is tied into the MFD network, such as SUPRA Bridge Module and ECLIPSE Command Center installations
Compatibility and fit
This cable is for boats where the lighting system is integrated to a Garmin MFD through the MFD network port. It belongs in the network data path between the lighting controller and the Garmin network side of the helm system.
If your display does not have a Garmin network connection, or the lighting system is operated only by a dedicated keypad or mobile device, this cable may not have a place in the installation.
Installation and setup
Plan the cable run so the connectors stay protected inside the console or electronics box, away from bilge humidity and washdown spray. Leave a small service loop, support the cable so vibration does not work the connectors loose, and avoid tight bends right at the plug ends.
After the physical network connection is made, confirm the MFD software is up to date so the lighting control pages load correctly when the system powers on.
Use cases on board
This is a good match for boats that want helm side control of compatible Lumishore lighting from a Garmin screen, including setups that switch between docking and night cruising scenes without adding another control pad at the dash.
It is also helpful on refits where you are keeping an existing Garmin network backbone and adding a lighting controller into the same electronics space for cleaner wiring and simpler access later.
