Imtra - Leer LED Downlight - 10-30VDC, 3W, IP67, 175Lm
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Illuminate Your Marine World with Vimar's Leer LED Downlight
Embrace an unprecedented lighting experience with Vimar's Leer LED Downlight, a marvel of design and technology tailored for marine interiors. With an elegant appeal and top-notch features, this recessed downlight is an ideal pick for those who wish to enliven their boat spaces with an air of sophistication.
Perfection in Glow: The Leer LED Downlight’s Lighting Characteristics
Enrich your space with the Leer Downlight’s radiant brightness, spread across a wide 90-degree viewing angle. Whether you prefer control directly at the source or from a remote switch, the versatile dimming options cater to your unique preferences. The master model uniquely offers an integrated momentary dimmer switch, while facilitating simultaneous control of up to 15 slave models, for a harmonized illumination experience.
A Technological Brilliance: Unveiling the Leer LED Downlight’s Specifications
Boasting an integrated 10-30VDC constant current LED driver, the Leer LED Downlight offers consistency and reliability in its performance. A remarkable IP67 ingress protection rating also ensures your downlight is well-shielded against dust and water, making it an all-weather companion for your marine adventures.
Decoding Dimensions: Exploring the Leer LED Downlight’s Structure

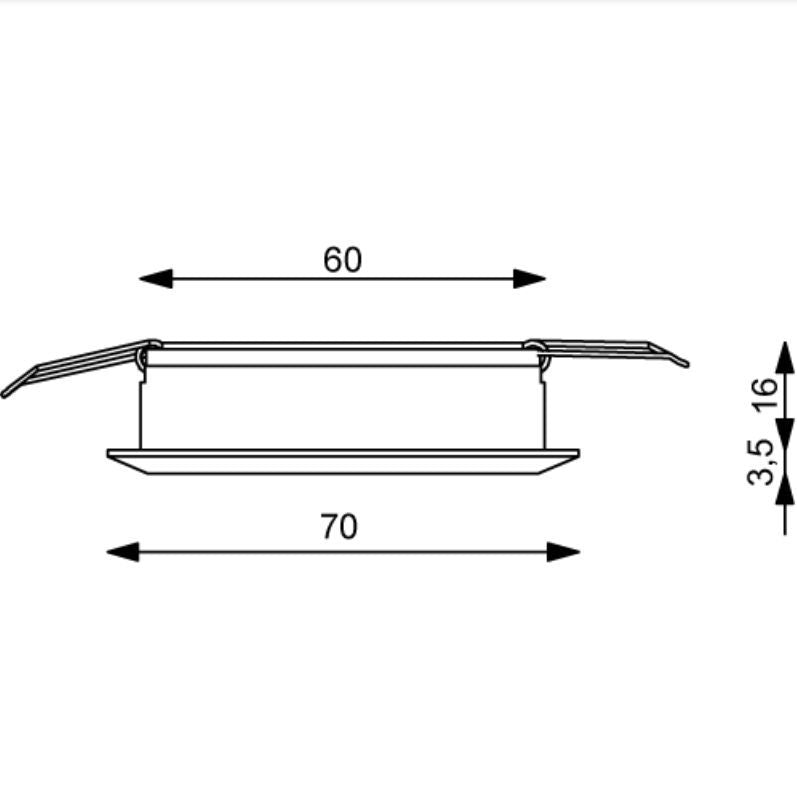

The Leer downlight offers an easy spring mounting installation with a shallow housing depth of only 0.70". With a cut-out dimension of 2.44" (62mm) and a trim ring dimension of 2.76" (70mm) x 0.14" (3.5mm), it is expertly designed for ceilings with limited depth behind the headliner.
A Dash of Elegance: The Leer LED Downlight’s Finishes
The downlight is available in various finishes - black, chrome, gold, matte, and white - offering versatility in enhancing any interior design style. Constructed with matte plated brass, it exudes an enduring style while promising durability.
Lighting Redefined: Highlights of the Leer LED Downlight
- Stylish and versatile lighting solution for marine interiors
- Bright illumination with a wide 90-degree viewing angle
- Integrated 10-30VDC constant current LED driver for consistent performance
- Multiple dimming options for tailored lighting control
- Durable and attractive matte plated brass housing
- IP67 ingress protection rating for dust and water resistance
- Low power consumption and a lifespan of 50,000 hours
A Palette of Choice: Variations in the Leer LED Downlight Series
- Leer LED Downlight Warm White - Black, Master
- Leer LED Downlight Warm White - Black, Slave
- Leer LED Downlight Warm White - Chrome, Master
- Leer LED Downlight Warm White - Chrome, Slave
- Leer LED Downlight Warm White - Gold, Master
- Leer LED Downlight Warm White - Gold, Slave
- Leer LED Downlight Warm White - Matte, Master
- Leer LED Downlight Warm White - Matte, Slave
- Leer LED Downlight Warm White - White, Master
- Leer LED Downlight Warm White - White, Slave
- Leer LED Downlight Warm White/Blue - Black, Master
- Leer LED Downlight Warm White/Blue - Black, Slave
