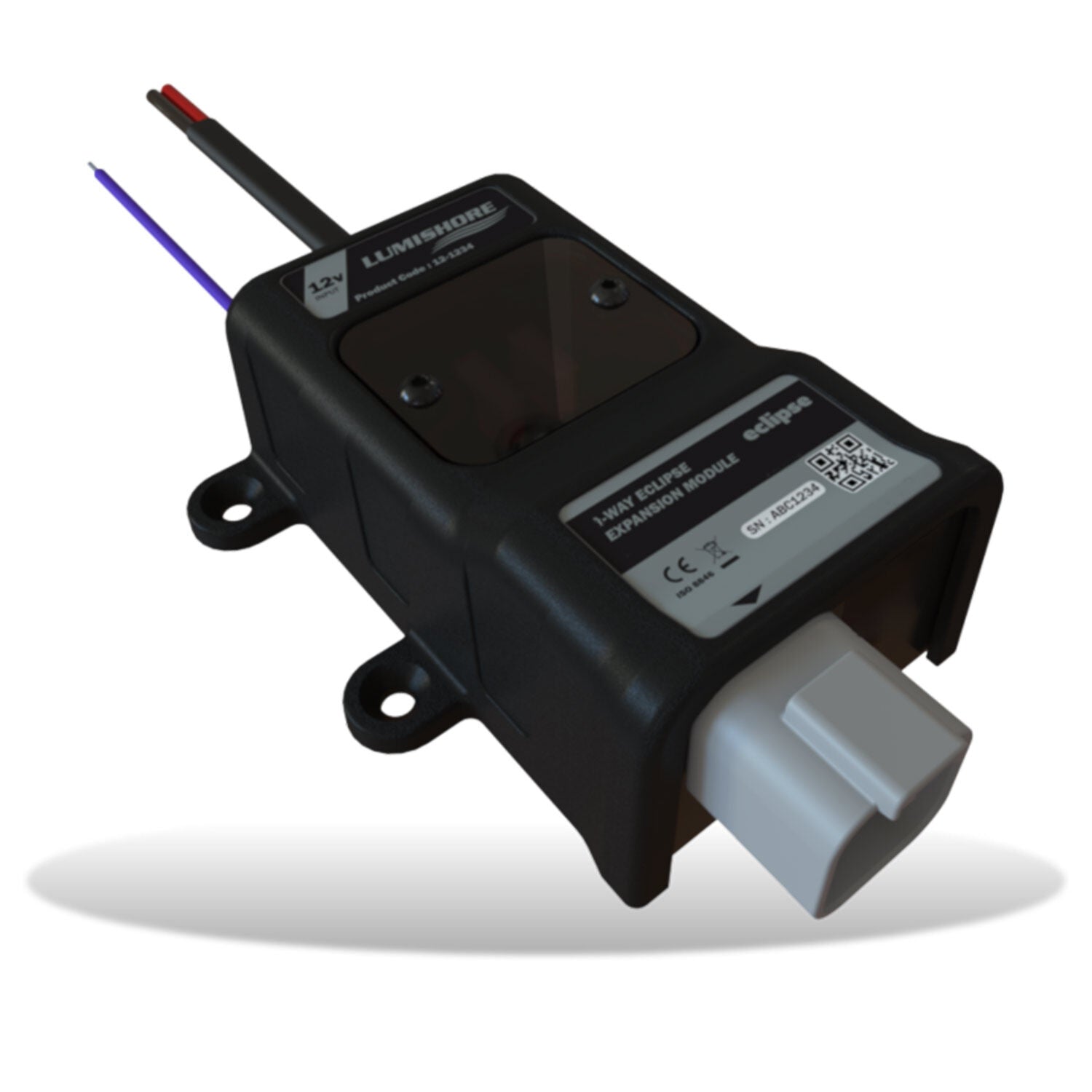

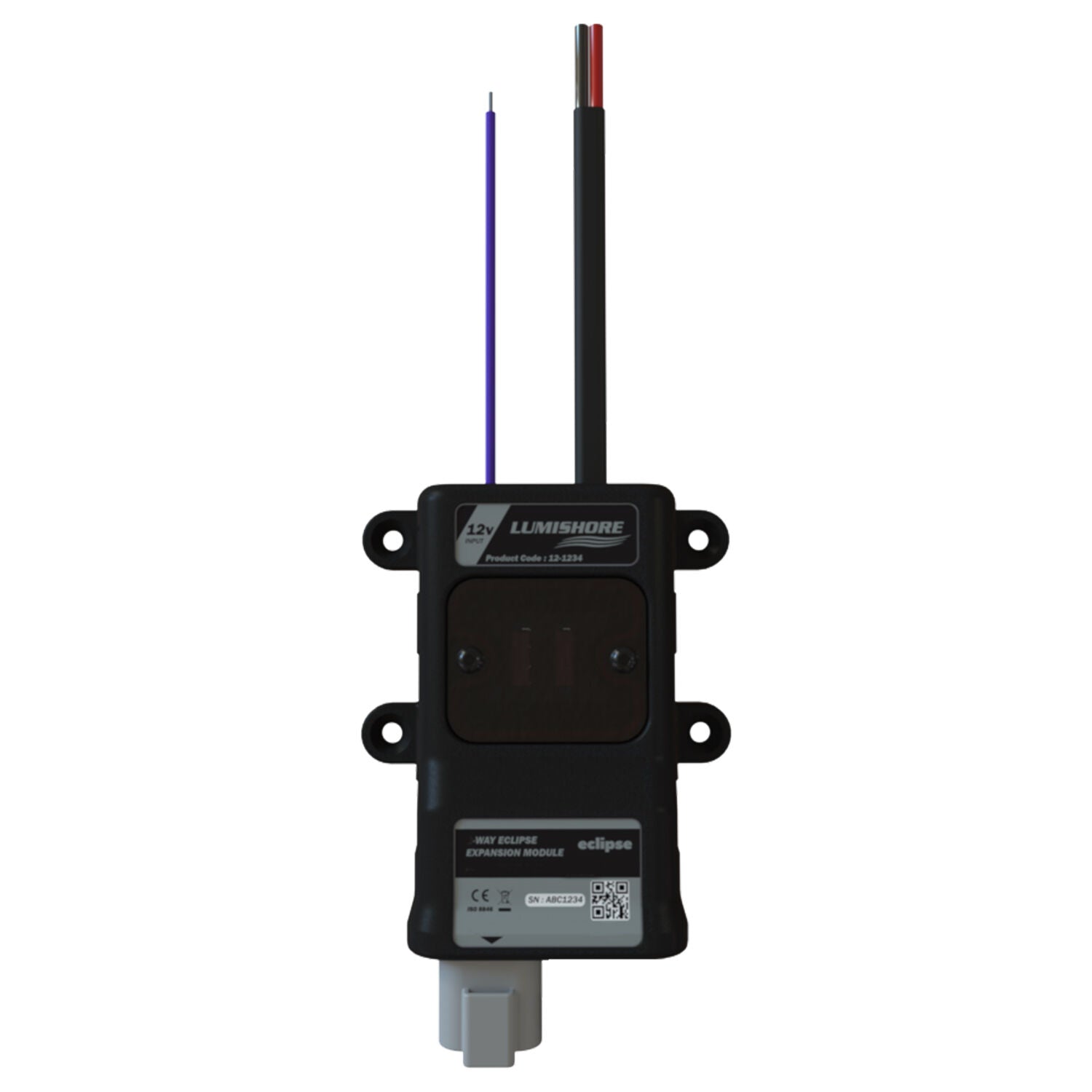

Lumishore ECLIPSE Command Center Expansion Module, 1 Zone, 12V, 10A, IP67

Overview

The Lumishore 010-04487-00 is a 1-zone ECLIPSE Expansion Module that adds one extra lighting zone to an ECLIPSE Command Center, bringing the system to four zones total.

It runs on 12V DC only (10 to 15V DC) and supports up to 10A on the added zone. That capacity can cover up to 16 ECLIPSE lights, as long as the combined current draw stays at 10A or less.

The enclosure is rated IP67, and the module includes surge protection, low-voltage protection, reverse polarity protection, and ISO 8846 ignition protection for installations where gasoline safety requirements matter.

Key features

• Adds 1 extra zone to an ECLIPSE Command Center (4 zones total with the Command Center)
• 12V DC only input range: 10 to 15V DC
• 10A maximum on the added zone (up to 16 lights when total draw is 10A or less)
• IP67-rated housing for wet lockers and washdown-prone mounting areas
• Control options include switch input and WiFi control via a smart device or certified MFD
• Built-in surge protection, low-voltage protection, and reverse polarity protection
• ISO 8846 ignition protection for suitable gasoline installations
• Compact footprint: 116 x 84 x 39 mm (not including cable glands); 265 g weight

Compatibility and fit

This module is part of the Lumishore ECLIPSE lighting ecosystem. It is compatible with Lumishore ECLIPSE above-water and underwater lights and is intended to work alongside a Lumishore ECLIPSE Command Center. It is not a standalone light controller for non-ECLIPSE fixtures.

Electrical and system integration

Plan the added zone like any other 10A DC branch circuit. Feed the module from a stable 12V distribution source, size wiring for the run length and expected load, and keep the total load on the zone at 10A or less. Because it is 12V-only, it is not the right fit for 24V house systems without a proper 12V supply.

Installation and setup

Mount the module where you can reach the wiring and cable glands for service, and where the enclosure will not sit in standing water. Keeping the module close to the Command Center helps reduce cable clutter at the helm and makes it easier to separate lighting areas into their own zone during a refit.

Use cases on board

This is a good match when you are expanding an existing ECLIPSE setup and want separate control over an added area, such as cockpit lighting, hardtop downlights, transom lights, or an underwater-light group. It also helps when you want simpler zone-level control from a switch or from WiFi-based control through the ECLIPSE system.
