Lumishore ECLIPSE DL55 Blue LED Downlight, IP67, 10-15V, White Finish

Overview

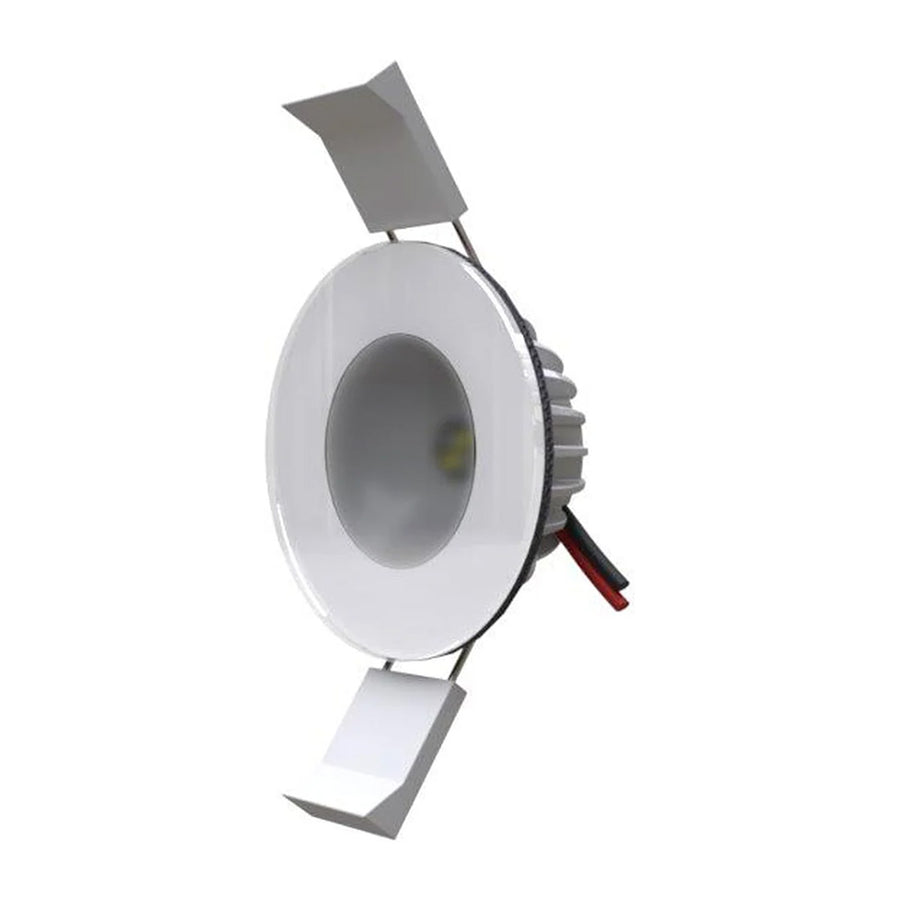

The Lumishore 010-04471-00 is a recessed, single-color blue LED downlight with a white finish, sized for a 50.8 mm (2") cutout and sealed to an IP67 rating for wet overhead areas on board.

It runs on 12V DC only (10 to 15V) and draws up to 0.4A, which makes it easy to add to an existing 12V lighting circuit without guessing at load.

The face profile is slim at about 3.5 mm, and the shallow 21 mm (0.83") installation depth helps when you are working in headliners, hardtops, or overhead panels where space is tight.

Key features

• Single-color blue output using 2 x 3W LEDs for night lighting and low-glare accent use
• 12V DC only input range (10 to 15V) with up to 0.4A current draw for straightforward circuit planning
• IP67 sealed front for damp locations and washdown exposure
• Recessed footprint: 50.8 mm (2") mounting hole with a 64.0 mm (2.519") bezel
• Shallow 21 mm (0.83") depth and low 3.5 mm face profile for tight overhead installs
• Stainless steel spring clips hold the light in place without visible fasteners
• Simple 2-wire hookup for basic switching and compatible control through an ECLIPSE Command Center

Installation and setup

Cut a clean 50.8 mm (2") hole, confirm you have at least 21 mm (0.83") of clearance behind the panel, then push the light into place so the stainless spring clips can grab the backside of the mounting surface. The 64.0 mm bezel covers the cutout edge for a finished look.

Wire it with a standard 2-wire connection to a switched 12V DC lighting circuit. Keep it on a regulated 12V feed since the operating range is 10 to 15V DC.

Compatibility and fit

This light is intended for 12V DC systems only. If your boat is primarily 24V, it should be fed from a proper 12V supply rather than wired directly to a 24V circuit.

The IP67 sealed face suits overhead mounting in areas that see spray, humidity, and vibration, such as hardtops, cockpit overheads, exterior soffits, and cabin headliners.

Use cases on board

Blue downlighting is commonly used for night running and dockside work where you want light that stays subdued and helps preserve night vision. It also works well as accent lighting over steps, seating, and cockpit work areas when you want to keep glare off windows and electronics.

This is a strong match for owners who need a small recessed downlight with a sealed face and a quick clip-in install for overhead panels.
